Introductio

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most

advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you

can operate the camera via the network in an easy-to-use manner.

The camera supports bidirectional audio communications, enabling you to communicate with people at the

camera from your PC while monitoring the surveillance video, instead of just hearing sounds from the

camera.

In addition, it is a PoE product that can be powered through a LAN cable, so you can install it in locations

where there is no power outlet nearby.

The camera has 4-megapixel CMOS sensor that produces clear images at ultra-high resolution.

When connected to a high-definition monitor, the camera allows you to monitor the video in the full high-

definition format.

Using multi-stream video transmission, it can simultaneously deliver up to four video/ima

e streams. Because

it allows video/image compression format, resolution, and other image conditions to be set as desired for

each stream, you can choose the optimal video/image for your application.

Equipped with a Variety of Functions

With a 10× built-in optical zoom lens, the camera offers a zoom magnification of up to 160× in conjunction

with the electronic zoom function.

The digital PTZ function lets you clip specific areas of the subject in VGA size and perform pan, tilt, and zoom

operations just as when using a PTZ camera.

The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the

construction of a high-level security system.

A commercially available SD memory card or an external hard disk drive (optional dedicated hard disk case

required) can be used to record the video on the camera.

Installing associated software applications on your PC further extends the capabilities of your surveillance system.

Introductio

Image pickup device 1/2.5” CMOS sensor

Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 2288 (H) × 1712 (V)

Lowest image

illumination

50IRE: 2.0 lx (F1.8, in color mode with high gain)

50IRE: 0.1 lx (F1.8 in black-and-white mode with high gain)

Video S/N ratio 50 dB or higher (when AGC is 'OFF')

Lens Focal Length: f=6.3 - 63 mm

F number: F1.8 - 2.5

Optical zoom 10x, electronic zoom 16x (up to 160x when used in combination with

the optical zoom)

Day/Night function Auto, color, black-and-white, alarm input switching

Focus AUTO, MANUAL, ONE PUSH

White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,

fluorescent

Backlight compensation Multi-spot evaluative metering, center-weighted evaluative metering, masking, face

detection

Electronic sensitivity

boosting

Auto (32× max) or Off

Electronic shutter VCC-HD4600P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

VCC-HD4600: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)

Iris AUTO/MANUAL (electronic iris: ON/OFF)

Digital PTZ Enables electronic pan, tilt, and zoom operations on clipped subject areas in VGA

size, Zoom magnification: 2× max

Camera settings Up to 2 patterns of monitoring conditions are configurable.

AGC gain Normal/Middle/High (Manual gain setting possible at Off)

Gamma correction 0.45, 1, Mode 1, Mode 2

Aperture compensation On/Off (Correction level adjustable)

VIVID COLOR EFFECT ON/OFF

DNR (digital noise

reduction)

ON/OFF

Image inversion Horizontal/Vertical/Horizontal and vertical/Off

Privacy mask On/Off, max. 8 mask patterns

Motion sensor On (Motion masking/motion detection area setting, or video analytics)/Off, face

detection

Sway compensation ON/OFF

Language selection English, French, German, Spanish, Japanese

Introductio

Video output HD Output: HDMI terminal (TYPE C)

Monitor output for video adjustment: BNC terminal (MONITOR OUT)

LAN 10BASE-T/100BASE-TX (RJ-45 connector)

EX-HDD Connector For external hard disk case connection

SD Card Slot 1 (SDHC compliant, max. 32 GB supported)

Alarm input 2 (NO/NC), also serving as Day/Night switching function input <control terminals>

Alarm output 2 (NO/NC switching, 16 V, 150 mA, open collector) <control terminal>

Lens remote control Zoom, Focus, Common (Voltage control: ±(6 to 12 V)) <control terminal>

Audio input/output Audio input (3.5-mm Mini jack) <AUDIO IN>

Audio output (3.5-mm Mini jack) <AUDIO OUT>

SD memory card Normal recording, Alarm recording, Backup recording in event of a network failure,

Log information recording

External HDD Normal recording, Alarm recording, Backup recording in event of a network failure,

Log information recording

Image/video

compression

H.264/JPEG

Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180

(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240

Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360

(4:3) 2288×1712, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240

Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE

BITRATE mode: User-specified bit rate

Interface 10BASE-T/100BASE-TX

Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP

Audio G.711 (Bidirectional)

Simultaneous access 20

Security BASIC authentication (ID/password), SSL, IP filtering

Introductio

Operating ambient

temperature/humidity

–10 to +50°C/14 to 122°F

90% RH or less (no condensation)

Power source 12 to 15 VDC

24 VAC±10%, 50/60 Hz

PoE

Power consumption 15 W (PoE: 12.3 W)

Weight 420 g/14.8 oz.

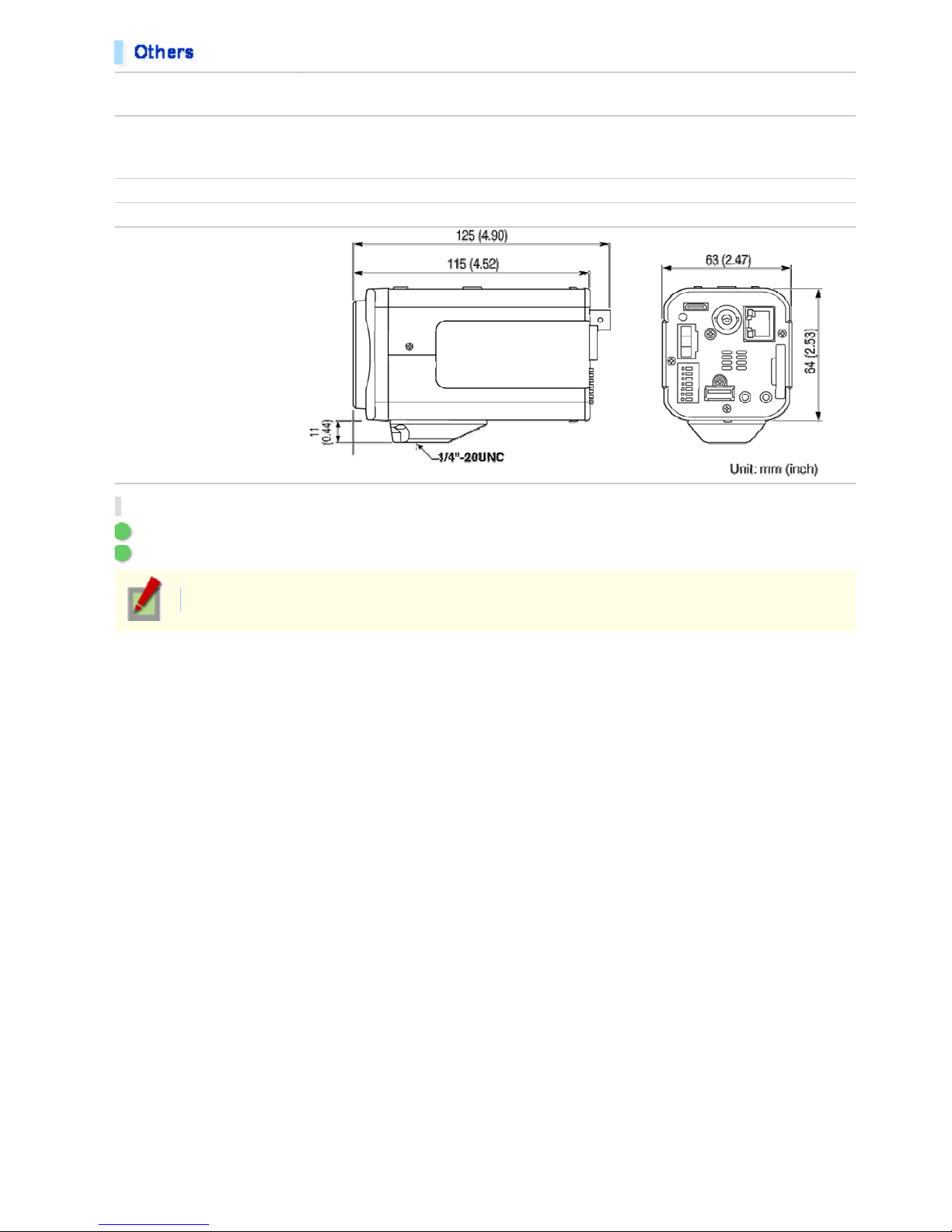

Dimensions

Accessories

1Power supply connector

2CD-ROM

Appearance and specifications are subject to change without prior notice or obligations.

Introductio

This table is displayed using a browser-specific function and therefore not displayed on the PDF

manual.

Refer to the table “Target size and recording time” in the electronic manual.

This table is displayed using a browser-specific function and therefore not displayed on the PDF

manual.

Refer to the table “Target size and recording time” in the electronic manual.

Introductio

This indicator lights up when the camera is powered on.

When the camera is on, this indicator blinks to indicate the following camera statuses:

Firmware update in progress

Deactivation of media recording is in progress.

Error occurring on SD memory card or external hard disk drive (faster blink)

Connecta24VAC or 12 VDC power supply to this terminal using the suppliedPowersupplyconnector.

For details, refer to the “Basic Connections” section.

For the detailed connection procedure, refer to the “Control Terminal Connections” section.

1Alarm input or Day/Night switching terminals (ALARM IN1/2)

These input terminals can be used for either of the following purposes:

Alarm input

Connecting an external switch, infrared sensor, or other device to these terminals enables the camera to

detect alarm conditions such as the entry of an intruder.

Day/Night switching

Normally, switching the camera between the color and black-and-white video modes is automatically

accomplished by the Day/Night function.

Using one of these alarm input terminals as the Day/Night switching terminal, however, enables the camera

to be switched between the color and black-and-white video modes when an external control signal is

received.

2Alarm output terminals (ALARM OUT1/2)

Connect a buzzer, lamp, or other alarm device to these terminals.

Introductio

3Zoom/Focus adjustment terminal (ZOOM/FOCUS)

Zoom and focus adjustment operations can be performed remotely by external voltage control.

4COM terminal (GND)

To record live video on a hard disk, put the hard disk in a dedicated hard disk case (VA-HDC4000) (sold

separately) and then connect the case to the camera.

For details, refer to “Formatting the recording media”.

Connect this jack via an audio cable to the audio input jack of an amplified speaker system or the monitor.

Use this jack to connect an external microphone to listen to the sound while monitoring the live video, or

simultaneously record the video and sound.

This jack supports 3.5-mm diameter monaural microphone plugs, or monaural line-level input plugs (the

left channel only for stereo plugs).

When recording live video onto an SD memory card, insert the card into the slot.

For details, refer to “Formatting the recording media”.

Use this socket to connect the camera to your PC to enable network operation.

For details, refer to the “Basic Connections” section.

Link access indicator (Green):

This indicator lights up approx. 3 seconds after power on, if a connection has been established

between the camera and the network.

After that, it will blink when data are being transmitted via the network.

Speed indicator (Orange)

The camera automatically detects the local network transmission speed (10BASE-T or 100BASE-

TX).

This indicator lights up when 100BASE-TX data transmission is in progress; it goes out when

10BASE-T data transmission is in progress.

Connect this terminal to a monitor, etc. A live video will be displayed on the monitor once the camera is turned on.

For details, refer to the “Basic Connections” section.

Introductio

While displaying live video, the current zoom magnification is displayed on the screen.

Optical zoom area: ×1.0 to ×10.0

Electronic zoom area: ×11 to ×160

Zoom magnification settings (ex. enabling/disabling the magnification display, displaying position)

can be configured via network operation on the VIDEO & AUDIO SETTINGS(TV OUT) screen.

The terminal outputs super-fine HD (High Definition) video signal. Use the terminal to connect a high-definition

monitor with HDMI interface.

For details, refer to the “Basic Connections” section.

The indicator also works as an error indicator.

Power indicator: The indicator lights up when the camera is powered on.

Error indicator: The indicator blinks when an error occurs.

To activate the power or error indicator, via network operation on the OPTION SETTINGS screen,

change the setting for [POWER LED (FRONT)] or [ERROR LED (FRONT)] respectively.

This bracket may be attached to either the top or bottom face of the camera depending on the installation

environment.

For bracket installation, be sure to use the longer screws supplied.

Introductio

Install the camera securely to a durable location, taking into account the total weight of the camera

mount (commercially available) and the camera.

When using operation buttons on the camera, slide and open the side cover to access the buttons.

Some operations can be performed via network operation.

ABasic operations (focus adjustment, zoom, etc.)

Operation Associated button and use Equivalent network

operation screen

Adjusting

focus

Press the button to set the focus to a near target; press the button

to set the focus to a far target.

Live screen control panel

ZOOM Press the button to zoom out of the image; press the button to

zoom into the image.

Live screen control panel

BMenu screen operations

Press the SET button for 2 seconds or more to display the menu screen.

For details, refer to the “Settings with the Menu Screen”.

Operation Associated button and use

Moving the cursor up or

down

Press button to move the cursor upward, or press button to move the cursor

downward.

Selecting the setting value Press or button to change the setting value.

Set the selected value Press the SET button.

Introductio

Altri manuali per VCC-HD4600P

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sanyo Telecamera di sicurezza

Sanyo

Sanyo VCC-9500 Manuale utente

Sanyo

Sanyo VDC-HD3100P Manuale utente

Sanyo

Sanyo VCB-3442P Manuale utente

Sanyo

Sanyo VCC-XZ600N - Network Camera - Weatherproof Manuale utente

Sanyo

Sanyo VDC-D1785IRVP Manuale utente

Sanyo

Sanyo VDC-DP9575P Manuale utente

Sanyo

Sanyo VCC-W9875VP Guida utente

Sanyo

Sanyo VCB-3444 Manuale utente

Sanyo

Sanyo VDC-C1024V Manuale utente

Sanyo

Sanyo VCC-5974 Manuale utente

Sanyo

Sanyo VCC-6594P Manuale utente

Sanyo

Sanyo VCC-6674 Manuale utente

Sanyo

Sanyo VCC-9684VA - 1/4" Color CCD Indoor Mini Dome... Manuale utente

Sanyo

Sanyo VCC-HD4600 - Full HD 1080p Day/Night Network... Manuale utente

Sanyo

Sanyo VCC-P6784 Manuale utente

Sanyo

Sanyo VCC-MCH5600P Manuale utente

Sanyo

Sanyo VCB-9312P Manuale utente

Sanyo

Sanyo VCC-6584E - 1/3" Color CCD DSP High-Resolution... Manuale utente

Sanyo

Sanyo VCB-3374 Manuale utente

Sanyo

Sanyo VCC-P7574 - 1/4" Color CCD Indoor Mini Dome... Manuale utente

Sanyo

Sanyo VDC-HD3500 - Full HD 1080p Vandal Dome... Manuale utente

Sanyo

Sanyo VCC-5974 Manuale utente

Sanyo

Sanyo VCC-4344 - 1/4" CCD High Performance Day/Night... Manuale utente

Sanyo

Sanyo VCC-3972P Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
