Sanyo VCC-XZ600P Manuale utente

The figure below illustrates the system when the camera cover is pulled forward by loosening the camera cover

fixing screws.

Camera stand

Arm

Camera mount

Camera mounting bracket

Operation buttons (on right side face)

Camera cover

Camera cover fixing screws (×4)

Lens

Safety chain

Cable label

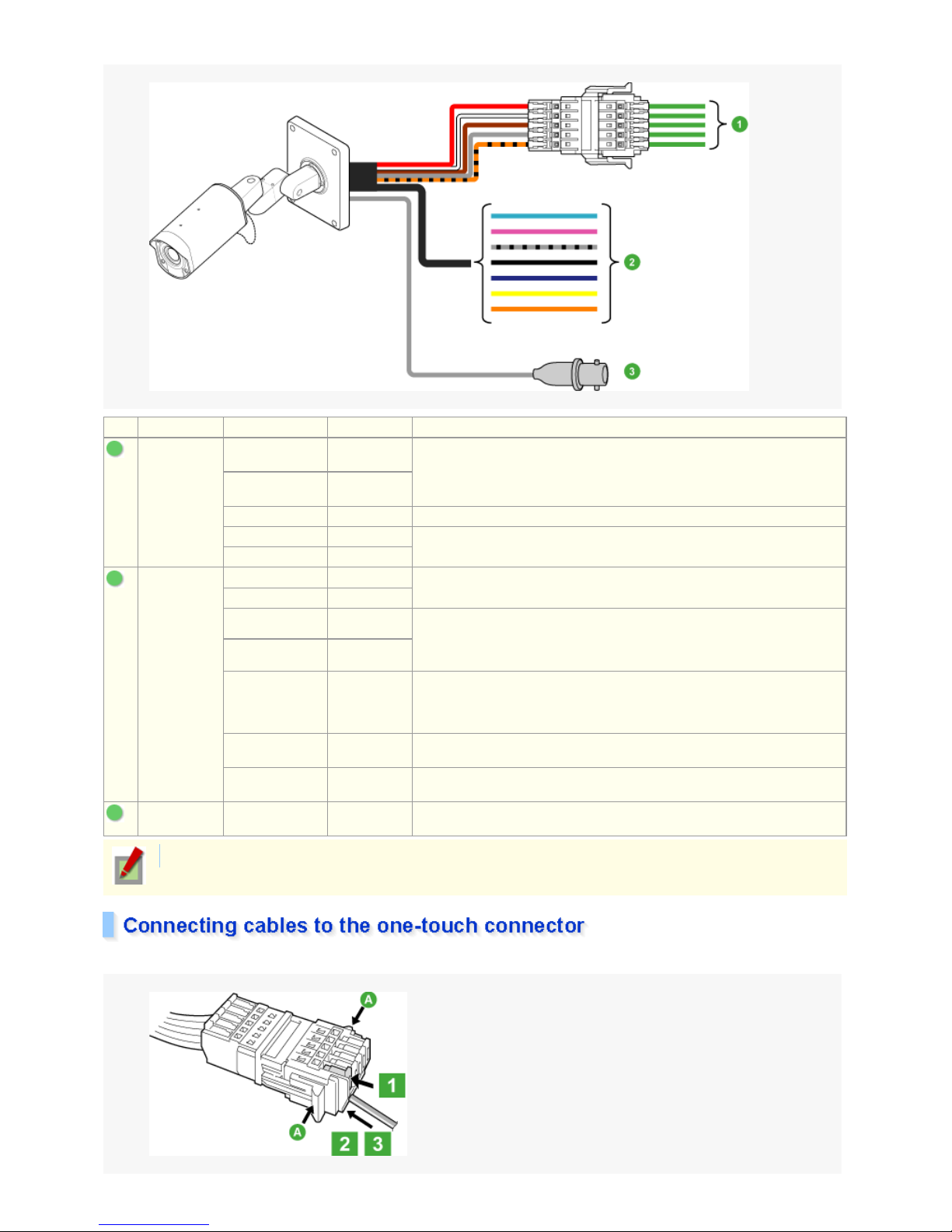

Connection cables

You can identify each connection cable by its shape and color.

1 / 100

Follow the steps below to connect each cable firmly to the one-touch connector.

Shape Color Signal Name Use

1One-touch

connector

RED 24 VAC/12

VDC (+)

Used to connect the power supply.

WHITE 24 VAC/12

VDC (–)

BROWN COMMON Earth terminal

GRAY RS485 (A) Used to connect the system controller or other external system component.

For connection, use cables with 22AWG wire or thicker.

ORANGE/BLACK RS485 (B)

2Individual

cables

SKYBLUE UTP (+) Use these twisted pair cables to output the video signal to an external device.

PINK UTP (–)

GRAY/BLACK ALARM IN 1 Used to connect alarm switch, infrared sensor, or other external devices.

To automatically switch between the color and black/white modes, select

[DAY/NIGHT], choose the “COLOR” mode, and then set the “EXT ALARM” to

an appropriate input level.

BLACK ALARM IN 2

BLUE ALARM OUT Used to connect a buzzer, lamp, video recorder, or other peripheral device.

To control the alarm output externally from a remote location, on the ALARM

OUT screen, select [OUTPUT] and choose “REMOTE.”.

YELLOW FOCUS Used to adjust the camera focus by external voltage control.

DC ± (6 to 12 V), +: FAR/-: NEAR

ORANGE ZOOM Used to adjust the camera zoom by external voltage control.

DC ± (6 to 12 V), +: WIDE/-: TELE

3BNC

connector

COAXIAL CABLE VIDEO OUT Used to connect to the VIDEO IN connector of your monitor.

For the cable type, see the “cable label” attached to the cable bundle.

2 / 100

Push the lever.

The terminal hole opens.

Insert the cable into the terminal hole.

Be sure to insert the cable firmly all the way to the end.

Release the lever.

The cable is now locked.

Make sure that the cable is locked firmly in place.

To prevent short-circuiting, make sure that the stripped wire portion is not exposed out of the

connector.

This connector is a separable type.

Separating the connector by pressing the connector lever facilitates your work, especially when

changing the connection with the power supply and system components.

3 / 100

Be sure to turn OFF the power switch of all devices to be connected.

In addition, read the instruction manual for each device carefully so that you can connect devices correctly. Note

that incorrect connection may cause smoke or malfunction.

Connect the video cable.

Use the coaxial cable to connect the camera's video output (VIDEO OUT) connector to the video input (VIDEO

IN) connector of your monitor or other peripheral device.

Connect the power cables to the power terminals of the one-touch connector.

Use a power cable with an AWG wire (20, 21 or 22).

Although power wires have no polarity in this case, the earth wire must be connected to the earth (COMMON)

terminal.

Cable type RG-59U (3C-2V), 250 m maximum

Cable type RG-6U (5C-2V), 500 m maximum

Cable type RG-11U (7C-2V), 600 m maximum

Using lower-grade cables will cause the attenuation of the video and synchronization signals,

preventing correct transmission.

An RG-59U coaxial cable may be used if the distance between devices you want to connect is short.

However, avoid using it for piping or air wiring.

Use CCTV/Video-compatible coaxial cables.

4 / 100

Note the polarity (+/–) when you connect 12-VDC power cables.

Incorrect polarity may cause damage to your camera.

Plug in the power cable to the wall outlet.

When the camera is turned ON, the monitor shows the startup screen with system information on your camera

for approximately 10 seconds and displays live video images.

While monitoring the video images displayed on the monitor, set the operating conditions and required functions

of the camera using the menu screen.

Connect the following cables as required.

For detailed information on these connections, refer to the separate installation manual.

ALARM IN cables: GRAY/BLACK, BLACK

Used to connect alarm switch, infrared sensor, or other external devices.

ALARM OUT cable: BLUE

Used to connect a buzzer, lamp, digital video recorder, or other peripheral device.

FOCUS/ZOOM cable: YELLOW, ORANGE

Used to remote control the camera.

UTP cables: SKYBLUE, PINK

Use these twisted pair cables to output the video signal to an external device.

A voltage drop occurs depending on the thickness of the power wires. If you must use a long power

cable, determine the cable type by ensuring that the voltage at the power input terminal falls in the

operating range of this unit.

5 / 100

A surveillance system consists of mainly the following peripheral devices. Please use SANYO products for

connection with this camera.

Displays surveillance video for monitoring. The monitor also displays the menu screen.

Records surveillance video. For surveillance systems, the use of a DVR is recommended. DVRs ensure a long-

hour recording without video degradation.

Provides not only the remote control of the camera and connected devices, but also the centralized control of a

surveillance system consisting of multiple components.

This is a simplified camera controller. It enables you to set the camera’s menu options from a remote location.

Be sure to disconnect the camera control unit when setting is completed.

6 / 100

The menu screen allows you to set the operating conditions and required functions of the camera according to

your installation environment or other needs.

To set the camera conditions on the menu screen, use the operation buttons on the camera or the optional

camera control unit (VAC-70).

Completely loosen the four fixing screws located on the front face of the camera and pull the camera cover

forward.

Now, you can use the operation buttons on the right side face of the camera to set the operating conditions of

the camera.

(For details, refer to the separate installation manual.)

Pressing the SET button for approximately three seconds causes the main menu to appear on the monitor.

buttons

Used to vertically move the cursor to select a menu item.

buttons

Used to make adjustments in horizontal direction or choose a setting value.

SET button

Use the SET button to set the value you adjusted or chose for the selected item, or switch to the sub-menu.

When the password lock is enabled, the user will be prompted for the entry of the password if he/she

attempts to access the setting on the menu screen.

Using this function, you can prevent users other than the password administrator from changing the

menu settings.

If you forget your password, contact the distributor from which you purchased the camera.

The menu screen will close automatically if no operation is performed for approximately 3 minutes.

After you complete setting up the camera, reinstall the camera cover in position and tighten the fixing

screws with a torque of 0.5 to 1 N·m (5 to 10 kgf·cm) to maintain the waterproof performance.

7 / 100

When the menu screen is not displayed, the operation buttons can be used to perform the following operations:

Focus adjustment

Use the button to set the focus to a near target.

Use the button to set the focus to a far target.

Zoom adjustment (Magnification: ×1 to ×30)

Use the button to zoom out of the target.

Use the button to zoom into the target.

One-push auto focus adjustment

Use the SET button to focus the camera automatically by one-push operation.

Connecting the optional camera control unit enables you to remotely set the camera's operating conditions on

the menu screen.

For details, refer to the instruction manual supplied with the camera control unit.

Be sure to disconnect the camera control unit after you complete setting up the camera.

Avoid connecting the camera control unit via a cable compensator or video distribution amplifier.

Doing so may prevent remote control of your camera.

8 / 100

Main Menu Sub Menu Description of Setting

1SYNC -Sets the signal synchronization method.

CAMERA IRIS Sets the lens iris.

WHITE BALANCE Adjusts the white balance of the video signal.

BLC Sets the backlight compensation function.

SHUTTER Sets the electronic shutter.

APERTURE Corrects the profile of the target object.

AGC Sets the gain of the video signal.

GAMMA Adjusts the contrast and brightness of the video signal.

MOTION Sets the motion sensor function that automatically detects moving targets.

POSITION Stores the zoom/focus settings of the current position by camera setting number (1 or

2).

DAY/NIGHT Sets the Day/Night function that automatically switches between color and black/white

video modes depending on the luminance of the target.

3LENS FOCUS Sets the focusing mode.

ZOOM Sets the optical zooming speed and electronic zooming option.

ALARM ALARM IN Provides alarm input settings.

ALARM OUT Provides alarm output settings.

ALARM DISPLAY Sets the alarm display function.

5PRIVACY MASK MASK 1 to 4 Masks anywhere you want to hide on the screen for the purpose of privacy protection.

PASSWORD PASSWORD LOCK Sets the password lock function that prevents access to the menu screen.

PASSWORD

CHANGE

Changes the password.

7LANGUAGE -Sets the language in which menu items are displayed on the menu screen.

OPTION DISPLAY Sets the information to be displayed on the monitor.

MIRROR Sets the mirroring function that electronically reverses the displayed image.

STABILIZER Corrects the image from the camera when it sways.

SYSTEM Sets the conditions for the connection of external devices to the camera.

9 / 100

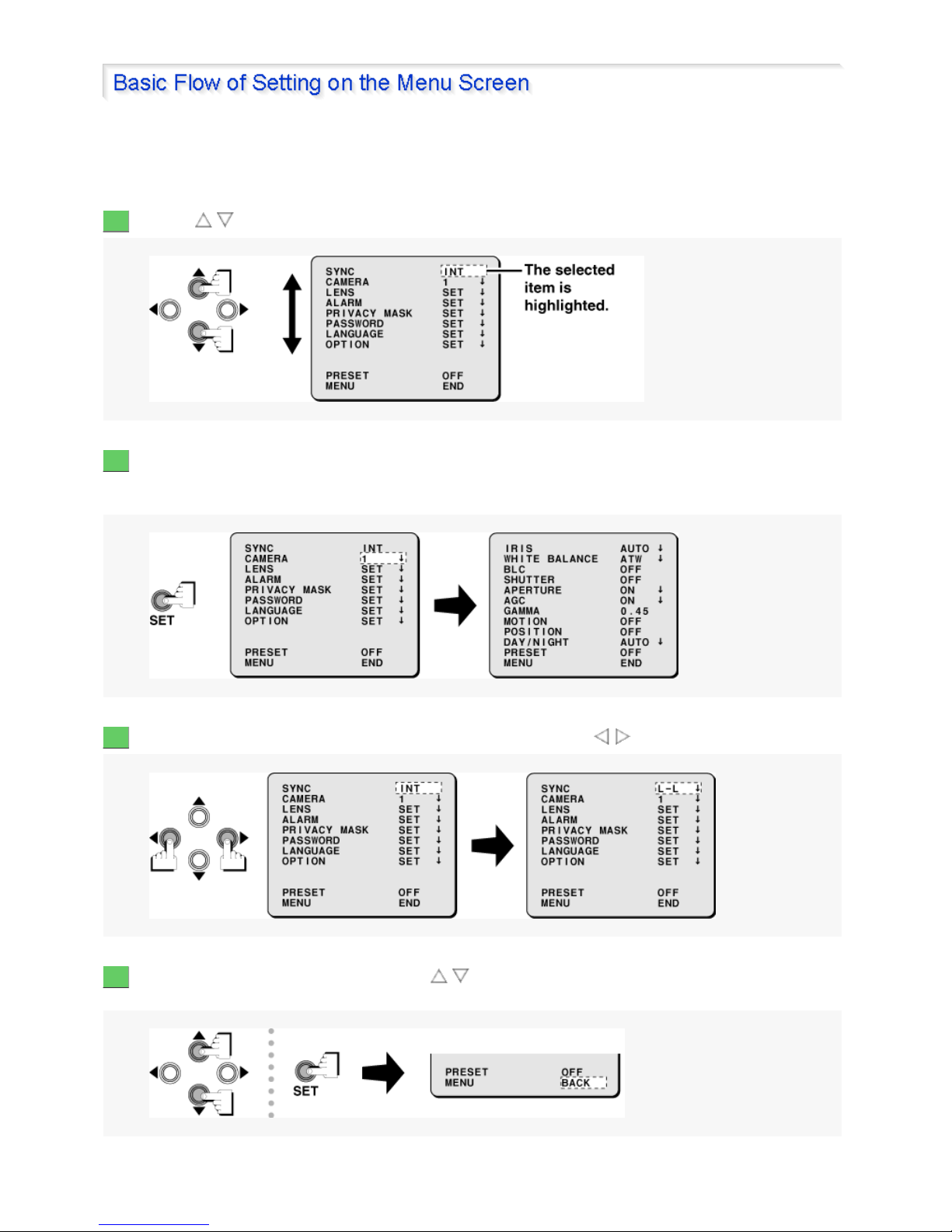

While viewing the menu screen on the monitor, set the operating conditions using the operation buttons on the

camera.

You may use the optional camera control unit to do so.

Use the / button to select the menu item.

If the “↓ ” (down arrow ) symbol is shown to the right of the selected menu item, press the SET

button.

The next-level sub menu or the details setting screen appears.

To choose a setting, show the desired value or option using the / button.

To return to the previous screen, use the / button to select [MENU] and, with the setting of

“BACK” shown, press the SET button.

10 / 100
