QUICK START GUIDE

Picus® & Picus® NxT

Electronic Pipettes

Getting Started

1. The Picus®/Picus® NxT pipette is delivered ready

for use, with the fixed battery partially charged.

2. It is recommended to charge the pipette before

first use, for approximately one (1) hour using:

- Charger: connect the pipette to the charger

cable, which has a USB adapter, and plug the

charger adapter into the mains power outlet

Charging stand or carousel: make sure that the

charging stand is connected to the mains power

outlet, and that the charging contacts of the

pipette are properly inserted into the grooves of

the charging stand

3. Insert the replaceable Safe-Cone Filter(s) into the

tip cone(s) before use to avoid contamination of

the pipette. Alternatively, you may use filter tips.

4. Press the ON/OFF button on top of the pipette to

turn the power on.

5. Press tip ejector when indicated by the display.

6. Pipette is now ready to be programmed and

operated.

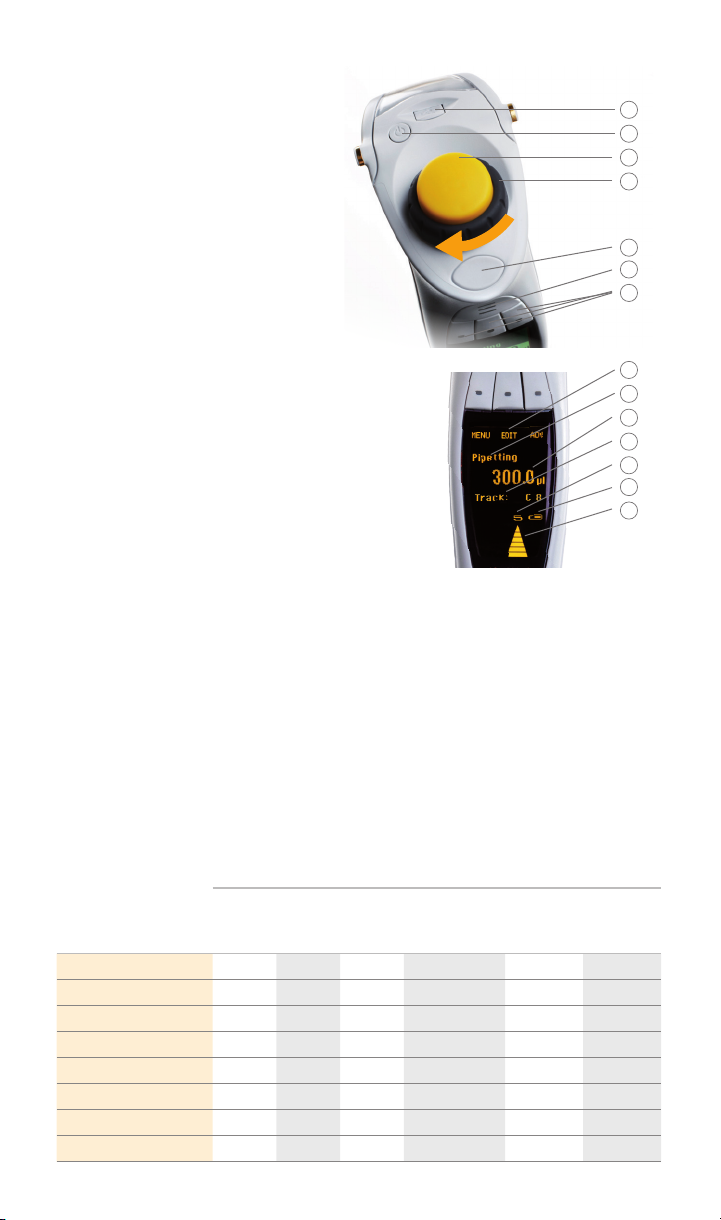

Operating Buttons

1. USB-charging socket

2. ON/OFF button

3. Operating-button

4. Adjustment-wheel

5. Electronic tip ejector

6. Hotkey for memory places

7. Softkeys for programming

Display

1. Softkey functions

2. Current mode

3. Pipetting volume and aliquots in multi

dispensing modes

4. Additional mode (ADV), if selected

5. Speed

6. Battery indicator

7. Arrow indicating pipetting direction

Pipetting Modes

- available in all

Picus®/Picus® NxT

models

Additional Modes

- to be used in conjunction with the pipetting mode

Tracker Mixing Counter Excess

Volume

Adjustment

Auto

Dispensing

Repeated

Blow-out*

Pipetting    

Reverse Pipetting   

Manual Pipetting 

Multi Dispensing   

Diluting  

Sequential Dispensing 

Multi Aspiration 

Titrate

*Only in Picus® NxT models.

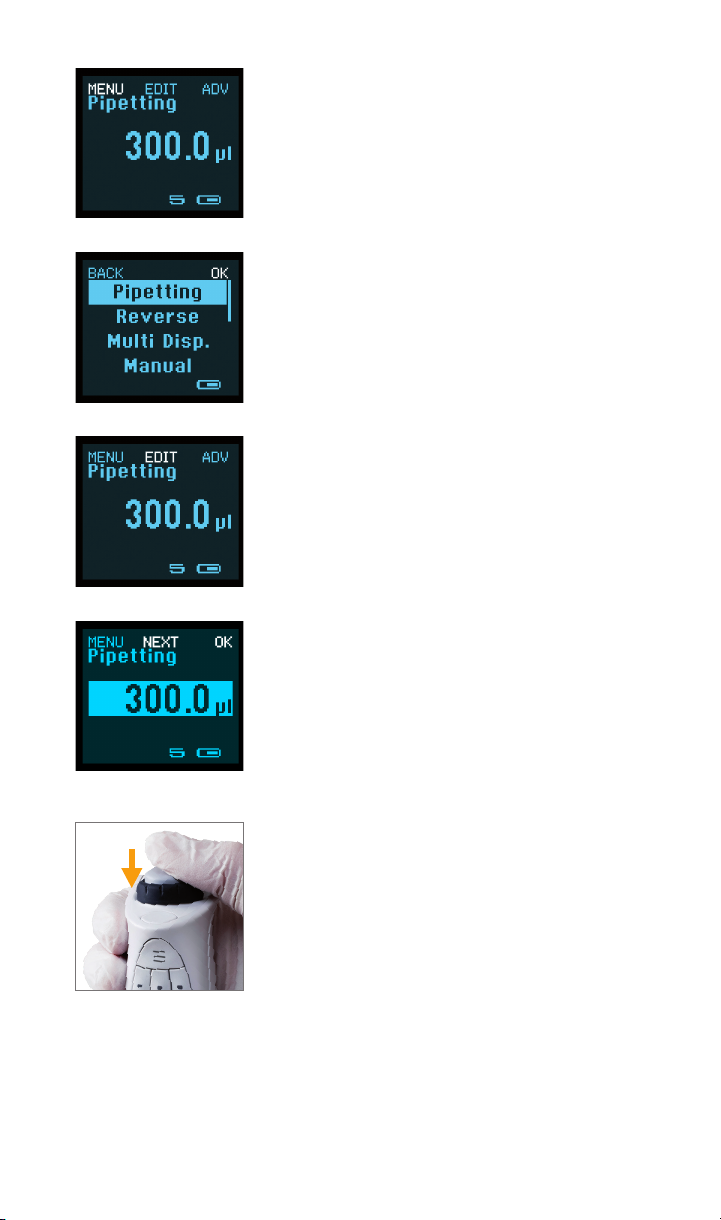

4.-6. Change the setting and

press OK or NEXT

1. Press MENU

3. Press EDIT

2. Choose mode

8. Start pipetting

Programming

For programming the pipette, use:

Operating-button

- Activates the pipetting aspiration and dispensing

- Confirms the selected settings

Adjustment-wheel

- Enables fast and comfortable navigation in menu

and volume setting

- Controls pipetting aspiration and dispensing

operations in manual pipetting mode

Softkeys

- Activate the programming functions

1. Press left Softkey to open MENU and turn the

Adjustment-wheel to scroll between the modes.

2. Press Operating-button on top, or OK to confirm the

selection.

3. Turn Adjustment-wheel or press EDIT to unlock the

mode for editing.

4. Change the settings by turning Adjustment-wheel.

5. Press NEXT to move to next parameter to be edited.

6. Confirm the settings by pressing Operating-button

or OK.

7. Attach the pipette tip(s).

8. Start pipetting by pressing Operating-button.

9. To activate additional modes (e.g. mixing, tracker,

counter) press ADV. Turn Adjustment-wheel to scroll

between the functions and press Operating- button

or OK to activate selected feature.

10. To store the active mode to memory, press Hotkey.

Scroll through the memory locations with

Adjustment-wheel. At the desired location press

SAVE to store and to rename the program.

Autoclavable

lower parts

excl. 1200 models

The status of the information, specifications and illustrations in this quick guide are subject to

change. Sartorius reserves the right to make changes to the technology, features, specifications and

design of the equipment without notice. All trademarks are Sartorius property unless otherwise

stated. Patents granted or pending. Patents: 109882, 120861, 4451311, 10-0937762, 255595,

PL202091, 006476

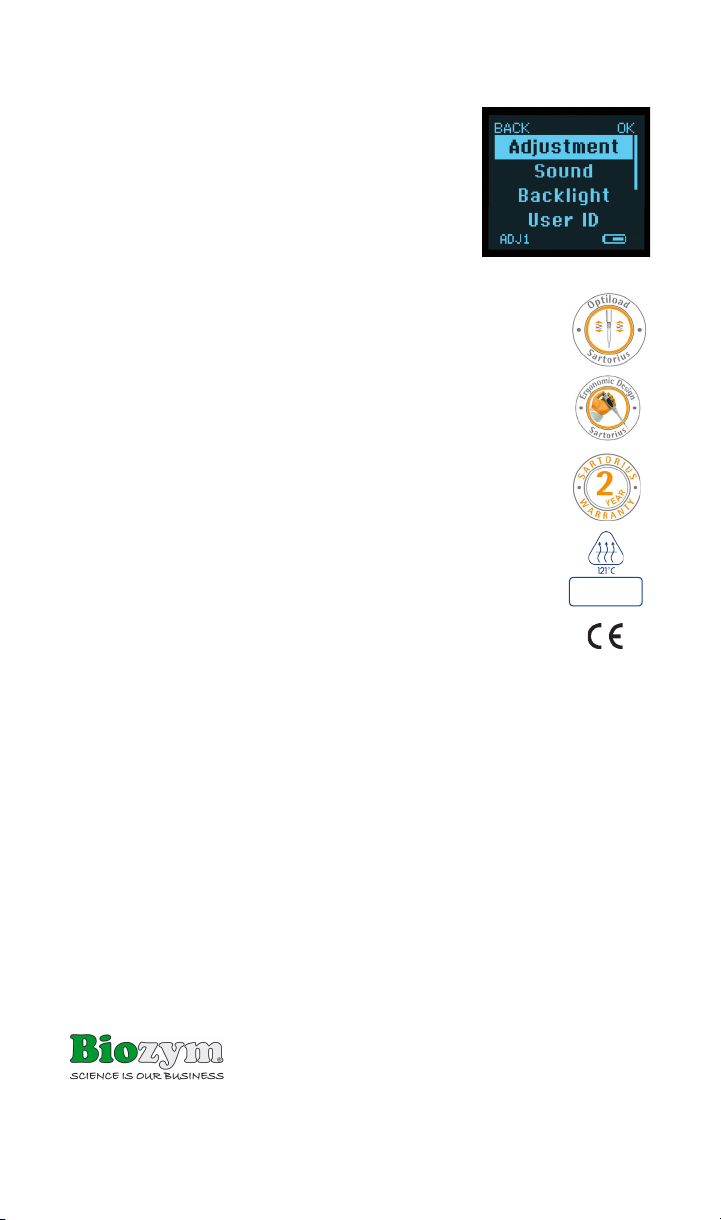

Setup Mode

It is possible to store personal settings in Picus®/Picus® NxT.

Open MENU by pressing left Softkey and scroll down to

choose SETUP.

Adjustment: enables the user to adjust the pipette in 1, 2

or 3 calibration points.

- 1 point adjustment: calibration in 1 point, set the

calibration volume in µl

- 2 point adjustment: calibration in 10% and 100% of

the nominal volume

- 3 point adjustment: calibration in 10%, 50% and

100% of the nominal volume

Adjustment is always done in P mode, and the adjustment is

valid in all modes, when activated.

Publication No. SUL6017-e140601 • Order No. 85037-545-23 • Ver. 06 | 2014 © Sartorius Biohit Liquid Handling Oy

Sound: turns sounds on or off, for example for Adjustment-wheel, messages

and battery status indicator

Backlight: changes the display backlight colour

User ID: allows the user to personalise the pipette with an ID

GLP Info: for setting and displaying the previous and next service and

maintenance dates

Reset: resets to factory settings

Information: displays the software version and battery charging level

Languages: displays available user interface languages: English, French,

German, Chinese and Russian

Password: in Picus® NxT models, it is possible to protect programmes stored

to memory with an optional pipette-specific 4 digit password

This Quick Start Guide is for basic operation of the Picus®/Picus® NxT

electronic pipette. For further information and more detailed instructions,

please see the User Guide at www.sartorius.com. A paper print-out can be

requested from [email protected].

Biozym Scientific GmbH

Steinbrinksweg 27

D-31840 Hessisch Oldendorf

Tel.: +49 (0)5152-9020 - Fax: +49 (0)5152-2070

[email protected]

www.biozym.com
