HDMI Extender

User Manual

Model : HE01S

4K60Hz HDMI & USB/IR/RS232 KVM Fiber Optic Extender

User Manual

HE01S

Introduction

HE01S is an HDMI extender that can use Ethernet cable to send an HDMI signal for up to 50 meters. Its RX

unit requires no power when the transmissions distance less than 30M. Its transmitter unit has EDID auto

backup function that can save desired resolution and restore it whenever.

Features

Resolution up to 1080p@60Hz.

Signal extension up to 50M over CAT5e cable.

No external power required at RX unit under a distance of 30M.

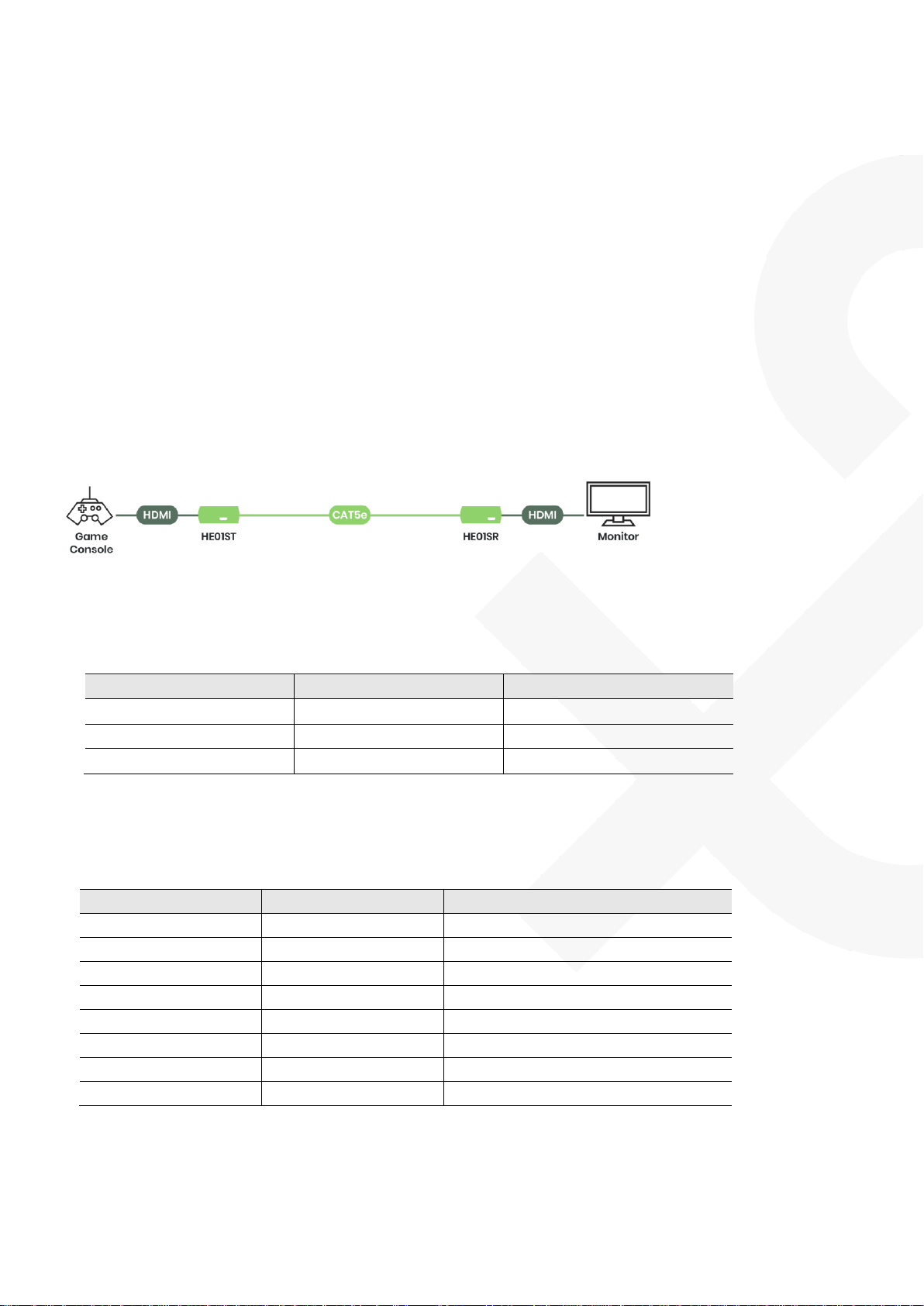

Installation view:

Transmission Distance

The transmission distance may vary by different HDMI equipment and cable quality.

Cable

Resolution

Distance (HE01ST to HE01SR)

CAT5e

1080p

40M

CAT6

1080p

45M

CAT5e

1080i/ 720p

70M

RJ45 Define

Video Link (use TIA/EIA-568-B)

No.

Wire Color

Pin Define

Orange-white

TMDS DATA2 +

Orange

TMDS DATA2 -

Green-white

TMDS CLOCK + / HDMI 5V

Blue

TMDS DATA1 +

Blue-white

TMDS DATA1 -

Green

TMDS CLOCK - / HDMI 0V

Brown-white

TMDS DATA0 +

Brown

TMDS DATA0 -

User Manual

HE01S

Panel View

HE01ST HE01SR

LED Indication

Model

LED

LED Color

Description

HE01ST

BLUE ON

Power On

Flash

TV EDID backup completed

LINK

GREEN ON

Power or video transmitting

YELLOW ON

No data input or video format unsupported

HE01SR

BLUE ON

Using external power adapter

GREEN ON

Power or video signal receiving

LINK

YELLOW ON

No data input or signal too weak

EDID Setup

Default EDID

1. move DIP switch 1 off ↑

2. move DIP switch 2 off ↑Select the first default EDID: support 1080i / LPCM 2 Channel.

3. move DIP switch 2 on ↓Select the second default EDID: support 1080p / LPCM 5.1 Channel.

Copy EDID

1. move DIP switch 1 on ↓, HE01ST unplug the power.

2. HE01ST connect to HDMI connector of TV for auto backup.

3. Plug the power for HE01ST, TV EDID back up completed (Blue Power LED keep flash)

4. After complete TV EDID backup, HE01ST power must be reset (unplug and plug) to activate the new

EDID.

DIP Switch

Position

Description

↑

Enable the default EDID

↓

Copy the TV EDID

↑

Select the first default EDID: 1080i / LPCM 2 Channel.

↓

Select the second default EDID: 1080p / LPCM 5.1 Channel.

After complete Dip Switch setting, power must be reset (unplug and plug) to activate the new EDID.

User Manual

HE01S

Caution

The cabling must be away from any equipment with electromagnetic wave, such as microwave

ovens, mobile phones, radio equipment, power lines.

It’s recommended using high quality CAT5e UTP or CAT6 UTP cable for link cable.

If distance exceeds 30 meters, using CAT6 cables is recommend.

DD NOT use STP cable, or it will caused no picture.

Specification

ITEM NO.

HE01ST

HE01SR

Support

Compliance

HDMI 1.3, HDCP, 3D

Max. Video Resolution

1080p@60Hz

Max. Transmission Distance

60M at 1080i, 40M at 1080p

Video Bandwidth

2.25 Gbps

Ports & Interfaces

Video Input

1 x HDMI Type A

1 x RJ45

Video Output

1 x RJ45

1 x HDMI Type A

Power

Power Supply

DC 5V 1A

Power Consumption

600mA

400mA

Ambient Temperature

Operation

0 to 55℃

Storage

-20 to 85℃

Humidity

up to 95%

Physical Characteristics

Dimensions

67 x 91 x 27mm

67 x 120 x 27mm

Weight

140g

175g
