Schlage BE469 Manuale utente

*24156804*

24156804

Touchscreen Deadbolt with Alarm

THICK DOOR KIT INSTALLATION INSTRUCTIONS

MODEL BE469

1 Determine the thickness of your door.

2 Choose Screws and Tailpiece Length

2a Select the screws using the chart below.

Door

Thickness

Screw Length

(Actual Size)

2Z\,” - 2Z\v”

1M\,” - 2”

2b Select the tailpiece length, using the chart below.

Door

Thickness

Tailpiece Length

(Actual Size)

2Z\,” - 2Z\v”

1M\,” - 2”

3 Replace the Tailpiece

3a Remove the cylinder screw from the Touchscreen.

3b Remove the cylinder from the Touchscreen.

3c Remove the cylinder cap, washer and tailpiece.

Use a paperclip or similar to press and

hold down the pin. Then unscrew the cap.

The washer and tailpiece can then easily

be removed. Leave the pin in place.

Cap

Washer

Tailpiece

Door Thickness

1M\,” to 2Z\v”

Break off and discard

This kit is used to t the Touchscreen Deadbolt with Alarm to doors that are between 1M\,” and 2Z\v” thick.

LIf you are uncomfortable performing these steps, call a locksmith for assistance.

Printed in Country

24156804 Rev. 10/12-a2

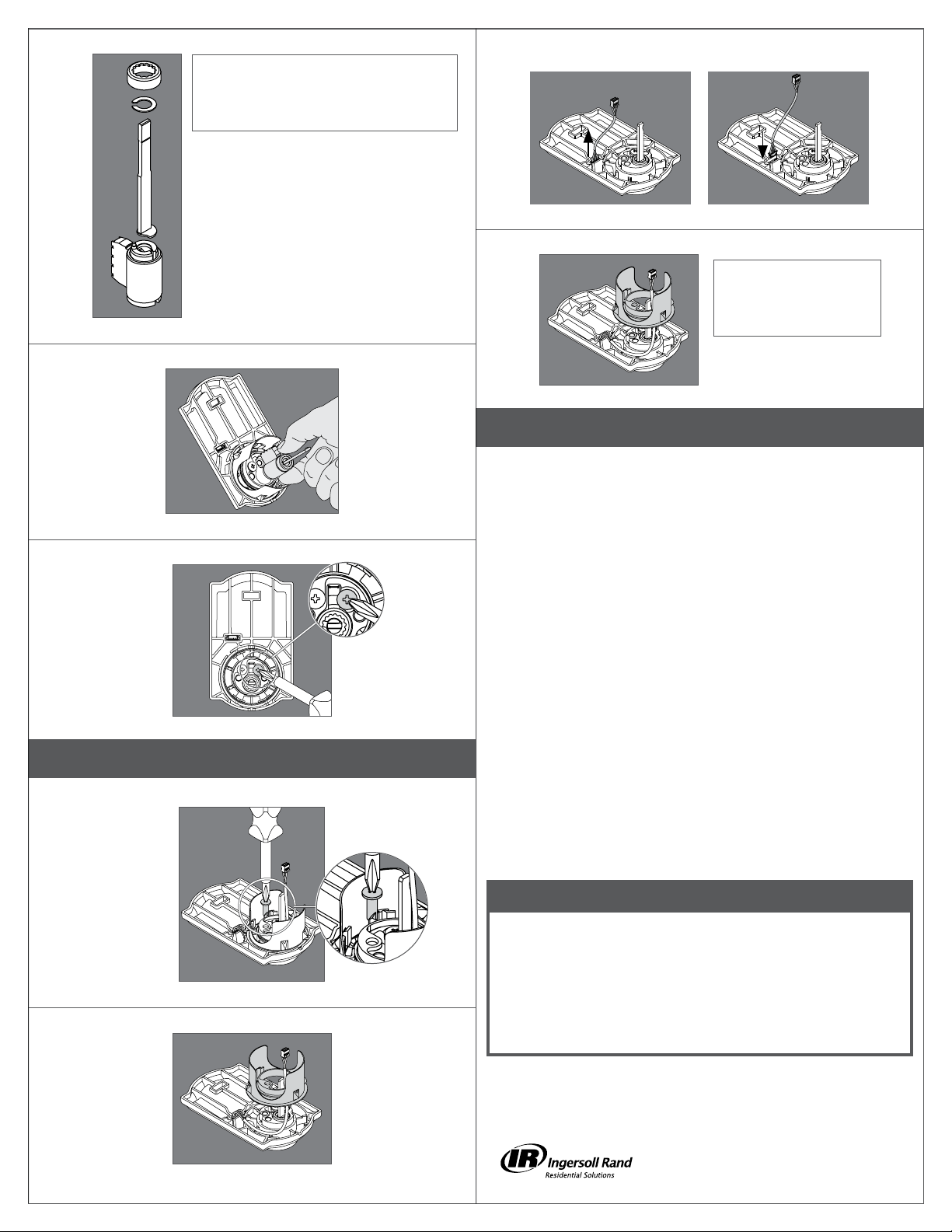

3d Install the new tailpiece, washer and cylinder cap.

3e Install the cylinder back into the Touchscreen.

3f Replace the cylinder screw.

4 Replace the Cable

4a Remove the spacer screw from the Touchscreen.

4b Remove the spacer from the Touchscreen.

4c Remove the existing cable from the Touchscreen and

replace it with the longer cable.

4d Reroute cable and reinstall spacer.

5 Install the lock.

Install the lock as detailed in the Installation Guide, using the longer

screws you selected in step 2a.

Reinstall all pieces and screw the cap into

place. Do not overtighten the cap!

NOTE: If you are installing

the lock on a door with

a 1Z\x” (38 mm) hole, do

not reinstall the spacer.

NEED HELP?

Please call customer support before returning the product

to the store.

Toll-Free Calling

From:

U.S.A.: (888) 805-9837

Canada: (800) 997-4734

Mexico: 018005067866

Visit our web site for videos, FAQs and more: answers.schlage.com
