Schwank Select14 Series Manuale utente

Schwank Select14 Series

Air Curtain

schwankgroup.com/schwankair

1. Highest airflow of totally 5 fan steps.

2. Values shown are for total sound power levels for Installation Type A: free inlet, free outlet.

3. The Sound power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA

Standard 301.

4. FLA: total amperage for motor and heat.

5. Applicable at water temperature 140/104F, air temperature, in +64F.

Above table is valid for 208V/1ph/60Hz. Also approved for 230V/1ph/60Hz.

Product performance for 230V/1ph/60Hz will differ from stated data.

Protection class for units with electrical heating: IP20.

Protection class for units without heating and units with water heating: IP21.

Model Output

(MBH)

Airflow*1

(CFM)

Sound power*2

(dB(A))

Sound Pressure

(dB(A))

Motor

power (W)

Voltage

motor (V)

Amperage

motor (A)

Weight

(lb)

AC-VA36-23 0 1400 80 62 500 208V1~ 3.0 84

AC-VA60-23 0 1950 81 63 673 208V1~ 4.5 108

AC-VA72-23 0 2800 82 64 1000 208V1~ 6.0 141

AC-VA96-23 0 3300 83 65 1173 208V1~ 7.5 172

Model Output

(kW)

Airflow*1

(CFM)

Sound

power*2

(dB(A))

Sound

Pressure

(dB(A))

FLA (full load

amperage)

*3 (A)

Motor

power (W)

Amperage

motor (A)

Voltage (V)

Amperage (A)

(heat)

Weight

(lb)

AC-VE36-20 4/10 1400 80 62 31 500 3.0 208V3~/27 93

AC-VE60-20 5/15 1950 81 63 45 673 4.5 208V3~/40 126

AC-VE72-20 7/20 2800 82 64 60 1000 6.0 208V3~/54 172

AC-VE36-48 4/12 1400 80 62 18 500 3.0 480V3~/15 104

AC-VE60-48 6/18 1950 81 63 27 673 4.5 480V3~/22 137

AC-VE72-48 8/24 2800 82 64 35 1000 6.0 480V3~/29 185

AC-VE96-48 10/30 3300 83 65 45 1173 7.5 480V3~/37 234

AC-VE36-60 4/12 1400 80 62 15 500 3.0 600V3~/12 104

AC-VE60-60 6/18 1950 81 63 23 673 4.5 600V3~/18 137

AC-VE72-60 8/24 2800 82 64 30 1000 6.0 600V3~/24 185

AC-VE96-60 10/30 3300 83 65 38 1173 7.5 600V3~/30 234

3Electrical heat - (IP20)

Model Output*4

(MBH)

Airflow*1

(CFM)

Sound

power*2

(dB(A))

Sound Pressure

(dB(A))

Motor

power (W)

Voltage

motor (V)

Amperage

motor (A)

Water volume

(US gal)

Weight

(lb)

AC-VW36-23 55 1300 79 61 501 208V1~ 3.0 0.49 99

AC-VW60-23 85 1900 79 61 666 208V1~ 4.0 0.78 123

AC-VW72-23 119 2600 81 63 1002 208V1~ 6.0 1.09 163

AC-VW96-23 150 3150 81 63 1167 208V1~ 7.0 1.37 212

2Water heat - (IP21)

Technical Speciﬁcation

1Ambient, no heat - (IP21)

schwankgroup.com/schwankair

Model Nozzle

width x depth(in)

Max Velocity

at nozzle (fpm)

Outlet Velocity

(fpm)

Outlet Velocity Uniformity

(%)

AC-VA36-23 37.8x2.8 3133 2736 89

AC-VE36-20(48)(60) 37.8x2.8 3133 2736 89

AC-VA60-23 57.9x2.8 3053 2665 87

AC-VE60-20(48)(60) 57.9x2.8 3053 2665 87

AC-VA72-23 77.2x2.8 3133 2736 89

AC-VE72-20(48)(60) 77.2x2.8 3133 2736 89

AC-VA96-23 97.2x2.8 3094 2700 88

AC-VE96-48(60) 97.2x2.8 3094 2700 88

AC-VW36-23 37.8x2.8 2531 2263 85

AC-VW60-23 57.9x2.8 2994 2501 87

AC-VW72-23 77.2x2.8 2531 2263 85

AC-VW96-23 97.2x2.8 2763 2328 86

Model Fan

speed

Airflow

(CFM)

Output

(MBH)

Return water

temp.(°F)

Water flow

(GPM)

Pressure drop

(kPa)

Output*2

(MBH)

Outlet air

temp. (°F)

Water flow

(GPM)

Pressure drop

(kPa)

AC-VW36-23 max 1530 50.9 88 1.2 2.7 96.9 122 5.5 40.5

AC-VW60-23 max 2000 65.9 84 1.4 1.6 137.2 127 7.7 30.6

AC-VW72-23 max 2855 96.6 86 2.2 1.6 193.2 127 10.9 26.9

AC-VW96-23 max 3090 104.4 81 2.2 2.0 223.5 131 12.7 42.0

1. Recommended outlet air temperature for good comfort and optimized output.

2. Nominal output at given supply and return water temperature.

Supply water temperature:176 °F

Room temperature: +64 °F

Outlet air temperature: +95 °F*1

Water temperature: 176/140 °F

Room temperature: +64 °F

Model Fan

speed

Airflow

(CFM)

Output

(MBH)

Return water

temp. (°F)

Water flow

(GPM)

Pressure

drop (kPa)

Output*2

(MBH)

Outlet air

temp.(°F)

Water flow

(GPM)

Pressure drop

(kPa)

AC-VW36-23 max 1530 52.6 99 156.9 11.5 56.3 99 190.2 16.2

AC-VW60-23 max 2000 68.6 95 183.6 6.2 79.9 100 269.2 12.2

AC-VW72-23 max 2855 96.6 95 257.8 5.5 112.3 100 379.5 10.7

AC-VW96-23 max 3090 105.5 95 257.8 6.5 132.1 104 447.0 17.2

Supply water temperature: 140 °F

Room temperature: +64 °F

Outlet air temperature: +95 °F*1

Water temperature: 140/104 °F

Room temperature: +64 °F

Technical Speciﬁcation

AC TE 72 60

Select14 Series

Electric Heated

Air Curtain

Nominal Length of unit

in inch

Voltage Code 600V

schwankgroup.com/schwankair

The introduction pages consist mainly of pictures.

For translation of the English texts used, see the respective language pages.

Les pages de présentation contiennent principalement des images.

Pour la traduction des textes en anglais, consultez la page correspondante à la

langue souhaitée.

schwankgroup.com/schwankair

R / S / T

U / V / W

ZP Q

Valve (3/4"),

outside thread

Controller

72" & 96" Models

Mounting bracket

A / B / C / D

E / F

3.3 ft: 4 x M8

4.9 ft: 4 x M8

6.6 ft: 6 x M8

8.2 ft: 6-8 x M8

Ref (inch) Model

A41.56 AC-VA36-23

41.56 AC-VE36-20(48)(60)

41.56 AC-VW36-23

B61.96 AC-VA60-23

61.96 AC-VE60-20(48)(60)

61.96 AC-VW60-23

C81.56 AC-VA72-23

81.56 AC-VE72-20(48)(60)

81.56 AC-VW72-23

D101.96 AC-VA72-23

101.96 AC-VE96-48(60)

101.96 AC-VW96-23

E1.60 AC-VA36-23

1.60 AC-VE36-20(48)(60)

1.60 AC-VW36-23

1.60 AC-VA60-23

1.60 AC-VE60-20(48)(60)

1.60 AC-VW60-23

1.60 AC-VA72-23

1.60 AC-VE72-20(48)(60)

1.60 AC-VW72-23

Ref (inch) Model

T102.88 AC-VA96-23

102.88 AC-VE96-48(60)

102.88 AC-VW96-23

U60.6 AC-VA60-23

60.6 AC-VE60-20(48)(60)

60.6 AC-VW60-23

V80.16 AC-VA72-23

80.16 AC-VE72-20(48)(60)

80.16 AC-VW72-23

W100.6 AC-VA96-23

100.6 AC-VE96-48(60)

100.6 AC-VW96-23

X0.92 All Models

Y1.6 All Models

Z24.44 All Models

Ref (inch) Model

F1.56 AC-VA96-23

1.56 AC-VE96-48(60)

1.56 AC-VW96-23

G5.08 All Models

H16.16 All Models

I4.08 All Models

J9.4 All Models

K1.72 All Models

L1.6 All Models

M1.44 All Models

N11.8 All Models

O24.44 All Models

P11.8 All Models

Q1.44 All Models

R62.88 AC-VA60-23

62.88 AC-VE60-20(48)(60)

62.88 AC-VW60-23

S82.48 AC-VA72-23

82.48 AC-VE72-20(48)(60)

82.48 AC-VW72-23

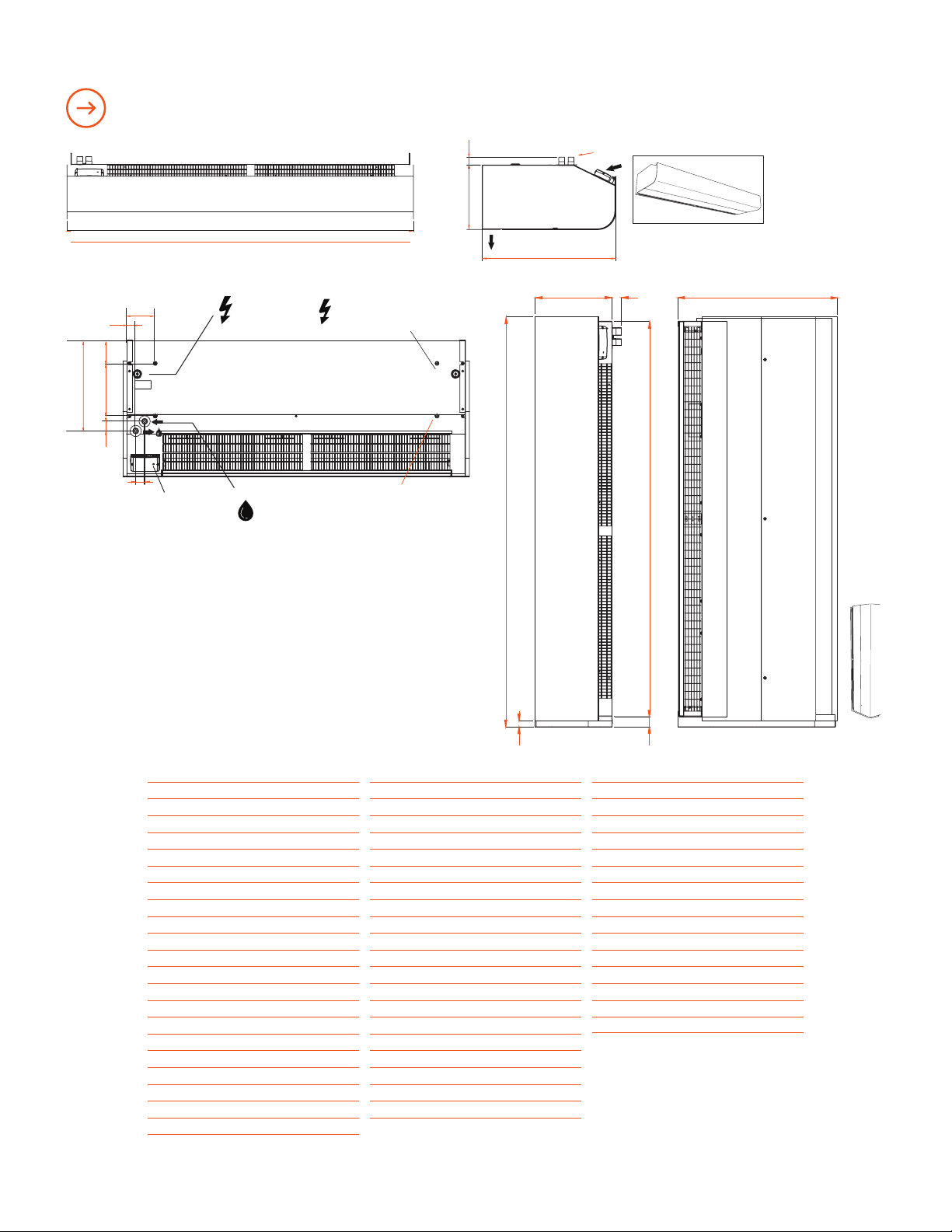

Dimensions

schwankgroup.com/schwankair

Fig. 1A: Open the unit by raising the front panel. The front is

blocked in open position with the front hatch hook.

Fig. 2: Control card controller is integrated in the air curtain

at delivery.

Controller

Fig. 1B: When the front has been removed it it important to

be sure it is firmly seated in the front locks again.

Min -3.93”

Fig. 3: Minimum distance.

A B

C D

Filing the water coil

Fig. 4

schwankgroup.com/schwankair

127 L

127 875875

127 770745 745

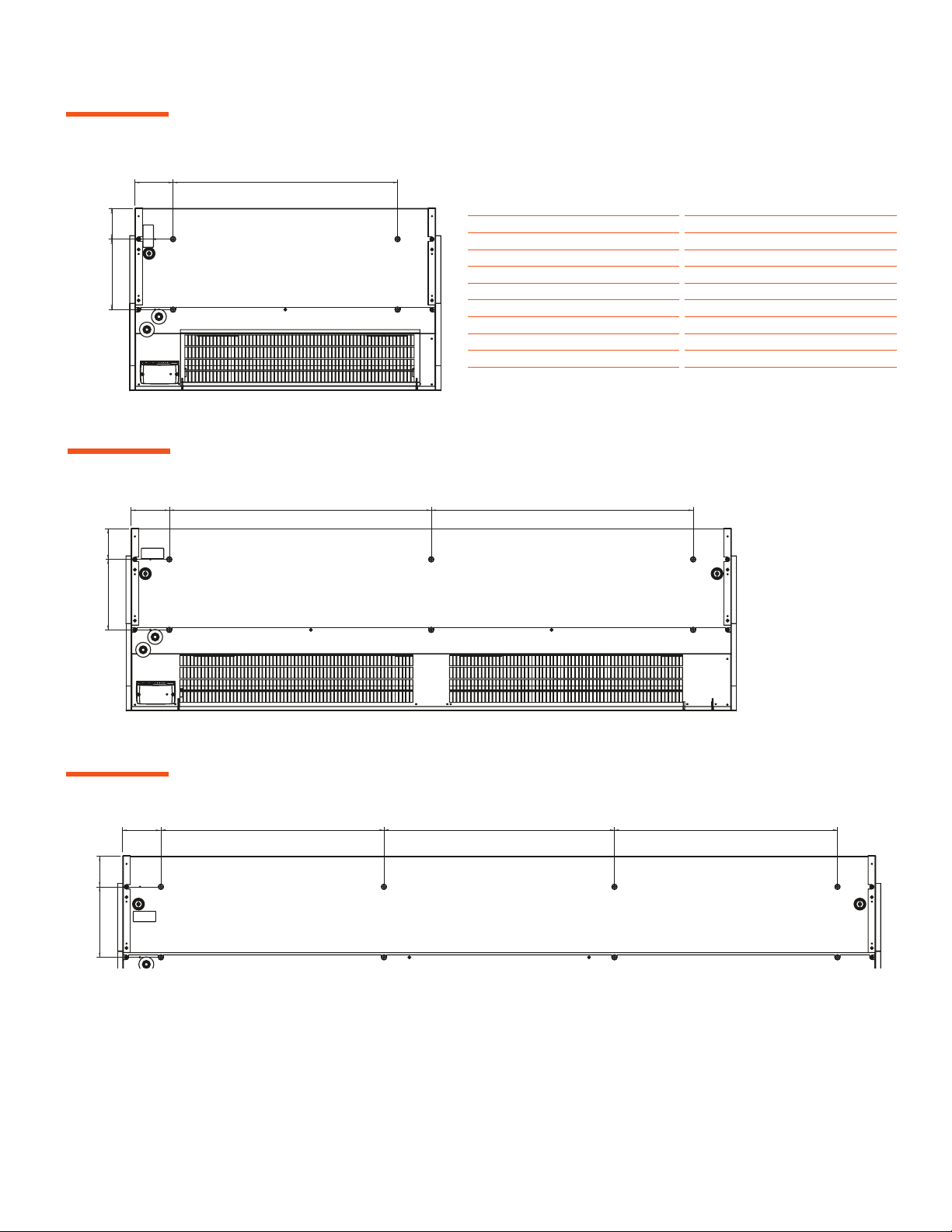

Fig. 5: M8-holes for mounting.

G GH

D / E

All Models: 72”

All Models: 96”

Ref (inch) Model

A5.08 All Models

B4.08 All Models

C9.4 All Models

D30 AC-VA36-23

30 AC-VE36-20(48)(60)

30 AC-VW36-23

E50.4 AC-VA60-23

50.4 AC-VE60-20(48)(60)

50.4 AC-VW60-23

Ref (inch) Model

F35 All Models

35 All Models

G29.8 AC-VA96-23

29.8 AC-VE96-48(60)

29.8 AC-VW96-23

H30.8 AC-VA96-23

30.8 AC-VE96-48(60)

30.8 AC-VW96-23

All Models: 36” & 60”

schwankgroup.com/schwankair

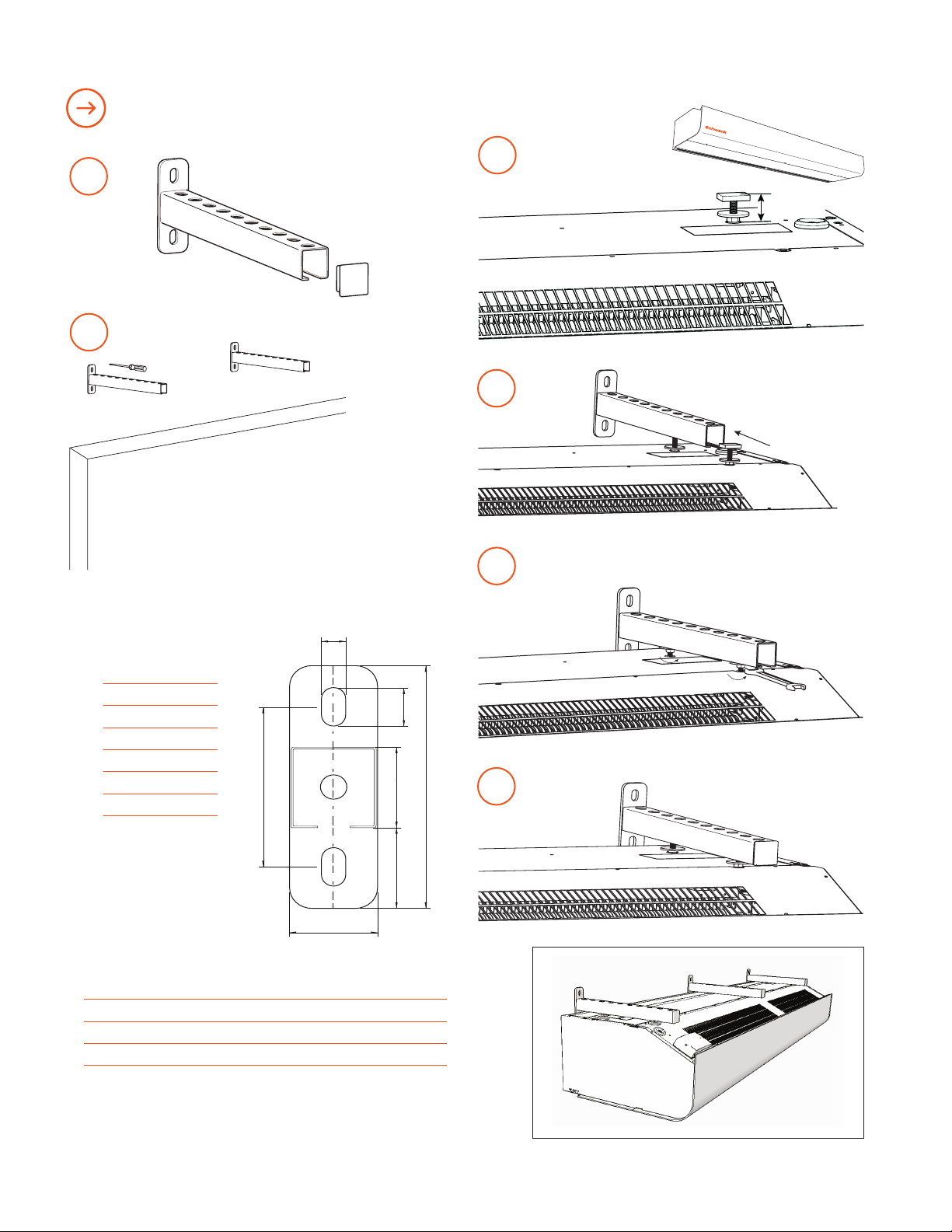

Fig. 6

20 mm

Wall Bracket

JC-0721-XX 0.80"

120

40 40

Wall Bracket Model Product type Quantity included

JC-0721-15 36” & 60” Models 2 pcs

JC-0721-20 72” Models 3 pcs

JC-0721-30 96” Models 4 pcs

Ref (inch)

A0.43

B0.75

C3.15

D1.58

E1.58

F4.72

JC-0721-XX

Accessories

schwankgroup.com/schwankair

Fig. 7 Fig.8

Fig. 9

JC-0724-XX Vertical Mounting Kit

JC-0781-XX - 9.8ft Wire

Suspension Cable

JC-0709-XX

Vibration Dampeners

JC-0706-XX

Ceiling Brackets

Ceiling Bracket Model Air Curtain Models: Quantity included

JC-0706-15 36” & 60” Models 4 pcs

JC-0706-20 72” Models 6 pcs

JC-0706-30 96” Models 8 pcs

Vibration Dampener Model Air Curtain Models: Quantity included

JC-0709-15 36” & 60” Models 4 pcs

JC-0709-20 72” Models 6 pcs

JC-0709-30 96” Models 8 pcs

JC-0754-XX

3.3ft Threaded Rods

Accessories

schwankgroup.com/schwankair

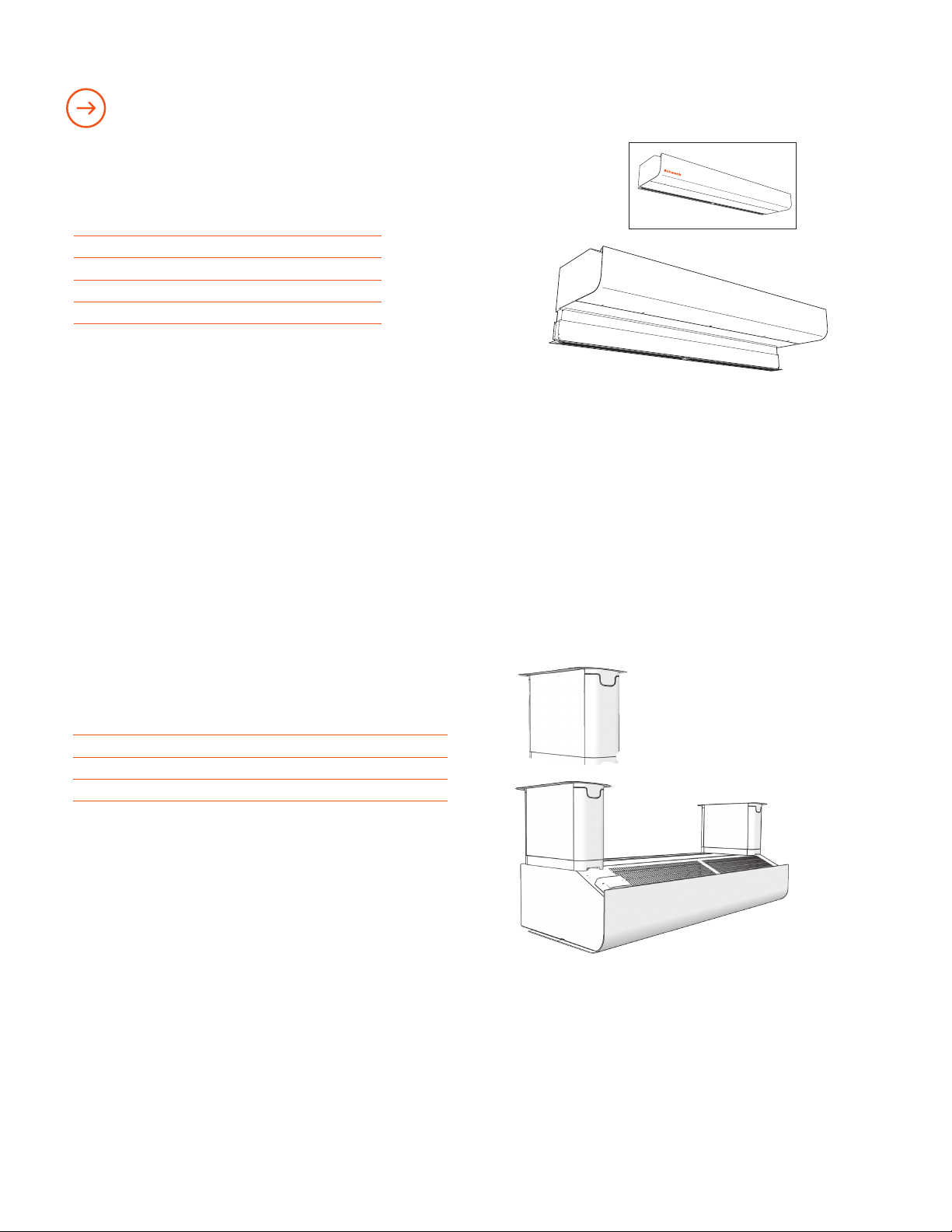

Fig. 10

Nozzle Extensions Model Models

JC-0725-10 All 36” Models

JC-0725-15 All 60” Models

JC-0725-20 All 72” Models

JC-0725-25 All 96” Models

JC-0712-XX

Single Piece Design Kit Ceiling

Design Kit Ceiling Model Length

(inch) Kit Height

(ft)

JC-0712-10 8.00-12.00 0.6-1.0

JC-0712-15 12.00-20.00 1.0-1.6

JC-0712-20 20.00-36.00 1.6-3.0

Accessories
