Schwinn 120 Manuale utente
ASSEMBLY MANUAL / OWNER’S MANUAL
Manual en Español Latino Americano:
http://www.schwinnfitness.com
2
Important Safety Instructions - Assembly 3
Safety Warning Labels / Serial Number 4
Specifications 5
Before Assembly 5
Parts 6
Hardware 7
Tools 7
Assembly 8
Leveling the Bike 16
Moving the Bike 16
Important Safety Instructions - Owner’s 17
Features 18
Console Features 19
Contact Heart Rate (CHR) 21
Operations 23
Adjustments 23
Initial Setup 24
Quick Start / Manual Program 24
Workout Program Selection 24
User Setup Mode 25
Custom Workout 27
Profile Programs 27
Fitness Test 28
Results/Cool Down Mode 29
Pausing or Stopping 29
User Statistics 29
Console Setup 31
Maintenance 33
Troubleshooting 35
Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America
Printed in China | © 2011 Nautilus, Inc., All rights reserved. ™ and ® indicate a trademark or registered
trademark. Nautilus, Inc. (www.NautilusInc.com) trademarks include NAUTILUS®, BOWFLEX®, SCHWINN®
and UNIVERSAL® and respective logos. Other trademarks are the property of their respective owners.
TABLE Of CONTENTS
To validate warranty support, keep the original proof of purchase and record the following information:
Serial Number __________________________
Date of Purchase ____________________
To register your product warranty , go to: www.SchwinnFitness.com/register
Or call 1 (800) 605–3369.
If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458).
3
IMpORTANT SAfETY INSTRUCTIONS
— ASSEMBLY
!This icon means a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
Obey the following warnings:
!Read and understand all warnings on this machine.
Carefully read and understand the Assembly instructions.
• Keepbystandersandchildrenawayfromtheproductyouareassemblingatalltimes.
• Donotconnectpowersupplytothemachineuntilinstructedtodoso.
• Donotassemblethismachineoutdoorsorinawetormoistlocation.
• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposure
to bystanders.
• Somecomponentsofthemachinecanbeheavyorawkward.Useasecondpersonwhen
doing the assembly steps involving these parts. Do not do steps that involve heavy lifting or
awkward movements on your own.
• Setupthismachineonasolid,level,horizontalsurface.
• Donottrytochangethedesignorfunctionalityofthismachine.Thiscouldcompromisethe
safety of this machine and will void the warranty.
• Ifreplacementpartsarenecessary,useonlygenuineNautilus®replacementpartsand
hardware. Failure to use genuine replacement parts can cause a risk to users, keep the
machine from operating correctly and void the warranty.
• Donotuseuntilthemachinehasbeenfullyassembledandinspectedforcorrectperformance
in accordance with the Manual.
• ReadandunderstandthecompleteManualsuppliedwiththismachinebeforerstuse.Keep
the Manual for future reference.
• Doallassemblystepsinthesequencegiven.Incorrectassemblycanleadtoinjuryorincorrect
function.
4
SAfETY WARNINg LABELS ANd
SERIAL NUMBER
FCC Compliance
!Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser’sauthoritytooperatetheequipment.
The power supply complies with part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This power supply has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalled
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbe
•
•
•
•
•
•
300lbs. (136kg).
•
•
•
•
•
•
5
SpECIfICATIONS
53”
(135.0 cm)
31.6” (80.3 cm) 20” (51.0 cm)
Before Assembly
Select the area where you are going to set up and operate your machine. For safe operation, the
locationmustbeonahard,levelsurface.Allowaworkoutareaofaminimum75”x61”(1.9mx
1.5m).
Basic Assembly Tips
Follow these basic points when you assemble your machine:
1. Read and understand the “Important Safety Instructions” before assembly.
2. Collect all the pieces necessary for each assembly step.
3. Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten,
and the left (counterclockwise) to loosen, unless instructed otherwise.
4. When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt
through the holes.
5.Theassemblyrequires2people.
Maximum User Weight: 300 lbs. (136 kg)
Power Requirements:
Operational Voltage: Operational Voltage 9VDC
Operating Current: 1500 mA
Regulatory Approvals:
AC Power Adapter: UL listed, CSA certified (or
equivalent),Rated120V60Hz
Input, 9VDC, 1500mA Output.
Class 2 or LPS.
determinedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interference by one or more of the following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
6
Item Qty Description Item Qty Description
1 1 Main Frame 9 1 AC Adapter
2 1 Rear Stabilizer 10 1 Left Pedal
3 1 Front Stabilizer 11 1 Right Pedal
4 1 Seat Post 12 1 Seat
5 1 Console Mast 13 1 Water Bottle Holder
6 1 Handlebar 14 1 Media Support
7 1 Handlebar Bracket Cover 15 1 AdjustmentKnob
8 1 Console
1
8
13
12
9
11 10
7
6
5
4
23
14 15
pARTS
7
Tools
Included Not Included
6 mm
Item Qty Description Item Qty Description
A 4 FlatHeadHexScrewM8x16 E 1 HexBoltM7x30
B 4 ButtonHeadHexScrewM8x16 F 1 Flat Washer M7
C 4 Curved Washer G 1 Lock Washer M7
D 4 Cap
(recommended)
HARdWARE / TOOLS
8
1. Attach Stabilizers to Frame
Note: Make sure the Schwinn®decal on the Rear Stabilizer faces outward from the
machine.
2. Attach Pedals to Frame Assembly
ASSEMBLY
6 mm
1
A
13
12
10
11
9
3. Attach Seat to Seat Post and Frame
NOTICE: Slide the Seat (12) onto the Seat Post (4) and install the Seat Post in the Frame. Make
sure the adjustment knob (15) engages the Seat Post.
Be sure the Seat is straight. Tighten the bolt (12b) and nut (12c) on the Seat bracket
(12a) to hold the Seat in position.
12a
12b
12c
15
4
12
10

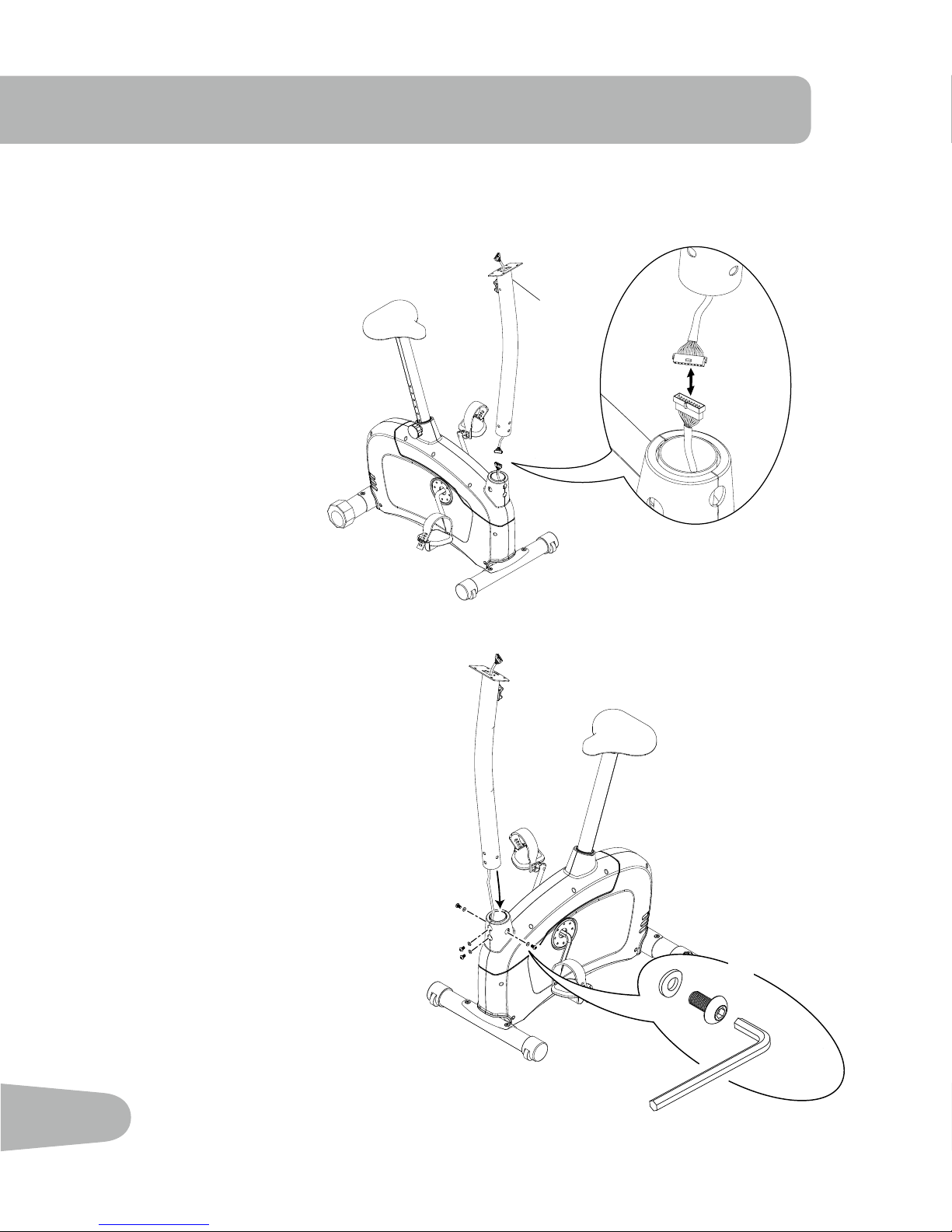

5. Attach Console Mast to Frame Assembly
NOTICE: Do not crimp Console Cable.
Note: Do not fully tighten the hardware.
C
B
X4
6mm
4. Connect Console Mast Cable to Frame Assembly Cable
NOTICE: Align the clips on the cable connectors and make sure the connectors lock. Do not
crimp Console Cable.
5
