Schwinn Active 10 Series Manuale utente

10SERIES

UPRIGHT BIKE

ASSEMBLY GUIDE

PN 001-7053 REVA (06/14/2007) ASSEMBLY GUIDE

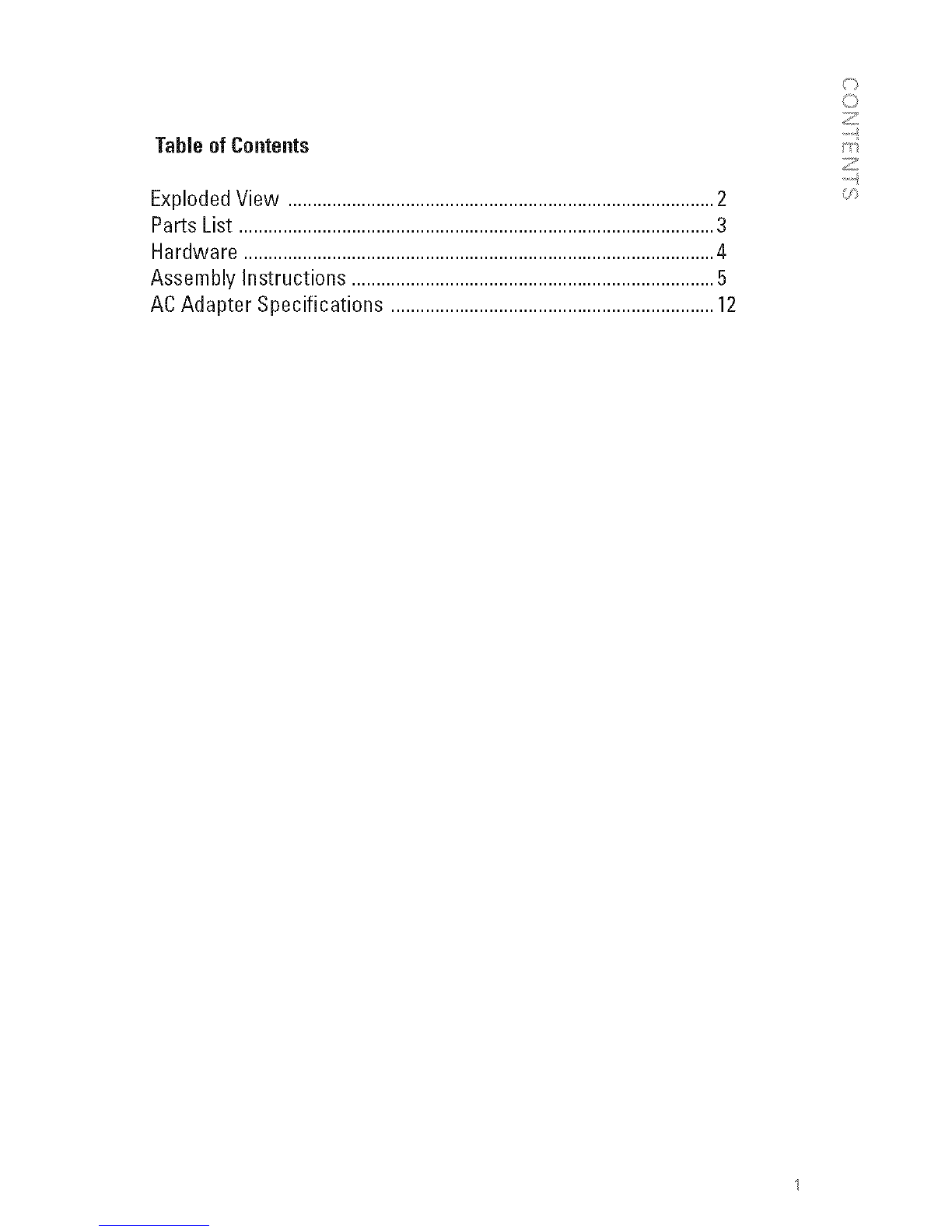

Table of Contents

Exploded View .......................................................................................2

Parts List .................................................................................................:3

Hardware ................................................................................................4

Assembly Instructions ..........................................................................5

AC Adapter Specifications ..................................................................12

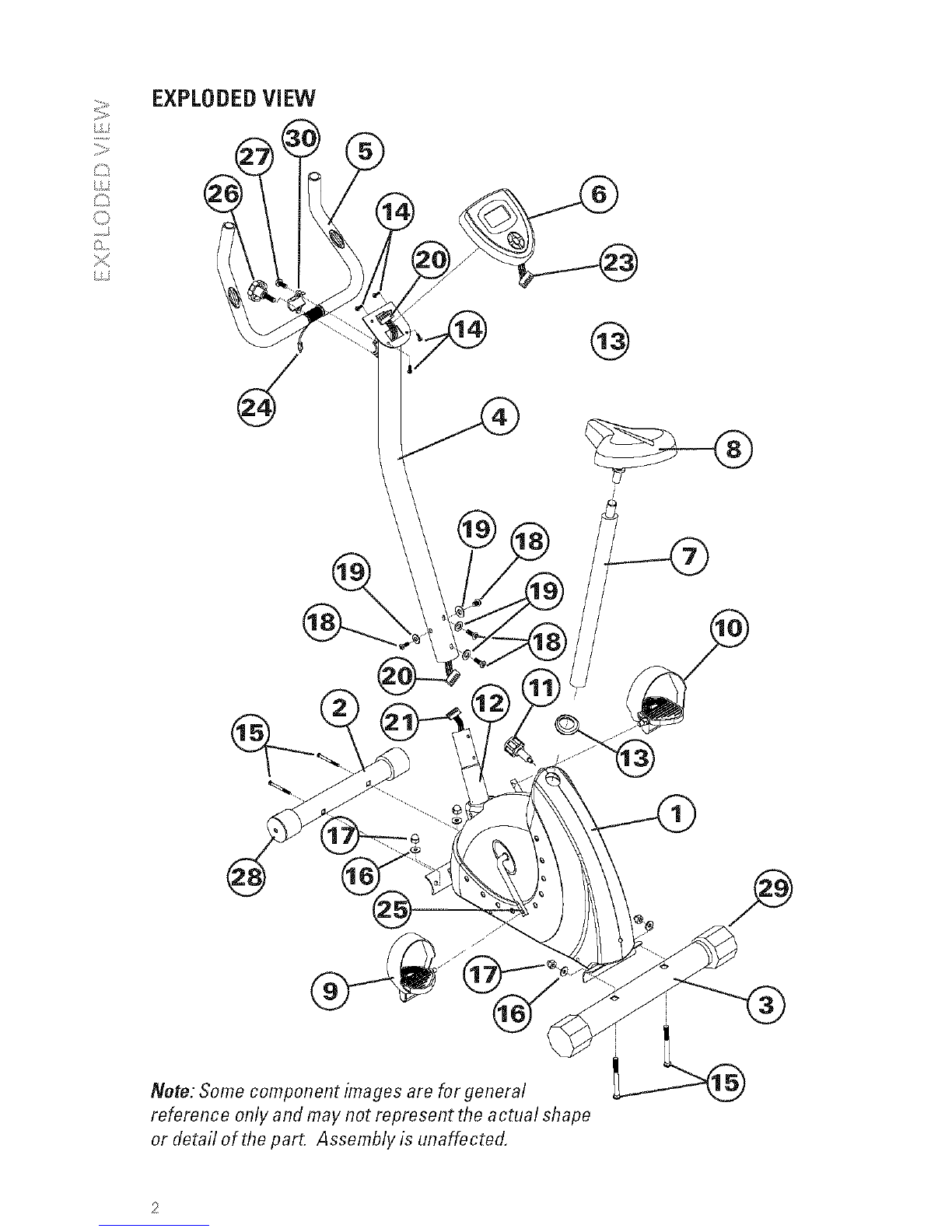

EXPLODEDViEW

LLi

Note.Some component images are for general

reference only and may not represent the actual shape

or detail of thepart. Assembly is unaffected,

PARTSLiST

Re[ Description Qty

Main BodyAssembly

Front Stabilizer

RearStabilizer

Console Mast

Handlebar

Console (Computer)

Seat Post

Seat Pad

Left Pedal

Right Pedal

SeatAdjustment Knob

Mast Base

Seat Post Cover

MSx 10ramRoundHead PhillipsScrew

M10x 70ramCarriage Bolt

Arc Washer ID 10.5;OD25ram:T 1.5ram

M10Acorn Nut

MSx 15Allen HeadScrew

Arc Washer ID8.Smm;OD22ram;T1.2ram

Console Mast Wire (middle computer wire)

Main FrameWire (lower computer wire)

Not Used

ConsoleWire (computer wire)

Handlebar Heart RateWire (hand pulsewire)

Crank (pre-installed)

Handlebar Adjustment Knob

M8 x 20ramAllen Head Screw

Front Stabilizer EndCap(pre-installed)

RearStabilizer EndCap(pre-installed)

Handlebar C-Ring(clamp plate)

If you are missing items, are short quantities, or have damagedcomponents,

please contact 1- 800-4- MY- HOME.

£}

s{{_'

,.L

13.Seat PostCover- 1pc

15.CarriageBolt M10 x 70mm -4pcs

16.ArcWasher- 4 pcs

(ID10.Bmm;0D 2Bmm;1.Bmm)

17.Acorn Nut M10 - 4pcs @

18.Allen HeadHexScrew

M8 x 1Bmm-4pcs

lg. ArcWasher- 4pcs

(ID8.Bmm;0D 22mm; 1.Bmm)

26.Handlebaradjustment knobwith

texture - 1pc

Tools provided:

Allen KeyL6mm - 1pc <_

OpenEndWrench 1Bmm- 1pc J

BoxWrench

17mmx 13mm- 1pc

You will also need the following tools, which are readily available from

any hardware store:

Phillips screwdriver

Basic Assembly Principles

Here are a few basic tips that will aid in the assembly process.

By using these principles, you can simplify each process and save

yourself extra time and effort.

1.To make the assembly process go faster, gather the pieces you need

for each step and thoroughly read the assembly instructions for that

step prior to starting assembly for the step.

2. When attaching two pieces, gently lift and look through the bolt holes

to help guide the bolt through the holes.

3. As a general rule, and for all bolts and nuts, turn bolts or nuts toward

the right to tighten and left to loosen. Or you can remember the

mnemonic: "Righty tighty, Lefty Ioosey."

-,4

Step 1 Install Front and Rear Stabilizers

Parts: Tools:

• Front Stabilizer (2) ,,Wrench L13 - L17

Rear Stabilizer (3)

Main Body (1)

Carriage Bolts - 4 (15)

•ArcWashers - 4 (16)

,,Acorn Nut - 4 (17)

Step 1: Secure Front Stabilizer (2) and Rear Stabilizer (3) to Main Body

(1) using two Carriage Bolts (15), two ArcWashers (16), and

two Acorn Nuts (17) for both Stabilizers.

Step 2: Assemble Front Roller facing forward (Figure 1A). Position

Front Stabilizer so arrow on decal is pointing upwards.

Note: Assemble theFrontand RearStabilizerbars sothe red roundpaper

decals Cand D,correspond to the similar decals located onthe Main

Body curved weldmentsA and B.

Figure 1A

Step 2 Attach Front Post

Parts:

• Console MastWire (20)

• Main FrameWire (21)

• Console Mast (4)

• ArcWashers - 4 (19)

• Hex Screws - 4 (18)

Tools:

• Allen Key L6

Step 2-1: Connect Console MastWire (20) to Main FrameWire (21).

Step 2-2: Attach ConsoleMast (4) to Main Body (1) using ArcWashers

(19) and Hex Screws (18).

Figure 2

Step 3 Connect Console Assembly

Parts: Tools:

• Console MastWire (20) • Allen Key L6

• ConsoleWire (23) • Phillips screwdriver

• Console Assembly (6)

• Phillips Screws - 4 (14)

Step 3-1: Connect ConsoleMastWire (20) top connector to Console

Wire (23). Push connected console wires down into the hole

in the top of the Console Mast (4). Push the unconnected

female connector wire (24f) through the rectangular hole

near the edge of the mast plate.

Note: Take care not to cut or pinch the wires.

Step 3-2: Side Console Assembly (6) onto the Console Mast (4) flat

plate (Figure 3A), Secure Console to plate (Figure 3B) using

four Phillips Screws (14).

Figure 3A (wires not shown

for clarity)

Figure 3Figure 3B (24fconnector not

shown for clarity)

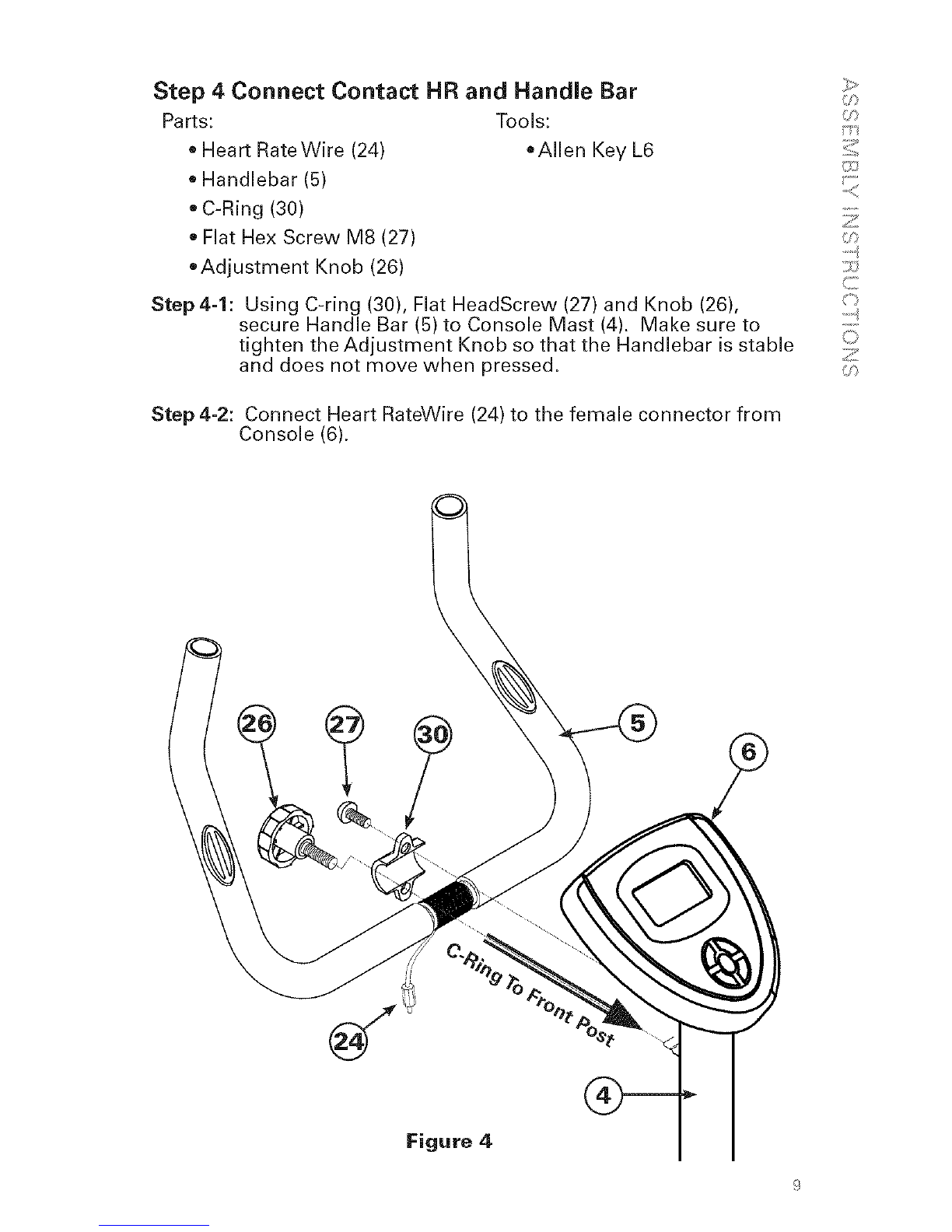

Step 4Connect Contact HR and Handle Bar

Parts: Tools:

• Heart RateWire (24) oAllen Key L6

Handlebar (5)

• C-Ring (30)

• Flat Hex Screw M8 (27)

=Adjustment Knob (26)

Step 4-1: Using C-ring (30), Flat HeadScrew (27) and Knob (26),

secure Handle Bar (5) to Console Mast (4). Make sure to

tighten the Adjustment Knob so that the Handlebar is stable

and does not move when pressed.

Step 4-2: Connect Heart RateWire (24) to the female connector from

Console (6).

Figure 4
