Schwinn SR23 Manuale utente
S 3
RECUMBENT
ASSEMBLY GUIDE

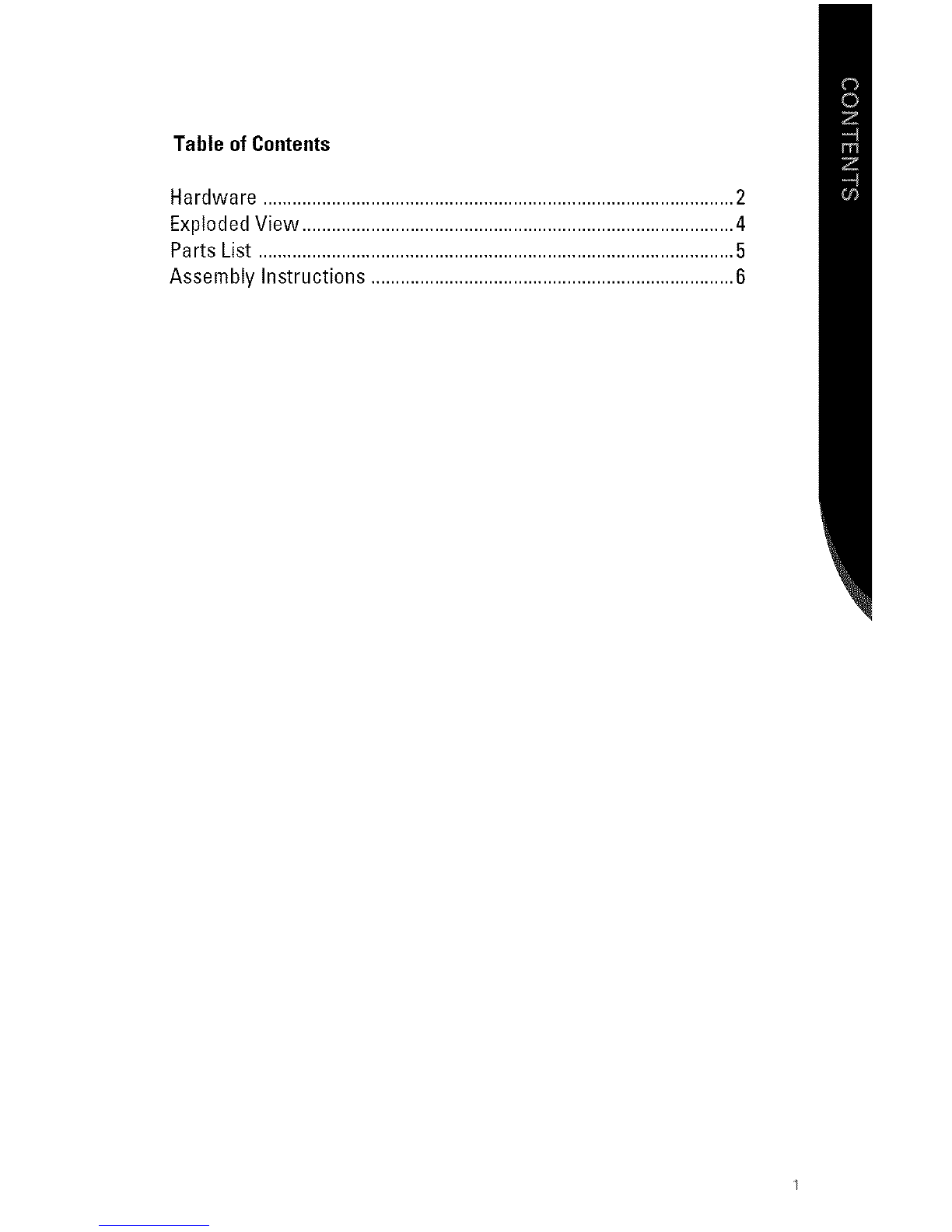

Table of Contents
Hardware ................................................................................................2
Exploded View ........................................................................................4
Parts List .................................................................................................5
Assembly Instructions ..........................................................................6
g=3_o
gg=
::r O
3"_:a
=g
.o o
co
°# 3
_0
_g
co
-,<:
o
_<
g
q
o_
g,
_g
o-
o
g

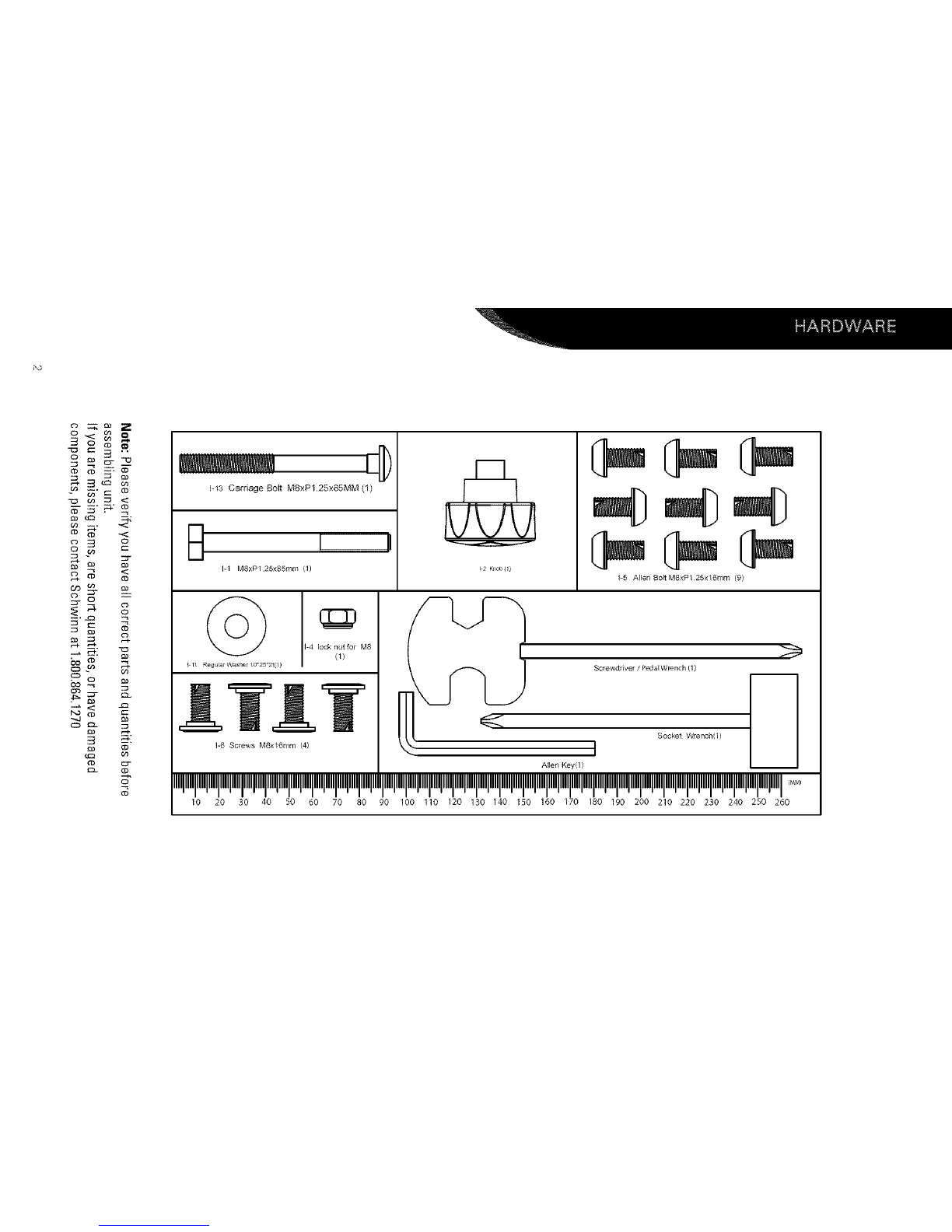

613 Carriage Bolt M8xPI25x85MM (1)
11 MSxP1 25x85mrl/ (1)
I-4 lock nutfor M8
0/
UVU
15 Alien S0_ MSxP1 25x16mm (9)
Screwdriver /pedal Wlench (1)
Socket Wrench(l)
]6 Screws MSx16mm [4) _ I
Al_en Key/1 )
,ll,,I,,llmlm,mll,,I,IIl,,I,,I mllmInilln,l,,I, l,,I,,Pwlm l,,I
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260
_ °c
=-o
¢z_ o
_0 cp
cP t:_
o
©©©©©©©©©
©©©©©©©©©
_ ,,bq m
_] mD
M5*16MM (4) L-!OKr.Jb(!/ I-9 Allen B01t MSxP10x35mm (5)
mliu,lu,Pmil,q,ul,uilmpmiu,lu,il,limq,ul,uilmlu,iu,Pmil,li,ui,uPmimllu,iu,il,qmli,ui,uPmiu,lu,pmil,q,ui,uilmlmliu,lu,il,lil,q,ul,uilmlu,iu,Pmil,limq,uI
10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260
EXPLODEDVIEW
PARTSLIST
Ref. Description
A Computer
A-1 Computerbracket
A-2 Screw M5x14L
B Handlebar
C Handlebar mast
C-1 Screw M8x1,25x16
C-2 Curvedwasher
C-3 Upper heart rate wire
C-4 Upper computer wire
D Main frame
D-1 Lower heart ratewire
D-2 Lower computer wire
D-17 ACadaptor
D-18 Screw M8x1,25x16L
D-19 Flatwasher 8x16
D-22 Seat rail bracket
E Frontstabilizer
F Pedal pair
6 Rearstabilizer
H Seat rail
I-1 Screw M8xP1,25x85L
I-2 Angle adjust knob
I-3 Flatwasher 8x16x2t
I-4 Nylon nut
I-5 Screw M8x16
I-6 Screw M8x16Flat
I-7 Screw M8xlx45
I-8 Screw M5x16
I-9 Screw M8x35
1-10 Seatadjust knob
I-11 Flatwasher 10x25x2t
1-13 CarriageBolt M8x1.25x85
J Seathandlebar
K Seatframe
K-1 Seat bottom
K-2 Water bottle holder
K-3 Seatadjustment knob
L Seat bracket
L-1 Seat back
L-2 Seat back cover w/magazine Holder
_y
1
1
4
1
1
4
4
9
11
2O
I
g
4
4
4
5
I
I
I
I
I
I
I
I
I
I
I

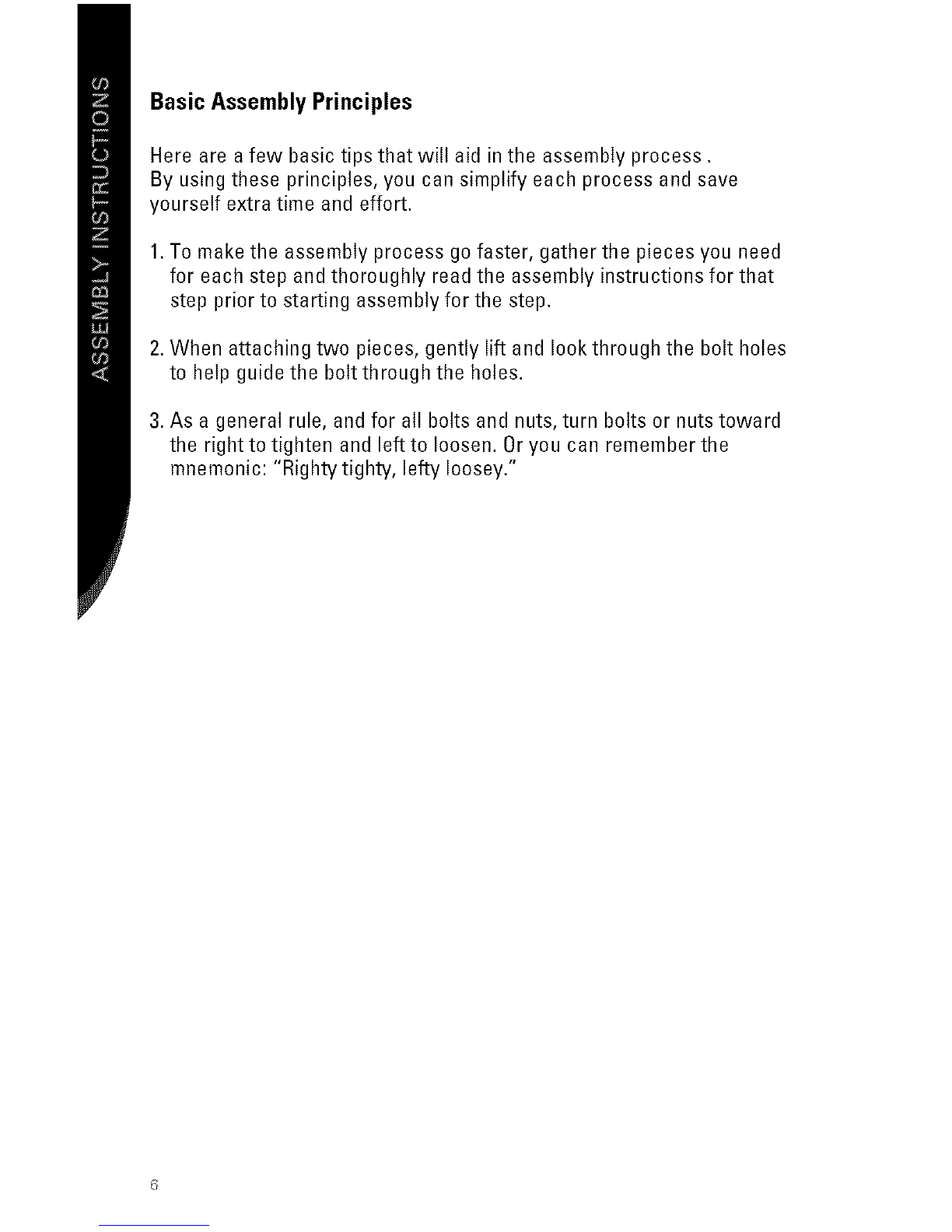

Basic Assembly Principles
Here are a few basic tips that wilt aid in the assembly process.
By using these principles, you can simplify each process and save
yourself extra time and effort.
1. To make the assembly process go faster, gather the pieces you need
for each step and thoroughly read the assembly instructions for that
step prior to starting assembly for the step.
2. When attaching two pieces, gently lift and look through the bolt holes
to help guide the bolt through the holes.
3. As a general rule, and for all bolts and nuts, turn bolts or nuts toward
the right to tighten and left to loosen. Or you can remember the
mnemonic: "Righty tighty, lefty Ioosey."
Step 1 Install Front and Rear Stabilizers
Parts:
•Main frame (Ref. D )
•Front Stabilizer (Ref. E )
•Rear Stabilizer (Ref. G )
• M8x16 Screws (Ref. I-6)
Tools:
• Supplied Allen Wrench
1-1 Attach the Rear Stabilizer (G) to the rear of the Main Frame using
two M8 X 16mm screws (I-6).
1-2 Attach the Front Stabilizer (E) with the UP sticker and wheels
toward the front of the Main Frame using two M8 X 16mm
screws.
\D
UP
sticker
Step 2 Install Pedals
Parts:
•Right Pedal (F-R)
• Left Pedal (F-L)
Tools:
• Supplied Pedal Wrench
2-1 Screw the Left Pedal ( has an" L" stamped into the end of
the pedal ) into the Left Crank Arm.
Note: The Left Pedal has a left handed thread and screws in
counter clockwise.
2-2 Screw the Right Pedal ( has an" R" stamped into the end of the
pedal) into the Right Crank Arm.

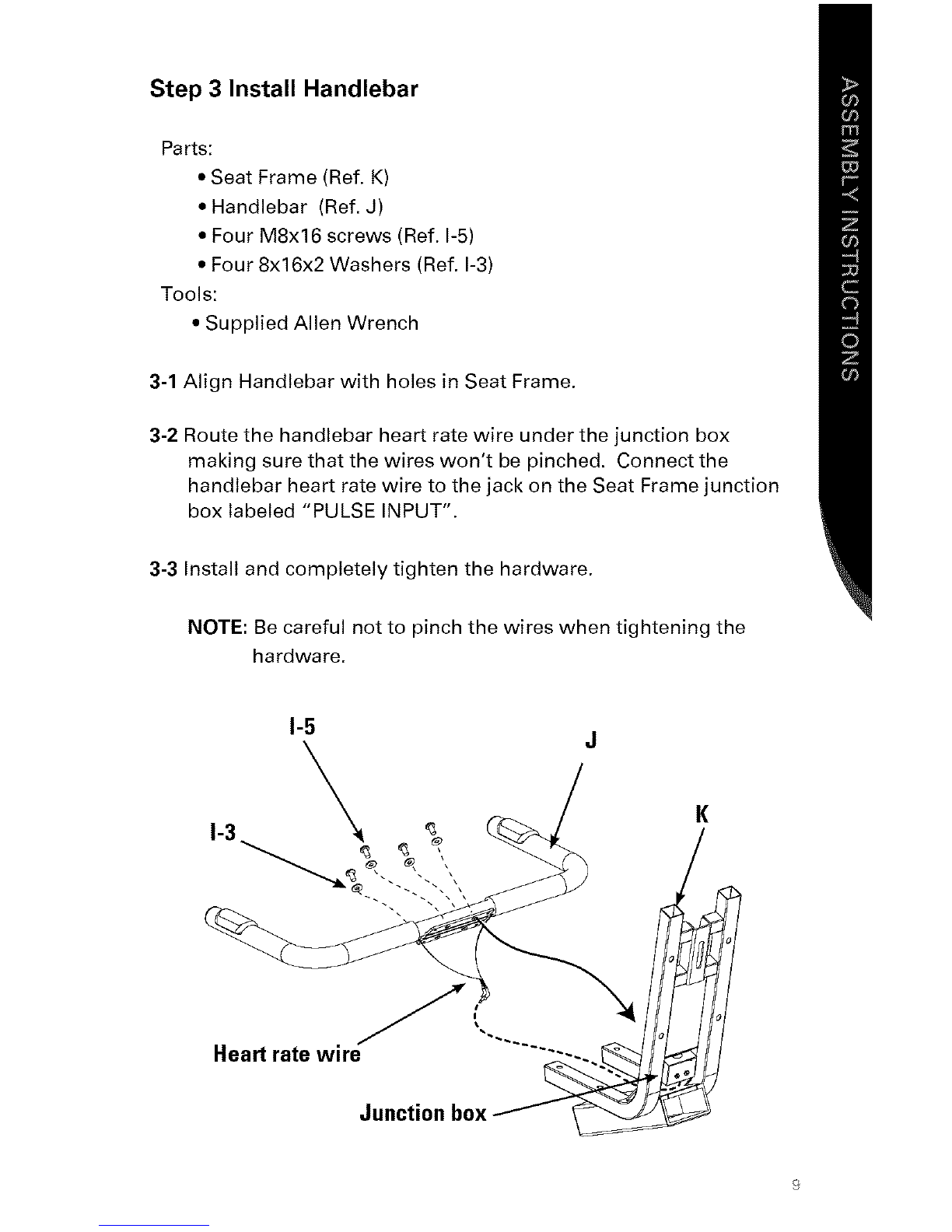

Step 3 Install Handlebar
Parts:
•Seat Frame (Ref. K)
• Handlebar (Ref. J)
• Four M8x16 screws (Ref. I-5)
• Four 8x16x2 Washers (Ref. I-3)
Tools:
• Supplied Allen Wrench
3-1 Align Handlebar with holes in Seat Frame.
3-2 Route the handlebar heart rate wire under the junction box
making sure that the wires won't be pinched. Connect the
handlebar heart rate wire to the jack on the Seat Frame junction
box labeled "PULSE INPUT".
3-3 Install and completely tighten the hardware.
NOTE: Be careful not to pinch the wires when tightening the
hardware.
J
K
Heart rate wire
Junction box
