!A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental operations

so you can locate and use the vehicle’s main equipment quickly

and easily.

The Quick Reference Guide is not intended as a substitute for the

Owner’s Manual located in the vehicle’s glove box. We strongly

encourage you to review the Owner’s Manual and supplementary

manuals so you will have a better understanding of the vehicle’s

capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,

Inc. wish you many years of satisfied driving in your new Scion xD.

This Quick Reference Guide is not a full description of

Scion xD operations. Every Scion xD owner should review

the Owner’s Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in

color throughout the Owner’s Manual. Each box contains safe

operating instructions to help you avoid injury or equipment

malfunction.

All information in this Quick Reference Guide is current at the

time of printing. Toyota reserves the right to make changes at

any time without notice.

2012

Scion xD OVE

FEA

SAF

EME

IND

1 Vis

resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:33 PM Page ii

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Engine maintenance 7

Fuel tank door release and cap 6

Hood release 7

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry

Light control-Instrument panel 7

Air Conditioning/Heating 12

Automatic Transmission 8

Bottle holders 15

Clock 13

Cruise control 11

Cup holders 15

Lights & turn signals 10

Multi-information display 14

Parking brake 8

Power outlet 15

Seat adjustments 9

Seat-Folding down rear seat 9

Seats-Head restraints 8

Steering wheel switches 14

Tilt steering wheel 12

USB port/AUX port 13

Windows 11

Windshield wipers & washers 10

Door locks 16

Doors-Child safety locks 16

Floor mat installation 19

Seat belts 16

Seat belts-Shoulder belt anchor 16

Spare tire & tools 17

Star Safety System

18-19

Tire Pressure Monitoring (warning) System 17

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

INDEX

1 Visit your Toyota dealer for information on customizing this feature.

resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:55 PM Page 1

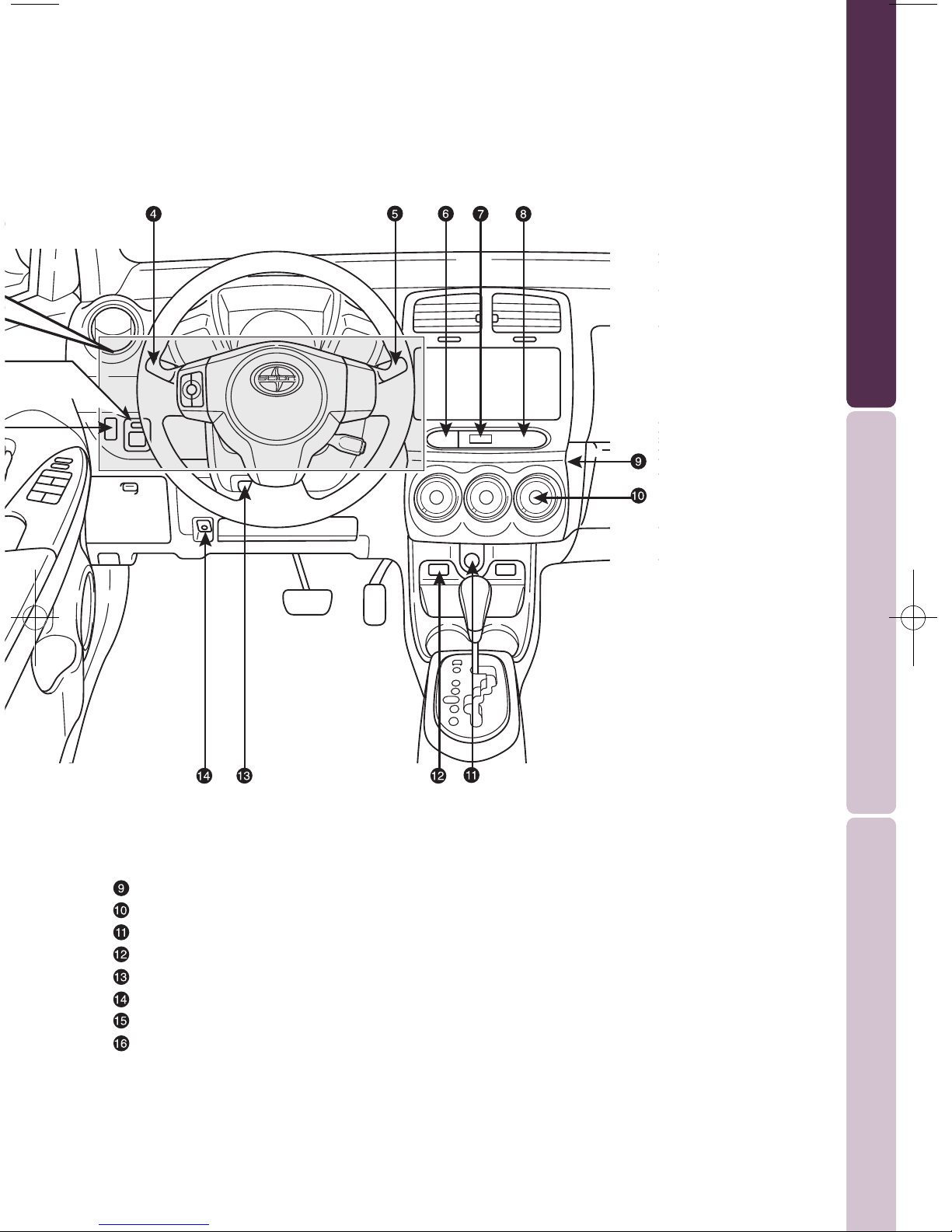

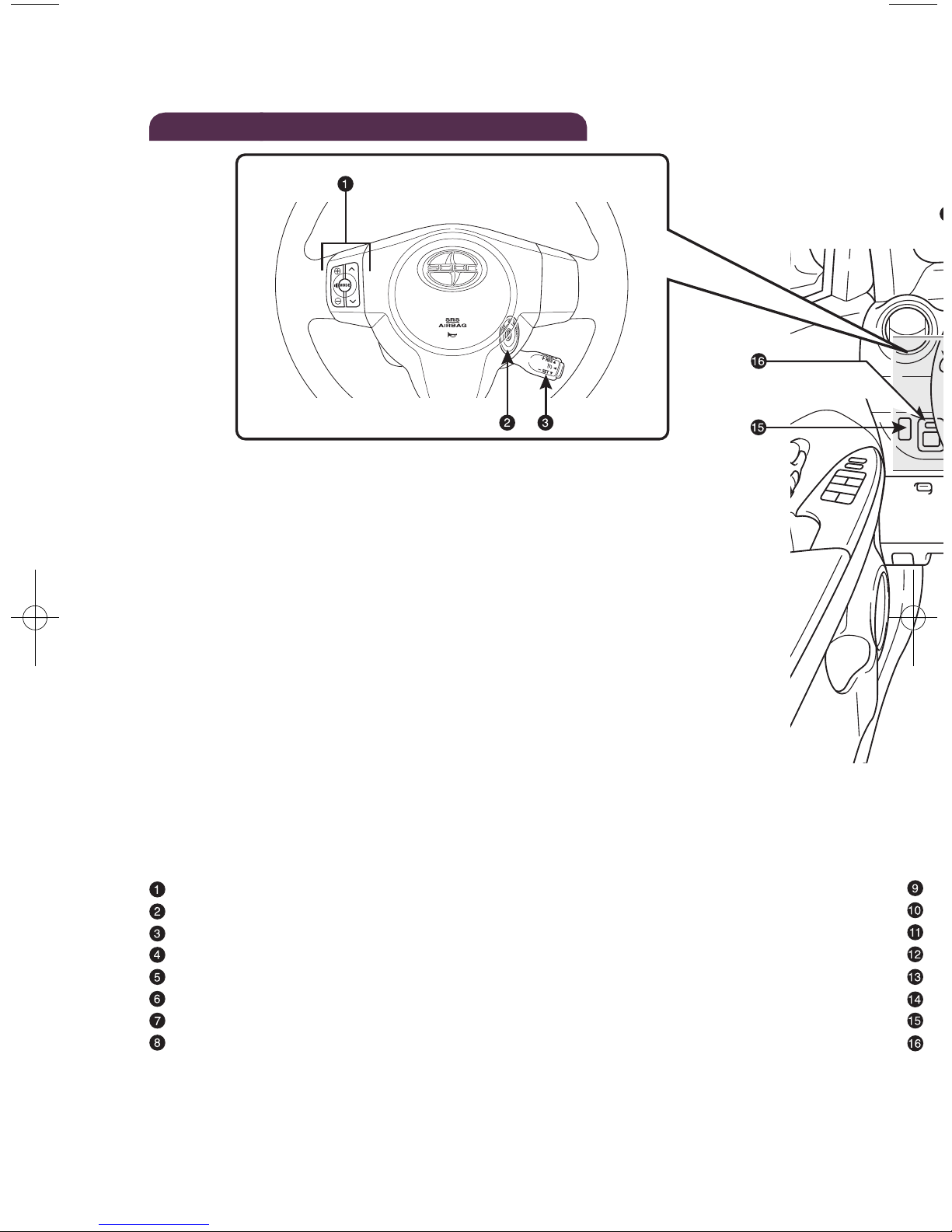

OVERVIEW

Steering wheel audio controls*

Ignition switch

Cruise control

Headlight and turn signal controls

Wiper and washer controls

Emergency flasher button

Clock

Front passenger occupant classification indicator/Front passenger seat belt

reminder light

Instrument panel

resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:33 PM Page 2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Air Conditioning controls

Rear window defogger button

12V DC Power outlet

USB port/AUX port*

Tilt steering lock release

Tire Pressure Monitoring (warning) System reset

Instrument panel light control

Power rearview mirror controls

* For details, refer to the SCION Audio System, Owner’s Manual or SCION

Navigation System Owner’s Manual.

resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:34 PM Page 3

OVERVIEW

Low engine oil pressure warning1

Driver seat belt reminder

(alarm will sound if speed is over 12 mph)

Front passenger seat belt reminder

(alarm will sound if speed is over 12 mph)

Brake system warning1

Charging system warning1

Malfunction/Check Engine indicator1

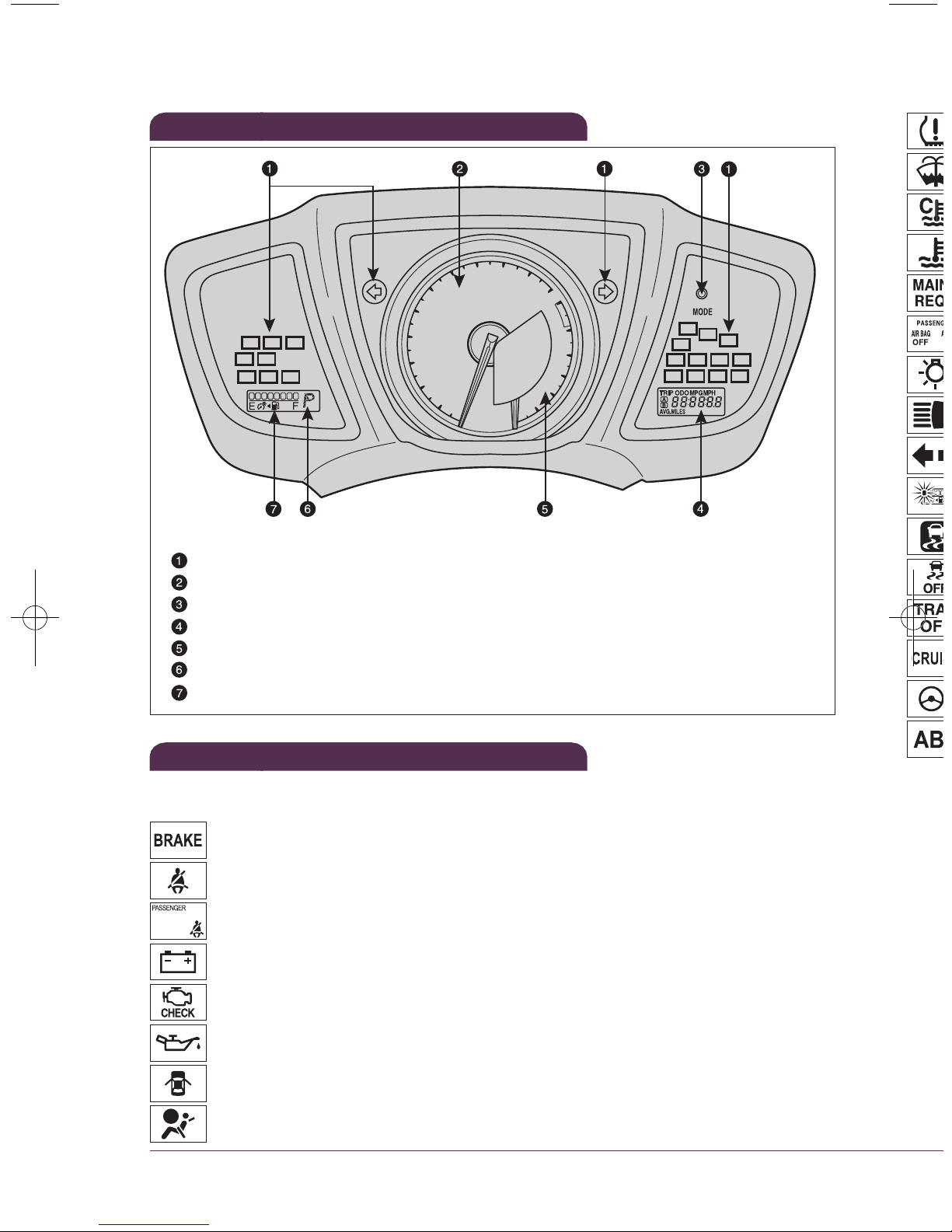

Indicator symbols

Instrument cluster

Service indicator and reminder

Speedometer

MODE switch

Multi-information display

Tachometer

Shift position indicator

Fuel gauge

1If indicator does not turn off within a few seconds of starting engine, there may be a

malfunction. Have vehicle inspected by your Toyota dealer.

2If t

Open door warning

Airbag SRS warning1

For details, refer to “Indicators and warning lights,” Section 2-2, 2012 Owner’s

Manual.

resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:34 PM Page 4

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

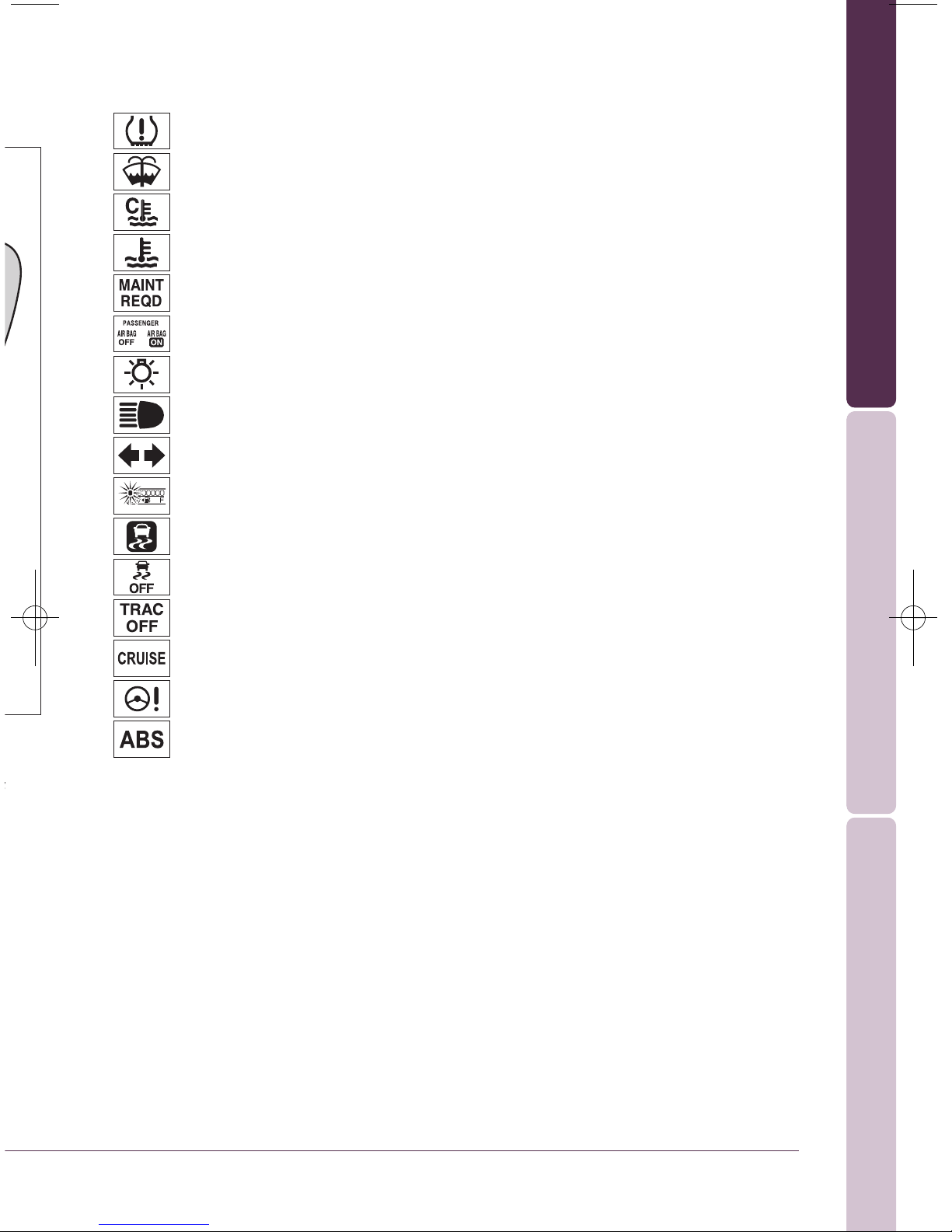

Anti-lock Brake System warning1

Engine oil replacement reminder1

Front passenger occupant classification indicator

Headlight low beam indicator

Turn signal indicator

Headlight high beam indicator

Cruise control indicator2

Electric power steering system warning1

Slip indicator1

Vehicle Stability Control OFF indicator1

Low fuel level warning

High engine coolant temperature warning

Low engine coolant temperature indicator

2If this light flashes, refer to “Cruise control,” Section 2-4, 2012 Owner’s Manual.

Traction Control OFF indicator

Low Tire Pressure Warning1

Low windshield washer fluid level warning

resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:34 PM Page 5

OVERVIEW

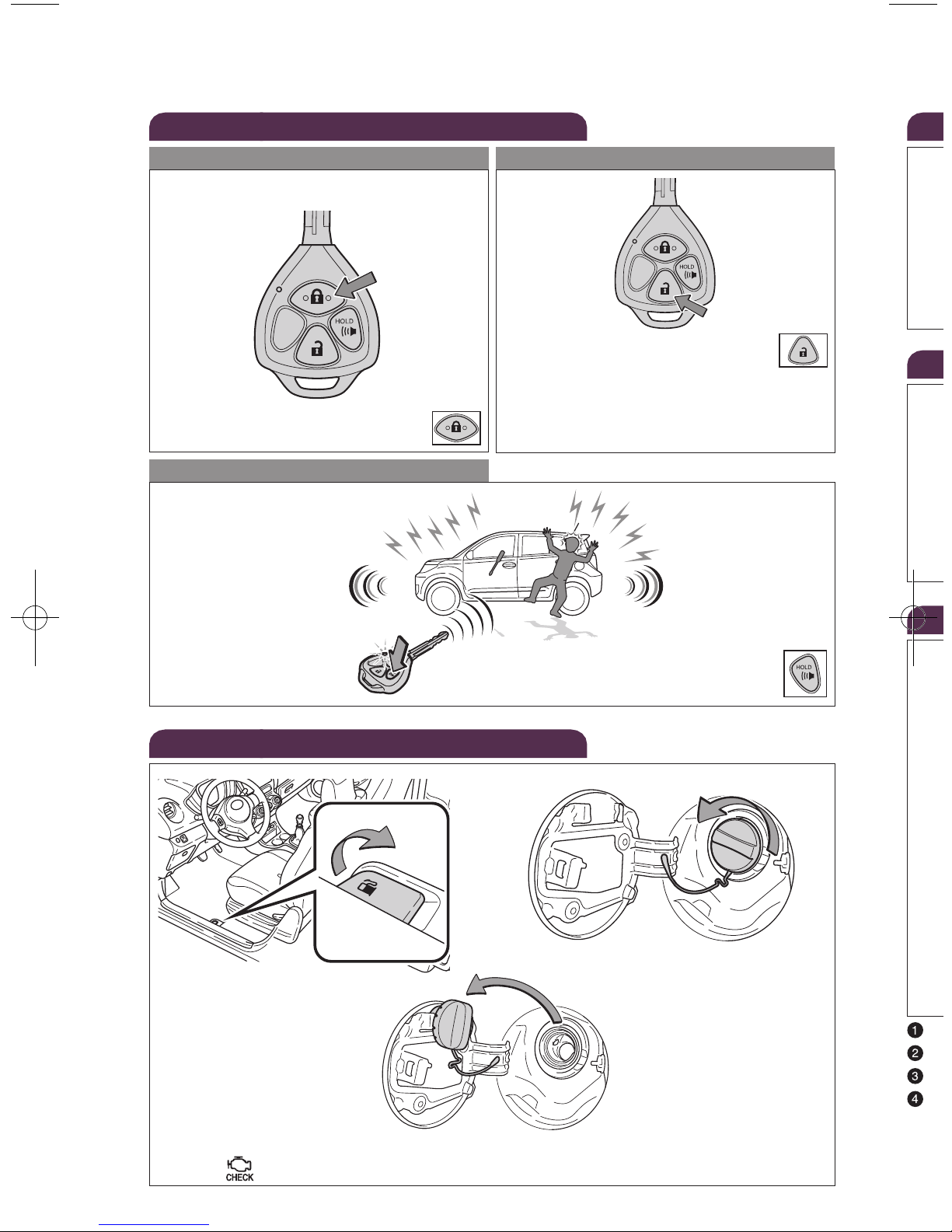

Fuel tank door release and cap

Pull up

Store

Turn to open

Keyless entry

Locking operation Unlocking operation

NOTE: If a door is not opened within

30 seconds of unlocking, all doors will

relock for safety.

Push

Push ONCE: Driver door

TWICE: ALL doors

Panic button

Push and hold

NOTE: Tighten until one click is heard. If the cap is not tightened enough, Check

Engine “ ” indicator may illuminate.

NOT

Lig

resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:35 PM Page 6

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

will

eck

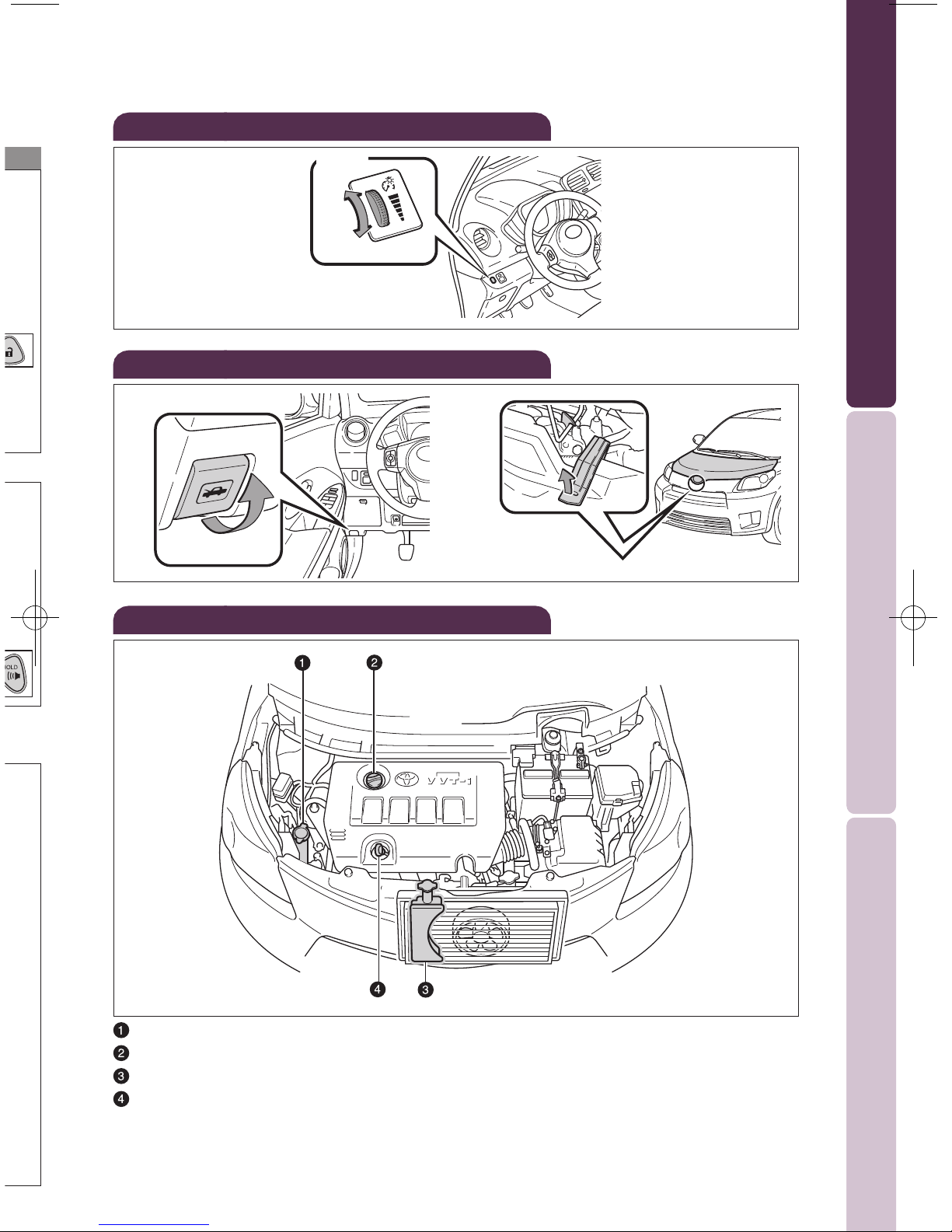

Hood release

Pull Pull up latch

and raise hood

Windshield washer fluid tank

Engine oil filler cap

Engine coolant reservoir

Engine oil level dipstick

NOTE: Regularly scheduled maintenance, including oil changes, will help

extend the life of your vehicle and maintain performance. Please refer

to the “Warranty Maintenance Guide.”

Engine maintenance

Light control-Instrument panel

Bright

Dark

resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:35 PM Page 7

FEATURES/OPERATIONS

Automatic Transmission (if equipped)

Downshifting increases power going uphill, or provides engine braking downhill.

For best fuel economy during normal driving conditions, always drive with the shift

lever in the “D” position.

*The ignition switch must be “ON” and the brake pedal depressed to shift from

Park.

Parking brake

Pull (2) Push

(1) Pull slightly

(3) Lower

Set Release

Park*

Reverse

Neutral

Drive

Third gear

Second gear

First gear

Fro

Seats-Head restraints

Lock release button Lock release button

Front Rear

(fo

resize-2012Scion xD.qxd:2012-Scion-xD-QRG 9/7/11 10:35 PM Page 8
