VERSO 50

Instructions Manual

Release: 1.0.27

33502027401_3_1

VERSO 50_v1.0.27_EN 33502027401_3_1 page 2/24

VERSO 50_v1.0.27_EN 33502027401_3_1 page 1/24

Index

OVERVIEW - MAIN CHARACTERISTICS - INSTALLATION - WIRING ........................................................................2

1- GENERAL REQUIREMENTS AND INSTALLATION..................................................................................................3

1- 1 General notes........................................................................................................................................................................3

1- 2 Product Label and Rating plate...........................................................................................................................................3

1- 3 Hardware ratings ..................................................................................................................................................................4

1- 4 Electrical Installations..........................................................................................................................................................5

1- 5 Connections..........................................................................................................................................................................6

1- 6 Operation modes..................................................................................................................................................................7

1- 6.1 Automatic mode.................................................................................................................................................................................7

1- 6.2 Manual mode......................................................................................................................................................................................7

1- 6.3 Reset mode ........................................................................................................................................................................................7

1- 6.4 Test mode...........................................................................................................................................................................................7

1- 6.5 Alarms ................................................................................................................................................................................................7

1- 7 Equipment Overview............................................................................................................................................................8

1- 8 Display pages .......................................................................................................................................................................9

1- 8.1 Mains ...................................................................................................................................................................................................9

1- 8.2 Mains stats..........................................................................................................................................................................................9

1- 8.3 Generator ............................................................................................................................................................................................9

1- 8.4 Generator stats ...................................................................................................................................................................................9

1- 8.5 Hours...................................................................................................................................................................................................9

1- 8.6 Events log ...........................................................................................................................................................................................9

1- 8.7 Clock and warranty.............................................................................................................................................................................9

1- 8.8 I/O Monitor.........................................................................................................................................................................................10

1- 8.9 Info page............................................................................................................................................................................................10

1- 8.10 System data.....................................................................................................................................................................................10

1- 8.11 Logo page........................................................................................................................................................................................10

2- PROGRAMMATION MENUS.....................................................................................................................................11

2- 1 Navigation instructions......................................................................................................................................................11

2- 2 M1 - Mains setup.................................................................................................................................................................12

2- 3 M2 - Alternator setup..........................................................................................................................................................13

2- 4 M3 - Test setup ...................................................................................................................................................................14

2- 5 M4 - General setup .............................................................................................................................................................15

2- 5.1 M4.1 - Display setup ........................................................................................................................................................................15

2- 5.2 M4.2 - Clock setup ...........................................................................................................................................................................15

2- 5.3 M4.3 - Security setup.......................................................................................................................................................................16

2- 6 M5 - Alarms list...................................................................................................................................................................17

2- 7 M6 - EJPT setup..................................................................................................................................................................19

2- 8 M7 - Counters......................................................................................................................................................................19

2- 9 M8 - Measures.....................................................................................................................................................................19

3- PANELS - ELECTRICAL DRAWINGS ......................................................................................................................20

3- 1 Single Phase – 40A.............................................................................................................................................................20

3- 2 Single Phase – 100A...........................................................................................................................................................21

3- 3 Three Phase – 25A..............................................................................................................................................................22

3- 4 Three Phase – 40A..............................................................................................................................................................23

4- BATTERY CHARGER................................................................................................................................................24

VERSO 50_v1.0.27_EN 33502027401_3_1 page 2/24

OVERVIEW - MAIN CHARACTERISTICS - INSTALLATION - WIRING

Complete delivered equipment with connecting cables

Protection degree: IP20

References ‐Sizes and Weights:

ATS type

reference

height (mm)

width (mm)

depth (mm)

weight (kg)

single phase 40A (see 3-1 page 20/24)

31614298804NE

280

400

150

single phase 100A (see 3-2 page 21/24)

31614298904NE

280

400

150

three phase 25A (see 3-3 page 22/24)

31614299004NE

280

400

150

three phase 40A (see 3-4 page 23/24)

31614299104NE

280

400

150

Entraxe of fixation:

The panel must be fixed on the wall like the

picture opposite, with appropriate material.

Be careful, there are 3 meters length cable

between the genset control panel and the ATS.

Section of cables - plug caliber - Installation diagram:

ATS type

Generator

(power plug)

Generator

(control plug)

Mains

(directly on the contactor)

Utilization

(terminal blocks)

single phase 40A

32 Amps-3 pins

4 pins ‐0,75mm²

up to 2 x 6mm² / phase

up to 25mm²

single phase 100A

32 Amps-3 pins

4 pins ‐0,75mm²

up to 1 x 25mm² / phase

up to 50mm²

three phase 25A

16 Amps-5 pins

4 pins ‐0,75mm²

up to 1 x 6mm² / phase

up to 10mm²

three phase 40A

32 Amps-5 pins

4 pins ‐0,75mm²

up to 1 x 6mm² / phase

up to 16mm²

table 1

See complete electrical

diagrams pages 20,21,22,23

VERSO 50_v1.0.27_EN 33502027401_3_1 page 3/24

1- GENERAL REQUIREMENTS AND INSTALLATION

1- 1 General notes

WARNING!

•Carefully read the manual before the installation or use.

•This equipment is to be installed by qualified personnel, complying to current standards, to avoid damages or safety hazards.

•Before any maintenance operation on the device, remove all the voltages from measuring and supply inputs.

•Products illustrated herein are subject to alteration and changes without prior notice.

•Technical data and descriptions in the documentation are accurate, to the best of our knowledge, but no liabilities for errors, omissions or

contingencies arising there from are accepted.

•A circuit breaker must be included in the electrical installation of the building. It must be installed close by the equipment and within easy reach

of the operator. It must be marked as the disconnecting device of the equipment: IEC /EN 61010-1 § 6.12.2.1.

•Clean the instrument with a soft dry cloth; do not use abrasives, liquid detergents or solvents.

1- 2 Product Label and Rating plate

General identifications of each unit are traced on the plate below and placed on the controller.

VERSO 50_v1.0.27_EN 33502027401_3_1 page 4/24

1- 3 Hardware ratings

GENERAL CHARACTERISTICS

Rated Vdc voltage

12Vdc (24Vdc)

Vdc range

From 7Vdc to 33Vdc

Rated Vac voltage

400 Vac

Vac range

Up to 500 Vac

Frequency range

From 45 to 75 Hz

Fixed consumption with backlight

250 mA

Temperature range

-30 °C + 70 °C (electric)

-30 °C + 70 °C (display)

-40 °C + 80 °C (storage)

DISPLAY

128x64 px ; 66x33mm

DIGITAL INPUTS

Number

STATIC OUTPUTS

Number

CONTACTORS RELAYS

Number

Type of contacts

1x N.O. genset contactor -1x N.C. mains contactor

Contacts capacity

8 A / 250 VAC

VOLTAGE INPUTS

Number

Input type

Resistive coupling

Rated voltage

230 Vac (L-N) - 400 Vac (L-L)

Measure range

from 0 to 350 Vac (L-N) - from 0 to 500 Vac (L-L)

Allowed frequency

from 25 Hz to 80 Hz

Accuracy

< 1 % F.S.

HARDWARE

Number of Keys

Number of LEDs

VERSO 50_v1.0.27_EN 33502027401_3_1 page 5/24

1- 4 Electrical Installations

Warning! Before inserting the plugs and supply the board, make sure that the connections strictly comply with the wiring

diagram below.

NOTE: The remote start output is a positive. If you want to use a negative instead of a positive, it’s possible to use an external relay

as shown in the electrical drawing.

1.8 1.7 1.6 1.5 1.4 1.3 1.1 1.2 2.1 2.2 2.3 2.4

5.1 5.2

5.3 5.4

4.3 4.4

RELAY

A2 -

REMOTE

START

A1 +

VERSO 50

VERSO 50_v1.0.27_EN 33502027401_3_1 page 6/24

1- 5 Connections

J1 – Genset AC voltage and contactors

1.1 - Mains contactor output (NC)

1.2 - Mains contactor output (NC)

1.3 - Genset contactor output (NO)

1.4 - Genset contactor output (NO)

1.5 - Genset voltage phase 1

1.6 - Genset voltage phase 2

1.7 - Genset voltage phase 3

1.8 - Neutral

J5 – Supply and Outputs

5.1 - Battery negative

5.2 - Battery positive

5.3 - Common positive for remote start output (+)

5.4 - Remote start output (+)

J2 – Mains AC voltage

2.1 - Mains voltage phase 1

2.2 - Mains voltage phase 2

2.3 - Mains voltage phase 3

2.4 - Neutral

J4 – Digital inputs

4.3 - Gnd

4.4 - Digital input for EJPT - French market only

VERSO 50_v1.0.27_EN 33502027401_3_1 page 7/24

1- 6 Operation modes

At the power on, the VERSO 50 is in manual mode. With the

buttons you can choose the functioning mode you prefer.

1- 6.1 Automatic mode

Push the AUT button to select this functioning mode. There

are two different functioning logics:

a) Mains failure: the remote start output (J5.4) is activated

in case of mains failure (or out of limits) and is de-

activated in the presence of the same. This is the

standard logic.

b) EJPT: if programmed for EJPT (see menu M6), the

remote start output is activated if J4.4 is closed to

negative, and will be deactivated when the input is open.

For more informations about this function, see menu M6.

1- 6.2 Manual mode

The remote start output is activated with KG button and

deactivated with KR button: keeping and releasing quickly

the KR button, the remote start output is removed

immediately; while keeping pressed the KR button for 3

seconds, the controller switches the load on mains side

immediately but the remote start output is removed only after

the cooling time.

1- 6.3Reset mode

The remote start output cannot be activated. If the mains is

available it is connected to the load. If you select Reset

mode, the alarms are reset and the remote start output is

deactivated. If the cause of the alarm remains, the alarm

message is still present. Push the RESET button to select

this functioning mode.

1- 6.4 Test mode

Manual test: with the controller in Manual mode, press the

TEST button to activates this function. The remote start

output is activated to test the genset for a programmable

time. (Test duration can be programmed inside "M3- Test

setup", parameter "M"). When the test is finish, automatically

the controller returns in MAN mode and the test led turns off.

You can also finish the test manually, pressing again the

TEST button. During this type of MAN test, the load

switching can be controlled only by KG and KR buttons, even

if the mains is faulty.

Automatic test: there are n.2 different enabling conditions

about the automatic test:

-By operator control: with the controller in Automatic mode,

press the TEST button to activates this function

-By programmation: in the menu "M3- Test setup", you can

program daily, weekly, monthly tests. These tests can be

performed ONLY if the controller is in AUTO mode. You can

also select, by programmation, if you want to perform the test

with or without load.

When the automatic test is performed, the TEST led is ON

and the generator starting signal is activated. When the test

is finish, automatically the controller returns in AUT mode

and the test led turns off. You can also force to finish the test

pressing TEST button when the TEST led is ON. During this

type of AUT test, the load switching is managed

automatically by the controller.

1- 6.5 Alarms

In case of alarm, the display shows its description. If more

different alarms are detected, they appear individually in

sequence. For each alarm it is available a message that can

help to identify the source of the problem. The alarm reset

can be made by pressing the RESET button; by this, the

alarm is deleted and the controller goes in Reset mode,

preventing accidental generator starting attempts. If the

alarm, after reset, still remains on the display, the cause of

the alarm is not removed.

VERSO 50_v1.0.27_EN 33502027401_3_1 page 8/24

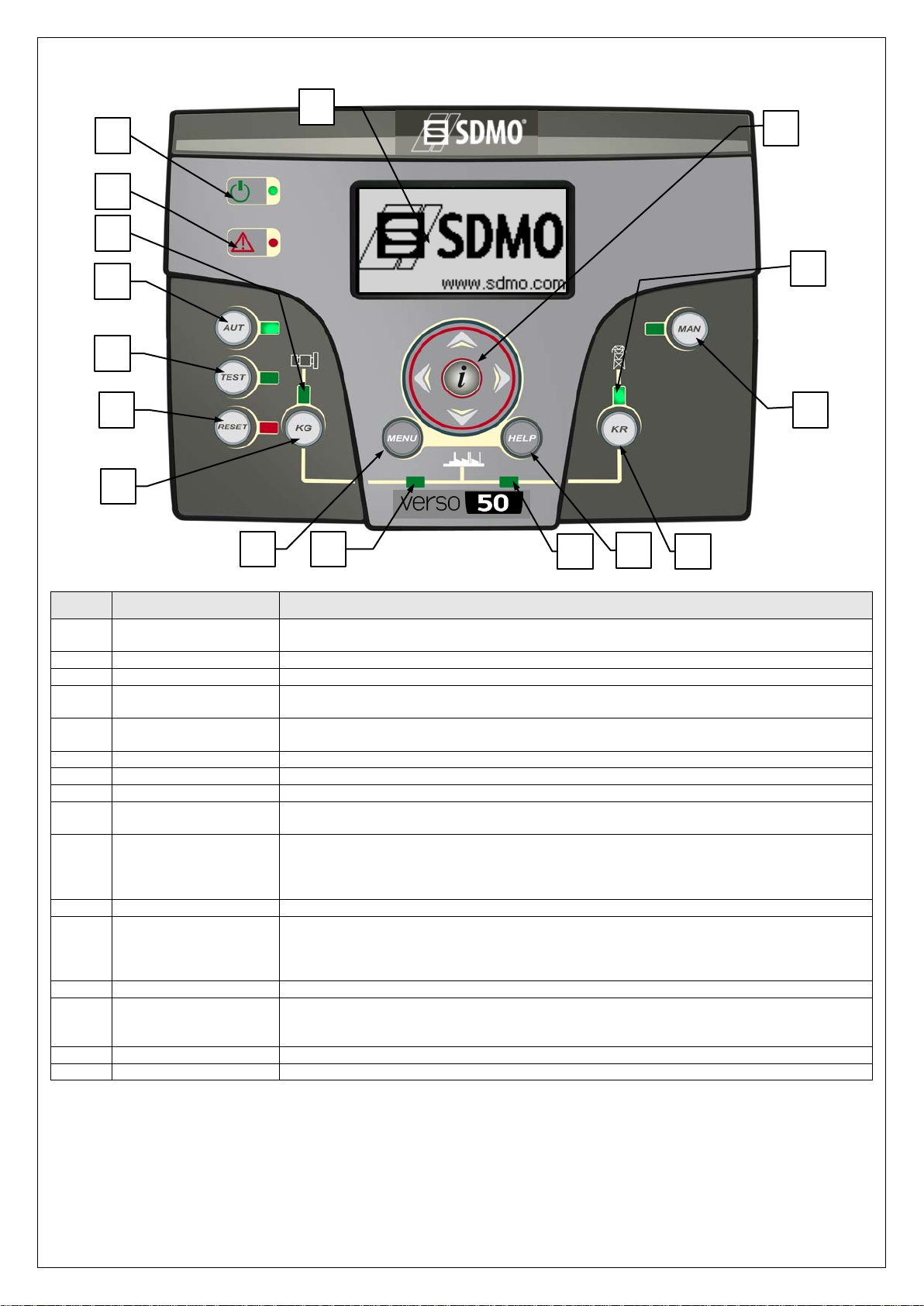

1- 7 Equipment Overview

POS. NAME DESCRIPTION

A Display

Backlighted display that shows all functions, measures and alarms about the generator and

the mains. Automatically the backlight turns off, and it turns on again when you press a button.

AUT

Button to select the automatic mode.

TEST

Button to select the test mode.

D RESET

To activate reset/OFF mode. In this operative mode the remote start output is deactivated and

the alarms are deleted. If the cause of the alarm persists, the alarm will appear again.

E KG

Key control to activate the remote start output (only in manual mode). In manual test mode,

this button permits to manage the generator contactor.

To enter the programmation menu. Inside the menus, it’s used as a button “back” or “esc”.

KG state led

Led that indicates if KG is closed (led on) or open (led off).

KR state led

Led that indicates if KR is closed (led on) or open (led off).

I Help

From the main page of the menu, it permits to go directly to the active alarms page, if at least

one alarm is present.

J KR

Key control to deactivate the remote start output (only in manual mode); keeping and

releasing quickly the

button, the remote start output is removed immediately, while keeping

pressed the button for 3 seconds, the remote start output is removed after the cooling time. In

manual test mode, this button permits to manage the mains contactor.

MAN

Button to select the manual mode.

L Navigation drive

Navigation drive composed by 4 arrows to scroll through the pages (left and right arrows) and

increase or

decrease the parameters inside the programmation menus. It contains also a

special button “i”, to select an e

lement on the screen or edit a parameter and confirm the new

value. See paragraph 2-1 for more informations about the navigation through the menus.

Mains state led

It shows if the mains is within limits (led on) or not (led off).

N Generator state led

It shows if the generator is within limits (led on) or not (led off). When the led is flashing, it

shows that the starting signal is active but the genset is not started yet or the genset voltage

values are not reached.

General alarm led

It turns on if an alarm enabled as global alarm 1 is present.

Battery state led

It turns on when the board is supplied.

F J

Indice

Altri manuali SDMO Interruttore

SDMO

SDMO VERSO S Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
