Seabreeze PAHS127 Manuale utente

READ THIS MANUAL THOROUGHLY

MOBILE AIR CONDITIONER

Models:

PAS12 12,000 Btu Cooling Only

PAHS127 12,000 Btu Cooling, 7,000 Btu Heating

950-0060-revA 1-15-07

Introduction ………………………………………………………………………………………………… 3

Theory of Operation ……………………………………………………………………………………… 3

Technical Specifications……………………………………………………………………………………… 4

Structure………………………………………………………………………………………………………… 5

Operation………………………………………………………………………………………………………… 6

Accessories Installation……………………………………………………………………………………… 20

Maintenance…………………………………………………………………………………………………… 23

Trouble Shooting……………………………………………………………………………………………… 24

Safety Caution and Special Guideline………………………………………………………………………25

Warranty Statement…………………………………………………………………………………………… 26

CONTENTS

Mobile Air Conditioner

This Mobile Air Conditioner is a small size appliance which can control the temperature and

humidity in a room. Its flexible characteristics make it easy to use on different occasions and in

different rooms. It also has multiple functions including cooling, heating, dehumidifying, and fan

ventilation. This unit is designed especially for the home, office, spot cooling/heating, etc. it has a

compact design compared to others with the same cooling capacity. Power consumption and

noise are especially low.

ATTENTION

Before you use your Mobile Air Conditioner, please read this manual carefully. This Instruction

Manual is for reference only, and does not constitute a contract. We reserve the right to make

technical changes without prior notice.

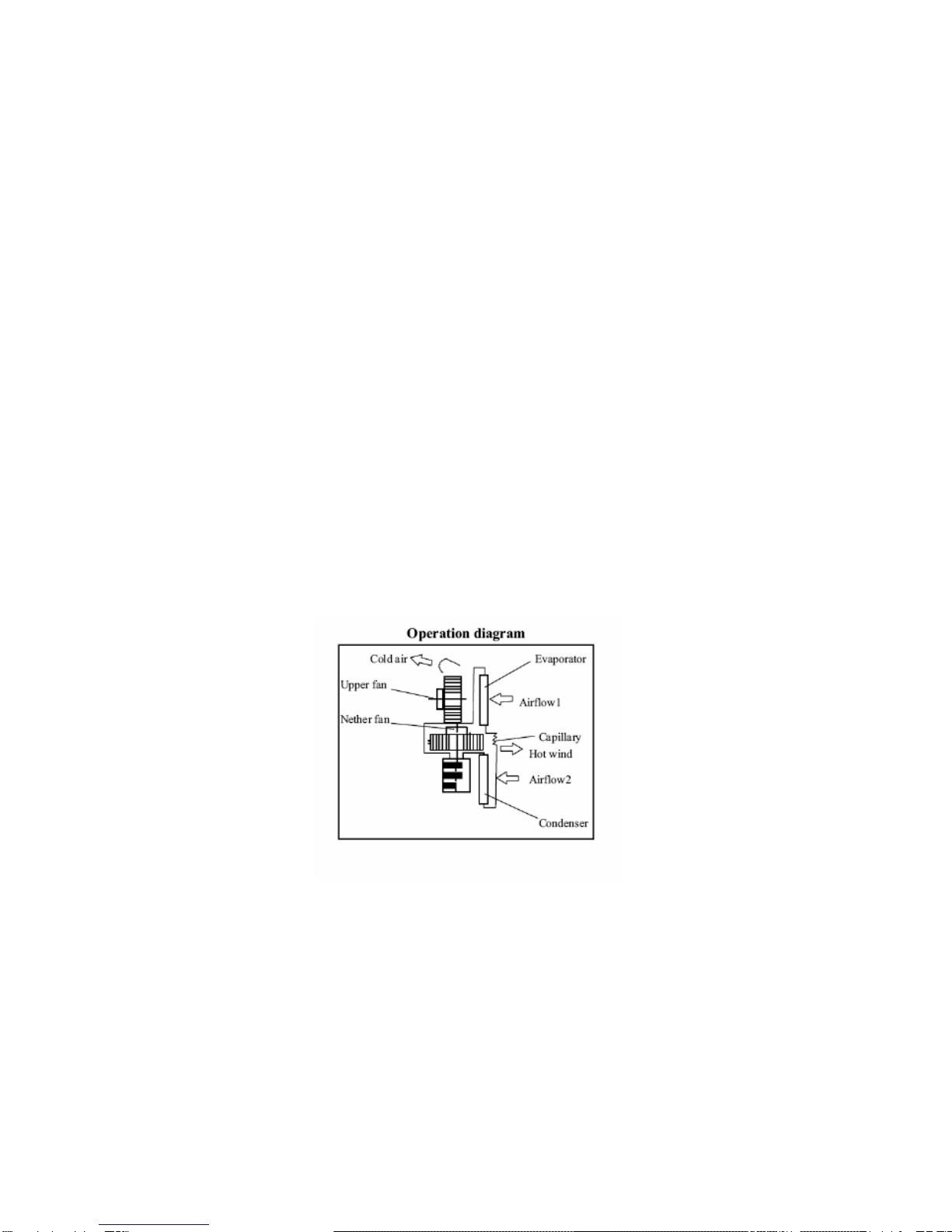

Theory of Operation

The gas has a heat exchange with air in a room and changes into liquid, then passes to a capillary

tube to lower temperature and pressure and enters into the evaporator. With heat exchange,

refrigerant absorbs heat to lower the temperature. The evaporator is lower than the dew point

temperature of air in the room; water vapor will condense on the outside surface of the

evaporator and drop down into the drain tank. This cycle lowers the relative humidity in the room

and attains the goal of dehumidification.

Introduction

Technical Specifications

Model PAS12 PAHS127

EER Rating Btu/w 8.8 8.8

Cooling Capacity 12,000BTU 12,000BTU

Heating Capacity N/A 7,000BTU

Rated Voltage 115Vac 115Vac

Rated Frequency 60Hz 60Hz

Rated Current 14.6Amps 14.6Amps

Power Input 1200W 1200W cooling/1500W heating

Rated Input 1500W 1500W

Cycling Airflow 174 CFM 174CFM

Refrigerant/R22 1.21LBS 1.21LBS

Noise Max. 62db(A) 62db(A)

Net WT/Gross WT 99/105.6LBS 99/105.6LBS

Unit Dimensions 17.7x14.5 x33.7 17.7x14.5 x33.7

Dehumidifying Volume 13.9 Gallons/day 13.9 Gallons/day

BRK Size 20A 20A

NOTE:

The cooling capacity indicated is measured at ambient temperature DB 86ºF, WB 77.9ºF (inside

and outside equal).

The heating capacity indicated is measured at ambient temperature DB 68

F, WB 53.6

F (inside

and outside equal).

The Noise level is taken at a distance of 39” from the front part of the appliance in cooling mode.

The power consumption of the fan is measured with the fan at maximum speed.

The specifications indicated only serve as a reference. Please refer to the information contained

on the appliance data plate.

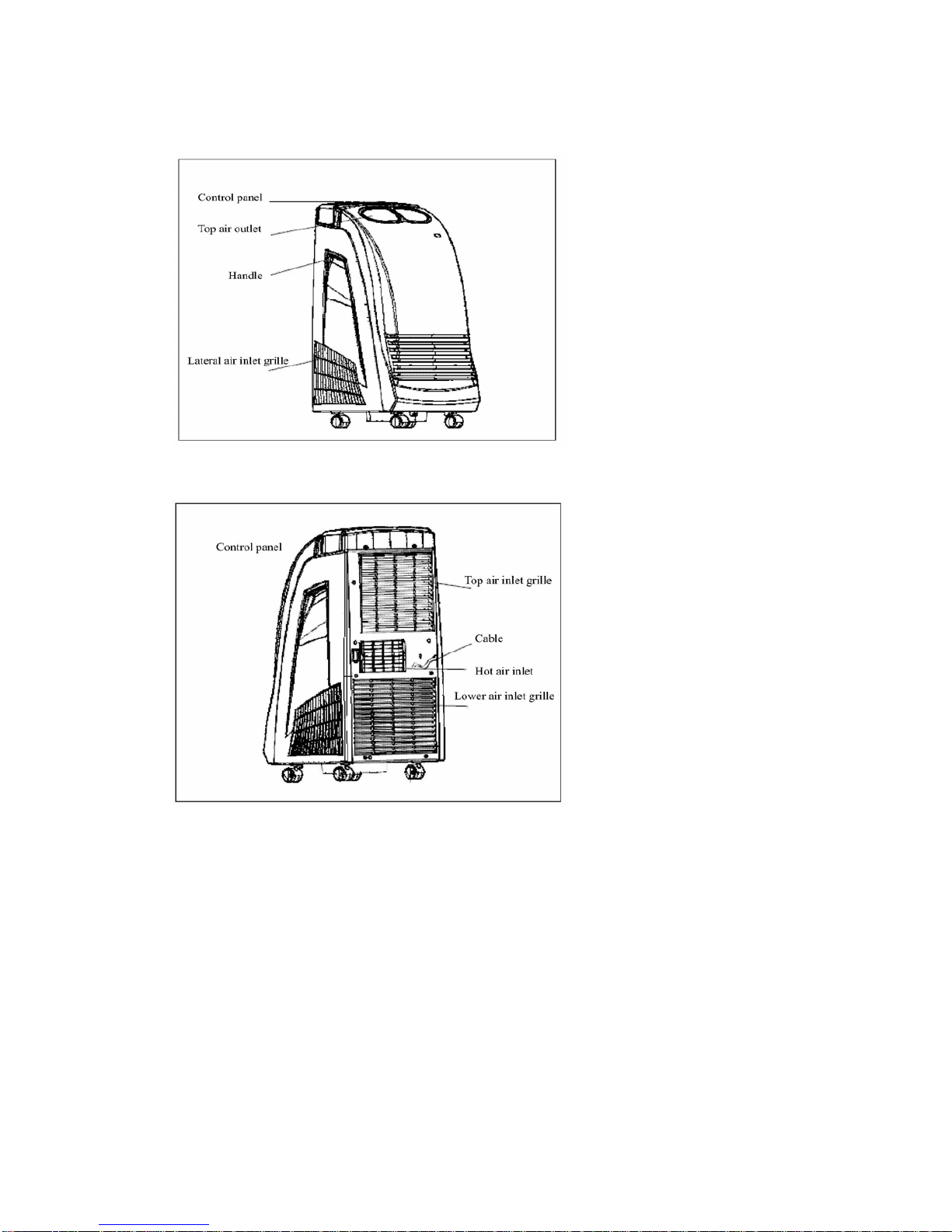

STRUCTURE

Front

Back

OPERATION

ATTENTION:

DEHUMIDIFYING AND COOLING OPERATION

The operating ranges for cooling and dehumidifying operation is 62ºF - 95ºF.

LOCATION:

Put the mobile air conditioner at an open place where the air outlets cannot be covered up. Place

the unit no less than 20 inches away from a wall or other obstacle.

POWER SUPPLY:

Before connecting the air conditioner to the power supply, please check:

The power supply is rated voltage 115V +- 6%.

The power supply line is PROPERLY grounded and sized for a pickup current of 20A, so as to

avoid voltage drops when starting the air conditioner.

The unit is connected to a 16Amp socket by a 16Amp plug. The wire size should be 10AWG.

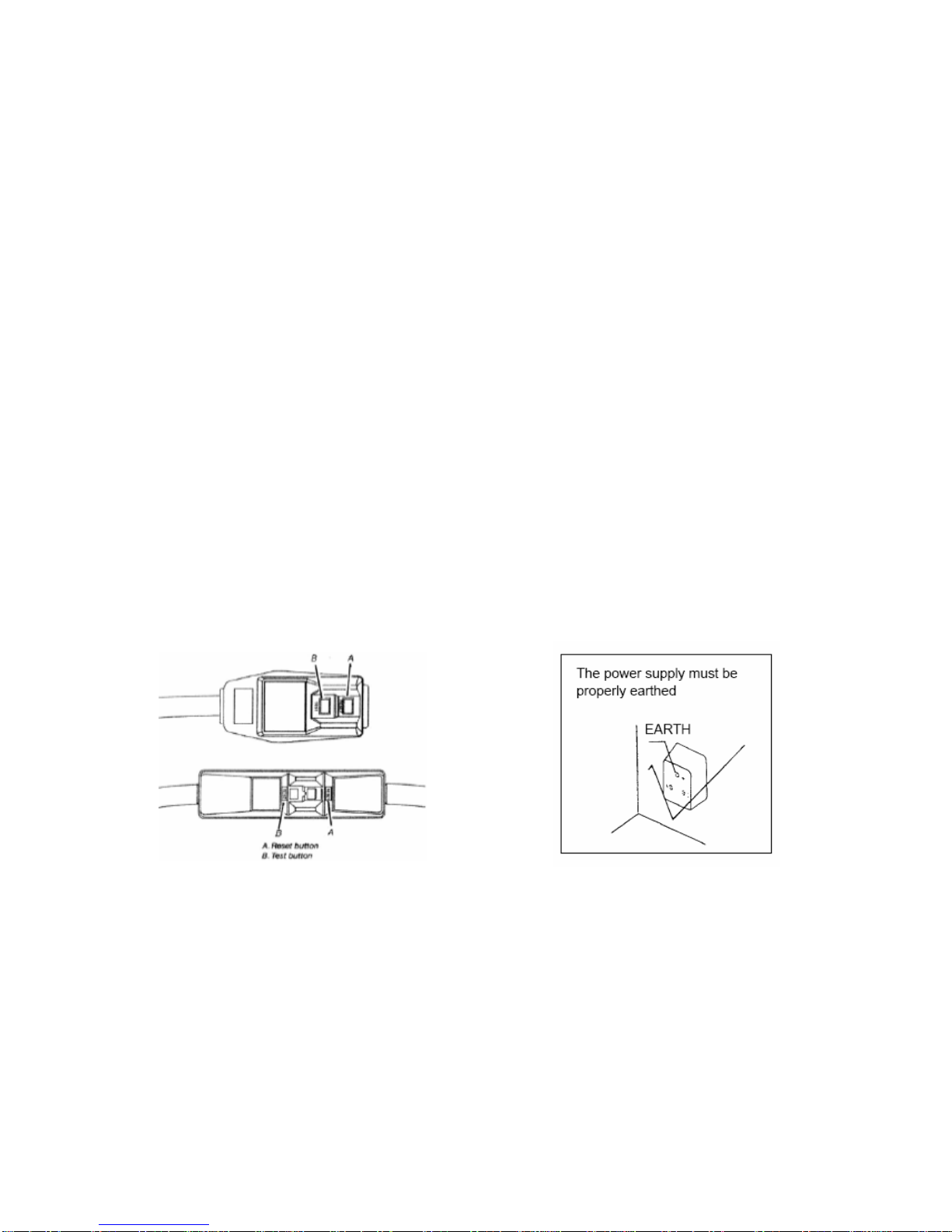

This room air conditioner is equipped with a power supply cord required by UL. This

power supply cord contains state-of-the-art electronics that sense leakage current. If

the cord is crushed, the electronics detect leakage current and power will be

disconnected in a fraction of a second. If the power supply cord of the unit is damaged,

please replace it with a special power supply cord by a qualified electrician.

NOTE: Your unit’s device may differ from the ones shown.

OPERATION

In order to prevent power fluctuations during the start of the compressor, the following

installation conditions apply:

1. The power source must be capable of handling 16A continuous.

2. Avoid connecting other equipment to this power source.

3. For power details of the air conditioner, refer to the rating plate of the product.

OPERATION

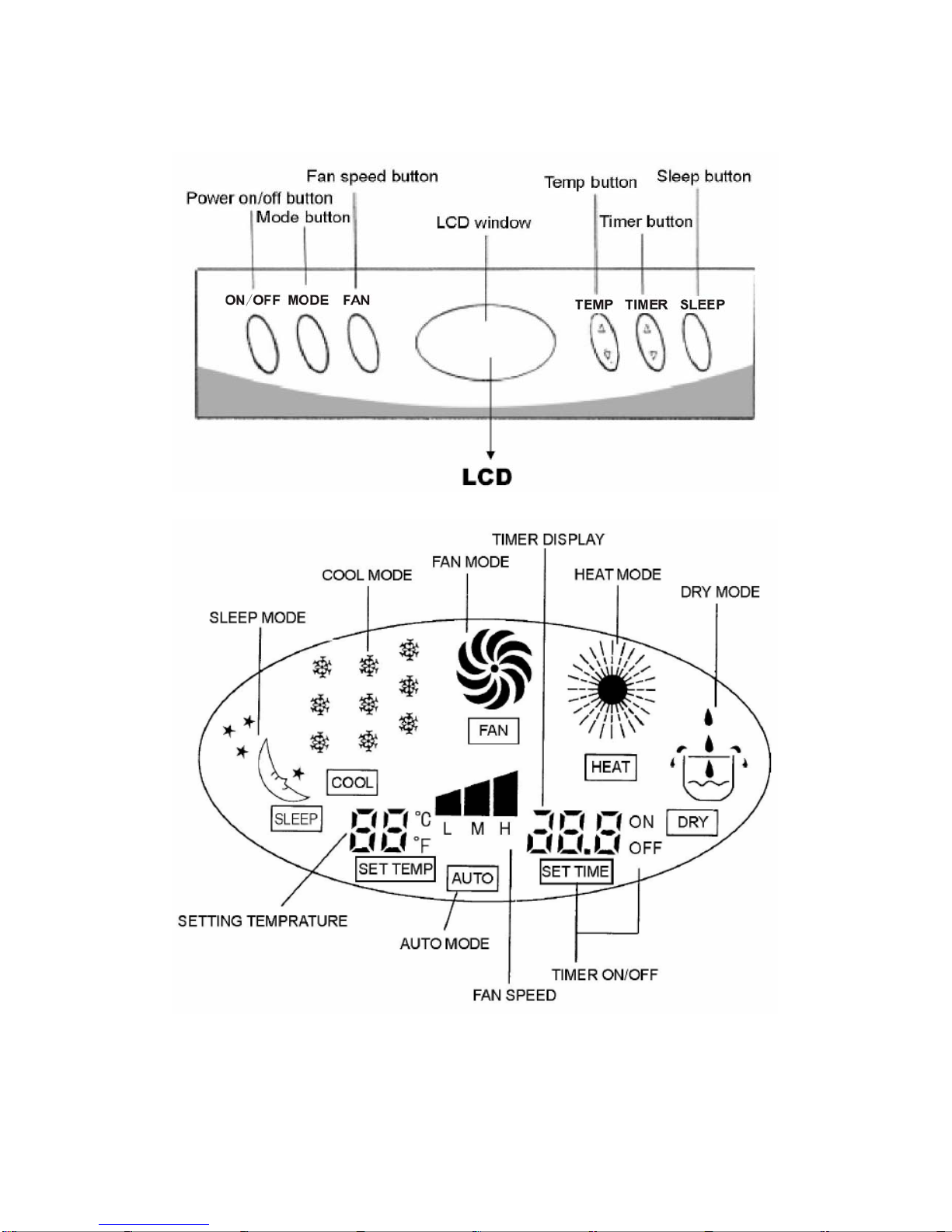

CONTROL PANEL AND LCD

OPERATION

CONTROL PANEL – BUTTONS

TURN THE AIR CONDITIONER ON:

Press the power ON/OFF button. This will turn the unit on.

MODE BUTTON “MODE”: There are 5 running modes to choose from:

FAN ⇒COOL ⇒DRY ⇒HEAT ⇒AUTO

NOTE: Only Model PAHS127 has the heat function.

FAN SPEED BUTTON:

There are three fan speeds in all modes of operation. Push the “FAN” button to change the fan

speed. It will change in the sequence：

HIGH ⇒MEDIUM ⇒LOW.

TEMPERATURE SETTING BUTTON “TEMP”:

As soon as the air conditioner has been switched on, the display on the control panel will show

the temperature set point.

Use keys “▲”or“▼” to increase or decrease the temperature setting. It is good practice to set

the temperature before selecting the operational mode.

USE THE “TIMER” BUTTON TO PROGRAM THE AIR CONDITIONER:

Use the “▲” or “▼” buttons to change the time for the air conditioner to turn on or off. When

the unit is running, set the unit stop time; and when the unit is off (but with power connected), set

the start time.

SLEEP BUTTON:

When the unit is running press the “SLEEP” button to activate the sleep mode.

Press once more to deactivate the sleep mode. This key does not function under the “AUTO”

mode.

OPERATION

COOLING OPERATION

Ensure that the drain tank is properly placed in the unit.

Install the exhaust duct properly (see air exhaust duct page).

During the cooling operation, always place the duct through an open window, or outside of the

area being cooled.

Repeatedly press the “MODE”button to choose the cooling mode.

The LCD Window will indicate “COOL”.

To set the temperature, press the “▲” or “▼” temperature buttons to set the room

temperature between 61º F and 86º F.

Press the “FAN” button to select the fan speed, HIGH ⇒MEDIUM ⇒LOW

Note: In order to improve the cooling efficiency:

Ensure that the unit is not exposed to direct sunlight.

Do not place the unit near a heat source.

DEHUMIDIFYING OPERATION

Keep windows and doors closed to aid in effectively dehumidifying the room.

Repeatedly press the “MODE”button to choose the dehumidifying mode.

The LCD Window will display “DRY”. The fan speed is not adjustable in the dehumidifying mode.

When used as a dehumidifier only, do not use the air exhaust duct.

FAN SPEED

Press the “MODE”button to select the fan mode.

The LCD Window will display “FAN”.

Press “FAN” button to choose the fan speed: HIGH ⇒MEDIUM ⇒LOW.

HEATING OPERATION (ONLY FOR MODEL PAHS127)

Press the “MODE”button to select the heating mode.

The LCD Window will display “HEAT”.

Press “FAN” to choose the fan speed: HIGH ⇒MEDIUM ⇒LOW.

Note: During heating, only the heat element and blower fan is activated.
