DISK DRIVE ST34520W

Mounting and Option Information

There is a new hard drive, SEAGATE ST34520W-4 - Com Code 407 942 135. The MLO's are sending this

drive as the replacement for the ST52160N.

This drive is a wide SCSI drive. To use it in a DEFAUD or an R1 you need the SCSI adapter for it

- Com Code 407 846 245.

The drive is used now in the AUDIX SLIM. To use it on a DEAUD with the adapter, the hard

drive needs to be spaced out from the drive bracket to clear the parts on the TN2169 behind the hard drive,

even then it will be a tight fit.

Use MOTOR START and PARITY and SCSI ID of 0 for DEFAUD. SCSI ID is needed for the R1

AUDIX, terminator disable is required.

-Joseph Berger

2/23/99

It is recommended that the Shielded SCSI Cable - Com Code 601 866 163 - be used with this disk drive

because it is shorter and more flexible.

Information from Wayne Motycka (2/24/99) and www.seagate.com :

DEFINITY AUDIX needs no option straps, but R1 AUDIX does.

Tape Drive

TN566B/567

ST 34520W Power Supply

cc 407 942 135

SCSI Cable Adapter HDD SCSI Cable Connector

cc 407 846 245 Disk Drive Shielded SCSI Cable

ST 34520W cc 601 866 163

Mounting Bracket

Anchor Plate Power Supply

Circuit Board (TN566B/567

Circuit Board component

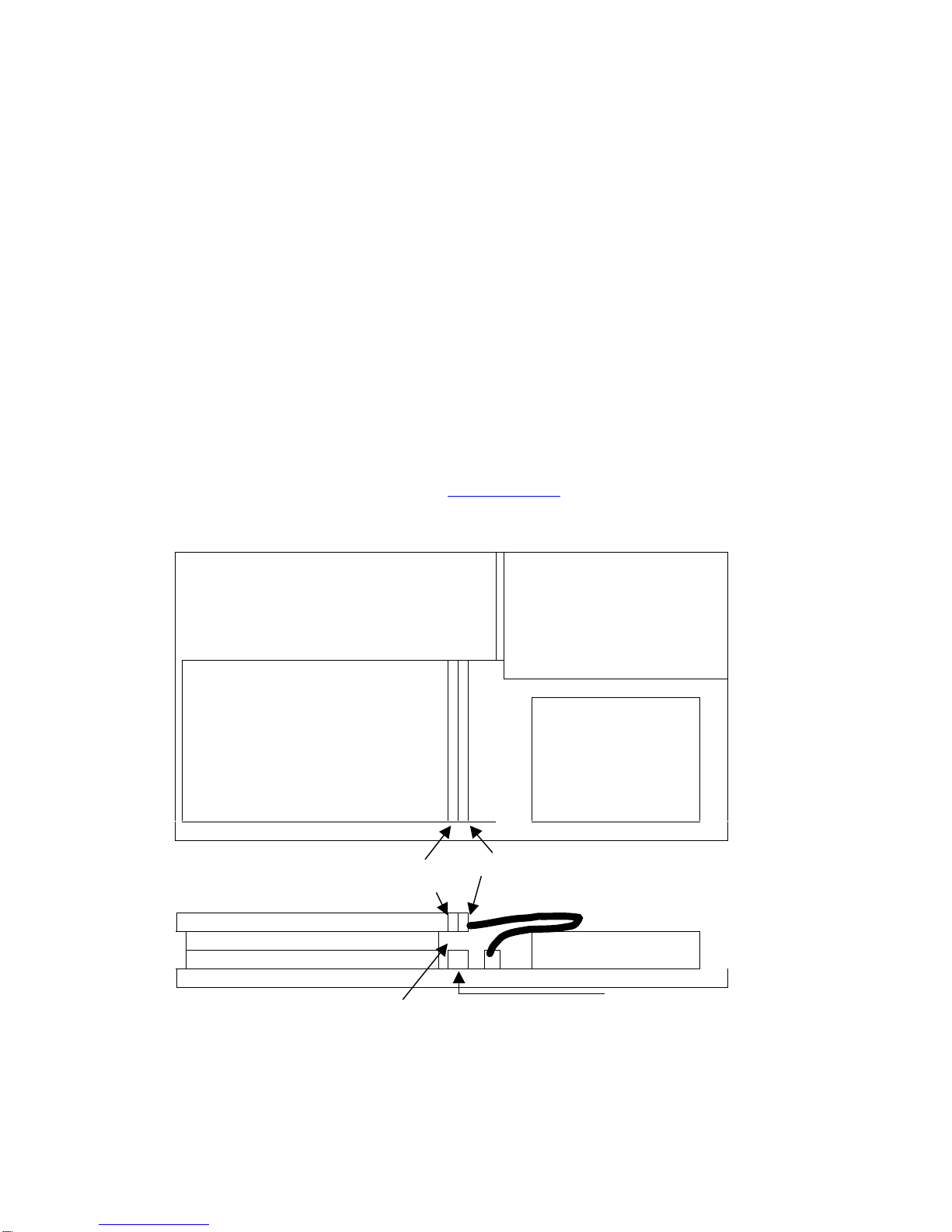

Required air gap between Circuit Board components and SCSI

Cable adapter and connector, this gap wil be extremely small, this picture shows a considerable gap

that overstates the space. The tech will need to assure that he can see light under the adapter.

February 25, 1999

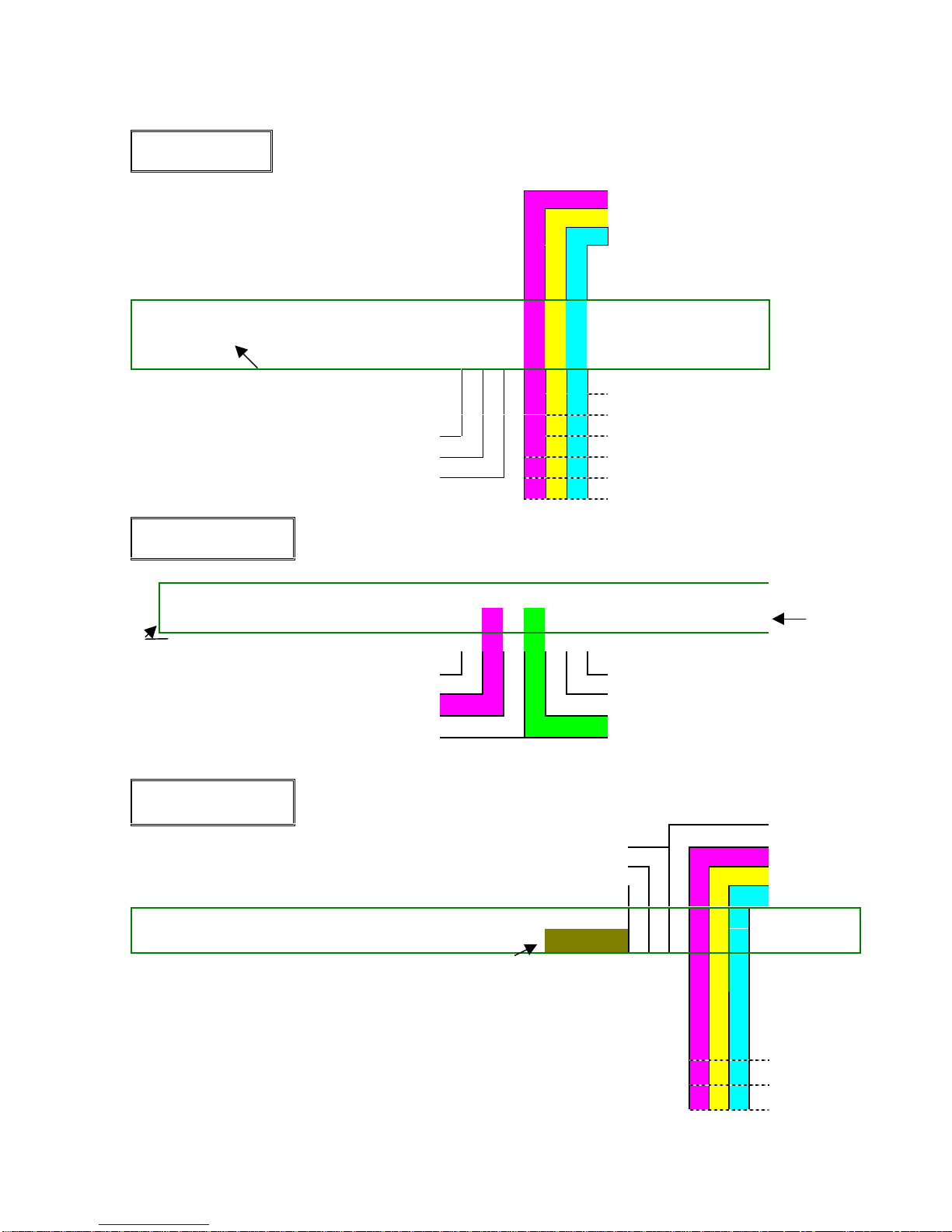

REAR VIEW

SCSI ID = 8

SCSI ID = 4

SCSI ID = 2

SCSI ID = 1

NOTE: Jumpers for the Front and Rear

are different sizes than the jumper for the

side option block. SCSI ID = 0 (none)

J5 J1--DC Power

97531

::::::

__________________________

=(-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-||-1) =

\_________________________/

8642

/============\

| 0 0 0 0 |=

--5---G---G---12--

Disk00 (or DEFAUD)68 pin I/O Cable

Connection Male bDisk02

b b Disk03

Pin - 11 +5V bDisk04

Pin - 10 Gnd b b Disk05

Where bmeans an option strap b b Disk06

For R1 AUDIX Only

SIDE VIEW [DEFINITY AUDIX REQUIRES NO OPTION STRAPS.]

J6 Top of drive J1

Front of Drive 8 7 6 5 4 3 2 1

Enable T-Res Terminator Power

SCSI and

Power

Connectors

Start Delay Terminator Power

Motor Start bReserved

Write Protect bParity Disable

Where bmeans an option strap

FRONT VIEW

SCSI ID 8

Reserved SCSI ID 4NOTE: Front and Rear options are identical.

Use one or the other Remote LED SCSI ID 2

SCSI ID 1

PWAJ6 1

: : : : : : : : : :

Reserved DO NOT REMOVE 123456 Disk00*

*or DEFAUD bDisk02

b b Disk03

bDisk04

b b Disk05

Where bmeans an option strap b b Disk06

February 25, 1999

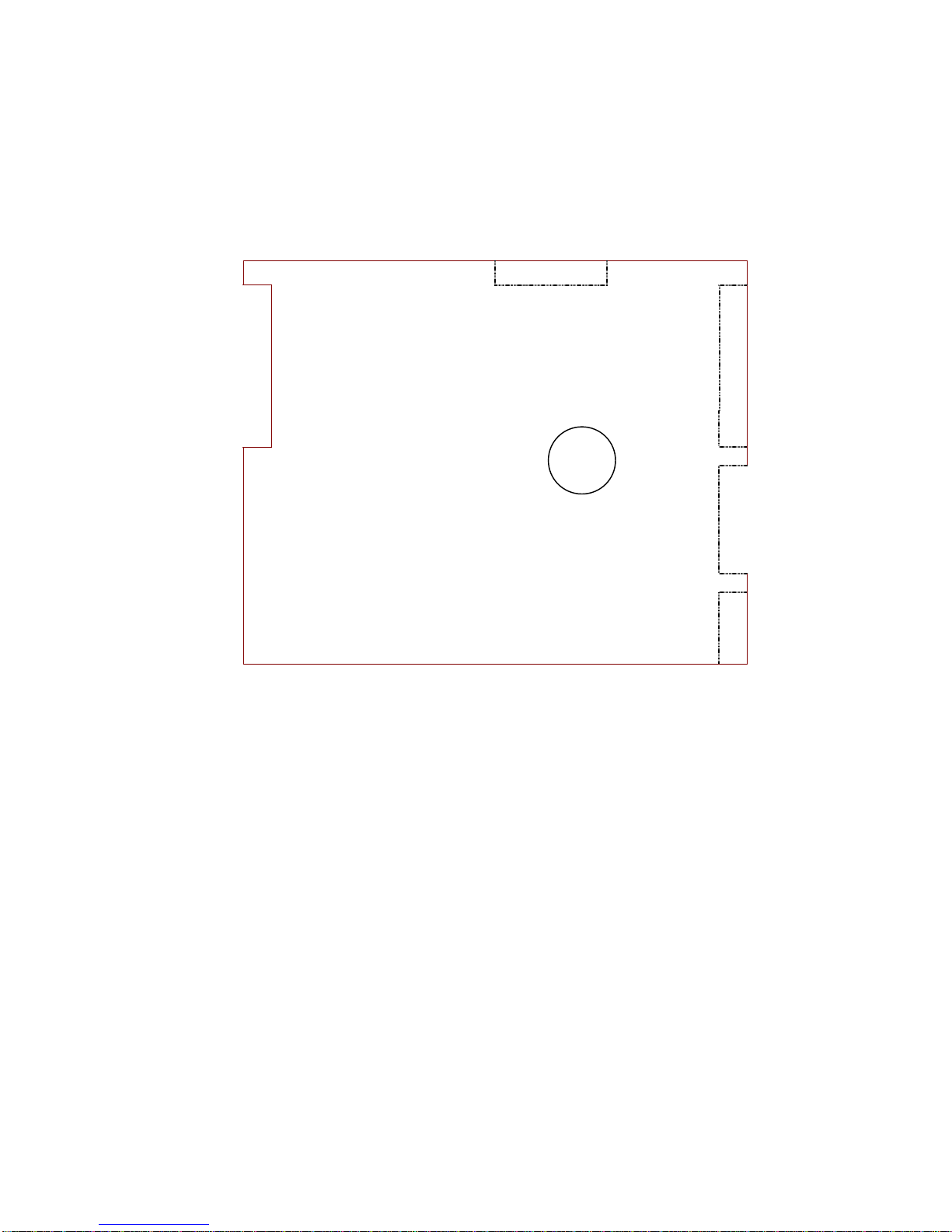

Circuit Board Side of Drive Assembly

::::::

J2==

J6 J1 SCSI I/O

Connector

Drive

Front

J5 Auxiliary

DC Power

Connector

NOTE: If you desire more in-depth data on the drive go to the Seagate web site.

February 25, 1999

Interpreting Seagate Disc Drive Model

Numbers

Form Factor

Seagate > ST 52160 N< Interface

Megabytes

Form Factor

1 = 3 5-inch half-height (41 mm)

3 = 3 5-inch, 1-inch (25 mm)

4 = 5 25-inch, full height (82 mm)

5 = 3 5-inch, 0 75-inch high (19 mm)

9 = 2 5-inch

Mbytes

Approximate formatted capacity

Interface

A = ATA/ATA-2/ATA-3 (IDE/EIDE)

DC = 80-pin Differential

G = SafeRite

FC = Fibre Channel

N = 50-pin SCSI connector

ND = 50-pin Differential SCSI connector

W = 68-pin Wide SCSI connector

WC = 80-pin Single connector SCSI

WD = 68-pin Wide Differential SCSI connector

LW = 68-pin Wide SCSI connector, low-voltage Differential

LC = 80-pin Single connector SCSI connector, low-voltage

Differential

New SCSI designs will use drives with the Ultra2 SCSI Ultra2

low-voltage differential (LVD) doubles Wide SCSI bus data rates to

80 Mbytes/sec, increases bus cable lengths to 12 meters, and

provides the capability to add up to 15 peripherals on the bus Ultra2

SCSI is backward-compatible to previous versions of SCSI
