Securitytronix IPKB-1005KI Manuale utente

IPKB-1005KI

User Manual

UD.6L0203D1180A02

User Manual of IPKB-1005KI Keyboard

User Manual

About this Manual

This Manual is applicable to DS-1005KI Keyboard.

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other

information hereinafter are for description and explanation only. The information contained in the Manual is

subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the

company website.

Please use this user manual under the guidance of professionals.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH

ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND

ERRORS, AND OUR COMPANY MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING

WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A

PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL OUR

COMPANY, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY

SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS,

DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR

DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF OUR COMPANY

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE

WHOLLY AT YOUR OWN RISKS. OUR COMPANY SHALL NOT TAKE ANY RESPONSIBILITES FOR

ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER

ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS;

HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR

JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS

THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS

PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE

LATER PREVAILS

User Manual of IPKB-1005KI Keyboard

Regulatory information

FCC information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the

applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC

Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal

waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of

equivalent new equipment, or dispose of it at designated collection points. For more information see:

www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal

waste in the European Union. See the product documentation for specific battery information. The battery is

marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For

proper recycling, return the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info.

User Manual of IPKB-1005KI Keyboard

Preventive and Cautionary Tips

Before connecting and operating your keyboard, please be advised of the following tips:

Ensure unit is placed in a well-ventilated, dust-free environment.

Keep all liquids away from the keyboard.

Please check the power supply to avoid the damage caused by voltage mismatch.

Please make sure the keyboard work in the allowed range of temperature and humidity.

Please keep the device horizontal and avoid the installation under severe vibration environment.

The dust board will cause a short circuit after damping. Please dedust regularly for the board, connector, and

chassis fan with brush.

User Manual of IPKB-1005KI Keyboard

Table of Contents

Chapter 1 Product Overview...............................................................................................4

1.1 Introduction................................................................................................................. 4

1.2 Typical Application..................................................................................................... 4

1.3 Controlling Mode........................................................................................................ 4

Chapter 2 Functional Keys and Joystick ...............................................................................6

2.1 Functional Keys .......................................................................................................... 6

2.2 Joystick....................................................................................................................... 7

Chapter 3 Keyboard Application..........................................................................................8

3.1 USB Keyboard Mode................................................................................................ 8

3.1.1 Setting Keyboard Mode................................................................................ 8

3.1.2 Keyboard Control ......................................................................................... 8

3.2 USB Joystick Mode................................................................................................. 10

3.2.1 Keyboard Parameter Settings.................................................................... 10

3.2.2 DVR/NVR Control...................................................................................... 12

Appendix1: Specification.....................................................................................................14

Appendix2: Device Upgrade ................................................................................................15

User Manual of IPKB-1005KI Keyboard

Chapter 1 Product Overview

1.1 Introduction

IPKB-1005KI keyboard is a kind of USB interface controlling keyboard which supports USB

HID protocol; it can be applied with USB joystick mode and supports various programmable

keys for users to set custom functions. The keyboard can be used to control the DVR/NVR

device with the functional keys operation. It is easy to operate with simple GUI interfaces. This

keyboard can be widely used in public security and transportation as other fields.

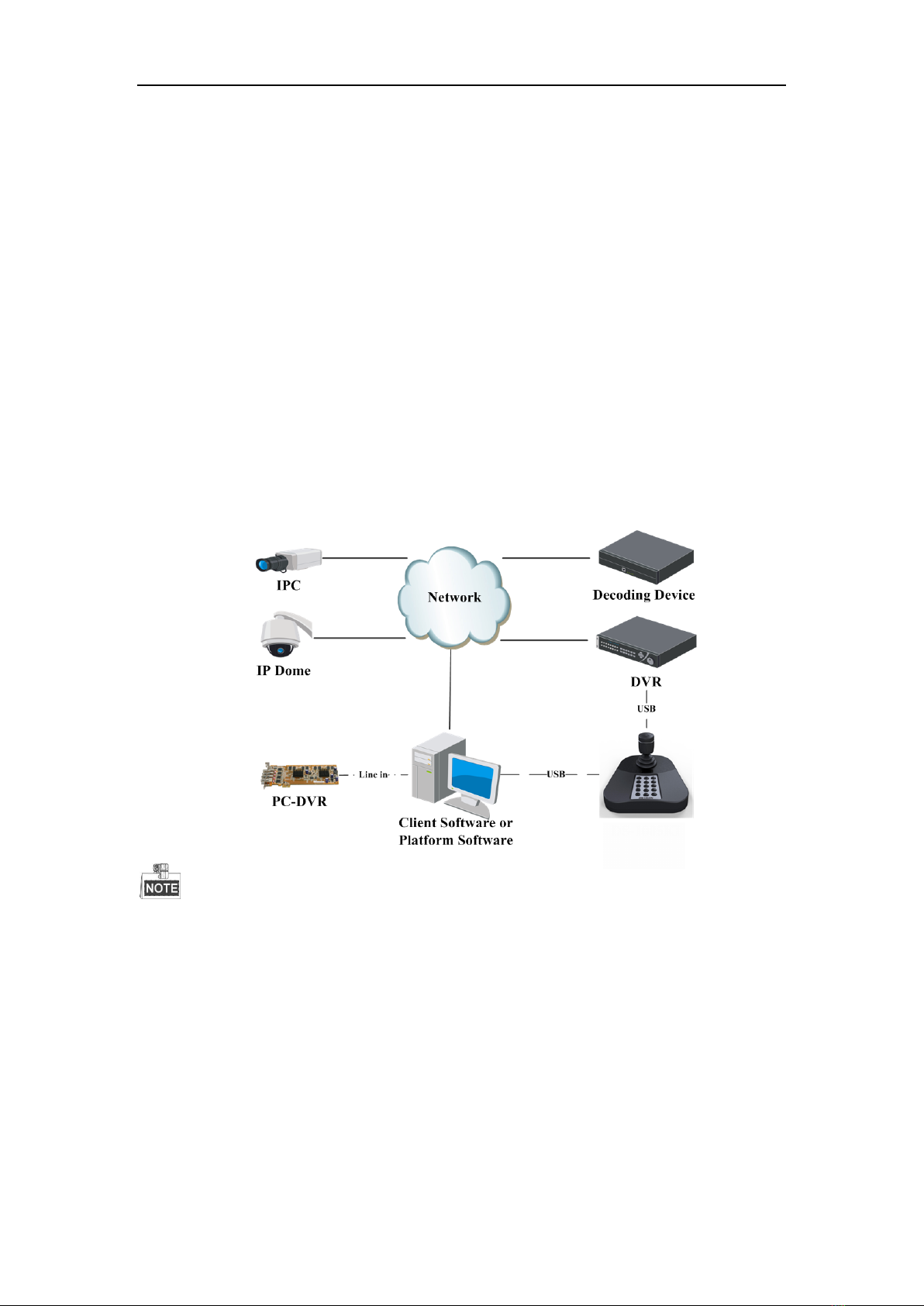

1.2 Typical Application

Make sure the DVR and PC-DVR connected support the IPKB-1005KI keyboard access.

IPKB-1005KI is a USB keyboard independently developed by our company and it can be

accessed directly by the client software, platform software of iVMS series, DVR and PC-

DVR, and can realize functions such as windows switch, PTZ control, capture, recording, etc.

1.3 Controlling Mode

The IPKB-1005KI keyboard connects with PC via keyboard USB interface and supports two

ways of controlling: USB keyboard mode and USB joystick mode.

IPKB-1005KI is compatible with the USB joystick via USB HID protocol, and can access to

the

IPKB-1005KI

User Manual of IPKB-1005KI Keyboard

third-party platform software. It can be applied with USB keyboard mode and supports capture,

PTZ control and window switch. With the use of DVR/NVR, it can realize the menu selection,

camera switch in live view, PTZ control, etc.

The default mode is set as USB joystick mode when it is powered on for the first time; there is no

need to install the drive.

USB keyboard mode supports private SDK accessing and functions such as quick switch, PTZ

control, capture and recording.

It is required to install a drive before setting the IPKB-1005KI to USB keyboard mode. Two

types of drives can be selected, depending on 32 BIT system or 64 BIT system.

User Manual of IPKB-1005KI Keyboard

Chapter 2 Functional Keys and Joystick

2.1 Functional Keys

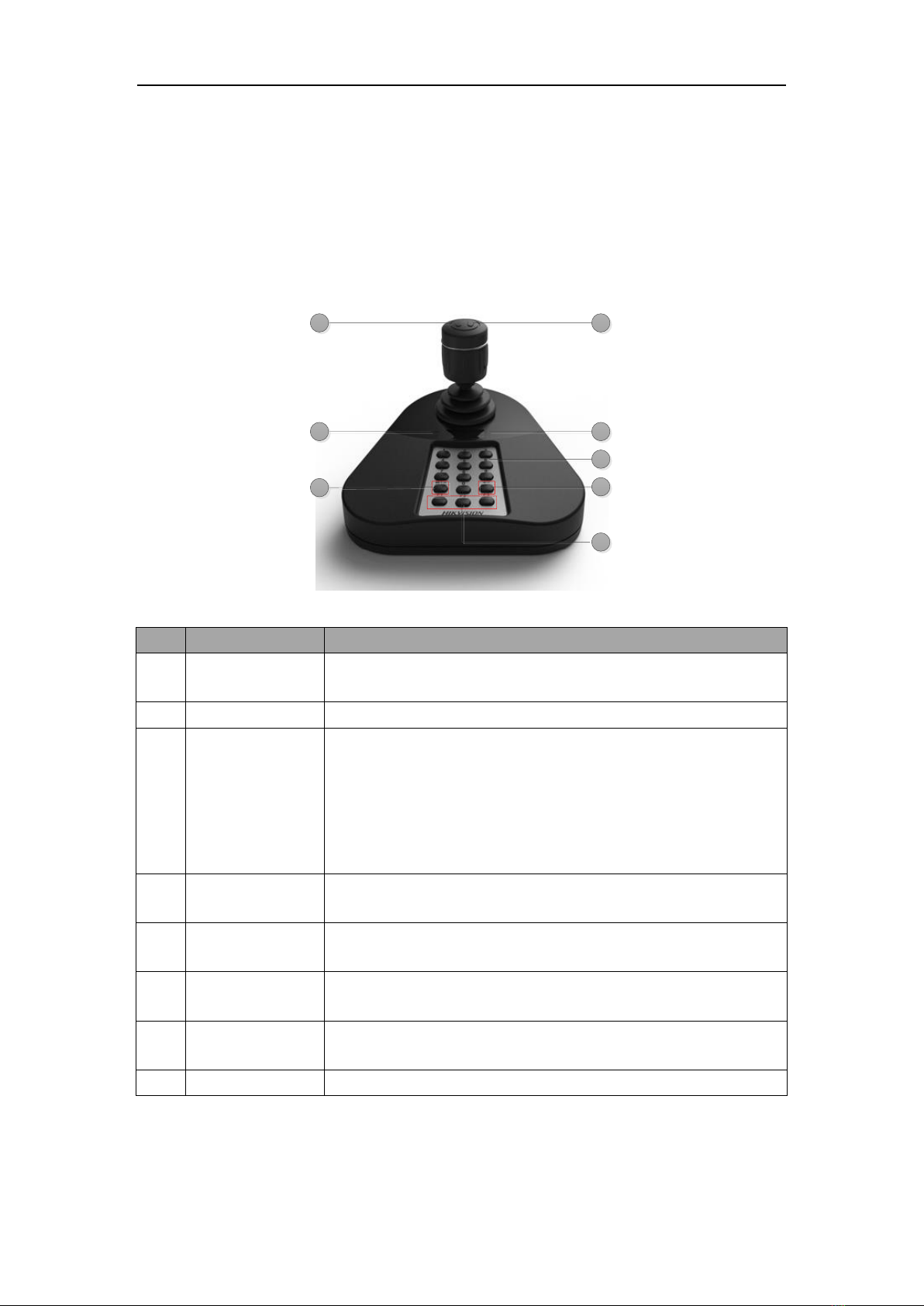

Refer to the following figure and table for the description of the functional keys.

7 8

Table 1. 1 Description of Keyboard

NO.

Key Name

Function Description

0 to 9 Number

Keys

USB Keyboard Mode: For selecting window or channel;

USB Joystick Mode: For custom shortcuts;

Enter

USB Keyboard Mode: For confirming the input number;

Window/Channel

Switch

Press and hold it for more than 5s to switch between keyboard mode

and joystick mode;

USB Keyboard Mode: For selecting window switching mode or

channel switching mode;

(The window indicator lights while in window switching mode; and

the channel indicator lights while in channel switching mode.)

Capturing

USB Keyboard Mode: Capture;

USB Joystick Mode: Custom shortcut as number 12;

Recording

USB Keyboard Mode: For recording;

USB Joystick Mode: Custom shortcut as number 11;

F1, F2, F3

USB Keyboard Mode: Custom Shortcut;

USB Joystick Mode: F1-13,F2-14,F3-15

Indicator

Single Indicator: The keyboard is in USB keyboard mode;

Double Indicator: The keyboard is in USB joystick mode;

Digital Tube

Display the input number.

User Manual of IPKB-1005KI Keyboard

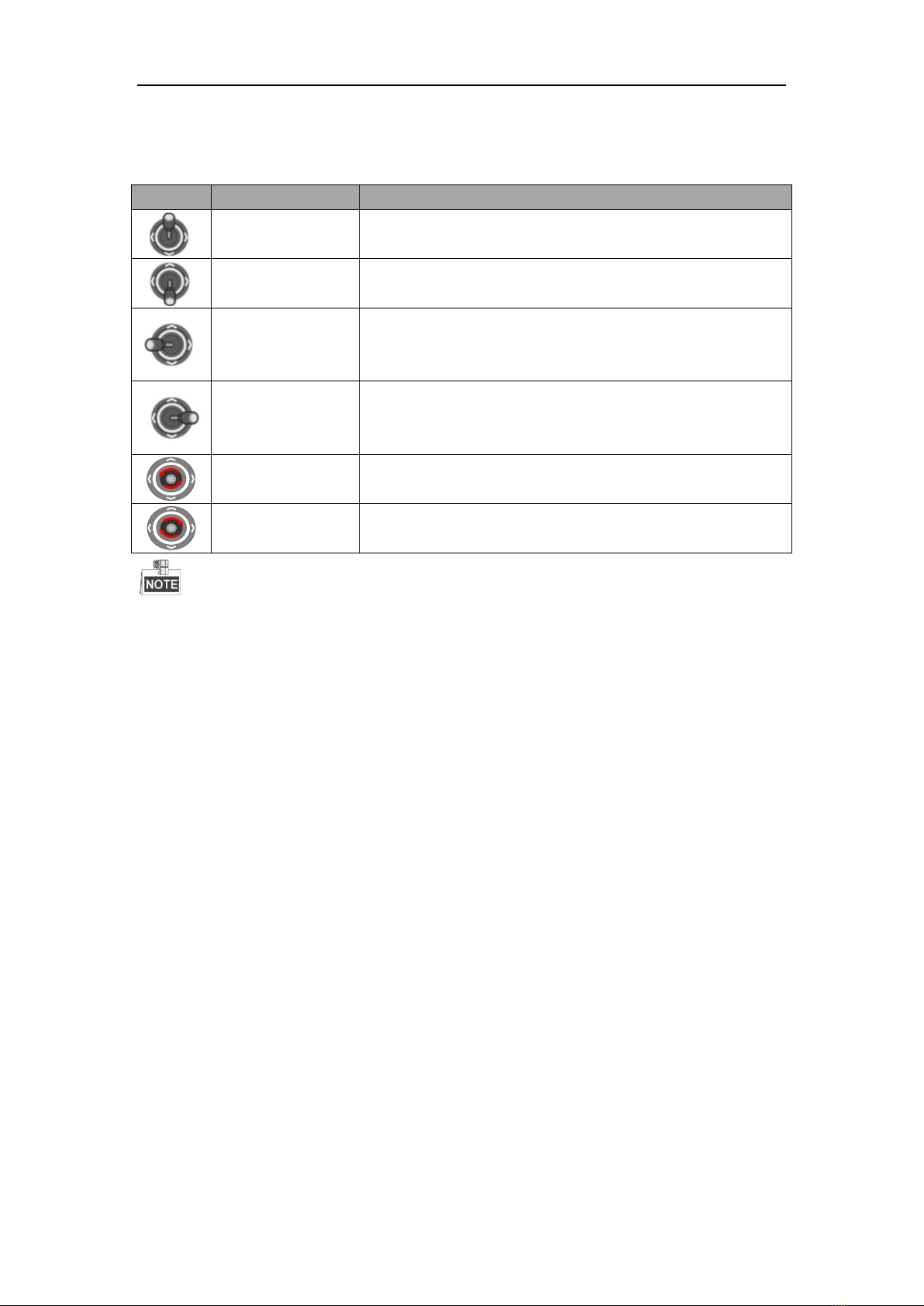

2.2 Joystick

Table 1. 2 Description of Joystick

Graphic

Operation

Function

PTZ control mode: Move the PTZ up.

Down

PTZ control mode: Move the PTZ down.

Left

PTZ control mode: Move the PTZ left.

Right

PTZ control mode: Move the PTZ right.

Contrarotate

Zoom Out (ZOOM-)

Clockwise Rotate

Zoom In (ZOOM+)

With the joystick moving in different ranges, the PTZ moves with different speeds that can divide

in 64 levels of speed.

User Manual of IPKB-1005KI Keyboard

Chapter 3 Keyboard Application

3.1 USB Keyboard Mode

3.1.1 Setting Keyboard Mode

Press and hold the key Window/Channel for more than 5s, and the keyboard will auto switch its

mode. If the single indicator is on, it implies that it is in USB keyboard mode.

3.1.2 Keyboard Control

USB keyboard mode supports window switch between client live view interface and video wall

interface, focusing window channel switch and PTZ control functions. The buttons F1, F2 and F3

can be set as functions like previous, next, preset, etc. according to certain needs and it supports

capturing and recording functions in the live view interface.

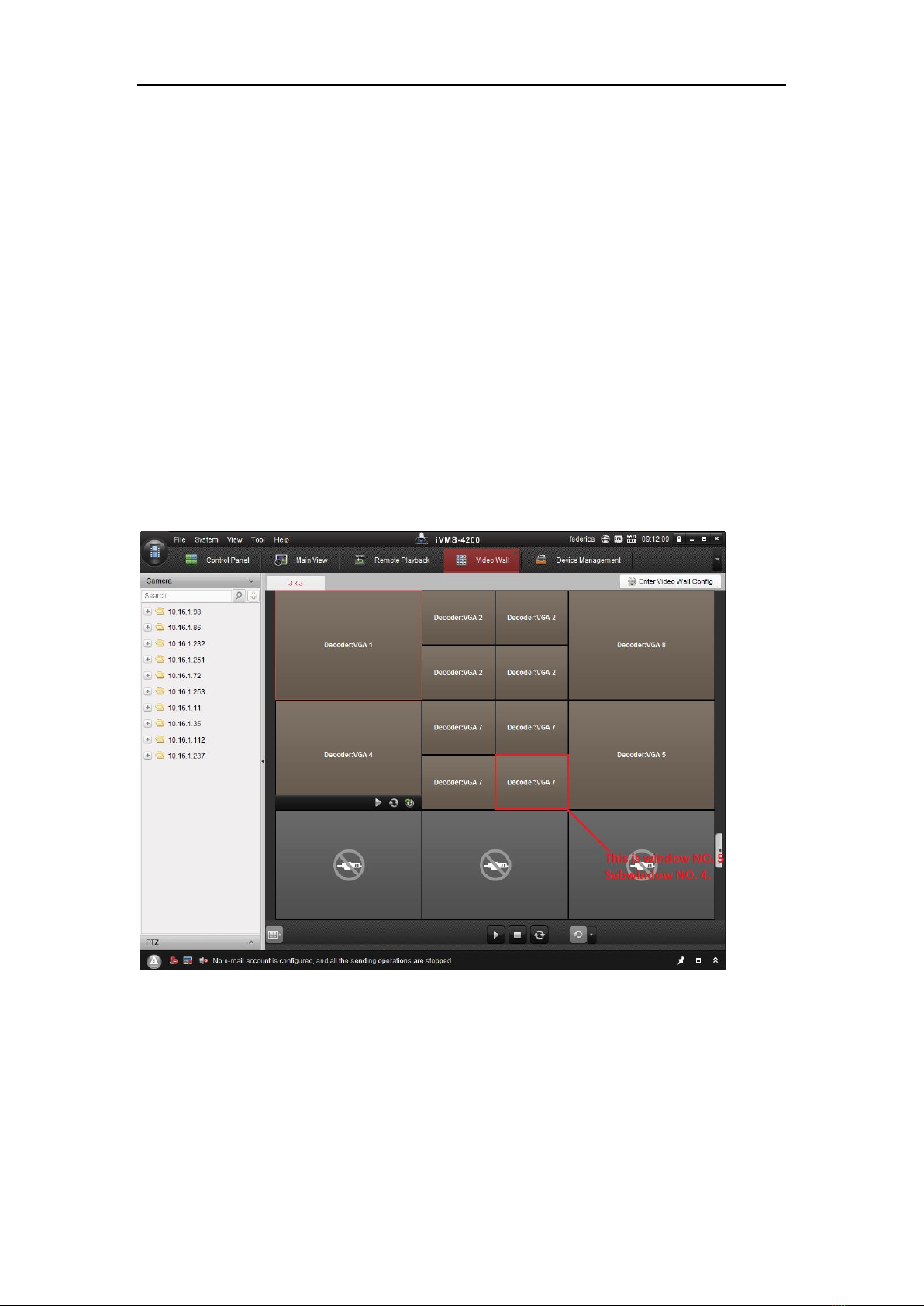

1. Shortcut Switch:

Click the button Window/Channel in the main live view interface or video wall interface, and the

window indicator will light. Click the number Iand the OK button, and it will switch to the

corresponding window. If the client supports camera switch function, you can click the button

Window/Channel and the indicator will light; then you click the number Jand the OK button to

switch the channel Jto window I.

Example: You can input number 504 or 0504 with the OK button as the figure above to switch to

the sub window 4 of window 5.
