Seereal technologies "Cn" Manuale utente

Autostereoscopic 3D Display

"C" Product Line

"Cn" Model

Operating Manual

SeeReal Technologies Cn Display Operating Manual

Congratulations - with this display, you have purchased an innovative

high-quality product. It will help you to organise your work both more

efficiently and more comfortably. Before you switch on the display for the

first time, please make sure to carefully read this operating manual.

SeeReal Technologies uses standard branded panels as the basis for the

production of this autostereoscopic display. For basic information on the panel

and safety regulations, please refer to the manufacturer's manual attached on

CD.

TECHNICAL DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Owing to further developments, single parts of this manual may not be up to

date. For the most recent information, please refer to www.seereal.com.

- 2 -

SeeReal Technologies Cn Display Operating Manual

Table of contents

1Applications and function ..................................................................4

2First-time operation.............................................................................5

2.1 Installation ................................................................................... 5

2.2 Connection .................................................................................. 5

2.3 Switching on ................................................................................ 5

2.4 Hard- and software ...................................................................... 6

3Display controls .................................................................................. 8

4Cleaning...............................................................................................9

5Transport.............................................................................................. 10

6Scope of delivery.................................................................................11

7Technical data .....................................................................................12

8Safety ...................................................................................................14

9Address................................................................................................15

- 3 -

SeeReal Technologies Cn Display Operating Manual

1. Applications and function

1 Applications and function

Using the "Cn" display, images and videos with stereoscopic content can be

displayed and viewed without any additional image separating equipment (e.g.

glasses etc.). This way, the user receives an image of a scene that is truly three-

dimensional and extremely close to reality. The use of the display is recommended

wherever the visualisation of three-dimensional data is of great importance. The

stereo images should be viewed at the same distance as from a common computer

monitor, ideally at between 60 and 75 centimetres.

Stereoscopic viewing is based on the slightly different perspectives that the eyes

have on an object, causing the right and the left eye to perceive images that slightly

differ from each other. Based on these images, the brain forms the three-dimensional

view.

To meet this principle, the display shows a composite image containing different

information for each eye respectively. A highly precise image splitter directs the light

going from the display to the viewer in such way that each eye receives only that

image intended for this particular eye.

Please note: when you view stereo images, the objects of which are sometimes

far in front of or behind the normal display plane, please make sure to have

regular breaks in order to relax your eyes and avoid strain. You may also have

to optimise the stereo parameters of the software used. If you experience any

signs of nausea, dizziness, eye problems, or similar, we recommend to

interrupt work.

- 4 -

SeeReal Technologies Cn Display Operating Manual

2. First-time operation

2 First-time operation

2.1 Installation

Make sure to place the display in a fixed position, dry and well-ventilated. Protect

from moisture, undue heat or cold and areas containing excess dirt.

2.2 Connection

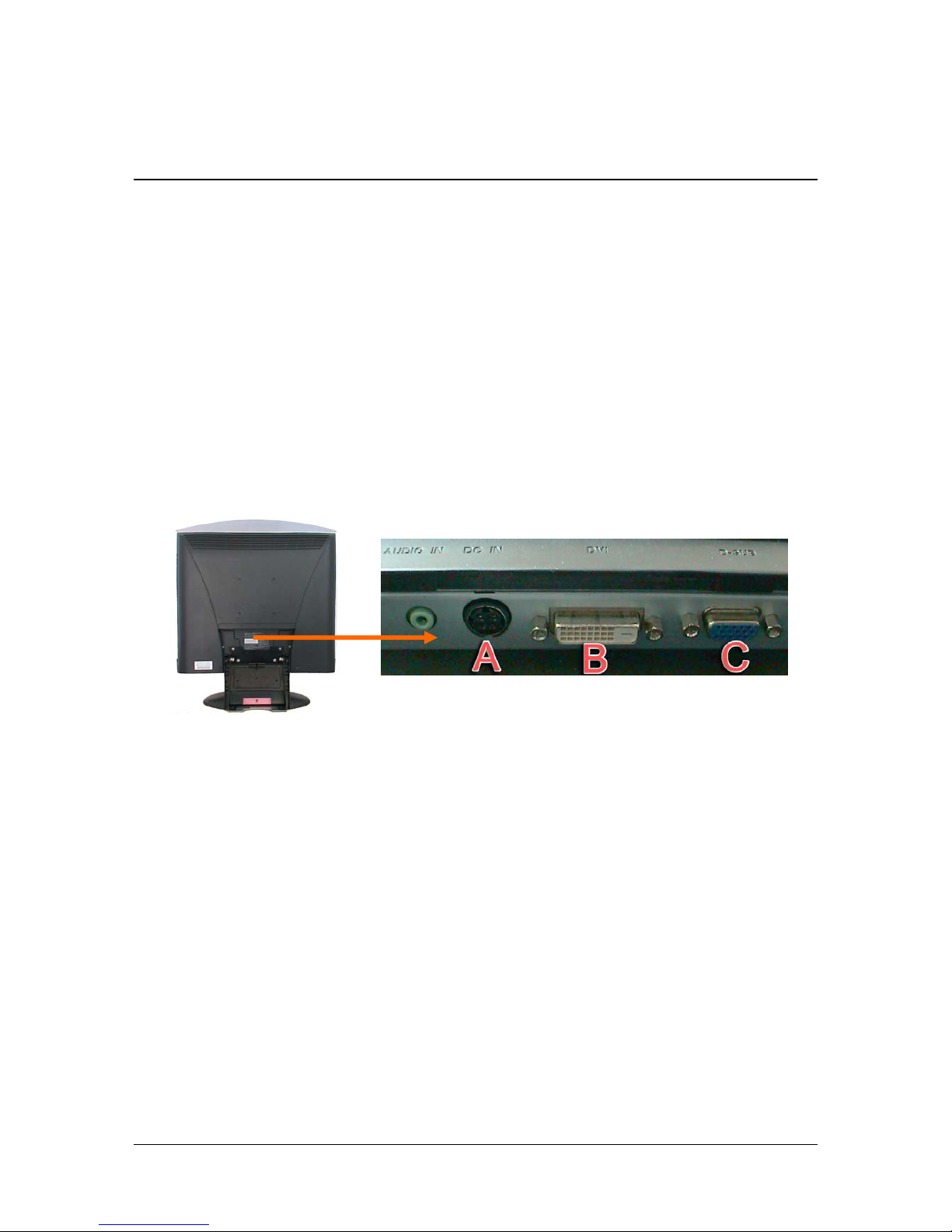

1. Remove both covers at the rear in order to access the input ports.

2. Connect the round low-voltage connector (A) to the DC power supply and the DC

power supply to the mains. In no case are you allowed to use a DC power supply

other than the one enclosed in the delivery! The enclosed mains cable meets the

safety regulations in both Germany and most European countries. If used in other

regions, replace if necessary in accordance with applying standards.

Figure 1

3. The enclosed DVI cable is used in order to connect the graphics board of the

computer to the display through the DVI port (B). To do so, the graphics board has to

have a DVI connection.

Only plug or unplug DVI cable connections into or from graphics board or

display when devices have been switched off. Otherwise, there is danger of

destroying the display electronics.

The existing analogue port (C) on the display is not suitable for stereo operation and

remains unused.

2.3 Switching on

The display is plug-and-play compatible.

Use the on/off-switch at the front (Figure 3) to switch the display on. The diode on the

right will light up green (ready for operation). Now, switch the computer on. The

display auto-initialises itself, analyses the video signal and adjusts the display

parameters. This will take a few seconds.

- 5 -

SeeReal Technologies Cn Display Operating Manual

2. First-time operation

2.4 Hard- and software

Resolution and refresh rate

The display works with a resolution of 1600 x 1200 pixels and with a refresh rate of

60 Hz. Other resolutions are not supported for stereo display.

Stereo images/ videos

The enclosed 3D demo CD contains a selection of stereoscopic images and videos.

For installation instructions, please refer to the CD.

Interactive 3D applications

For a current list of 3D programs which are suitable for stereoscopic visualisation on

our 3D monitor, please refer to http://www.seereal.com.

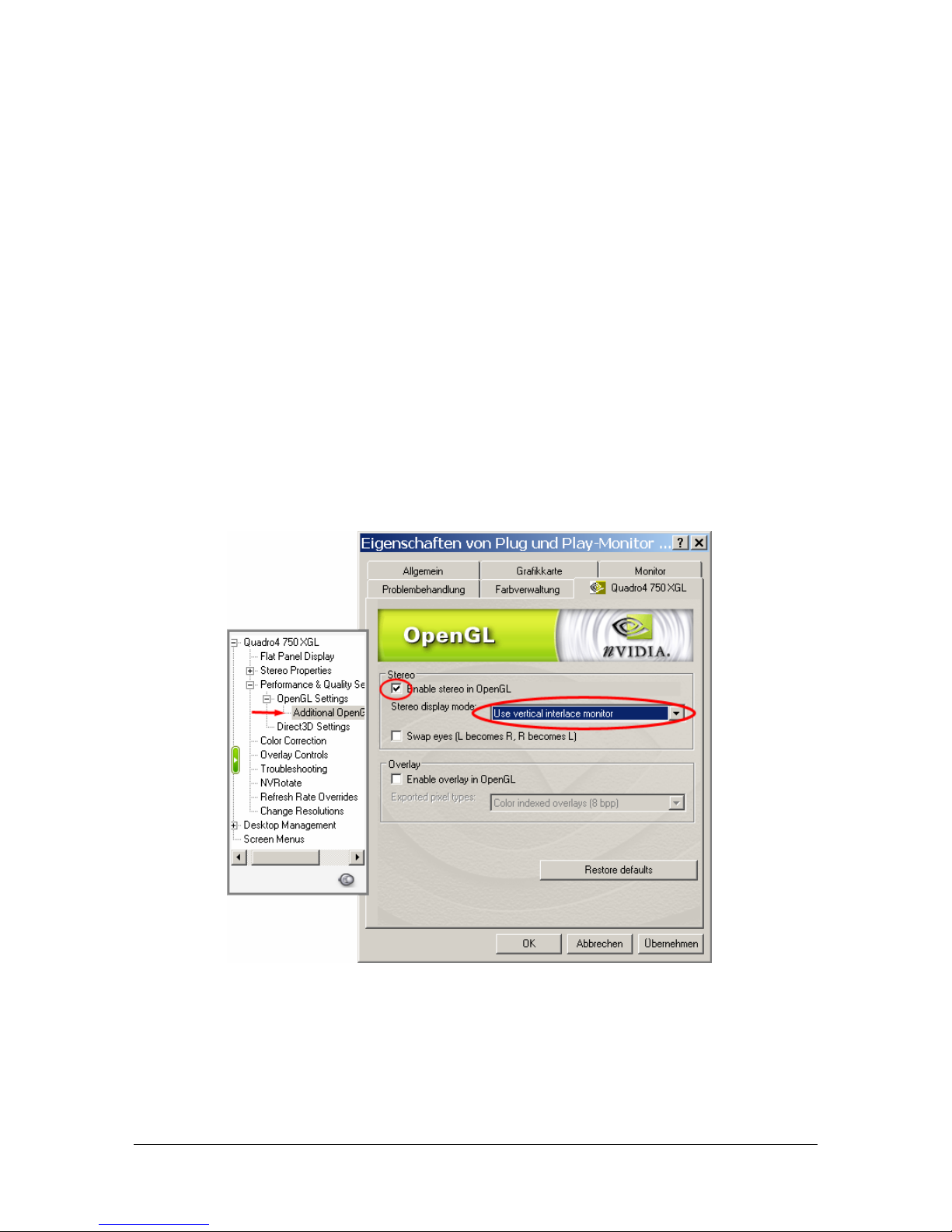

Common professional OpenGL-applications which support the stereo mode e.g. for

shutter glasses, can be displayed stereoscopically on the "Cn" display by means of

NVidia-graphics boards (with Quadrochips). To this end, go to “Advanced Display

settings” (right click on desktop →”Properties”), "OpenGL Settings” →"Additional

OpenGL properties", switch on “Enable stereo in OpenGL” and change to the stereo

display mode "Use vertical interlace monitor" (Figure 2).

Figure 2

Please ask your dealer if your program uses the OpenGL graphics library.

Graphics boards, one- and two-monitor-solutions

The display can be used at workplaces with one- or two-monitor-operation. If you do

not only want to display stereoscopic content but also applications with 2D elements,

we would recommend using an ordinary monitor as the second one.

- 6 -

SeeReal Technologies Cn Display Operating Manual

2. First-time operation

The "Cn" display is fully digitally controlled, meaning that only graphics boards with

digital DVI connection can be used.

In case of questions and specific software problems, please contact

[email protected]. For a current list of standard applications that can run on the

display, please refer to www.seereal.com.

- 7 -

SeeReal Technologies Cn Display Operating Manual

3. Display controls

3 Display controls

For detailed information on the panel, please refer to the exact documentation of the

manufacturer. Here, you will find the most important information on the main

functions of the different buttons for comfortable everyday work.

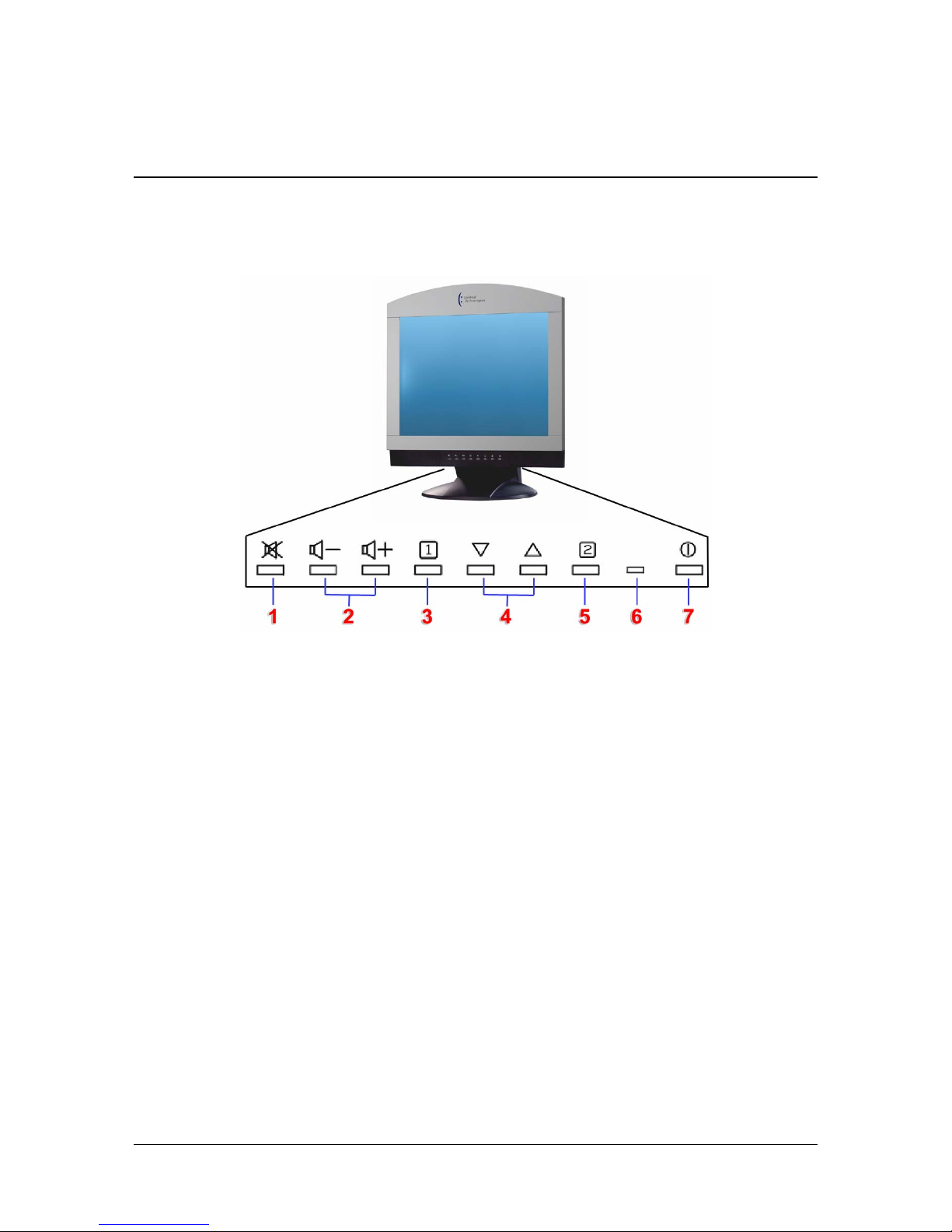

Figure 3

1 Audio mute button switches the sound off.

2 Decreases or increases the volume.

3 Displays the Main Menu or exits the control screen and saves adjustments.

4 Scrolls through menu options and adjusts the displayed control.

Also a shortcut to display the Contrast adjustment control screen.

5 Displays the control screen for the highlighted control.

Also toggles between two controls on some screens.

Also a shortcut to toggle between analog and digital connections. For stereo

viewing, the digital input has to be used.

6 Status LED

Green = ON

Orange = Energy-saving mode

7 Power On/Off

- 8 -

SeeReal Technologies Cn Display Operating Manual

4. Cleaning

4 Cleaning

Warning! Always disconnect power supply before carrying out any cleaning

work!

Never use any hard or sharp objects that might scratch the protective screen or the

housing when cleaning. Do not use any aggressive cleaning agents such as solvent,

benzine, scrubbing detergents, spray-on cleaners, acid or alkaline solutions, or wax.

To clean the housing or protective screen, slightly moisten a soft cloth with hand

warm water and remove the dirt.

Make sure that no fluid can leak into the inside of the display!

Then wipe the cleaned spot with a clean and dry cloth. To this end, it is possible to

use a mild wetting agent.

Ordinary computer cleaning cloths are well-suited for cleaning the protective screen

and the housing.

Please note: only switch the display on again after the cleaning liquid has completely

evaporated!

- 9 -

SeeReal Technologies Cn Display Operating Manual

5. Transport

5 Transport

The display may only be transported in vertical position and in an adequate, solid

transportation box. SeeReal Technologies does not take responsibility for any

damages to the display during transport that result from inadequate packaging or

improper handling of the product by a third party.
