SERVICE MANUAL

• Before using this product, read this Manual carefully to understand

the contents herein stated

• After reading this Manual, be sure to keep it near the product or in

a convenient place for easy reference when necessary

IMPORTANT

Errors & Omissions Excepted (E&OE)

42 Barwell Business Park, Leatherhead Road

Chessington, Surrey

KT9 2NY

United Kingdom

Telephone: +44 (0) 208 391 8090 Facsimile: +44 (0) 208 391 8099

Email: sales@segaarcade.com Web: http://www.segaarcade.com

SEGA AMUSEMENTS INTERNATIONAL LTD.

420-0040UK

1ST PRINTING

OWNER'S MANUALBOP IT ARCADE 420-0040UK

INTRODUCTION

BEFORE USING THE PRODUCT,

BE SURE TO READ THE FOLLOWING:

TO MAINTAIN SAFETY:

To ensure the safe operation of this product, be sure to read the following before usage:

The following instructions are intended for the users, operators and the personnel in charge of the operation of the

product. After carefully reading and su󰀩ciently understanding the warning displays and cautions, handle the product

appropriately. Be sure to keep this manual close to the product or in a convenient place for future reference.

Herein, explanations which require special attention are enclosed with dual lines. Depending on

the potentially hazardous degrees, the terms of “DANGER”, “WARNING”, “CAUTION”, etc. are used.

Be sure to understand the contents of the displays before reading the text.

Indicates that mishandling the product by disregarding this pictograph will cause severe injury or

death.

Indicates that mishandling the product by disregarding this warning will cause a potentially

hazardous situation which can result in death or serious injury.

Indicates that mishandling the product by disregarding this caution will cause a slight hazardous

situation which can result in personal injury and/or material damage.

For the safe usage of the product, the following pictographs are used:

Indicates "HANDLE WITH CARE." In order to protect the human body and equipment, this display is attached

to places where the instruction manual should be referred to

Indicates a "protective earth terminal." Before operating the equipment, be sure to connect it to the ground (this

step may be omitted for products in which a power cable with earth is used)

• Perform work in accordance with the instructions herein stated:

Instructions for work are explained by paying attention to the aspect of accident prevention. Failing to perform work as

per the instructions can cause accidents. In the case where only those who have technical expertise should perform

the work to avoid hazardous situation, the instructions herein state that the site maintenance personnel should

perform such work

• Besuretoturno󰀨thepowerbeforeworkingonthemachine:

To prevent an electric shock, be sure to turn o󰀨 the power and unplug the power cable before carrying out any work

that requires direct contact with the interior of the product. If the work is to be performed in the power-on status, the

instruction manual herein always states to that e󰀨ect

• Be sure to ground the earth terminal (not required in the case where a power cable with earth is used):

This product is equipped with the earth terminal. When installing the product, connect the earth terminal to the

"accurately grounded indoor earth terminal" by using an earth wire. Unless the product is grounded appropriately, the

user can be subject to an electric shock. After performing repair, etc. for the control equipment, ensure that the earth

wire is rmly connected to the control equipment

• Ensurethatthepowersupplyusedisequippedwithanearthleakagebreaker:

Using a power supply which is not equipped with the earth leakage breaker can cause a re when earth leakage

occurs

• Besuretousefuseswhichmeetthespeciedrating(onlyforthemachineswhichusefuses):

Using fuses that exceed the specied rating can cause a re and an electric shock

PICTOGRAPHS AND DEFINITIONS

INTRODUCTION

iii

• Specicationchanges(removal ofequipment, conversions andadditions) notdesignated bySEGAare not

allowed:

The parts of the product include warning labels for safety, covers for personal protection, etc. It is very hazardous

to operate the product by removing parts and/or modifying the circuits. Should doors, lids and protective parts be

damaged or lost, refrain from operating the product, and contact where the product was purchased from or the o󰀩ce

herein stated.

SEGA shall not be held responsible for any accidents or compensation for damage to a third party resulting from the

specications not designated by SEGA

• Ensurethattheproductmeetstherequirementsofappropriateelectricalspecications:

Before installing the product, check for electrical specifications. SEGA products have a nameplate on which the

electrical specifications are described. Ensure that the product is compatible with the power supply voltage and

frequency requirements of the location. Using any electrical specications di󰀨erent from the designated specications

can cause a re and an electric shock

• Installandoperatetheproductinplaceswhereappropriatelightingisavailable,allowingwarninglabelsto

beclearlyread:

To ensure safety for the customers, labels and printed instructions describing potentially hazardous situations are

applied to places where accidents can be caused. Ensure that where the product is operated has su󰀩cient lighting

allowing the warnings to be read. If any label is peeled o󰀨, apply it again immediately. Please place an order with

where the product was purchased from or the o󰀩ce herein stated

• Whenhandlingthemonitor,takeconsiderablecare(appliesonlytoproductswithmonitors):

Some of the monitor parts are subject to high tension voltage. Even after turning o󰀨 the power, some portions are

still subject to high tension voltage. Monitor repair and replacement should be performed only by those technical

personnel who have knowledge of electricity and technical expertise

• Besuretoadjustthemonitorproperly(appliesonlytoproductswithmonitors):

Do not operate the product leaving on-screen ickering or blurring as it is. Using the product with the monitor not

properly adjusted may cause dizziness or a headache to an operator, a player, or customer

• Whentransportingorresellingthisproduct,besuretoattachthismanualtotheproduct

* In the case where commercially available monitors and printers are used in this product, only the contents relating to

this product are explained herein. Some commercially available equipment has functions and reactions not stated in

this Manual. Read this Manual together with the specic instruction manual of such equipment

* Descriptions herein contained may be subject to improvement changes without notice

* The contents described herein are fully prepared with due care. However, should any question arise or errors be

found, please contact SEGA

INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION

Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after transporting to the

location. Nevertheless, an irregular situation may occur during transportation. Before turning on the power, check the

following points to ensure that the product has been transported in a satisfactory status:

Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?

Are castors and adjusters damaged?

Do the power supply voltage and frequency requirements meet with those of the location?

Are all wiring connectors correctly and securely connected? Unless connected in the correct way, connector

connections can not be made accurately. Do not insert connectors forcibly.

Do power cables have cuts or dents?

Are all accessories available?

Can all doors and lids be opened with the accessory keys? Can doors and lids be rmly closed?

INTRODUCTION

This Manual is intended to provide detailed descriptions together with all necessary information covering

the general operation of electronic assemblies, electromechanical, servicing control, spare parts, etc. for

the product:

"BOP IT ARCADE"

This Manual is intended for the owners and personnel managers in charge of operation of this product.

Operate the product after carefully reading and su󰀩ciently understanding the instructions.

In the unlikely event that the product does not function correctly, DO NOT allow anyone other than a

technician to touch the internal system. Turn o󰀨 the power to the machine, making sure to unplug the

electrical cord from the outlet, and contact the o󰀩ce listed below or the point-of-purchase for this product.

Use of this product is unlikely to cause physical injuries or damage to property. However, points that

require special attention are indicated by bold text, the words "STOP”, “IMPORTANT”, “WARNING”, or

“CAUTION” and the symbols below.

Indicates important information that, if ignored, may result in the mishandling

of the product and cause faulty operation or damage to the product

Indicates a warning or caution that, if ignored, may result in the mishandling

of the product and cause faulty operation or damage to the product

SegaAmusementsInternationalLimited

42 Barwell Business Park, Leatherhead Road

Chessington

Surrey, KT9 2NY

United Kingdom

European Sales: +44 (0)208 391 8090 Email: [email protected]

USA Sales: +00 (1) 224 265 4287 Email: [email protected]

STS(Spares): +44 (0) 208 391 8060 (Option 1) Email: [email protected]

Tech Support: +44 (0)208 391 8060 (Option 2) Email: [email protected]

Prize & Merchandise: +44 (0)208 391 8060 (Option 1) Email: [email protected]

 Web: https://segaarcade.com/

amusements international

INTRODUCTION

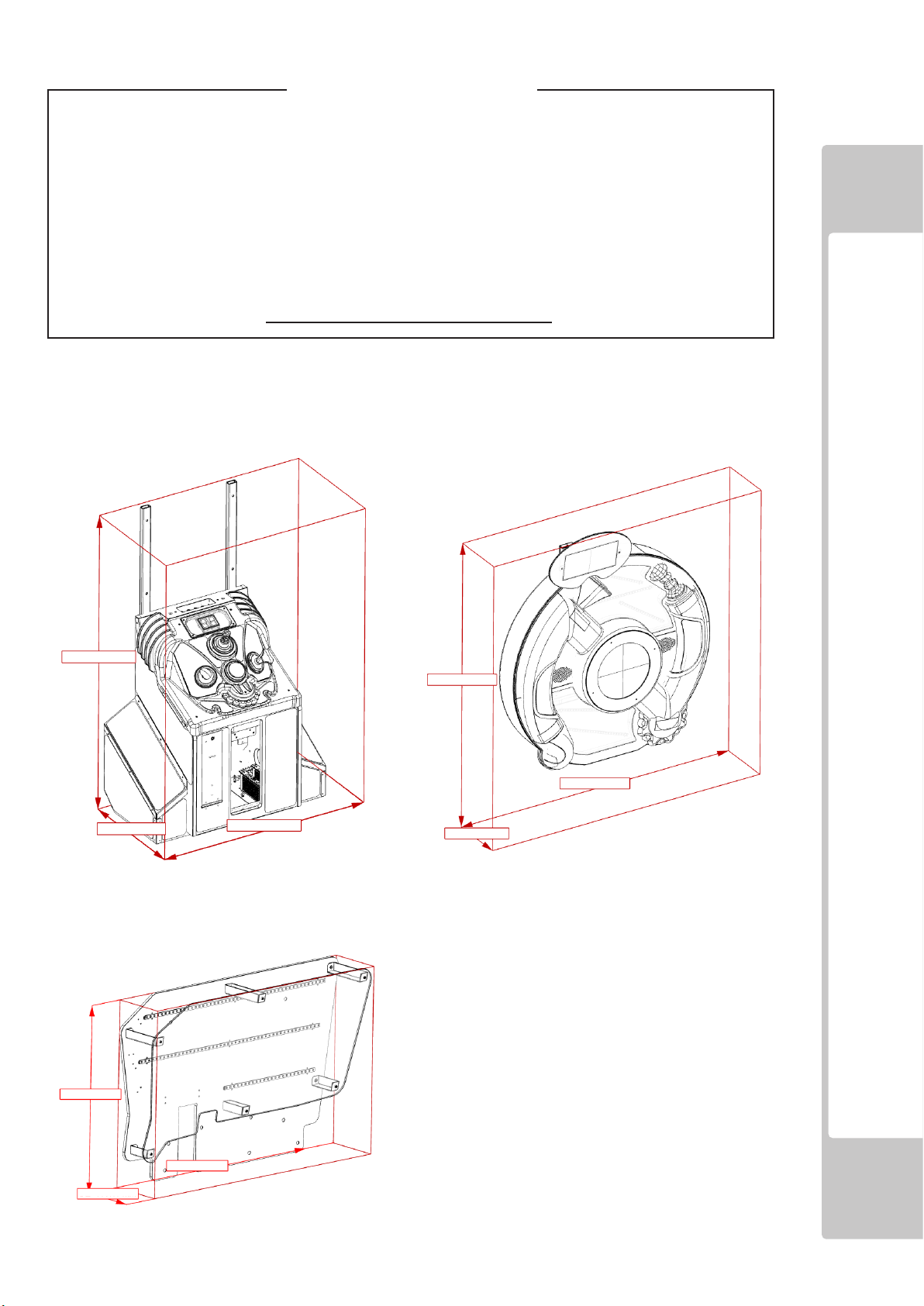

SPECIFICATIONS

StandardCabinet

Machine Dimensions: 1.2m (47.2in) [Width] x 0.7m (27.5in) [Depth]

MachineHeight: 2.68m (105.5in) (Installed)

MachineWeight: 166kg Approx (Installed) (366lbs)

Power,maximumcurrent: -220w-

Rating: 115-230VAC @ 50/60Hz

FuseRating: 3.15A

MainCabinet Main Display

Billboard

H = 1.61m

D = 0.7m W = 1.02m

H = 1.35M

D = 0.35M

W = 1.2M

H = 0.68m

D = 0.29m

D = 0.99m

INDIVIDUAL SPECIFICATIONS

INTRODUCTION

Parts replacement, maintenance inspections, and troubleshooting should be carried out by site

maintenance personnel or other qualied professionals. This Manual includes directions for potentially

dangerous procedures which should only be carried out by professionals with the appropriate specialised

knowledge.

The site maintenance personnel or other qualied professionals mentioned in this Manual are dened as

follows:

Site Maintenance Personnel:

Individuals with experience in maintaining amusement equipment, vending machines, etc., working under

the supervision of the owner/operator of this product to maintain machines within amusement facilities or

similar premises by carrying out everyday procedures such as assembly, maintenance inspections, and

replacement of units/expendable parts.

ActivitiestobecarriedoutbySiteMaintenancePersonnel:

Amusement equipment/vending machine assembly, maintenance inspection and replacement of units/

expendable parts.

Otherqualiedprofessionals:

Persons employed by amusement equipment manufacturers, or involved in design, production, testing

or maintenance of amusement equipment. The individual should have either graduated from technical

school or hold similar qualications in electrical/electronics/mechanical engineering.

Activitiestobecarriedoutbyotherqualiedprofessionals:

Amusement equipment/vending machine assembly, repair/adjustment of electrical/electronic/mechanical

parts.

Denitionof'SiteMaintenencePersonnel’orOtherQualiedIndividualsDenitionof'SiteMaintenencePersonnel’orOtherQualiedIndividuals

Procedures not described in this Manual or marked as ‘to be carried out by Site

Maintenance Personnel or other qualied professionals’ should not be carried

out by personnel without the necessary skill or technological experience. Work

carried out by unqualied persons may cause serious accidents, including

electrocution

INTRODUCTION

vii

WasteofElectricalandElectronicEquipment(WEEE)StatementWasteofElectricalandElectronicEquipment(WEEE)Statement

The WEEE (Waste of Electrical and Electronic Equipment) directive places an obligation on all EU based

manufacturers and importers of Electrical and Electronic Equipment (EEE) to ensure waste equipment is

disposed of in accordance with the directive at the end of their useful life.

The symbol shown below will be placed on all products manufactured from 13th August 2005, which

indicates this product must NOT be disposed of with other normal waste.

UponpurchasinganyEEEfromSEGAAmusementsInternationalLtd.,theuseraccepts

responsibilitytodisposeoftheirwasteequipmentbyarrangingtoreturnittoadesignatedUK

collectionpoint(AATF)oranApprovedExporter(AE)forthecorrectrecyclingofwasteelectrical

andelectronicequipment.

For more information on Approved Authorised Treatment Facilities (AATF) within the UK please consult

the government website: www.gov.uk/weee

For users outside of the UK, EEE should be disposed of in accordance with the local policy on the

recycling of Waste Electrical and Electronic Equipment.

BatteryRecyclingStatementBatteryRecyclingStatement

The EC Directive on Batteries and Accumulators (2006/66/EC) aims to minimise the impact of batteries

on the environment and encourage the recovery of the materials they contain. To achieve increased

collection and recycling of waste batteries, the Directive places ‘producer responsibility’ obligations on

manufacturers and importers of portable, industrial and automotive batteries.

The symbol shown below will be on all equipment tted with batteries from 26th September 2008 and

indicates they must NOT be disposed of with other normal waste. Instead, it is the user’s responsibility

to dispose of used batteries by arranging to return them to a designated collection point for the correct

recycling.

For more information about where you can send your waste batteries for recycling contact your local

authority o󰀩ce.

REGISTERED IN ENGLAND REGISTERED NO. 1711515

REGISTERED OFFICE: BLOCK C 42 BARWELL BUSINESS PARK, CHESSINGTON, SURREY KT9 2NY

TABLE OF CONTENTS

INTRODUCTION iii

HANDLING PRECAUTIONS 1

PRECAUTIONS REGARDING INSTALLATION 5

PRECAUTIONS REGARDING OPERATION

3-1 Before Operation

3-2 Paying Attention to Customers

PARTS DESCRIPTION 12

ACCESSORIES 13

ASSEMBLY AND INSTALLATION

6-1 Unpacking the Cabinet

6-2 Installing the Main Display

6-3 Installing the Billboard

6-4 Fixation to Site

6-5 Conﬁrmation of Installation

6-6 Components that Change State

6-7 Replacing Tickets

PRECAUTIONS WHEN MOVING

7-1 Moving the Machine

GAME DESCRIPTION

8-1 Game Outline

8-2 Game Flow

TEST AND SERVICE DATA

9-1 Switch and Coin Meter

9-2 Game Test Mode

9-3 Game Settings

9-4 Bookkeeping

9-5 System Info

9-6 Lighting Test

9-7 Display Test

9-8 Input Test

9-9 Output Test

9-10 Audio Settings

9-11 Date/Time

CONTROLLER UNIT

10-1 Replacing the Control Units

1010

COIN HANDLING

11-1 Cleaning the Coin Selector

11-2 Fault Finding

11-3 Adjusting the Price of Play (Excel)

11-4 Coin Region & Price of Play Settings

11-5 Price of Play Quick Start (USA)

LAMPS AND LIGHTING

12-1 Coin Door Lamp

12-2 Cabinet LED List

12-3 LED Diagrams

PERIODIC INSPECTION 72

TROUBLE SHOOTING

14-1 Troubleshooting (No Error Message)

GAME BOARD

15-1 How to Remove Game Board

15-2 Game Board Location & Removal

15-3 Game Board Introduction

15-4 Game Board Parts Detail

15-5 Replacing the Battery Button

15-6 DIP Switch Settings

DESIGN RELATED PARTS 89

PARTS LIST 90

COLOUR CODE 121

SCHEMATIC DIAGRAM 122

1111

1212

1313

1414

1515

1616

1717

1818

1919

HANDLING PRECAUTIONS

1HANDLING PRECAUTIONS

When installing or inspecting the machine, be mindful of the following points and pay attention to ensure that the

player can enjoy the game safely.

Noncompliance with the following points or inappropriate handling running counter to the cautionary matters herein

stated can cause personal injury or damage to the machine.

• Before performing work, be sure to turn the power off. Performing the work

without turning the power off can cause an electric shock or short circuit.

In cases where work should be performed in the status of power on, this

Manual always states to that effect

• To avoid an electric shock or short circuit, do not plug in or unplug quickly

• To avoid an electric shock, do not plug in or unplug with a wet hand

• Do not expose power cords or earth wires on the surface, (oor, passage,

etc). If exposed, the power cords and earth wires are susceptible to

damage. Damaged cords and wires can cause an electric shock or short

circuit

• To avoid causing a re or an electric shock, do not put things on or damage

the power cords

• During or after installing the product, do not unnecessarily pull the power

cord. If damaged, the power cord can cause a re or an electric shock

• In the case that the power cord is damaged, ask for a replacement through

where the product was purchased from or the ofce herein stated. Using

the cord as is damaged can cause re, an electric shock or leakage

• Be sure to perform grounding appropriately. Inappropriate grounding can

cause an electric shock

• Be sure to use fuses meeting the specied rating. Using fuses exceeding the

specied rating can cause a re or an electric shock

• Be sure that connections such as IC Board are made properly. Insufcient

insertion can cause an electric shock

• Specication changes, removal of equipment, conversion and/or addition,

not designated by SEGA are not permitted

• Failure to observe this may cause a fire or an electric shock.

Noncompliance with this instruction can have a bad influence upon the

physical conditions of players or onlookers, or result in injury during play

• SEGA shall not be held responsible for damage or compensation for

damage to a third party caused by specication changes not designated

by SEGA

• Do not perform any work or change parts not listed in this Manual. Doing so

may lead to an accident

• If you need to perform any work not listed in this Manual, request work from

the ofce indicated in this manual or the point of purchase, or inquires for

details. Be sure to perform periodic maintenance inspections herein stated

Indice

Altri manuali Sega Macchina per videogiochi arcade

Sega

Sega Transformers Human Alliance Manuale utente

Sega

Sega STAR WARS RACER ARCADE Deluxe Version Manuale utente

Sega

Sega Sonic & Sega All-Stars Racing Arcade Manuale utente

Sega

Sega Sonic Allstarts Kids Basketball Manuale utente

Sega

Sega Double Spin Manuale utente

Sega

Sega VIRTUA COP Manuale utente

Sega

Sega OUTRUN 2 SPECIAL TOURS DELUXE Manuale utente

Sega

Sega House Of The Dead 3 DELUXE Manuale utente

Sega

Sega 2SPICY Manuale utente

Sega

Sega UFO CATCHER Manuale utente

Sega

Sega Ford Racing Full Blown Deluxe Manuale utente

Sega

Sega Showdown Manuale utente

Sega

Sega Daytona USA Manuale utente

Sega

Sega Clay Challenge Manuale utente

Sega

Sega Racing Classic Manuale utente

Sega

Sega BG-X005SGA Manuale utente

Sega

Sega NAOMI 2 Manuale utente

Sega

Sega MARIO & SONIC AT THE RIO 2016 OLYMPIC GAMES Guida all'applicazione

Sega

Sega Triple Play Manuale di istruzioni

Sega

Sega SpongeBob SQUAREPANTS Manuale utente

Sega

Sega Virtua Fighter 4 Evolution Guida alla risoluzione dei problemi

Sega

Sega WaveRunner GP Manuale utente

Sega

Sega FORD RACING TWIN-FULL BLOWN Manuale utente

Sega

Sega Olle King Manuale utente

Manuali Macchina per videogiochi arcade popolari di altre marche

Universal Space

Universal Space COCONUT BASH Manuale utente

Bay-Tek

Bay-Tek EVOLVE Manuale utente

Global VR

Global VR America's Army Istruzioni per l'installazione e il funzionamento

Atronic

Atronic Cashline Manuale utente

Universal Space

Universal Space Checky Monkey Manuale utente

Bay-Tek

Bay-Tek Skee Ball 1908 Alley Manuale utente

Aristocrat Technologies

Aristocrat Technologies Mars X Upright Manuale utente

Family Fun Companies

Family Fun Companies Reactor Guida rapida

Universal Space

Universal Space FRUIT MANIA Extreme Manuale utente

falgas

falgas CARRUSEL FIESTA Manuale utente

Konami

Konami DanceDanceRevolution Manuale utente

Bay-Tek

Bay-Tek quik drop Manuale utente

Bandai Namco

Bandai Namco PAC-MAN BATTLE ROYALE CHOMPIONSHIP DELUXE Manuale utente

Adrenaline

Adrenaline Flying Tickets Istruzioni per l'installazione e il funzionamento

Swinks

Swinks Stern Pinball Ghostbusters Manuale utente

Innovative Concepts in Entertainment

Innovative Concepts in Entertainment MONOPOLY ROLL-N-GO Manuale utente

jakar

jakar SPEED CARS Manuale utente

Carmelli

Carmelli HAT TRICK NG1015H Manuale utente

Sega bop it ARCADE Manuale utente

Manuali Macchina per videogiochi arcade popolari di altre marche
