Sega BG-X005SGA Manuale utente

BG-X005SGA

MANUAL

Forward

First, we would like to thank you for purchasing the Sonic

4-Player Air Hockey Table. The product can bea2or4player

game for the whole family to enjoy.

For your own safety, please carefully read through the instruction

that indicates precautions to be taken prior to the assembly of the

product. We hope that you can quickly be accustomed to it and

comfortably play the product.

Note before assembling

1.Ensure there is sufficient space assembling the Air Hockey Table.

2.Need at least 4 people to do the assembly, please ensure safety

when moving the components.

3.Please ensure all parts are accessible before assembling.

Tools required for assembling

Screw Driver

*:Note Self preparation on the tools indicated above

Be careful not to damage the product when using the tools to assemble.

Scissors (Pliers)

Electronic Screw Driver

Air Hockey Access Key (game key)

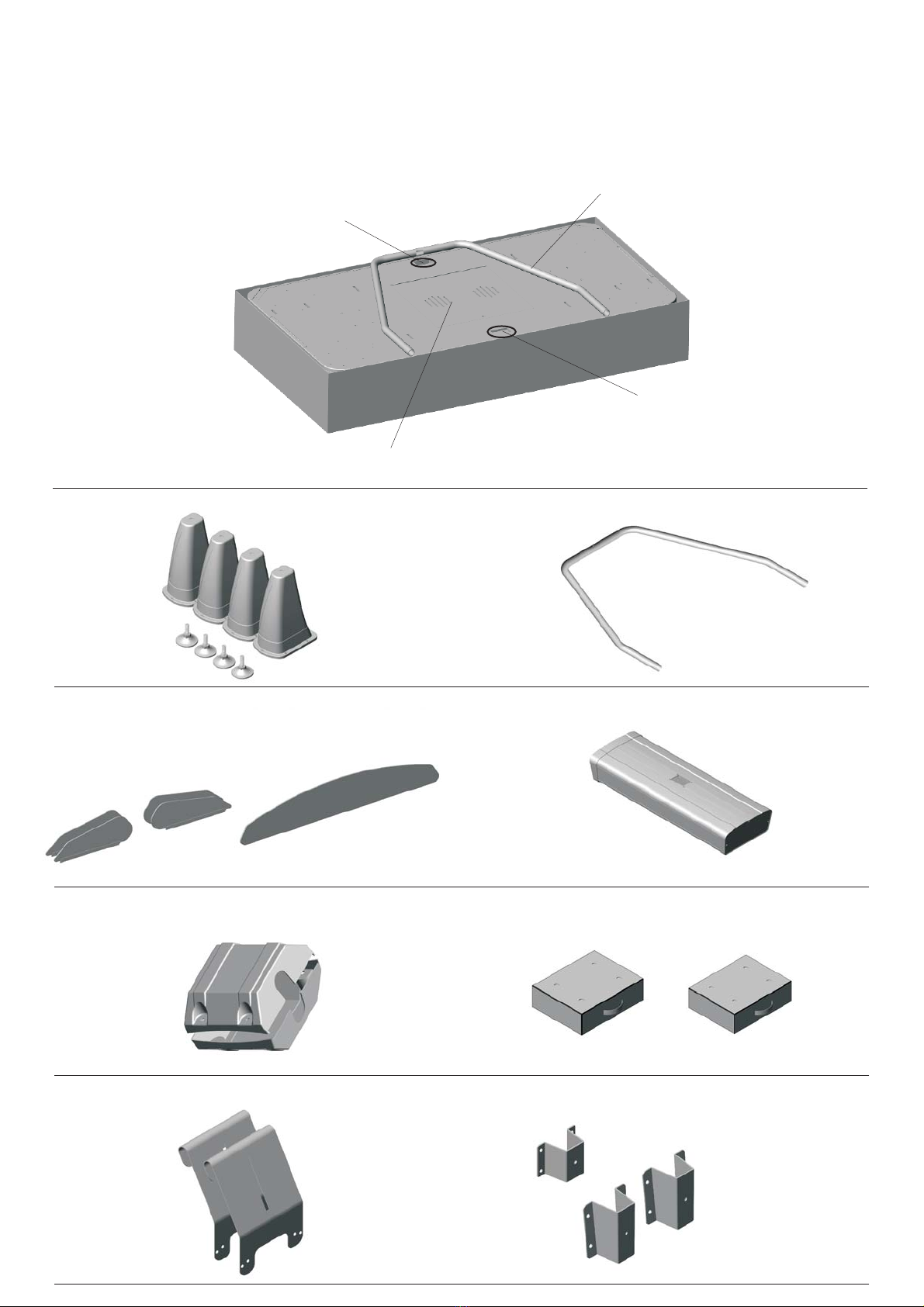

List of Parts

Main Body

Power Switch

Overhead Bar

Blower Access Door

4Sets

Overhead Bar

SEGA

Center Guard

X1 X1

Scoreboard

Plastic Bar Bracket Cover (black)

Puck and Mallet Box

Center Guard Bracket

Overhead Bar Bracket (2 sides)

Scoreboard Brackets (1 set)

Side Guards

Key and Screws Storage Box

Legs & Leg Levelers

List of Parts

Plastic Sonic Sign

Mallets x8

Pucks x20

Spray Wax for Tabletop

Power Cable

Big Flathead Screw (4mm x 12mm)

Big Flathead Screw (4mm x 8mm)

Roundhead Screw (8mm x 25mm)

Big Flathead Screw (5mm x 15mm)

Big Flathead Screw (5mm x 35mm)

Flat Washer (8mm x 16mm)

< 24>X

Scoreboard x 12

Aluminum Side Guard Brackets

x12

Plastic Bar Bracket Cover(black)

Side Guards x 8

Sonic Sign Fastener x 3

Overhead Bar Bracket x 12

Center Guard x 4

List of Screws

<>X8

Legs x 16

<>X16

Legs x 16

<>X16

<>X19 <>X8

Assembly Instruction

Step 1 Remove the 4 legs from the box screw the leg levelers onto it. Attach

onto the bottom of the table Align the holes of legs to the holes on

the bottom of the table, and then secure it with big flathead

and flat

screw (5mm x 35mm)

washer (8mm x 16mm)

leg levelers x 4

roundhead screw (8mm x 25mm)

flat washer (8mm x 16mm)

Step 2 Once the legs are tightly

screwed on to the table base,

flip and position the table by

90 degree angle this action

would require at least 3~4

people, then flip it again in

same manner to conclude

with the upright position as

shown on the diagram:

;

FINISHED PICTURE

Assembling Instruction

Step 3 Attach the center guard on one side with big flathead screw (5mm x 15mm).

As to the other side, insert the center guard into the iron plate first before

screw it tightly

Screw the iron plate on one side with

big flathead screw (5mm x 15mm)

Insert the center guard into the other

side first and then screw to the iron

plate

FINISHED PICTURE

()Finished as shown

Assembling Instruction

Step 4 Attach the overhead bar bracket with big flathead screw (5mm x 15mm).

Note: DO NOT screw it too tightly, only screw-in by 1/3 as overhead bars need to be

placed in first, so do not tightly screw on both sides.

Use 4 of the big flathead screw mm x mm

to screw in the overhead bar bracket but not tightly

( ) (5 15 )

-,.

FINISHED PICTURE

()Finished as shown

Assemble Instruction

Step 5 Connect the Scoreboard and the overhead bar. Place the sonic sign

fastener on the centre of the overhead bar then tightly screw it with 3

big flathead screw mm x mm Then use 4 big flathead

screw mm x mm to connect the Scoreboard with the sonic sign

fastener.

()

(5 15 ). ( )

(4 12 )

.3 x big flathead screw (5mm x 15mm)

4 x big flathead screw (4mm x 12mm)

Step 6 Screw the sonic sign fastener on the scoreboard Use 8 big flathead

screw mm x mm to screw the sonic sign fastener tightly onto

the scoreboard

:.()

(4 12 )

FINISHED PICTURE

8 x big flathead screw (4mm x 12mm)

Assemble Instruction

Step 7 Connect the Scoreboard with the overhead bar then insert the set into the overhead bar

bracket Note the connector plugs need to be inserted into the overhead bar bracket

first. Please do not bend or press the connector wires.

Insert the Scoreboard set (including the overhead bar)

into the overhead bar bracket NOTE the part with

the connector plugs should face inside.

Insert trough

Connector plug end

Connector plug end need to pass through the

overhead bar bracket first set

Step 8 Plug-in all the plugs on the connector plug end in accordance to its colors.

NOTE: plug-in tightly.

All plugs are separated by colors

Assemble Instruction

Step 10 Tightly screw on the plastic bar bracket cover on both sides with 4 big flathead

screw mm x mm The center guard needs to be attached into the upper

holes of the plastic bar bracket cover

:()

(5 35 ). (2)

Center guard needs to be attached into

the upper holes2

Use 4 big flathead screw (5mm x 35mm)

Step 9 Use the open cut side of the overhead bar plastic cover, and then insert it into the

overhead bar protection cover. Lastly attach the whole cover onto the side panel

Before attaching it on ensure the overhead bar is placed into the open cut of the

overhead bar plastic cover Then cover it with the overhead bar protection cover.

FINISHED PICTURE

Open-cut

Place the plastic bar bracket cover onto the

overhead bar plastic cover

Plastic cover with the plastic bar bracket cover

then place the set onto the overhead bar
