Seller MA-3116 Manuale utente

16x16 3G/HD/SD-SDI Matrix

User Manual

rev: 120704

Made in Taiwan

A-

-3

The MA-3116 16x16 3G/HD/SD-SDI Matrix has been tested for conformance to safety regulations and

requirements, and has been certified for international use. However, like all electronic equipments, the

MA-3116 should be used with care. Please read and follow the safety instructions to protect yourself from

possible injury and to minimize the risk of damage to the unit.

●Follow all instructions and warnings marked on this unit.

●Do not attempt to service this unit yourself, except where explained in this manual.

●Provide proper ventilation and air circulation and do not use near water.

●Keep objects that might damage the device and assure that the placement of this unit is on a stable

surface.

●Use only the power adapter and power cords and connection cables designed for this unit.

●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

TABLE OF CONTENTS

INTRODUCTION................................................................................................................ 1

FEATURES ........................................................................................................................ 1

PACKAGE CONTENTS...................................................................................................... 1

SPECIFICATIONS.............................................................................................................. 2

PANEL DESCRIPTIONS.................................................................................................... 3

CONNECTION DIAGRAM.................................................................................................. 4

DIP Switch.......................................................................................................................... 4

HARDWARE INSTALLATION ............................................................................................ 5

CHANNEL CONTROL........................................................................................................ 5

LIMITED WARRANTY........................................................................................................ 9

INTRODUCTION

The MA-3116 16x16 3G/HD/SD-SDI Matrix provides the most flexible and cost effective solution in

the market to route 3Gbps high definition video sources from any of the sixteen SDI sources to the any

eight SDI receivers at the same time. This solution is well suited for use in home theater, conference room

presentation systems, or other similar setting or application.

FEATURES

●Inputs meet SMPTE 259M, 292M, 424M,425M

●Synchronizes input/output (switch after vertical sync)

●Allows any SDI display to view any SDI source at any time

●Auto-Reclocking

●The matrix master can switch every output channels to any SDI inputs by push-in button, IR remote

controller or RS-232 control

●Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively

PACKAGE CONTENTS

●1x MA-3116 ●1x UL AC C13 power cord

●1x BNC Terminator Plug ●1x IR receiver

●1x Rack-mounting ear set ●1x IR Remote control

●1x Installation software CD ●1x User Manual

USB or RS-232 control must be connected either one at a time. Connecting both types of cables may

cause command confusion.

SPECIFICATIONS

Model Name

MA-3116

Technical

Role of usage

True 16x16 matrix

Video bandwidth

2.97 & 2.97/1.001Gbps

Video support

[3G] 1080p@50/59.94/60 (4:2:2)

[HD] 720p50/59.94/60, 1080p24/30, 1035i50/59.94/60, 1080i50/59.94/60

[SD] NTSC@59.94Hz, PAL@50Hz

Audio support

Yes

Cable equalization

[3G] up to 100m(300ft) / [HD-SDI] up to 150m (500ft) / [SD-SDI] up to 300m

(1000ft)

Reclocking function

Yes

PCB stack-up

4-layer board [impedance control —differential 100; single 50]

Input

16x SDI BNC + 1x Synchronized BNC + 1x RS-232

Output

16x SDI BNC + 1x Synchronized BNC loop-out

SDI Input selection

Push button / IR remote / RS-232

IR remote control

Electro-optical characteristics: = 25/ Carrier frequency: 38kHz

RS-232 connector

DE-9 [9-pin D-sub female]

Mechanical

Housing

Metal case

Dimensions

[L x W x H]

Model

440 x 310 x 44mm [1’5” x 1’ x 1.7”]

Package

528 x 398 x 130mm [1’9” x 1’4” x 5.1”]

Carton

548 x 422 x 282mm [1’10” x 1’5” x 11.1”]

Weight

Model

4051g [8.9 lbs]

Package

4900g [10.8 lbs]

Fixedness

Interlocking power supply

Power supply

AC Power 100-240V

Power consumption

35 Watts [max]

Operation temperature

0~40C [32~104F]

Storage temperature

-20~60C [-4~140F]

Relative humidity

20~90% RH [no condensation]

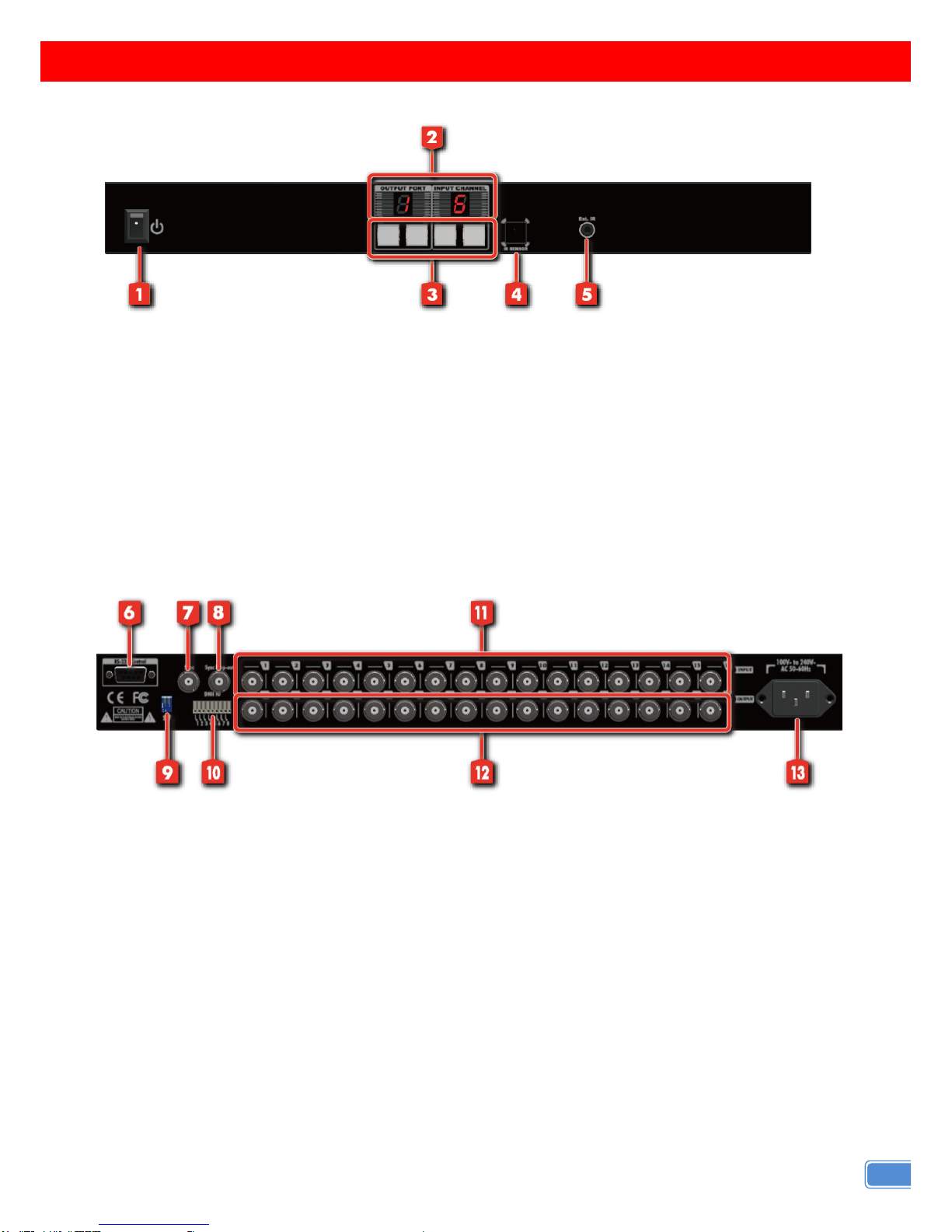

PANEL DESCRIPTIONS

Front Panel

1. Power: Power control

2. Fifteen Segment LED Indicators: Output/Input display

3. Front panel push buttons: To select input and output source

4. IR sensor

5. IR: IR receiver

Rear Panel

6. RS-232: RS-232 control port

7. Sync In: External sync input

8. Sync Output: External sync loop out

9. SW: firmware update

10. Digital I/O: Control signal

11. INPUT PORT 1 –16: SDI inputs

12. OUPUT PORT 1–16: SDI outputs

13. AC Power: 100-240V

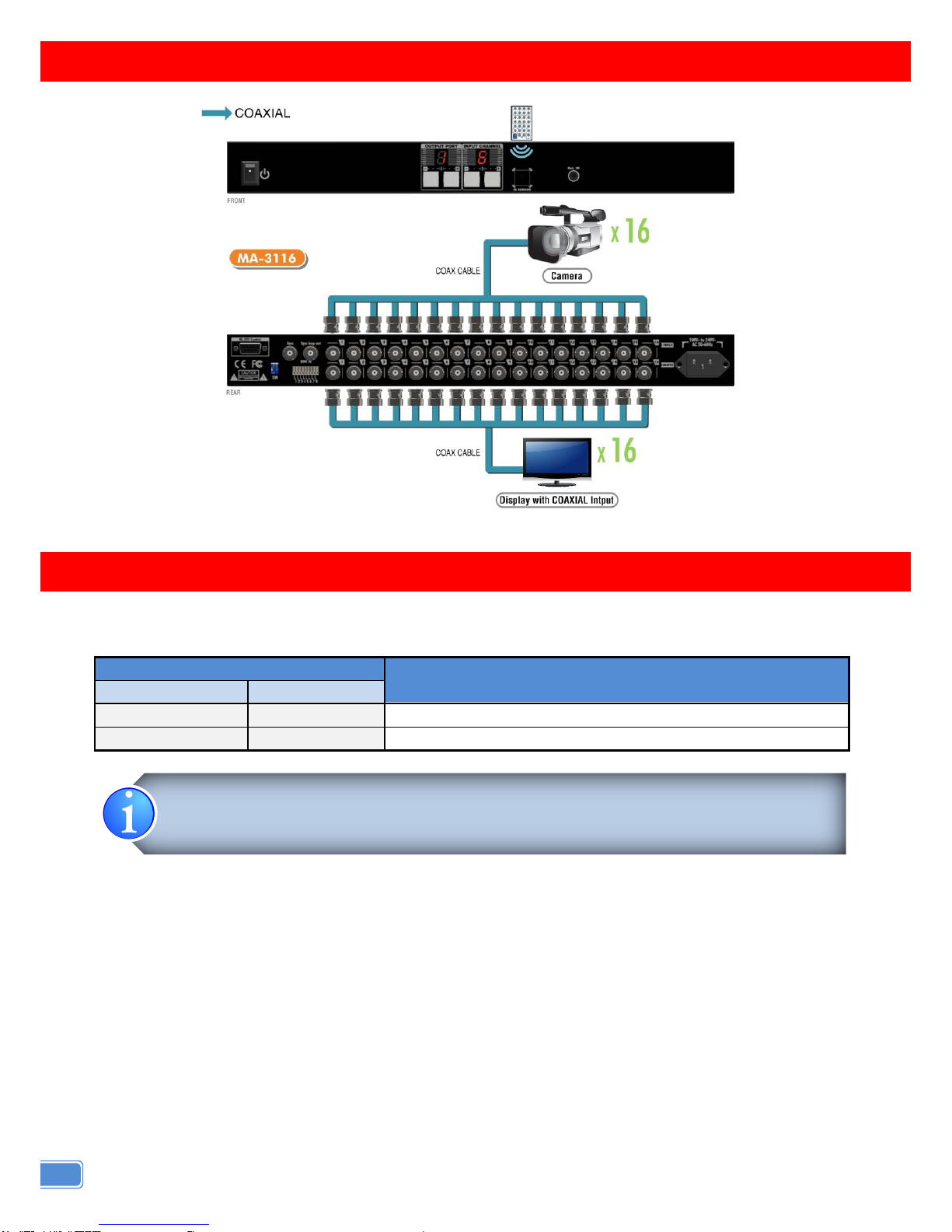

CONNECTION DIAGRAM

DIP SWITCH

Main Firmware Update

WARNING!

[ Firmware update only can be done via RS-232 port and connection to PC set at COM1 ]

1. Power off the MA-3116. Execute the firmware update program on your PC via COM1 port

connection to the RS-232 port of the MA-3116.

2. Set the pin#1 and pin#2 of [SW] at ON[] for firmware update mode.

3. Power on the MA-3116. The firmware update program should begin this update sequence

automatically. If not, please check the RS-232 connection status between PC and MA-3116.

4. After the OK message shows up to indicate the firmware update sequence for designated

Block is complete, please turn off the MA-3116.

5. Set the [SW] switch position to Normal Operation Mode.

6. Power on the MA-3116.

DIP Switch Position

Description

Pin#1

Pin#2

OFF []

Normal Operation

ON []

For Firmware Update

1. Factory default for SW is pin#1-OFF[], pin#2-OFF[].

PLEASE MAINTAIN THIS SETTING AT ANYTIME FOR REGULAR USE VIA RS-232 CONTROL!

2. Sequence for firmware update

HARDWARE INSTALLATION

MA-3116

1. Connect all sources to SDI Inputs on the 16x16 SDI matrix

2. Connect all outputs to SDI Receiver

3. Connect the AC power supply to the 16x16 SDI matrix

4. Power on the 16x16 SDI matrix MA-3116

CHANNEL CONTROL

Source Side

Method A: Push-in Button

1.Use the switch button on output port to select which port to be changed.

(+) increase (–) decrease

2.Push the switch button on Input channel. The source will be sequentially changed.

After few seconds, the setting will be active.

3. Numbers from 10-16 on the LED are shown asA, B, C, D, E, F, G.

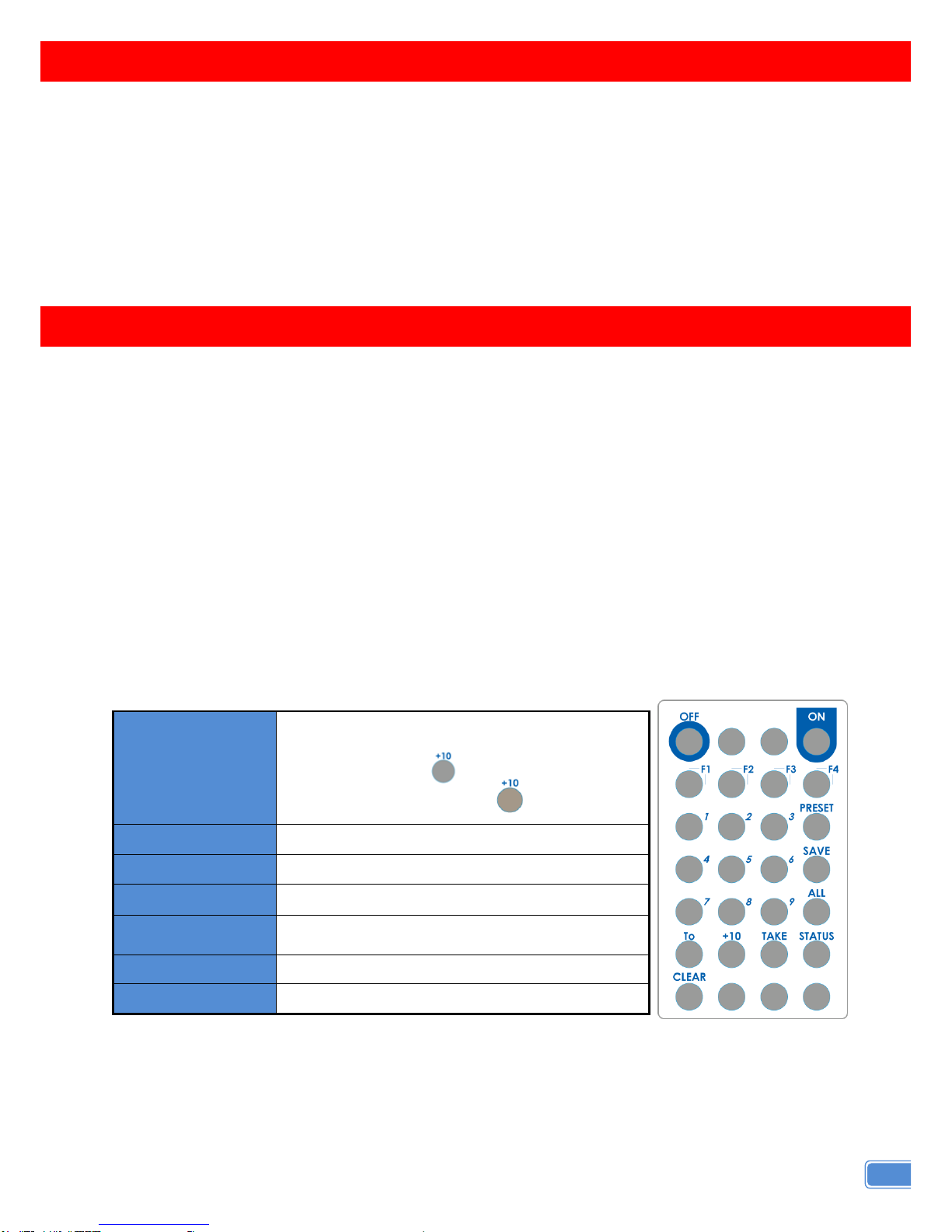

Method B: IR Remote Control

Note

Route input to output

Input port number + To + output port number + Take

Select I/O 10, choose

Select I/O 11-16, choose (1-6) +

Input port number + To + All output port + Take

Display status

Output port number + Status + Take

Factory Reset

Status + Status + Status + Take

Save Mapping

Number + Save + Take

[Memory 6 sets of configuration]

Preset Mapping

Number + Preset + Take

F1, F2, F3, F4,CLEAR

Reserved Buttons

Display Side

Method A: Software Control through RS-232

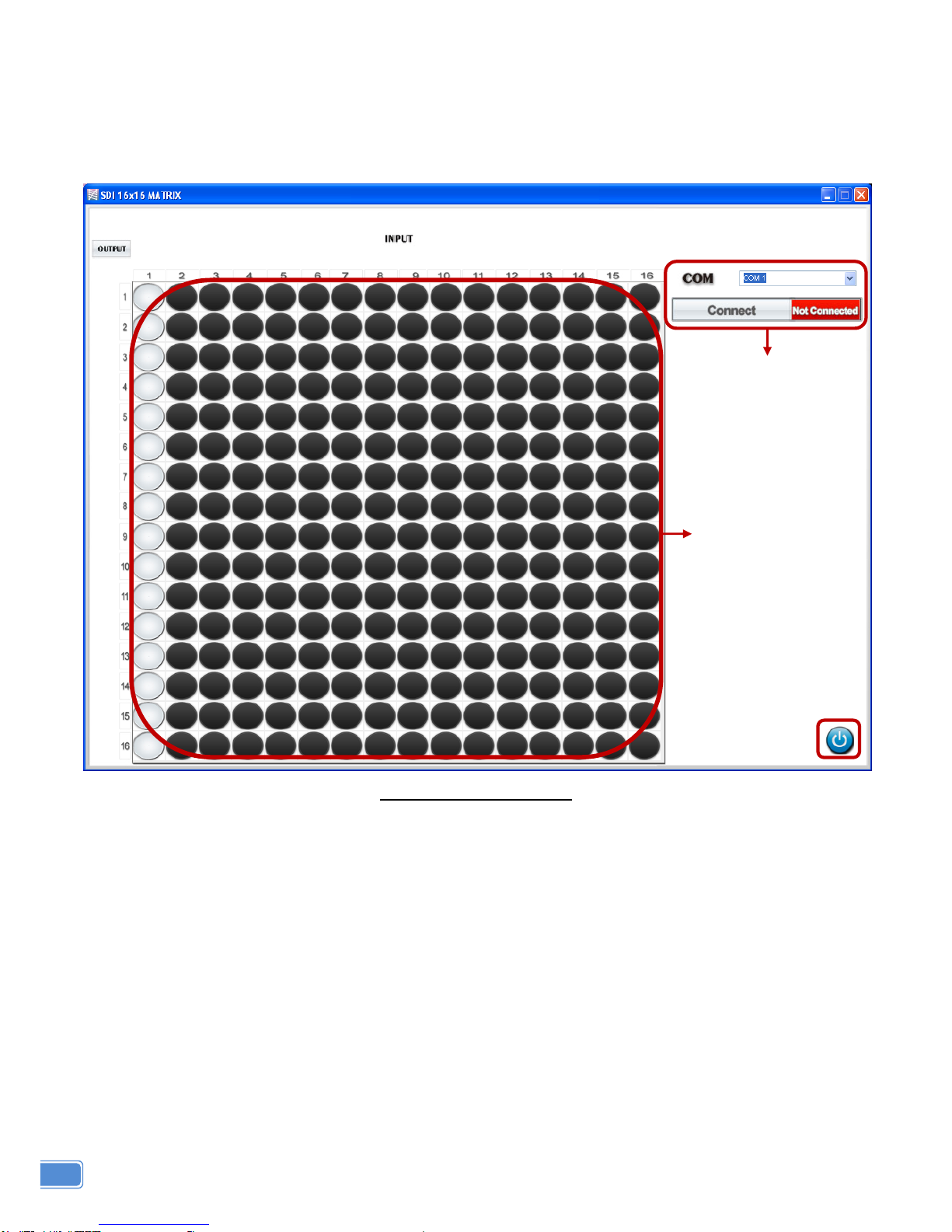

Software Control Menu

1. GUI Control:

a. Select COM and click “connect” button to connect to the device. If the connection is successful, then

the button will turn green.

b. Click the input button can easily map all the outputs to corresponding input ports.

c. Each button switches the output ports to the input ports.

d. Power control button can power on and power off the device.

RS-232 COM select

Power control

Port switch button

Popup menu

2. Popup menu:

Right click the mouse will show up a popup menu. It supports “one by one mapping”, “saving mapping”

and “preset mapping” functions.

3. Terminal control:

Baud rate: 9600

Data length: 8bit

Parity check: No

Stop bit: 1

Command Set:

COMMAND

ACTION

COMMAND

ACTION

COMMAND

ACTION

System Status*

Output C select

Input5

Output F select

Input3

Firmware Version

Output C select

Input6

Output F select

Input4

Output A select

Input1

Output C select

Input7

Output F select

Input5

Output A select

Input2

Output C select

Input8

Output F select

Input6

Output A select

Input3

Output D select

Input1

Output F select

Input7

Output A select

Input4

Output D select

Input2

Output F select

Input8

Output A select

Input5

Output D select

Input3

Output G select

Input1

Output A select

Input6

Output D select

Input4

Output G select

Input2

Output A select

Input7

Output D select

Input5

Output G select

Input3

Output A select

Input8

Output D select

Input6

Output G select

Input4

Output B select

Input1

Output D select

Input7

Output G select

Input5

Output B select

Input2

Output D select

Input8

Output G select

Input6

Output B select

Input3

Output E select

Input1

Output G select

Input7

Output B select

Input4

Output E select

Input2

Output G select

Input8

Output B select

Input5

Output E select

Input3

Output H select

Input1

Output B select

Input6

Output E select

Input4

Output H select

Input2

Output B select

Input7

Output E select

Input5

Output H select

Input3

Output B select

Input8

Output E select

Input6

Output H select

Input4

Output C select

Input1

Output E select

Input7

Output H select

Input5

Output C select

Input2

Output E select

Input8

Output H select

Input6

Output C select

Input3

Output F select

Input1

Output H select

Input7

Output C select

Input4

Output F select

Input2

Output H select

Input8
