SFT10 Stapler and SHP10 Pinner

The SENCO SFT10 Fine-Wire Stapler and the SHPIO Headless

Pinner are extremely well balanced, lightweight, and powerful.

SFT10 Applications:

For upholstering, dust covers, cabinet backs, TV/stereo

screening. Felt insulation, roofing felt, double glazing

strips, light trim, and molding applications in on-site and

manufactured housing. Also for automotive vinyl roofs and

interior trim, shoes/leather goods, screen construction,

picture frames, splash guards, crate labels, and toys.

SFT10 Features:

• Drives 3/8” to 1/2” crown staples 1/4” to 5/8” long

• Balanced 2 to 2.2 lb. weight reduces fatigue

• Full variable speed control adjusts from a single shot to

1,600 cycles per minute

• Easy bottom loading with one-touch magazine release

• Long nose and streamlined barrel fit in tight places and

provide excellent line-of-sight to the work area

SHP10 Applications:

For molding, decorative trim, glazing strips, and window

beading in on-site and manufactured housing. In furniture

and cabinets: dowel and joint pinning, component holding

during gluing, rattan furniture, mirror and picture frame

assembly, blind pinning, drawer assembly, and toys.

SHP10 Features:

• High load capacity (200 pins)

• Balanced 2.4 lb. weight reduces fatigue

• Easy bottom loading with one-touch magazine release

• Drives the smallest to the largest headless pins for a

no-mar finish

• Long nose and streamlined barrel fit in tight places and

provide excellent line-of-sight to the work area

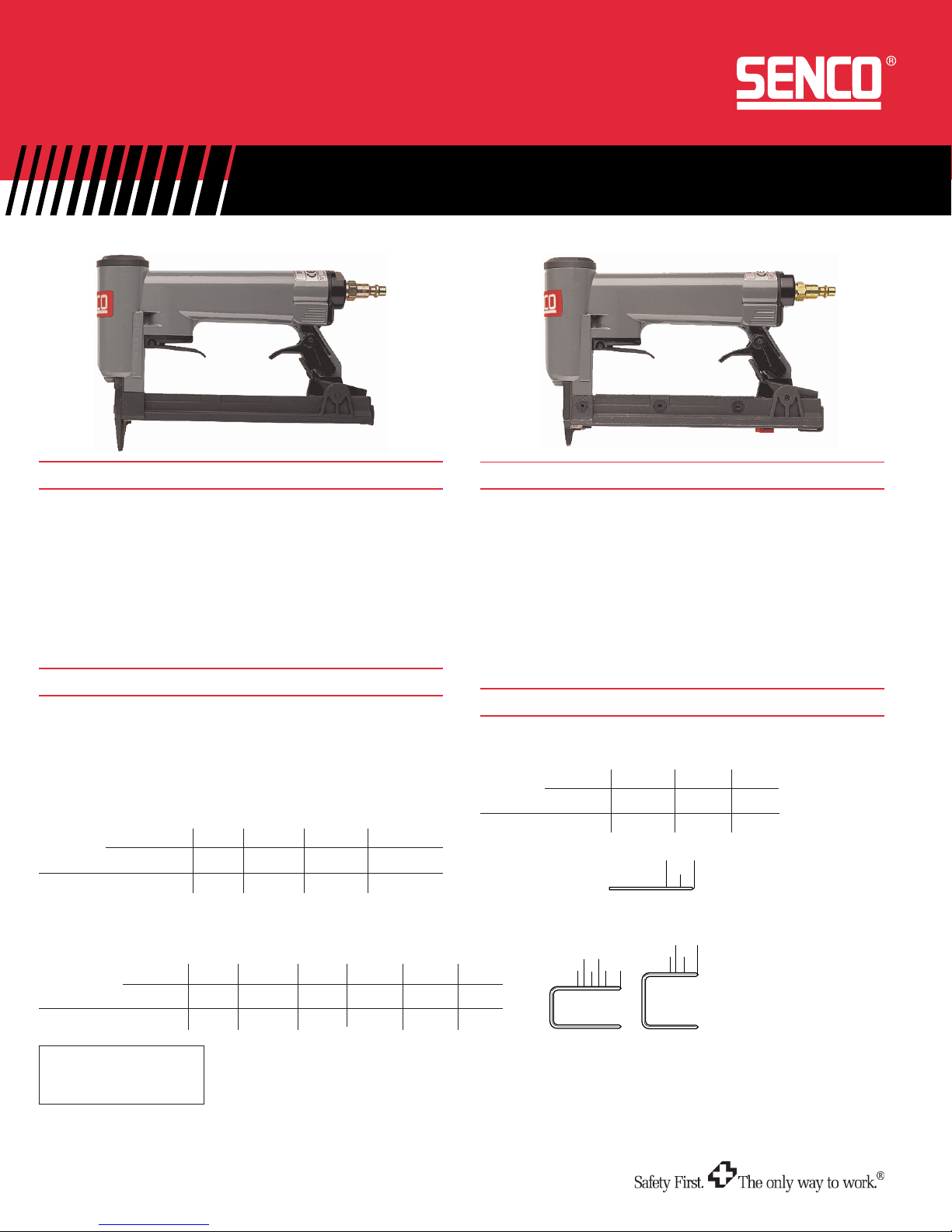

SFT10 Stapler and SHP10 Pinner

CZ

5/8

1

/23/4

B

C

1

/4

5

/16

3

/8

7

/16

1

/2

1

/4

5

/16

3

/8

1

/2

5

/8

For additional information on how SENCO fastening systems will save you time, reduce costs, and increase quality, call your nearest Authorized SENCO

Dealer or Distributor listed in the Yellow Pages under “Staples, “ or call our toll-free Action Line: 1-800-543-4596.

©2001 by Senco Products, Inc. Order MK309 Litho in U.S.A. Visit our web site: www.senco.com

SFT10 Tool Specifications:

Tool Weight: 2 lbs. (0.9 kg) to 2.2 lbs. (1 kg)

Height: 6-1/8” (155 mm)

Length: 8-5/8” (218 mm)

Width: 1-5/8” (41 mm)

Lip Length: 1” (25 mm)

Staple Capacity: 180

Operating Pressure: 75-100 p.s.i.g. (5.2-6.9 bar)

Hose Fitting: 1/4” NTP

SFT10 Fastener Specifications:

Width: .030

Thickness: .0215

Gauge: 22

The SFT10-B (480003 and 480006 Automatic) will drive these

1/2" (13 mm) crown staples:

Lengths Inches 1/4 5/16” 3/8” 1/2”

Millimeters 6 8 1 0 13

Part No. B04 B05 B06 B08

The SFT1O-C (480001 and 480004 Automatic and 480007

long nose) 3/8” (10 mm) crown staples:

Lengths Inches 1/4” 5/16” 3/8” 7/16” 1/2” 5/8”

Millimeters 6 8 10 11 13 16

Part No. C04 C05 C06 C07 C08 C10

SHP10 Tool Specifications:

Tool Weight: 2.4 lbs. (1 kg)

Height: 513/16 “ (148 mm)

Length: 8V (218 mm)

Width: 1-5/8” (41 mm)

Lip Length: 1/2” (13 mm)

Staple Capacity: 200 headless pins

Maximum Speed: 8 per second (cycles per second)

Operating Pressure: 75-100 p.s.i.g. (5.2-6.9 bar)

Hose Fitting: 114” NTP

SHP10 Fastener Specifications:

Gauge: 23,.025" (.64 mm)

Lengths Inches 1/2”5/8”3 /4”

Millimeters 13 16 19

Part No. CZ08 CZJO C711

Note: A 2” Long Nose

SFT10 is available

and is 7-15/16” in
