Senix BLVE12-M Manuale utente
8458-A072012001-011
For customer support, please call 1-800-261-3981 or send email to:
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Operator’s manual
Model : BLVE12-M
2 WWW.SENIXTOOLS.COM
SPECIFICATIONS*
SAFETY SYMBOLS.................................................................2
TECHNICAL DATA..................................................................2
SAFETY...................................................................................3
COMPONENT LOCATION......................................................6
ASSEMBLY...............................................................................7
OPERATION..........................................................................10
MAINTENANCE.....................................................................12
PARTS....................................................................................13
TROUBLESHOOTING...........................................................14
WARRANTY...........................................................................15

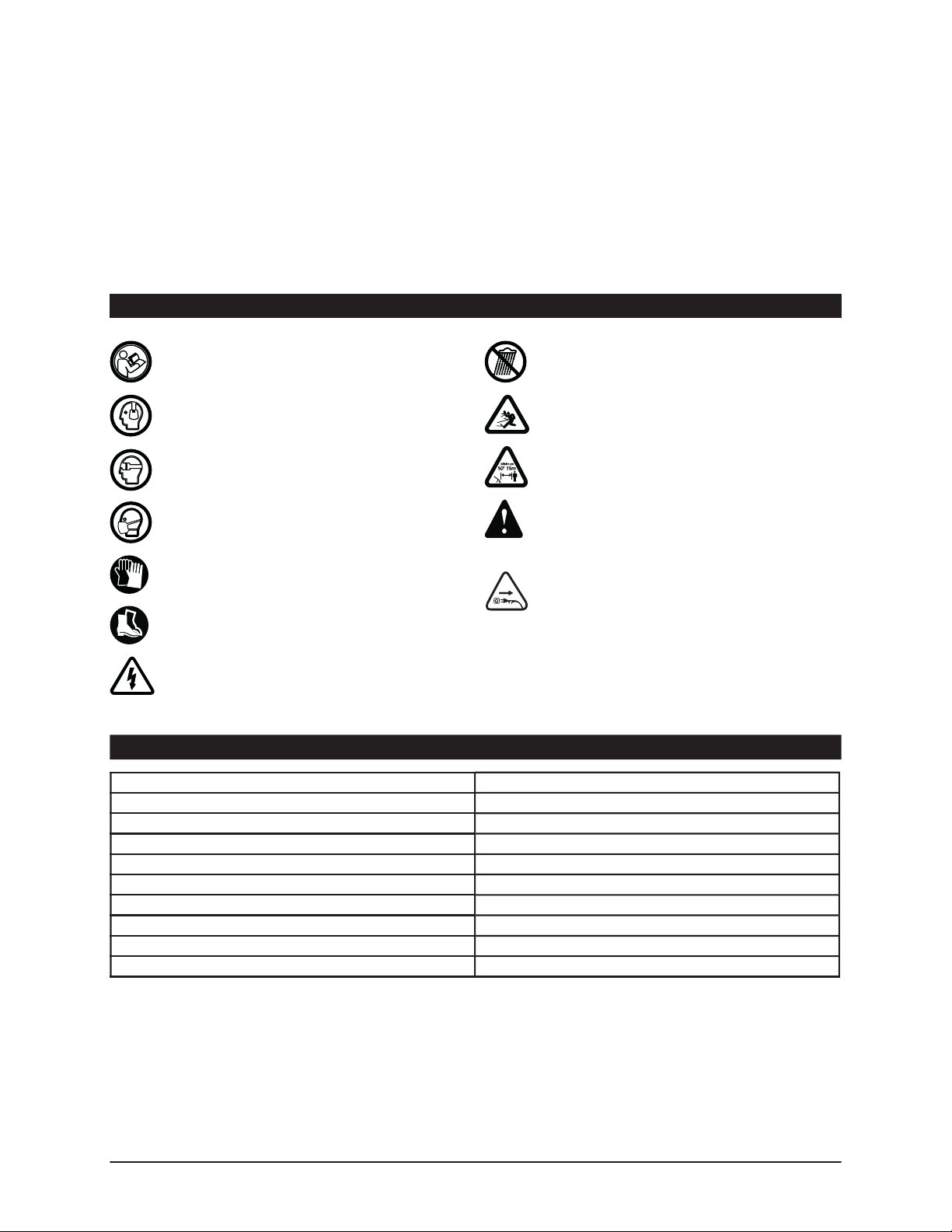

To reduce the risk of injury, user must
read instruction manual.
Wear ear protection.
Wear eye protection.
Wear dust mask.
Wear hand protection.
Wear non-slip safety footwear.
Avoid power lines, use in dry conditions.
TABLE OF CONTENTS
Do not expose to rain.
Thrown objects can ricochet and result in
personal injury or property damage.
Keep all bystanders at least 50 ft. away.
Indicates danger, warning or caution.
Precautions that involve your safety.
Disconnect from the mains plug if the cord
is damaged or entangled. DO NOT TOUCH
THE CORD BEFORE DISCONNECTING
THE SUPPLY.
Model BLVE12-M
Rated Voltage 120V ~60Hz
Rated Current 12A
Motor Type Universal Motor
No Load Speed 14000 /min
Max Air Speed 179 MPH
Max Air Volume 420 CFM
Mulch Ratio 14:1
Bag Capacity 1.24 Bushel
Weight 8.2lbs (3.72kg)
SAFETY SYMBOLS
3WWW.SENIXTOOLS.COM
WHEN USING (THIS APPLIANCE)
Do not unplug by pulling on cord. To unplug, grasp the
plug, not the cord.
Turn off all controls before unplugging.
liquids, gases, or dust. Power tools create sparks that
may ignite the dust or fumes.
allow adults to operate the equipment without proper
instruction.
loose garments or jewelry that could get caught in
moving parts of the machine or its motor.
and safely when it is used at the rate that it was
designed to work at.
wearing sandals or similar lightweight footwear.
and improve your footing on slippery surfaces.
necessary when used by or near children.
manufacturer’s recommended attachments.
away from openings and moving parts.
working as it should, or if it has been dropped,
damaged, left outdoors, or dropped into water, return
it to an authorized service center.
direct sunshine.
When using an electrical appliance, basic precautions
should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS
APPLIANCE)
IMPORTANT SAFETY
INSTRUCTIONS prevent entanglement in any moving parts.
Overreaching can result in loss of balance.
this unit.
off. Any tool that cannot be controlled with the switch
is dangerous, and must be repaired.
(15 m) away.
parts and all hot surfaces of the unit.
any opening blocked. Keep openings free of dust,
objects that can be thrown or become entangled in
the machine, such as rocks, broken glass, nails, wire,
or string.
and accessories. Use of any other parts may create
a hazard or cause product damage.
CHILD SAFETY
Tragic accidents can occur if the operator is not aware
of the presence of children.
watchful care of a responsible adult.
this blower. Children who are 14 years of age and
older must read and understand the operating
instructions and safety rules in this manual and must
be trained and supervised by a parent.
other person enters the working area.
doorways, shrubs, trees, or other objects that may
obscure your view of a child who may run into the
path of the blower.
WARNING (PROPOSITION 65)
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains
chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals
are:
masonry products, and
SAFETY
4 WWW.SENIXTOOLS.COM
To prevent the appliance cord from disconnecting from
the extension cord during operation, make a knot with
the two cords as shown below.
Volts Total length of cord in feet
More than/Not more than AWG
120 V 25 50 100 150
0-6
6-10
10-12
18
18
16
16
16
16
16
14
14
14
12
12
12-16 14 12 Not recommended
Keep the extension cord clear of the work area. Position
the cord so that it will not get caught on bushes,
hedges, tree trunks, lawnmowers or other obstructions
while you are working with the blower vacuum.
a polarized plug (i.e. one blade is wider than the other).
Use this appliance only with a polarized UL-, CSA- or
ETL rated extension cord for outdoor, all-weather use.
cord only one way.
obtain a correct polarized extension cord. A polarized
extension cord will require the use of a polarized wall
lumber.
Your risk of exposure to these chemicals varies
depending on how often you do this type of work.
To reduce your exposure to these chemicals, work in
a well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially
ELECTRICAL SAFETY
when installing or removing the extension cord from the
plug.
1. Double insulated tools are equipped with a polarized
plug (one blade is wider than the other and will
require the use of a polarized extension cord. The
the extension cord, reverse the plug. If the plug still
cord. A polarized extension cord will require the use
polarized wall outlet only one way. If the plug does
to install the proper outlet. Do not change or alter
the equipment plug, extension cord receptacle, or
extension cord plug in any way.
2.Double insulation eliminates the need for the three-
wire grounded power cord and grounded power
supply system. Applicable only to Class II (double-
insulated) tools.
3 Ground fault circuit interrupter (GFCI) protection
should be provided on the circuit(s) or outlet(s) to be
used for the blower. Receptacles are available having
built-in GFCI protection and may be used for this
measure of safety.
4 To prevent electric shock, use only with an extension
cord suitable for outdoor use, such as SW-A,
SOW-A, STW-A, STOW-A, SJW-A, SJOW-A,
SJTW-A, or SJTOW-A. Before use, check that the
extension cord is in good condition. When using
an extension cord, make sure to use one heavy
enough to carry the current your product will draw.
For lengths less than 50 ft (15 m), a No.14 AWG
(or greater) extension cord should be used. An
undersized cord will cause a drop in line voltage
resulting in loss of power and overheating.
5.Use a proper extension cord. ONLY use cords listed
by underwriters Laboratories (UL). Other extension
cords can cause a drop in line voltage, resulting
in a loss of power and overheating of tool. For this
tool an AWG (American Wire Gauge) size of a
least 14-gauge is recommended for an extension
cord of 25-ft. or less in length. Use 12-gauge for an
extension cord of 50-ft. Extension cords 100-ft. or
longer are not recommended. Remember, a smaller
wire gauge size has greater capacity than a larger
number (14-gauge wire has more capacity than
16-gauge wire; 12-gauge wire has more capacity
than 14-gauge). When in doubt use the smaller
number.
5WWW.SENIXTOOLS.COM
SAVE THESE INSTRUCTIONS
the wall outlet, reverse the plug. If the plug still does
wall outlet. Do not modify the appliance plug, extension
cord receptacle or extension cord plug in any way.
Warning – To reduce the risk of personal injury due to
a loose electrical connection between the appliance’s
appliance plug to the extension cord. Periodically check
the connection while operating to ensure it is fully
attached. Do not use an extension cord that provides
a loose connection. A loose connection may result in
Maintain Appliance With Care – Inspect extension cords
periodically and replace if damaged.
Do not abuse the cord. Never pull the blower by
the cord or yank the cord to disconnect it from the
receptacle. Keep the cord away from heat, oil, and
sharp edges.
6 WWW.SENIXTOOLS.COM
COMPONENT LOCATION
5
6
7
8
4
3
21
1 Handle 5 Lock knob
2 ON/OFF switch 6 Vacuum inlet cover
3 Auxiliary handle 7 Blower tube
4 Plug 8 Blower concentrator nozzle
9 Auxiliary handle 11 Rear vacuum/mulcher tube
10 Front vacuum/mulcher tube 12 Collective bag
7WWW.SENIXTOOLS.COM
ASSEMBLY
Read the ENTIRE IMPORTANT SAFETY
INFORMATION section at the beginning of this manual
including all text under subheading therein before set up
or use of this product.
ASSEMBLE AS A BLOWER
1. Slide the blower tube forward until the notched area
on the blower housing clicks into the slot on the
blower tube.
2. Insert the concentrator nozzle onto the end of the
blower tube until it locks into position (Fig. 1).
1. Slide the front and rear vacuum/mulcher tubes
together until the lock button engages (Fig. 5).
NOTE: The concentrator nozzle is used to increase air
etc.).
3. Before using the blower function, rotate the lock knob
to lock the cover in place(The indicator will be on the
far right position,Fig. 2).
4. To remove the blower tube, turn the ON/OFF power
switch to the OFF (O) position and disconnect the
tool from the power supply (Fig. 3).
5. Press the tube release button and remove the blower
tube (Fig. 4).
ON
OFF
Notched area
Concentrator
nozzle
Air outlet
Blower tube
Fig. 1
Fig. 2
Fig. 3
Tube release button Fig. 4
Fig. 5
8 WWW.SENIXTOOLS.COM
2. Rotate the lock knob to unlock the cover (The
indicator is on the far left position,Fig. 6).
5. Insert the collection bag adaptor into the blower air
outlet until the collection bag is securely fastened
(Fig. 9), then make the bag hook the strap holder on
the two sides of the tube (Fig. 10).
3. With the blower tube removed, insert the "hooked"
Side end of the mulcher tube into the rear clip on the
unit. Rotate the lock knob to close the front tube (The
indicator is on the far right position,Fig. 7).
1. To remove the collective bag ,release the bag from
the strap holder on the two sides of the tube,and
simply press the tube release button to remove the
bag (Fig. 11).
2. To remove the vacuum/mulcher tube assembly,
release the inter cover from the hook of the tube,
rotate the lock knob to unlock , then remove the tube
assembly from its housing (Fig. 12).
4. Make the inter cover hook the hook of the rear tube
(Fig. 8).
Fig. 6
Fig. 9
Fig. 7
Rear clip + Hook side
Fig. 8
1 2 3
Fig. 10
Fig. 11
Tube release button
1
9WWW.SENIXTOOLS.COM
8. Make sure to disconnect the unit from the power
supply before attempting to clear any obstructions.
The indicator of the lock knob must be entered into
13).
NOTE: It may be necessary to remove the blower tube
or vacuum/mulcher tubes to clear a blocked tube or
impeller.
1
Fig. 12
Fig. 13
10 WWW.SENIXTOOLS.COM
OPERATION
Read the ENTIRE IMPORTANT SAFETY
INFORMATION section at the beginning of this manual
including all text under subheading therein before set up
or use of this product.
Use the blower/vacuum/mulcher only in daylight or good
To avoid serious personal injury, wear ear defenders,
goggles or safety glasses at all times when operating
this unit. Wear a face mask or dust mask in dusty
locations.
To prevent serious personal injury or damage to the
unit, make sure the blower tube or the mulcher tubes
and the bag are in place before operating the unit.
the ground and place one hand on the unit handle and
the other hand on the auxiliary handle.
Wear personal protective equipment during your work
session. This includes boots, safety glasses/goggles,
ear defenders, long pants and a long-sleeve shirt.
When using the unit as mulcher, make sure the bag is
properly installed and zipped closed.
Make sure the blower tube nozzle is not directed at
anybody or any loose debris before starting the unit.
Verify that the unit is in good working condition. Make
sure the tubes and guards are in place and secure.
Ensure that the vacuum/mulch inlet cover is
completely closed and locked.
grips.
To reduce the risk of hearing loss associated with
soundlevel(s), hearing protection is required.
Use the shoulder strap when using the unit as a
mulcher.
Operate power equipment only at reasonable hours—
not early in the morning or late at night when people
might be disturbed. Comply with times listed in local
ordinances.Usual recommendations are 9:00 am to
5:00 pm, Monday through Saturday.
To reduce noise levels, limit the number of pieces of
power equipment used at any one time and operate
power blowers at the lowest possible speed setting
necessary to do the job.
Use rakes and brooms to loosen debris before
blowing.
In dusty conditions, slightly dampen surfaces.
Conserve water by using power blowers instead
of hoses for many lawn and garden applications,
including areas such as gutters, screens, patios, grills,
porches and gardens.
Blow debris into a safe, open area away from children,
pets, open windows or freshly washed cars.
Clean up after using leaf blowers and other lawn
equipment. Dispose of debris appropriately.
CONNECTING TO A PWER SOURCE
OPERATING TIPS
STARTING AND STOPPING
1. Secure the extension cord to the motor housing using
the cord retainer located at the rear of the blower.
Securing the extension cord in this manner prevents
accidental removal of the electrical cord during
operation (Fig. 14).
1. To start the electric blower/vacuum/mulcher, slide the
ON/OFF switch to position (1),This unit is equipped
with one speed settings (1 ) (Fig. 15).
2. To stop the unit, slide the ON/OFF switch to position
(0) (Fig. 15).
2. Plug the female end of the electrical cord into the
receptacle at the back of the unit.
Fig. 14
ON
OFF
Fig. 15
Altri manuali per BLVE12-M
1
Indice
Lingue:
Altri manuali Senix Soffiatore
