Esfera

SPM 8000

Instruction manual

SPM 8000|1

ENFRITPTNLRUZH ES DE

Important safety information

• Read this instruction manual.

• Keep this instruction manual. Always include this instruction manual when passing the

product on to third parties.

• Heed all warnings and follow all instructions in this instruction manual.

• Do not use the product near water.

• Only use a dry cloth for cleaning the product.

• Do not place the product near any heat sources such as radiators, stoves, or other

devices (including amplifiers) that produce heat.

• Only use attachments/accessories specified by Sennheiser.

• Refer all servicing to qualified service personnel. Servicing is required if the product has

been damaged in any way, liquid has been spilled, objects have fallen inside, the product

has been exposed to rain or moisture, does not operate properly or has been dropped.

• Do not expose the product to rain or moisture.

Intended use

Intended use includes:

• having read this instruction manual, especially the chapter “Important safety information”,

• using the product within the operating conditions and limitations described in this

instruction manual.

“Improper use” means using the product other than as described in this instruction manual,

or under operating conditions which differ from those described herein.

This instruction manual is also available on the Internet

at www.sennheiser.com.

www Manual

2|SPM 8000

Package contents

The Esfera surround microphone system

Esfera is a surround microphone system which is easy to install and very easy to use. Esfera

provides 5.1 surround sound from just two channels, making complicated surround mic

installations a thing of the past. The system consists of the SPM 8000 stereo microphone –

supplied complete with basket windshield, suspension with pistol grip, “hairy” cover and

cable – and the SPB 8000 central unit that converts the signals of the microphones into a

complete 5.1 audio signal.

The SPM 8000 stereo microphone

Two RF condenser microphone capsules in XY configuration are at the core of the SPM 8000

stereo microphone. When used in conjunction with the SPB 8000 central units, the wo micro-

phones can create a complete 5.1-channel surround sound effect. The microphone is sup-

plied complete with basket windshield, suspension with pistol grip, “hairy” cover and stereo

cable (XLR-5 to 2x XLR-3).

• Can be used as a high-quality stereo microphone or – with the SPB 8000 – as a compact

5.1 microphone

• Very natural, detailed sound

• Weather-proof and rugged

• Exceptionally low inherent self-noise prevents masking of delicate sound structures

• Symmetrical transducer technology ensures extremely low distortion

• Transformerless and fully floating balanced microphone outputs: no coupling of

spurious signals

• High output signal voltage ensures interference-free signal paths

• Supplied complete with basket windshield, suspension with pistol grip, “hairy” cover

and stereo cable (XLR-5 to 2x XLR-3)

Package contents

1 SPM 8000 stereo microphone, consisting of 2 microphone capsules and a suspension

with pistol grip

1 basket windshield

1 “hairy” cover

1 Y-adapter cable (XLR-5 socket to 2x XLR-3 connector)

1 instruction manual

SPM 8000|3

ENFRITPTNLRUZH ES DE

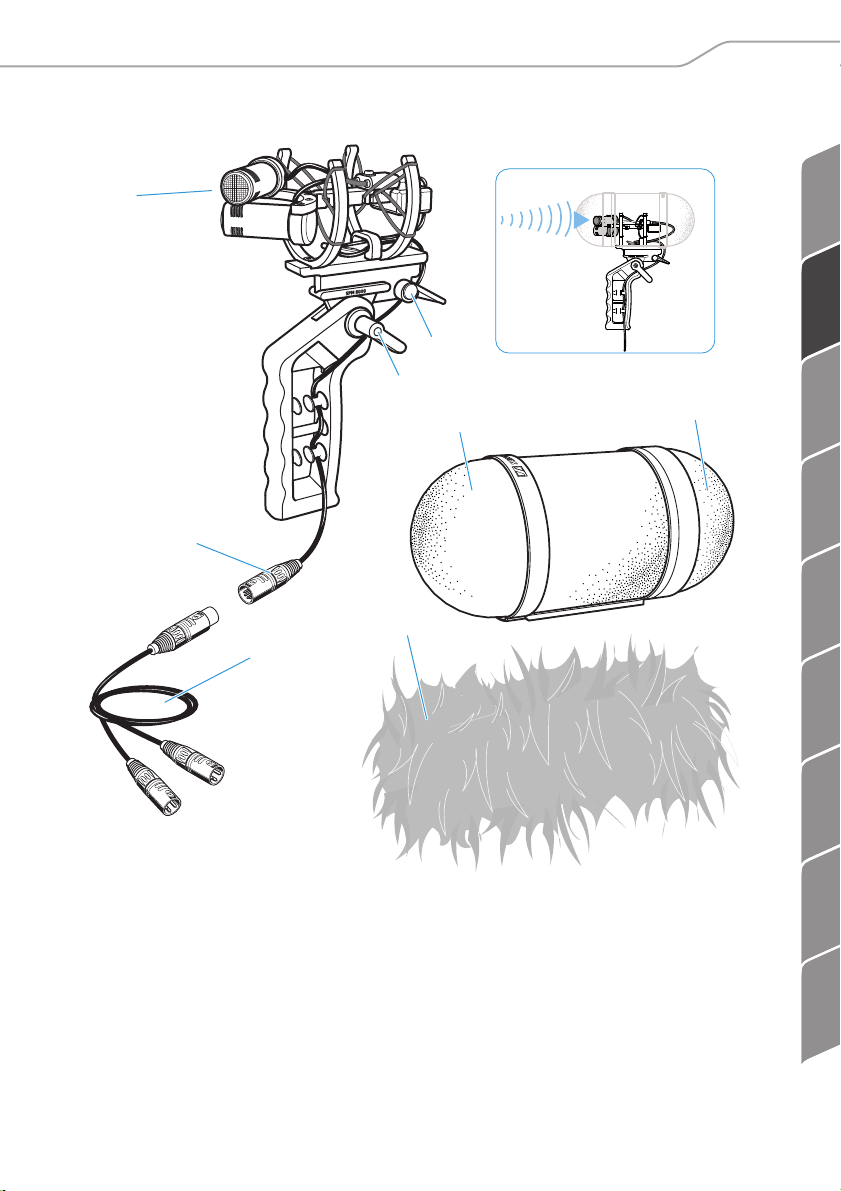

Product overview

1SPM 8000 stereo microphone

2Locking lever for windshield

3Locking lever for adjusting the

inclination

4XLR-5 connector

5Y-adapter cable

XLR-5 socket to 2x XLR-3 connector

red connector: right channel

yellow connector: left channel

6“Hairy” cover

attenuation of wind noise: approx. 30 dB

7Basket windshield, front basket

8Basket windshield, rear basket

9Pick-up direction

4|SPM 8000

Putting the SPM 8000 into operation

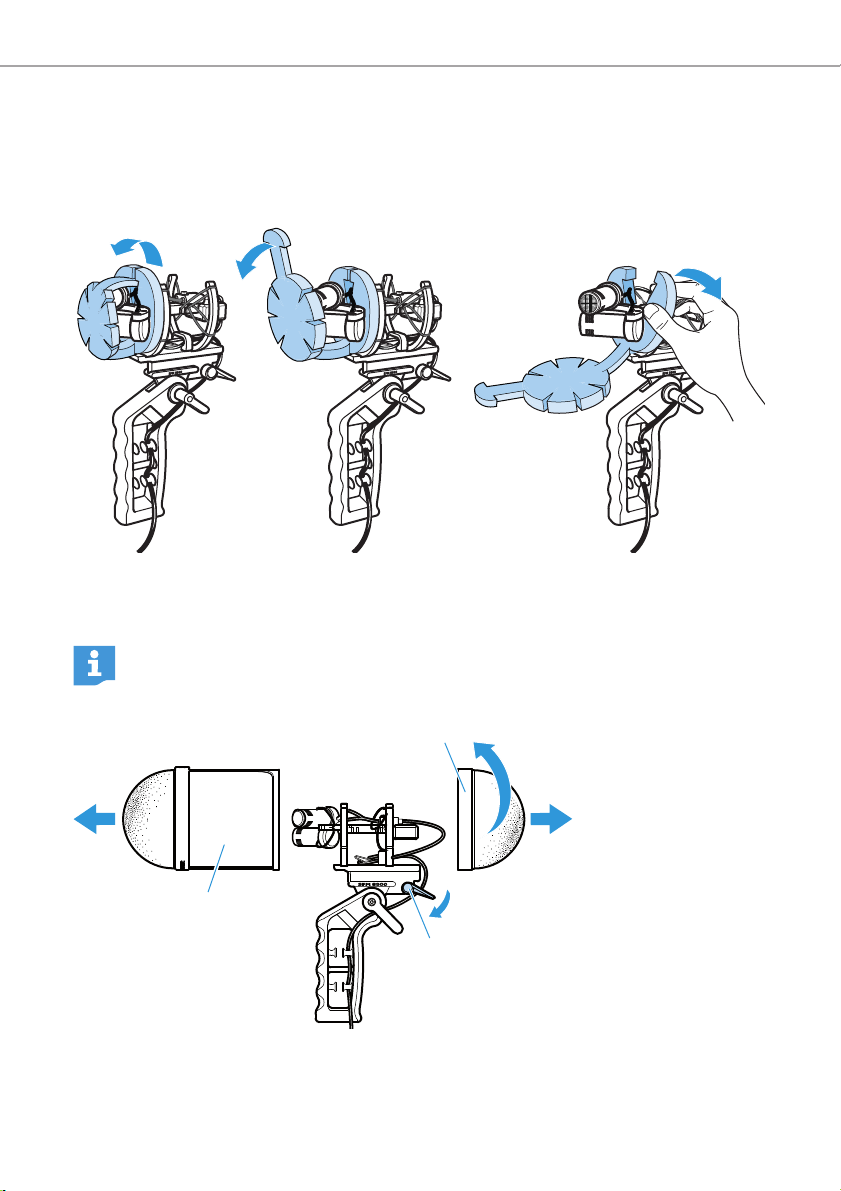

The SPM 8000 is shipped with a transport safety device.

왘Loosen the transport safety device before putting the SPM 8000 into operation (see

diagram).

Removing and attaching the windshield

The windshield changes the sound only slightly, but – in combination with the “hairy

cover” – attenuates wind noise by approx. 30 dB.

SPM 8000|5

ENFRITPTNLRUZH ES DE

Putting the SPM 8000 into operation

To remove the basket windshield:

왘Remove the “hairy” cover 6by unfastening its snap fasteners and pulling it away from

the windshield.

왘Unscrew the rear part 8of the windshield by turning it counter-clockwise.

왘Loosen the locking lever 2by pushing it down.

왘Remove the front part 7of the windshield by pulling it away from the suspension/

pistol grip.

To attach the basket windshield:

왘Make sure that the microphone cable is guided correctly (see diagram on page 3).

왘Slide the front part 7of the windshield over the shock-mount.

왘Screw the rear part 8of the windshield to the front part of the windshield by turning it

clock-wise.

왘Lock the windshield by pushing the locking lever 2up.

왘Replace the “hairy” cover 6by sliding it over the basket windshield and fastening its

snap fasteners.

Inclining the SPM 8000

왘Loosen the locking lever 3, adjust the desired angle and tighten the locking lever 3

again.

Connecting the SPM 8000 to the SPB 8000/

to audio devices

Connection data of the SPM 8000:

• 48 V ±4 V phantom power (P48, IEC 61938)

• XLR-5 connector or

• 2x XLR-3 connector via Y-adapter cable

To connect the SPM 8000 to a camera/audio device with XLR-5 input:

왘Connect the XLR-5 connector 4of the SPM 8000 to the camera or audio device.

To connect the SPM 8000 to the SPB 8000 central unit or to an audio device with 2 analog

XLR-3 inputs:

왘Connect the XLR-5 connector 4of the SPM 8000 to the Y-adapter cable 5(supplied).

6|SPM 8000

Cleaning and maintaining the SPM 8000

왘Connect the two XLR-3 connectors of the Y-adapter cable 5(red = right channel, yellow

= left channel) to the inputs of the SPB 8000 central unit or of the audio device.

The inputs of the central unit are also marked red and yellow.

Cleaning and maintaining the SPM 8000

왘Before cleaning, disconnect the product from audio devices connected to the mains

power supply.

왘Only use a soft, slightly damp cloth to clean the product.

Cleaning the basket windshield

왘Remove the windshield as described on page 4.

왘Use a slightly damp cloth to clean the windshield from the inside and outside or scrub

with a brush and rinse with clear water.

왘Dry the windshield.

왘Attach the windshield as described on page 5.

If you want to use the SPM 8000 digitally, you have to use an A/D converter.

CAUTION

Damage to the product due to liquids!

Liquids can damage the electronics of the product!

Liquids entering the product can cause a short-circuit and damage the electronics.

왘Keep all liquids away from the product.

왘Do not use any cleansing agents or solvents.

SPM 8000|7

ENFRITPTNLRUZH ES DE

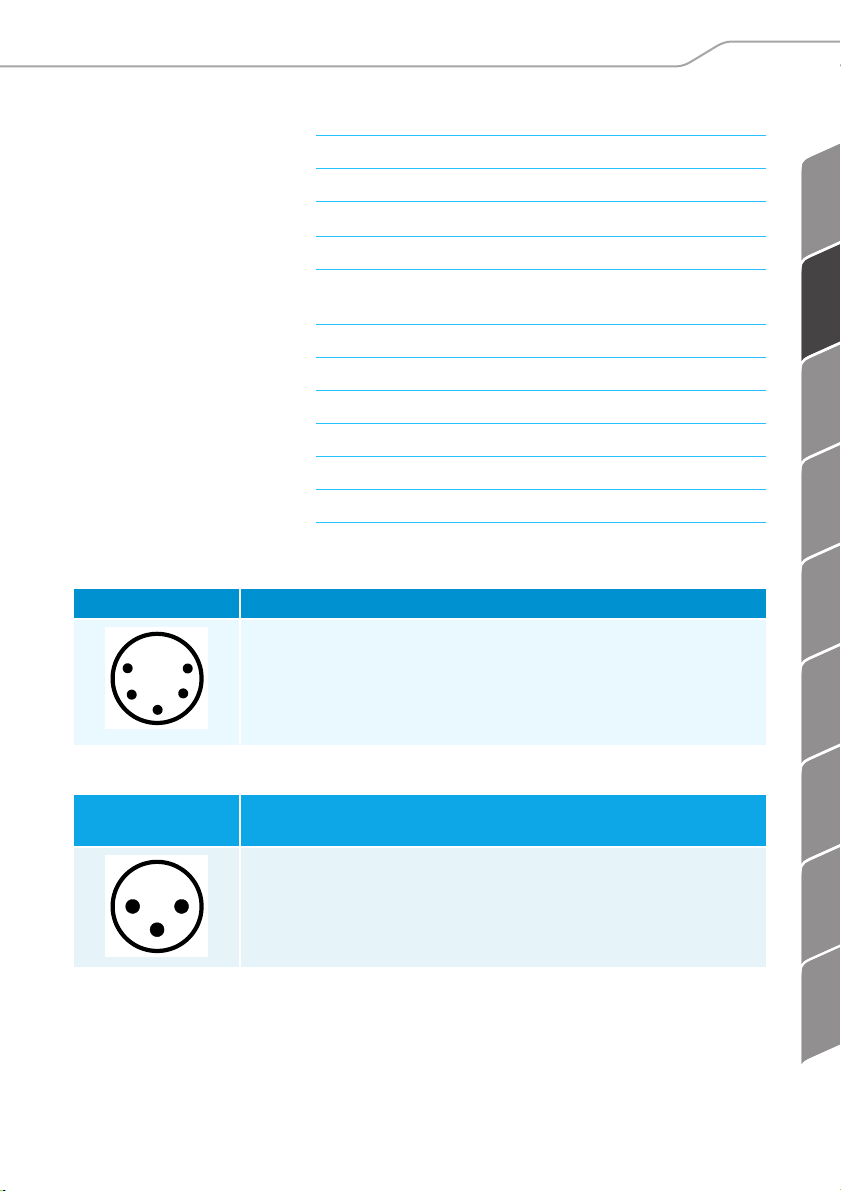

Specifications

Connector assignment

Pick-up pattern cardioid (XY-stereo, 90° offset)

Frequency response 35 Hz to 20 kHz

Sensitivity −34 dBV/Pa (20 mV/Pa)

Max. sound pressure level 142 dB SPL

Equivalent noise level 13 dB(A) (DIN-IEC 651)

22 dB (CCIR 268-3)

Phantom power 48 V ± 4 V (P48, IEC 61938)

Current consumption 3.3 mA

Diameter approx. 106 mm

Length approx. 237 mm

Weight approx. 595 g (670 g with “hairy” cover)

Operating temperature −10°C to +60°C

XLR-5 connector Assignment

Pin 1: ground

Pin 2: left+

Pin 3: left-

Pin 4: right+

Pin 5: right-

XLR-3 connector

(yellow)

Assignment

Pin 1: ground

Pin 2: left+

Pin 3: left-

8|SPM 8000

Specifications

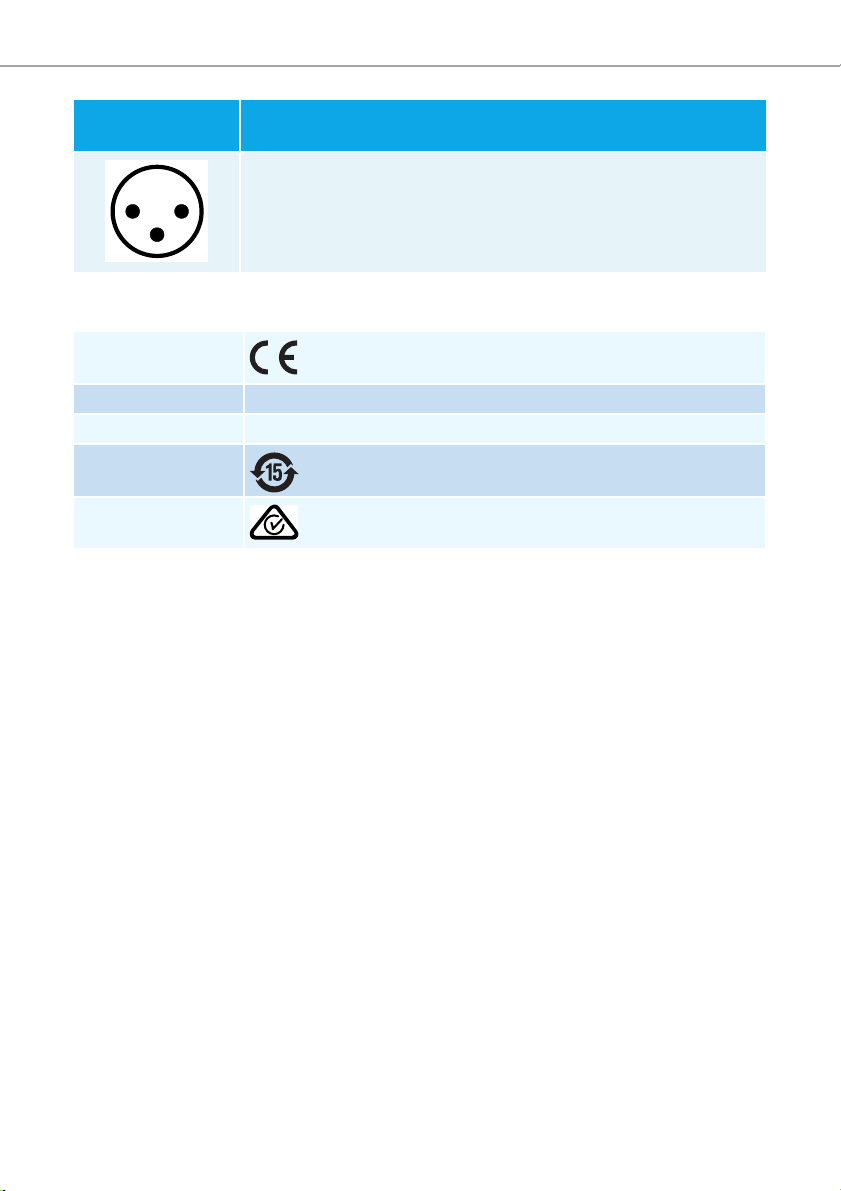

In compliance with

XLR-3 connector

(red) Assignment

Pin 1: ground

Pin 2: right+

Pin 3: right-

Europe EMC: EN 55103-1/-2

Safety: EN 60065

USA FCC 47 CFR 15 subpart B

Canada Industry Canada ICES_003

China

Australia/

New Zealand

SPM 8000|9

ENFRITPTNLRUZH ES DE

Specifications

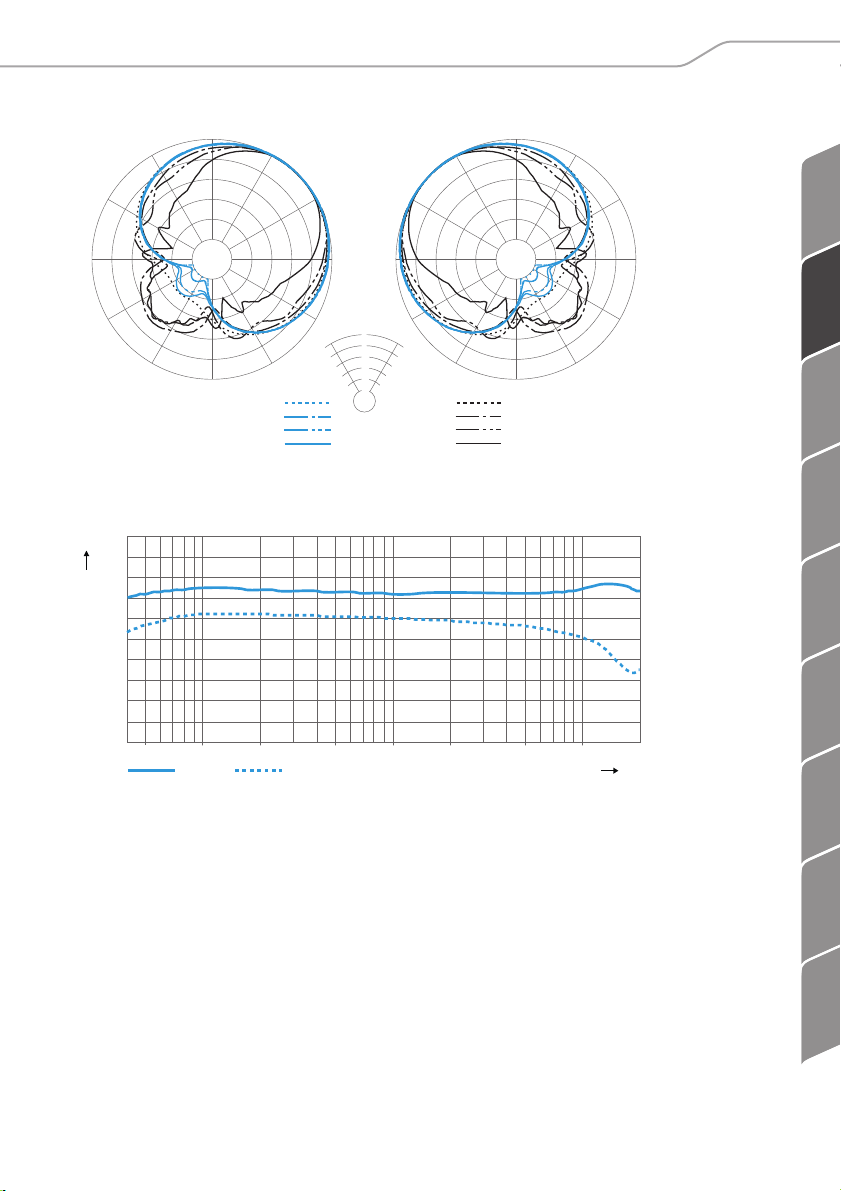

Polar diagram

Frequency response curve

330°30°

300°60°

270°90°

240 °120°

210°150°

180°

0°

330°30°

300°60°

270°90°

240 °120°

210°150°

180°

0°

1515

2020

2525

125 Hz

250 Hz

500 Hz

1 000 Hz

2 000 Hz

4 000 Hz

8 000 Hz

16 000 Hz

90 °0 °

100 1.000 10.000

dBr A

-40

-65

-55

-50

-45

-35

-25

-60

-70

50 100 200 500 1000 2000 5000 10000 20 000

-20

-30
