Seville Classics WEB493 Manuale utente

Thank you for choosing Seville Classics! We hope that you enjoy your

organizer cart. Please read through this user guide for parts list,

assembly instrucons, frequently asked quesons and contact info.

Model #: WEB493

8-Drawer Storage Bin Organizer Cart

White/Gray/Black Gradient

FAQs

Q. How big is it?

A. Unit measures 12.8" W x 15.35" D x 38.19" H

Q. Can I use it without the casters?

A. No, the cart is not designed to be used without the casters.

Q. How much weight can it hold?

A. Weight capacity per shallow drawer: 3.3 lbs. (1.5 kgs)

Weight capacity per deep drawer: 4.4 lbs. (2 kgs)

Weight capacity on top shelf: 16.5 lbs. (7.5 kgs)

Total weight capacity: 45.1 lbs. (20.5 kgs)

STEP 4. Final Steps

Slide the drawers into the metal channels and

clip the SHELF (C) onto the crossbars.

TIP: Once fully assembled, ghten all screws.

Congratulaons!

Enjoy your new organizer cart!

122019

Customer Service Informaon

Telephone: (800) 323-5565

Fax: (310) 533-3899

Hours: 8:30 AM – 4:30 PM (PST)

Email: [email protected]

Homepage: www.SevilleClassics.com

122019

Parts List

Please make sure you have all the parts on this list.

If you’re missing parts, contact us for replacements at

(800) 323-5565 or send an email to Support@SevilleClassics.com

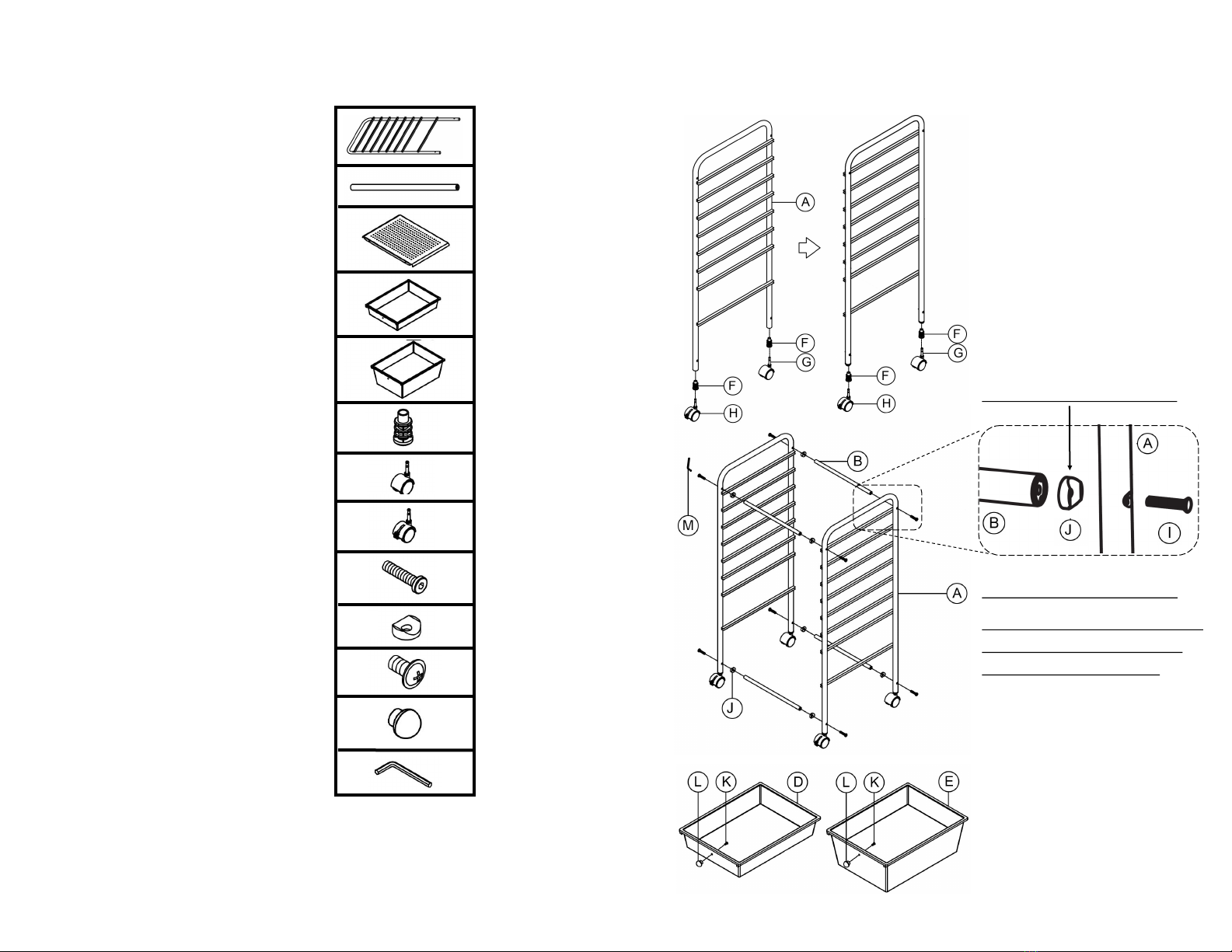

Assembly Instrucons

STEP 1. Aach Casters

TIP: Make sure channels on each

SIDE FRAME (A) face each other.

Push the SLEEVES (F) into the

boom poles of SIDE FRAMES (A)

unl ush with boom.

Push CASTERS (G) and LOCKING

CASTERS (H) into the SLEEVES (F)

unl click is felt.

STEP 2. Aach Crossbars

Fit a WASHER (J) between SIDE

FRAME (A) and CROSSBAR (B).

Flat side of washer MUST sit in end

crossbar. Curved side of washer

MUST t against side frame.

Screw BOLT (I) through outer holes

on SIDE FRAME (A) and into

CROSSBAR (B).

TIP: Do not ghten unl drawers

are fully inserted.

STEP 3. Assemble Drawers

Aach DRAWER PULL KNOBS (K) to

all DRAWERS (D, E) with SCREWS

(J) and screwdriver.

A. Side frame (2)

B. Crossbar (4)

C. Shelf (1)

D. Shallow drawer (6)

E. Deep drawer (2)

F. Sleeves (4)

G. Caster (2)

H. Locking caster (2)

I. Bolt (8)

J. Washer (8)

K. Screw (8)

L. Drawer Pull Knob (8)

M. Allen Wrench
