READ THE FOLLOWING

INSTRUCTIONS AND WARNINGS TO AVOID

DROWNING OR SERIOUS INJURY

INFLATABLE

QUIKPAK™ KAYAKS

INFLATABLE QUIKPAK™ KAYAKS

WARNING!

Failure to follow these warnings could cause SEVERE INJURY or DEATH.

●

CONSULT WITH A PHYSICIAN p

rior to beginning paddle sport training.

Paddle sports can be very dangerous and physically demanding.

●

OBTAIN PADDLESPORT TRAINING

specific to this type of craft. Do not

exceed your padding ability - be honest with yourself. Obtain certified first aid

training and carry first aid and safety/rescue equipment.

●

WEAR U.S COAST GUARD APPROVED LIFE JACKETS,

and where appropriate, wear a helmet.

●

NOT A LIFE SAVING DEVICE.

●

NEVER PADDLE ALONE.

●

CHECK WEATHER FORECAST BEFORE DEPARTING DOCK and heed all

weather advisories.

● DRESS APPROPRIATELY for the weather conditions, as cold water

and/or cold weather can cause hypothermia.

● DO NOT PADDLE IN FLOOD CONDITIONS.

● BE AWARE OF THE WATER CONDITIONS, including appropriate water

levels,tidal changes, dangerous currents and other water hazards. Do not use in

high wind, strong currents, open water or dangerous tides. Always scout

unfamiliar waters, and portage where appropriate.

● NEVER PADDLE WHILE UNDER THE INFLUENCE

of drugs or alcohol.

● KEEP PROPER LOOKOUT AND SAFE

DISTANCE from other vessels and hazards

at all times.

● OBEY APPLICABLE BOATING LAWS. Know and follow local water safety

rules and boating regulations.

● READ THE OWNER’S MANUAL and follow the manufacturer’s

recommendations for the use this product. It is the owner’s responsibility to

carefully read the manual and instruct all users in safe operation of this product.

Consult the manufacturer’s information prior to adding aftermarket equipment.

● DO NOT OVERLOAD OR OVERINFLATE. Adults should inflate the

chambers in numbered sequence.

INFLATABLE QUIKPAK™ KAYAKS

IMPORTANT INFORMATION

The warnings below relate to various situations. Please observe them.

These products are made of the highest quality materials and comply

with NMMA (National Marine Manufacturers Association) regulations.

Denotes an imminent hazard which will result in severe injury if

you do not comply with the instructions.

CAUTION!

These products are not meant for towing because the extreme

pressure of the water while towing can tear the eyelets

and/or handles.

WARNING!

Altering the construction of these products could jeopardize the

safety of the occupants and will void the limited warranty.

CAUTION!

It is the owner’s responsibility to make sure all users

carefully read and follow the instructions for safe operation

of this product. Observe all local and national laws. Always

wear a Personal Flotation Device approved by the proper

authorities. Please carefully observe the Capacity Plate

information which is printed on the product.

CAUTION!

Reminds you of safety measures which must be observed. Also

denotes unsafe practices which could result in personal injury

or damage to the product or property, if you do not comply with

the instructions.

WARNING!

INFLATABLE QUIKPAK™ KAYAKS

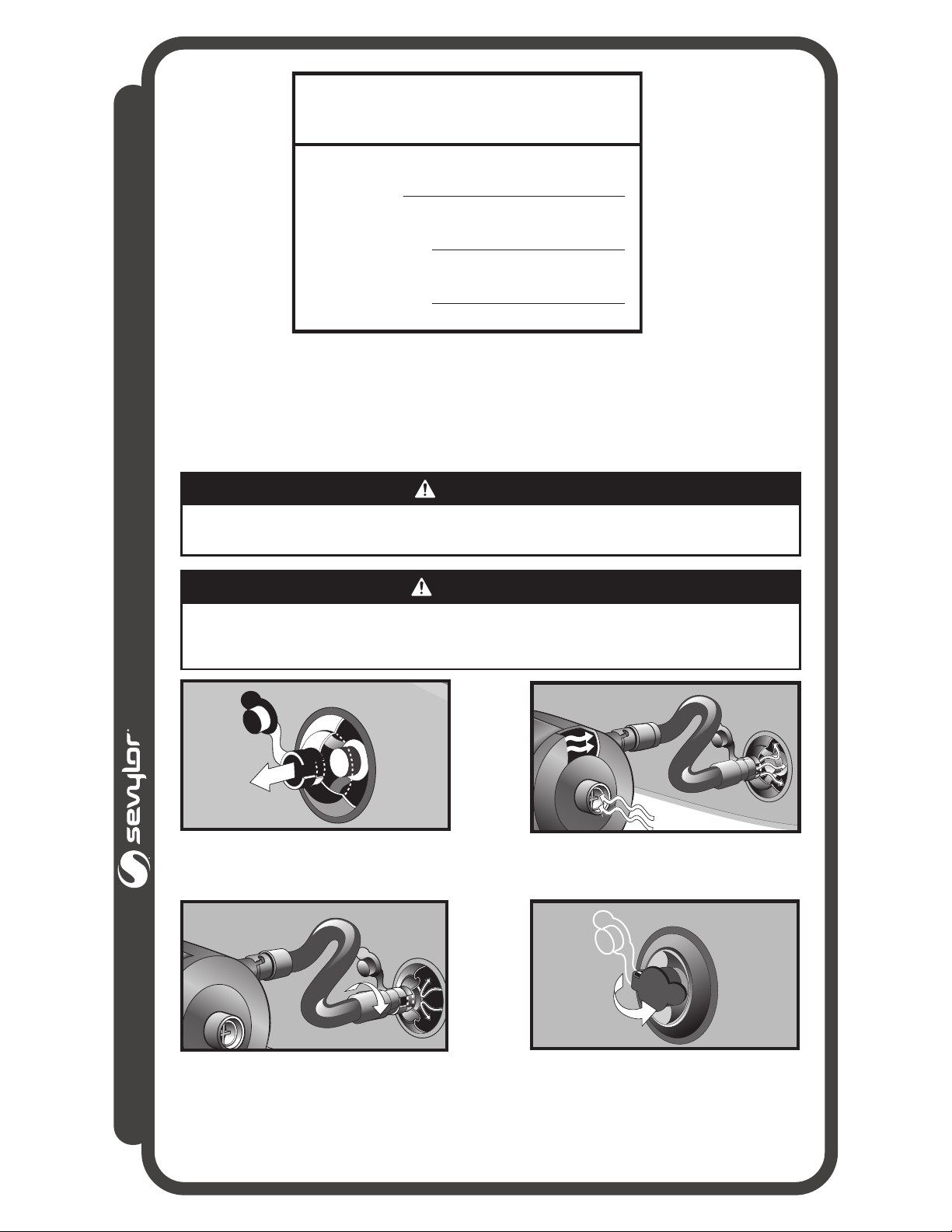

INFLATION INSTRUCTIONS

To inﬂate using any Sevylor®Pump:

Do not over inﬂate. Pressurize product to “Inﬂation

Pressure” stated in the chart for your speciﬁc product.

CAUTION!

Never use a compressor, CO2or compressed air to inate the

product. Do not let your product come into contact with sharp,

pointed objects.

WARNING!

Please complete the “if found label” located on the boat with the boat

owners contact information in large print with a permanent marker.

IF FOUND - CONTACT

SI SE ENCUENTRA - COMUNICARSE CON

EN CAS DE DÉCOUVERTE – CONTACTEZ

Name/Nombre/Nom:

Phone/Teléfono/Téléphone:

3. When fully inﬂated, seal valve by pushing

in with adapter nozzle. This will seal the

internal yellow stopper and keep air from

escaping while closing cap. Gently twist

adapter while backing hose out of valve.

4. Fully remove pump and hose and close

external cap. Valve should appear

depressed into itself.

1. To begin inﬂation, open external cap and pull

ﬁrmly on the lanyard to extend out. This will

open internal yellow seal.

2. Attach nozzle of hose to inﬂation end of

pump. Insert adapter nozzle into valve

and start pumping.

INFLATABLE QUIKPAK™ KAYAKS

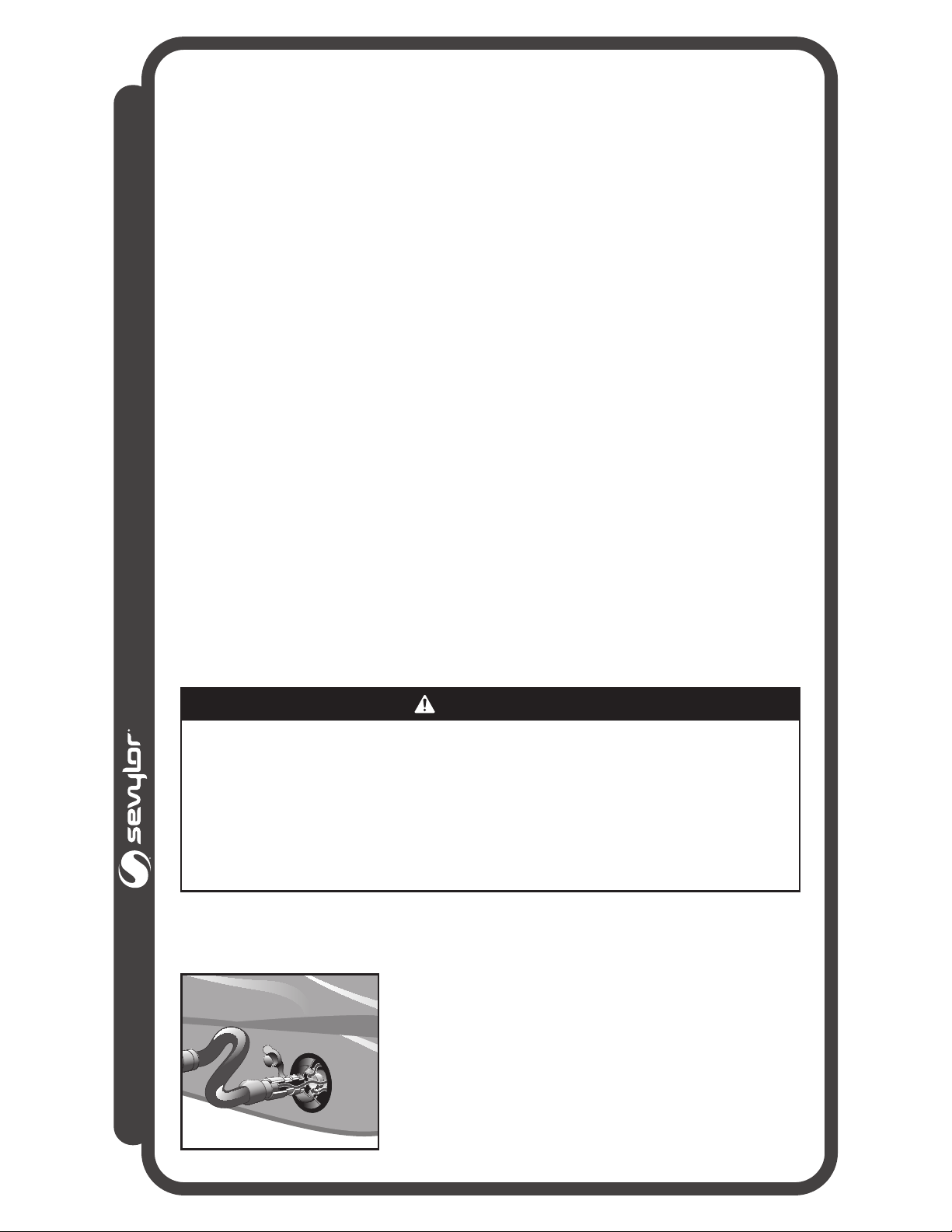

IMPORTANT! Inate the product chambers in the following order:

K5 QuikPak™ Kayak

1. Inate the oor chamber.

2. Inate the DIN chamber.

3. Inate the outside main chamber.

K1 QuikPak™ Kayak

1. Inate the two foot wells chambers.

2. Inate the inner main chamber.

3. Inate the outer main chamber.

4. Inate seat back.

The chambers on the product will also be numbered to indicate order

of ination. This order of ination will ensure the proper volume and

buoyancy of the safety chamber.

Note: To inate the mini Double Lock™ valve, which is used on

some of the Sevylor product oors and seat bottoms, follow the

same ination instructions above, using the mini Double Lock™

valve adapter. The mini Double Lock™ valve adapter is included with

all Sevylor®pumps. The adapter can be purchased from Customer

Service by calling 1-800-835-3278 US | 1-800-387-6161 CA (Part

Number 5010000707).

Water temperature and weather do affect the pressure in inatable

products. In cold weather your product will lose some pressure due

to the fact the air will contract. If this occurs, you may want to add

a little air to improve your product’s performance. However, in hot

weather, the air will expand. You must let some air out to prevent

your product from failing due to overpressure. You should avoid

exposing your product to extreme temperatures (hot or cold).

CAUTION!

DEFLATION INSTRUCTIONS

Deﬂation instructions using any Sevylor®Pump:

Remove nozzle of hose from inﬂation end and attach to

opposite deﬂation end of pump. Repeat same steps as

inﬂation. This will draw the air out quickly.

INFLATABLE QUIKPAK™ KAYAKS

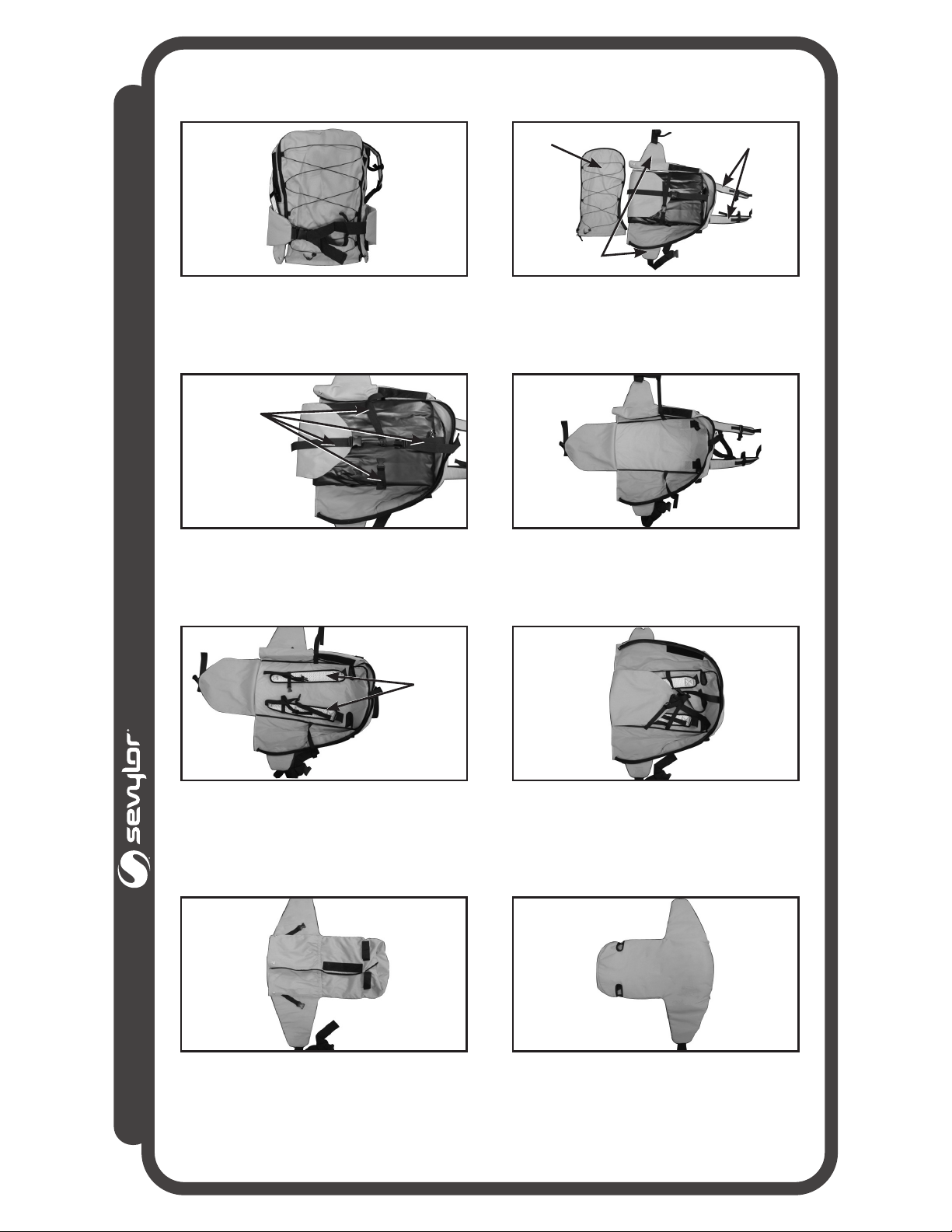

K5 QuikPak™ Kayak Set Up Instructions

1. Remove QuikPak™ kayak from box.

3. Unbuckle inner support straps.

5. Pull shoulder straps through openings

in QuikPak™ unit.

7. Fold over side ﬂaps and secure with the

hook & loop strips.

4. Remove kayak from QuikPak™ unit and

set kayak aside.

6. Fold bottom ﬂap and inner support straps

into the QuikPak™ unit.

8. Turn seat over and set aside.

2. Unbuckle waist strap and shoulder straps.

Unzip or remove spray skirt.

Spray Skirt

Waist Straps

Shoulder Straps

Inner Support

Straps

Shoulder

Straps

INFLATABLE QUIKPAK™ KAYAKS

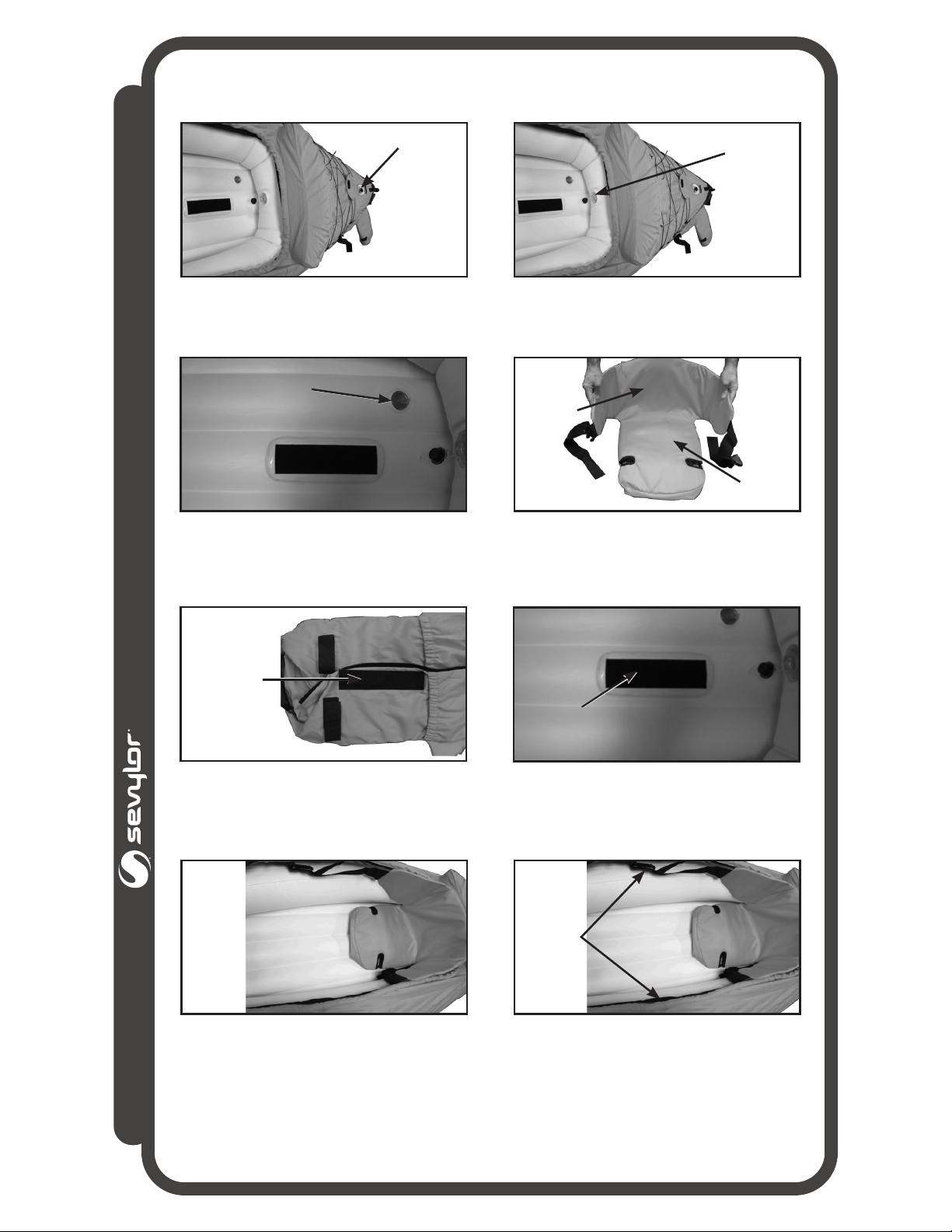

Inﬂate Kayak (using order shown below)

9. Inﬂate outer chamber to 0.9 PSI.

11. Inﬂate ﬂoor chamber to 0.9 PSI.

14. Place seat in kayak with the hook & loop

strips secured as shown in step 13.

13. Line up hook & loop strip on seat bottom with the hook & loop strip on the kayak ﬂoor.

10. Inﬂate DIN chamber to 0.9 PSI.

12. Take seat that was set aside in step 8, fold

with hook-and-loop strips downwards as

shown.

15. Attach back rest buckles on seat to the

buckles on the kayak.

Outer Chamber

Valve

Seat Back

Seat Hook &

Loop Strip

Kayak HookKayak Hook

& Loop Strip& Loop Strip

Back RestBack Rest

BucklesBuckles

Seat Bottom

Floor ChamberFloor Chamber

ValveValve

DIN Chamber

Valve

INFLATABLE QUIKPAK™ KAYAKS

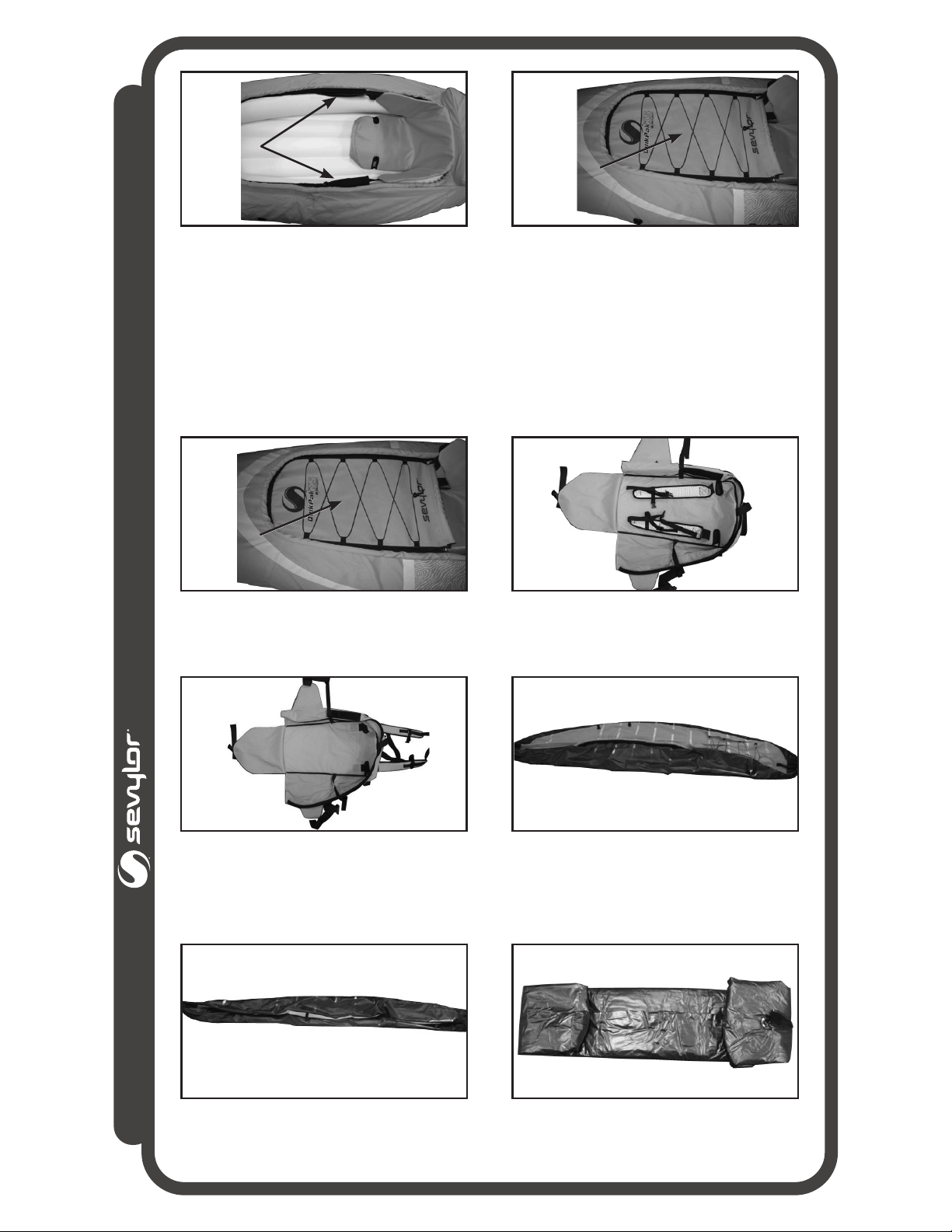

K5 QuikPak™ Kayak

Breakdown/Storage Instructions

16. Adjust backrest straps to desired tension.

1. Remove kayak seat.

2. Remove spray skirt and deﬂate kayak.

3. Unfold side ﬂaps, bottom ﬂap & inner

support straps.

5. Fold kayak using the following steps.

5a. Fold kayak lengthwise to center as shown

in the above image.

17. Zip spray skirt onto kayak.

4. Pull shoulder straps through the openings.

Back RestBack Rest

StrapsStraps

Spray SkirtSpray Skirt

5b. Fold kayak lengthwise again as shown in

the above image.

5c. Fold over ends of kayak as shown in the

above image.

Your QuikPak™ Kayak is now ready for use.

INFLATABLE QUIKPAK™ KAYAKS

5d. Fold over ends of kayak again as shown in

the above image.

5e. Fold kayak in half, with strake up, as shown

in above image.

6. Place folded kayak into QuikPak™ unit.

8. Attach spray skirt to QuikPak™ unit.

Your QuikPak™ kayak is now ready to transport or store.

7. Buckle & tighten horizontal support strap.

Buckle & tighten vertical support strap.

9. Store pump in cargo net on rear of

QuikPak™ unit. Store paddle in side

pockets and use hook & loop straps to

secure the top of the paddle shafts.

VerticalVertical

Support StrapSupport Strap

PaddlePaddle

Hook & LoopHook & Loop

StrapsStraps

PaddlePaddle

PocketsPockets

HorizontalHorizontal

Support StrapSupport Strap

INFLATABLE QUIKPAK™ KAYAKS

1. Remove QuikPak™ Kayak from box.

3. Turn QuikPak™ unit over and unbuckle the

support strap.

4. Pull the male buckles on cargo net out from

each female buckle.

6. Remove kayak and set aside. Fold shoulder

straps into QuikPak™ unit as

shown above.

2. Unbuckle shoulder straps & waist strap.

5. Remove cargo net and set aside.

K1 QuikPak™ Kayak Set Up Instructions

Shoulder

Straps

Waist

Strap

Support

Strap

SupportSupport

StrapStrap

FemaleFemale

BuckleBuckle

MaleMale

BuckleBuckle

Cargo Net

8. Fold over right side ﬂap of QuikPak™ unit,

attaching the hook & loop strips to secure

the QuikPak™ unit side ﬂaps.

7. Fold over left side ﬂap of QuikPak™ unit,

as shown above.

NOTE: Left side must be folded over ﬁrst

so the hook & loop strips can

be attached.

Hook & Loop StripsHook & Loop Strips

INFLATABLE QUIKPAK™ KAYAKS

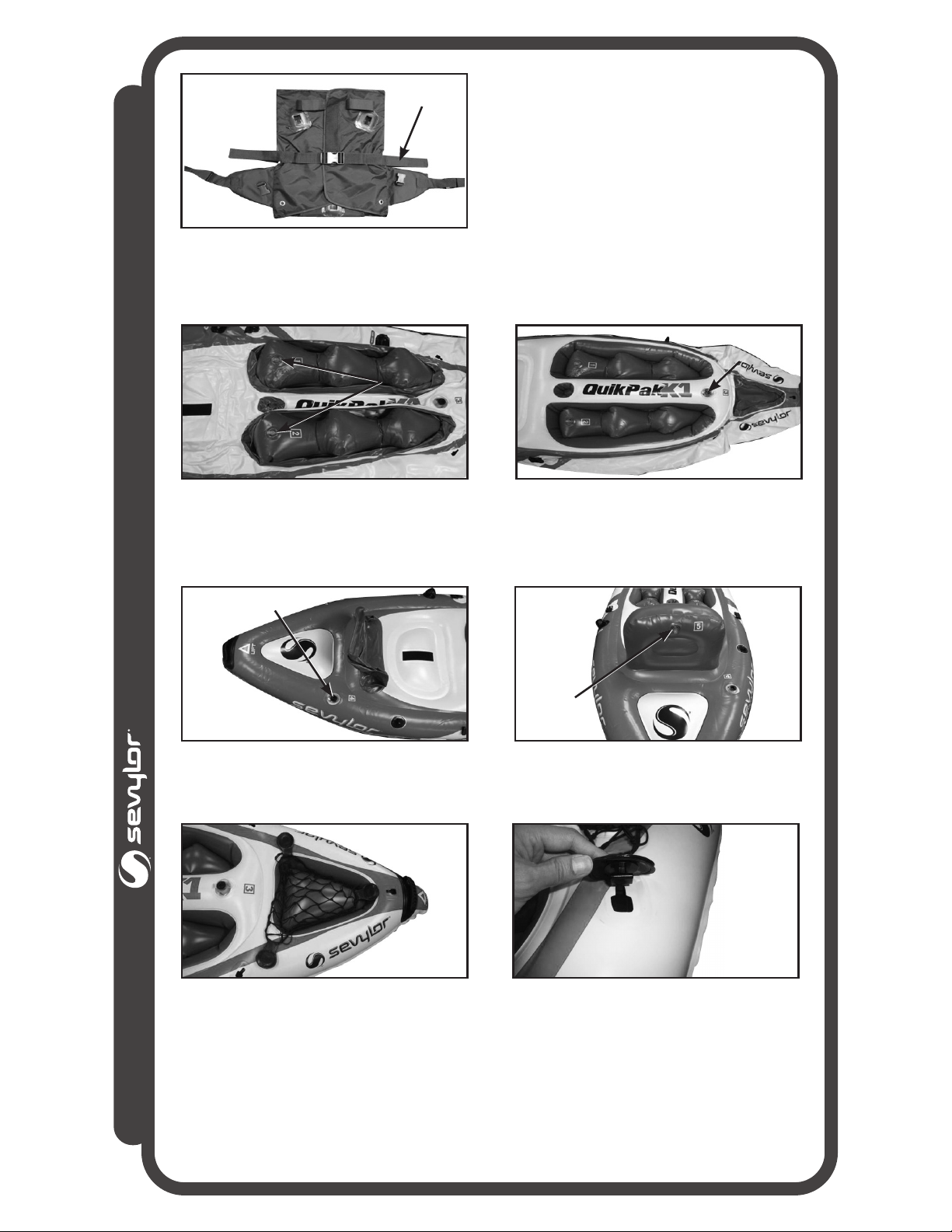

10. Inﬂate kayak using the following steps.

10a.Inﬂate foot wells to 0.5 PSI.

10c. Inﬂate outer chamber to 0.5 PSI.

12. Insert each male buckle into the slots

on kayak.

11. With male buckles facing downward, place

cargo net onto kayak in the position as

shown above.

9. Buckle & tighten the support strap and

set aside.

10b.Inﬂate inner chamber to 0.5 PSI.

10d.Inﬂate seat back to 0.5 PSI.

Support StrapSupport Strap

Foot WellFoot Well

ValvesValves

Outer ChamberOuter Chamber

ValveValve

Seat Back ValveSeat Back Valve

InnerInner

ChamberChamber

ValveValve

Inﬂate Kayak (using order shown below)

Altri manuali per QuikPak

Indice

Altri manuali Sevylor Barca

Sevylor

Sevylor REEF 300 Manuale utente

Sevylor

Sevylor Caravelle KK55 Manuale utente

Sevylor

Sevylor Pacifica Manuale utente

Sevylor

Sevylor FT280 Fish Ranger Manuale utente

Sevylor

Sevylor Caravelle KK55 Manuale utente

Sevylor

Sevylor INFLATABLE STANDUPPADDLEBOARD Manuale utente

Sevylor

Sevylor Caravelle KK55 Manuale utente

Sevylor

Sevylor Sit On Top Manuale utente

Sevylor

Sevylor QuikPak Manuale utente

Sevylor

Sevylor POINTER K1-ST6107 Manuale utente

Sevylor

Sevylor K5 QuikPak Istruzioni operative

Sevylor

Sevylor SV270S-HF Manuale utente

Sevylor

Sevylor HUDSON KCC360 Manuale utente

Sevylor

Sevylor QuikPak Manuale utente

Sevylor

Sevylor Fiji Manuale utente

Sevylor

Sevylor TFT260 Manuale utente

Sevylor

Sevylor Coral Sea STK290 Manuale utente

Sevylor

Sevylor Tahiti Manuale utente

Sevylor

Sevylor REEF 240 Manuale utente

Sevylor

Sevylor HUI 100 Manuale del prodotto

Sevylor

Sevylor YUKON KCC380 Manuale utente

Sevylor

Sevylor YUKON KCC380 Manuale utente

Sevylor

Sevylor HUDSON KCC360 Manuale utente

Sevylor

Sevylor HUDSON SIROCCO PRO 3 Manuale utente

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Sea Ray

Sea Ray 175 Sport Manuale utente

Regal

Regal 2300 Manuale utente
