SGM Q?7 Manuale utente
Q-7
Q-7 WHITE
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 1 Thursday, May 22, 2014 12:38 PM
2

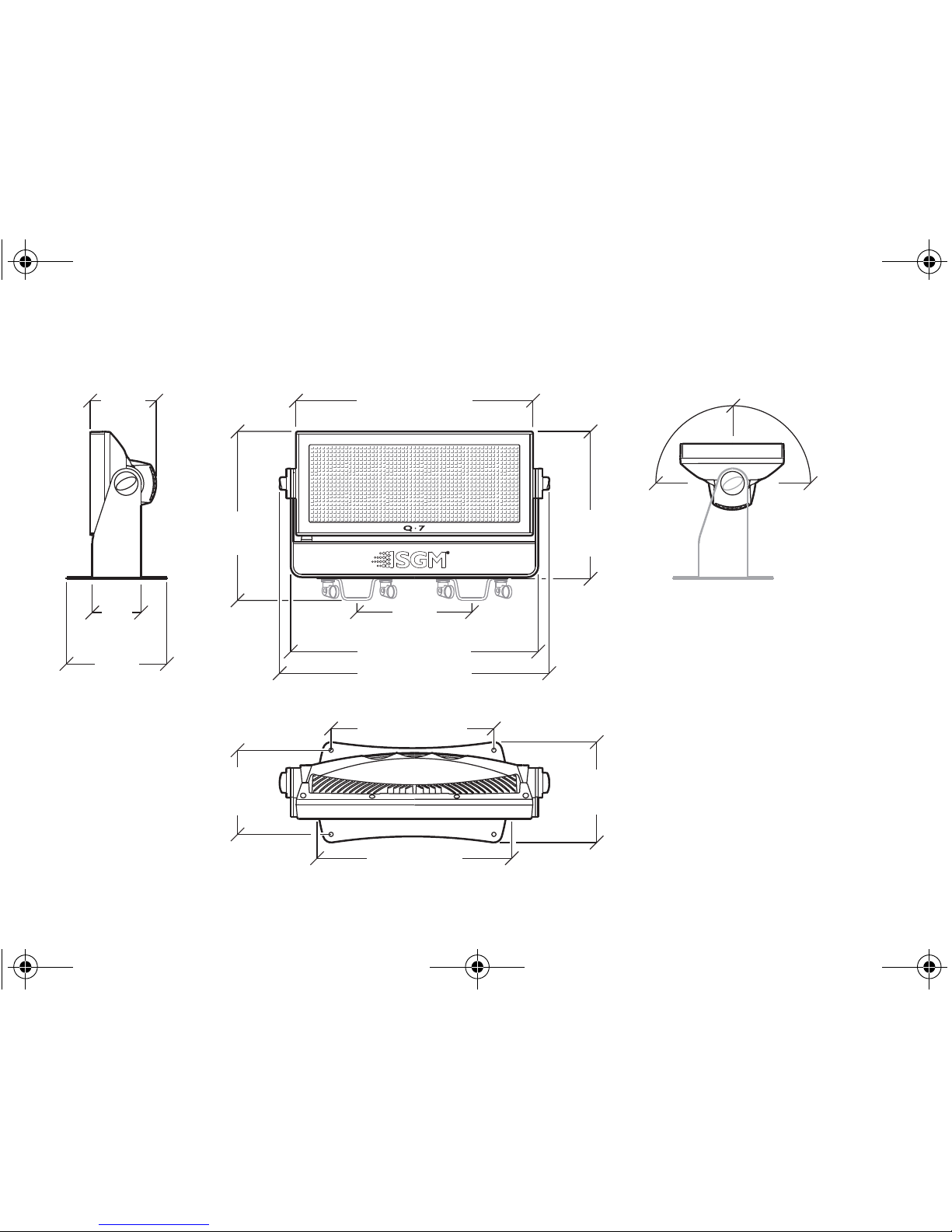

Q-7 Series dimensions
300 (11.8 in.)
459 (18 in.)
155
(6.1 in.)
185
(7.3 in.)
437 (17.2 in.)
497 (19.6 in.)
456 (17.9 in.)
212
(8.3 in.)
312
(12.3 in.)
268
(10.6 in.)
185
(7.3 in.)
122
(4.8 in.)
90
(3.5 in.)
90° 90°
Measurements in millimetres
and inches (in brackets).
Drawing not to scale.
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 2 Thursday, May 22, 2014 12:38 PM
3
Q-7 SERIES
USER MANUAL
© 2014 SGM™. Information subject to change without notice. SGM and all
affiliated companies disclaim liability for any injury, damage, direct or indirect loss,
consequential or economic loss or any other loss occasioned by the use of,
inability to use or reliance on the information contained in this manual.
The SGM logo, the SGM name and all other trademarks in this document
pertaining to services or products by SGM or its affiliates and subsidiaries are
trademarks owned or licensed by SGM or its affiliates or subsidiaries.
The original edition of this document is in English. All other language editions are
translations of the original edition.
This edition applies to firmware version 1.23.
Rev. 2
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 3 Thursday, May 22, 2014 12:38 PM
4
Dimensions ................................................................................................................... 2
Safety information ......................................................................................................... 6
Overview .......................................................................................................................9
Preparing for installation ............................................................................................. 10
Installing the Q-7 ......................................................................................................... 11
Connecting AC power ................................................................................................. 13
Configuring the device ................................................................................................ 14
Setting a static color manually .................................................................................... 15
Using stand-alone operation ....................................................................................... 16
Connecting to a DMX control device ........................................................................... 17
Configuring the device for DMX control ...................................................................... 18
Device personality settings ......................................................................................... 20
Service ........................................................................................................................21
DMX protocols ............................................................................................................. 22
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 4 Thursday, May 22, 2014 12:38 PM
5
Control menu ...............................................................................................................26
Specifications ..............................................................................................................32
User’s notes .................................................................................................................37
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 5 Thursday, May 22, 2014 12:38 PM
6
Safety information
The Q-7/Q-7W is intended for professional use only. It is not suitable for household use.
Impropre a l’usage domestique.
Review the following safety precautions carefully before installing or operating the device.
This product must be installed in accordance with the applicable installation code by a person familiar with the construction
and operation of the product and the hazards involved.
Preventing electric shock
• Always power off/unplug the device before removing any covers.
• Ensure that the power is turned off when connecting the device to the AC mains supply.
• Ensure that the device is electrically connected to earth (ground).
• Do not apply power if the device is in any way damaged.
• Do not immerse the fixture in water or liquid.
WARNING! Read the safety precautions in this section before
unpacking, installing, powering or operating this product.
WARNING! Risk of electric shock.
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 6 Thursday, May 22, 2014 12:38 PM
7
• Install in a location that prevents accidental contact with the device.
• Install only in a well-ventilated space
• Install at least 0.3 m (12 in.) away from objects to be illuminated.
• Install only in accordance with applicable building codes.
• Ensure a minimum clearance of 0.1 m (4 in.) around the cooling fans.
• Do not paint, cover or modify the device.
• Keep all flammable materials away from the device.
• Allow the device to cool for 15 minutes after operation, before touching it.
•CAUTION: Exterior surface temperature after 5 min. operation = 45 °C (113 °F). Steady state = 68 °C (154 °F).
WARNING! Take measures to prevent burns and fire.
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 7 Thursday, May 22, 2014 12:38 PM
8
• Do not look directly at the light source from close range.
• Take precautions to prevent injury due to falls when working at height.
• For permanent installation, ensure that the device is securely fastened to a load-bearing surface with suitable
corrosion-resistent hardware.
• For temporary installation with clamps, ensure that the quarter-turn fasteners are turned fully and secured with a
suitable safety cable, one that is approved for a safe working load (SWL) of 10 times the weight of the device.
WARNING! Take measures to prevent personal injury.
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 8 Thursday, May 22, 2014 12:38 PM
9

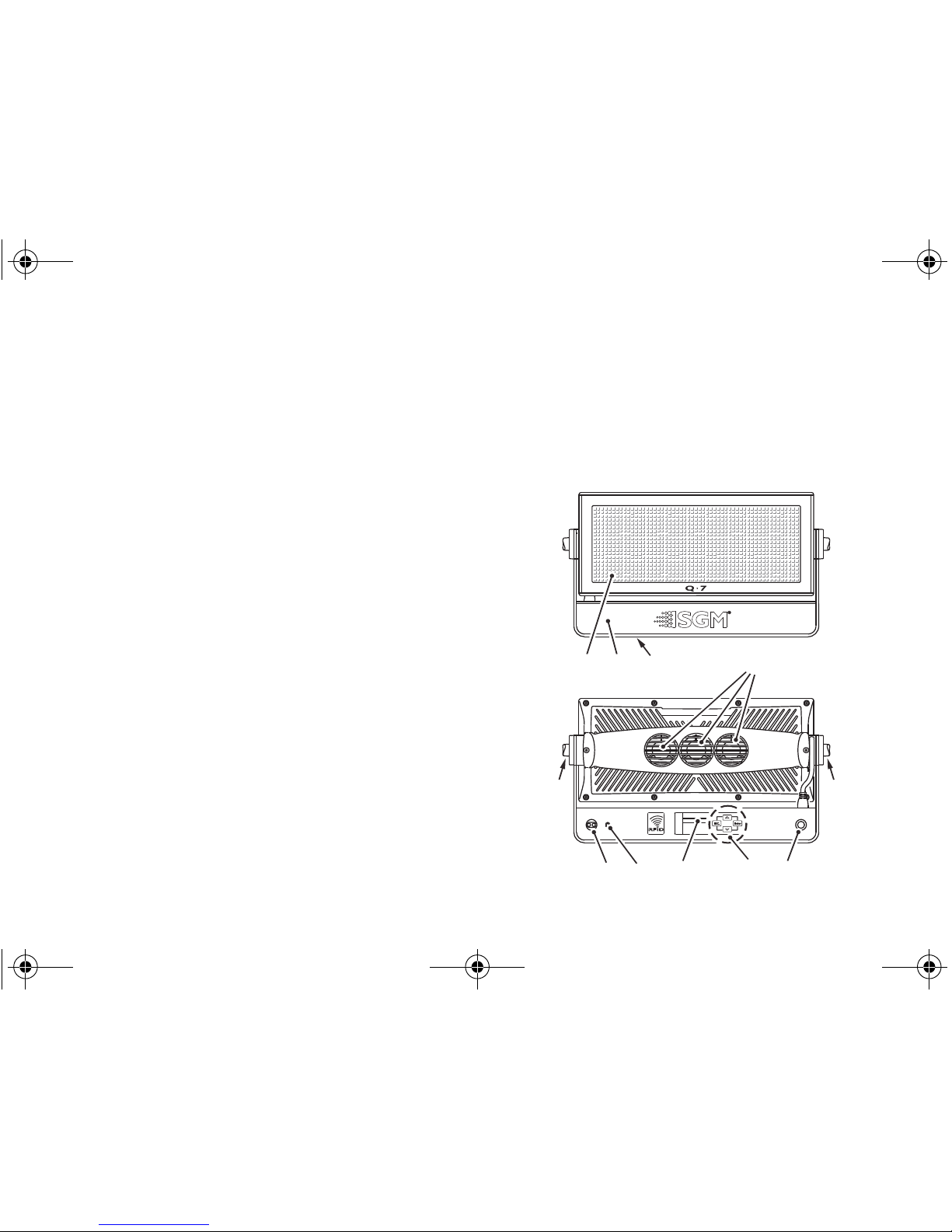

CAB D
GFJ
EK
HI
Overview
The Q-7 is a low-profile, compact IP65-rated*, full-color LED wash light, incorporating 1,000 RGB + 1,000 White LEDs.
The Q-7 W is a low-profile, compact IP65-rated* cool white flood light incorporating 1,000 cool white LEDs.
Both fixtures offer built-in wireless DMX support, stand-alone programs, dimming, RGB color mixing (Q-7),
color temperature control, a (half-peak) spread angle of 110° and a lamp life expectancy of 50,000 hours.**
AQ-7: 1,000 RGB + 1,000 White LEDs
AQ-7W: 1,000 White LEDs
BBase
CSafety wire eyelet
DCooling fans
ETilt brake lock
FDMX in and out
GExternal wireless antenna connector
HOLED display
IControl panel
JPower connection
KTilt brake lock
* The fan module is IP55 rated.
** At 70% of luminous output under the manufacturer’s test conditions.
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 9 Thursday, May 22, 2014 12:38 PM
10
Preparing for installation
Unpack the device and inspect it to ensure that it has not been damaged during transport.
The Q-7 series is shipped with two quarter-turn brackets, that can be used to mount the device at elevation, and a W-
DMXTM G4 wireless antenna.
The fixture has an ingress protection rating of IP65, and is designed for use in wet locations. This means that it is
protected from:
• Dust, to the degree that dust cannot enter the device in sufficient quantities as to interfere with its operation.
• Lower pressure jets of water from any direction.
When selecting a location for the device, ensure that:
• It is situated away from public thoroughfares and protected from contact with people.
• It is not immersed in water or exposed to high-pressure water jets.
• It has adequate ventilation.
Manual_Q7-Q7W_Rev.2_170x113,3.book Page 10 Thursday, May 22, 2014 12:38 PM
