Sharkoon Quickstore Portable Manuale utente

Manual

QUICKSTORE PORTABLE USB3.0

Content

1. Features

2. Speciﬁcations

3. Parts and accessories

4. The device at a glance

5. Installing a SATA hard disk drive

6. Installing the software

7. The backup software

7.1 Start

7.2 Quick Launch

7.3 File Backup

7.4 File manager

7.5 Setup

7.5.1 Files Backup

7.5.2 Others

Dear customer!

Congratulations for purchasing this premium quality

SHARKOON product.

For a long life time and to take full advantage of this product we

recommend that you read this manual completely.

Have a good time with our product!

SHARKOON Technologies GmbH

QUICKSTORE PORTABLE USB3.0

3. Parts and accessories

 • QuickStorePortableUSB3.0(A)

 • USB3.0cable(B)

 • Quickstartmanual(C)

 • ToolsCDincl.backupsoftwareandextensivemanual(PDF/D)

Note:

If you are missing any of the items listed above, please contact

our customer service via e-mail at [email protected] or call

+ 49 (0) 6403 – 775 6100.

1. Features

• Suitablefor2.5"SATAharddiskdrives(9.5mmheight)

• Toolfreeassembly

• “OneClickBackup”function(onlyWindows)

• Backupsoftwareincluded

• NodriversneededforWindows,MacandLinux

2. Speciﬁcations

• Externalinterface: MiniUSB3.0(compatibletoUSB2.0

       andUSB1.x)

• Internalinterface: SATA(VersionIandII)

• Datatransferrate: max.5Gbit/s

• Dimensions:   135x85x14mm(LxWxH)

• Weight:    ~51g

DA B C

QUICKSTORE PORTABLE USB3.0

A – QuickStore Portable in

  respectiveversion(black,

  mirrored,blue,redorsilver)

B – Backupbutton:

pressing this button starts

a backup process with the

  pre-denedsettings(see

  chapter7)

A – Case cover lock

A – Case cover

A – SATAconnector(dataand

  power)

B – HDD mounting bay

  (forone2.5"-SATAHDD)

4. The device at a glance 5. Installing a SATA hard disk drive

1. Openthecasecoverlock(g.1).

ﬁg. 1

2. Removethecasecoverfromthecasebody(g.2).

ﬁg. 2

3. Slidea2.5"SATAHDDintotheHDDmountingbay(g.3).

ﬁg. 3

QUICKSTORE PORTABLE USB3.0

4. Placethecasecoverbackontothecasebody(g.4).

ﬁg. 4

5. Closethelock(g.5).

ﬁg. 5

6. UsetheincludedUSB3.0cabletoconnectthedevice'sMini

 USB3.0connectortoaUSB3.0connectorofyourPC/laptop.

7. The QuickStore Portable will automatically be recognized by the

operating system and all required drivers will be installed.The

device is now ready.

Note:

Brand new HDDs built into the case must be partitioned and

formatted. Proceed as described below (e.g. Windows XP):

Start / Settings / Control Panel / AdministrativeTools / Computer

Management / Disk Management. Click the respective HDD with

the right mouse button and choose partition/format.

6. Installing the software

1. InserttheincludedDriver&ToolsCDintoyourCD/DVDdrive.

2. ChooseyourCD/DVDdrive(e.g.D:\).

3. Openthefolder“Sharkoon“.

4. Start“Setup.exe”.Theinstallationwizardwillguideyouthrough

the installation procedure.

5. After the installation is completed the following icon will appear

 onyourdesktop:

6. Double-click(leftmousebutton)thisdesktopicontolaunchthe

 software,themaininterfacewillopenupandanotherprogram

icon will appear in your task bar.

QUICKSTORE PORTABLE USB3.0

7. The backup software

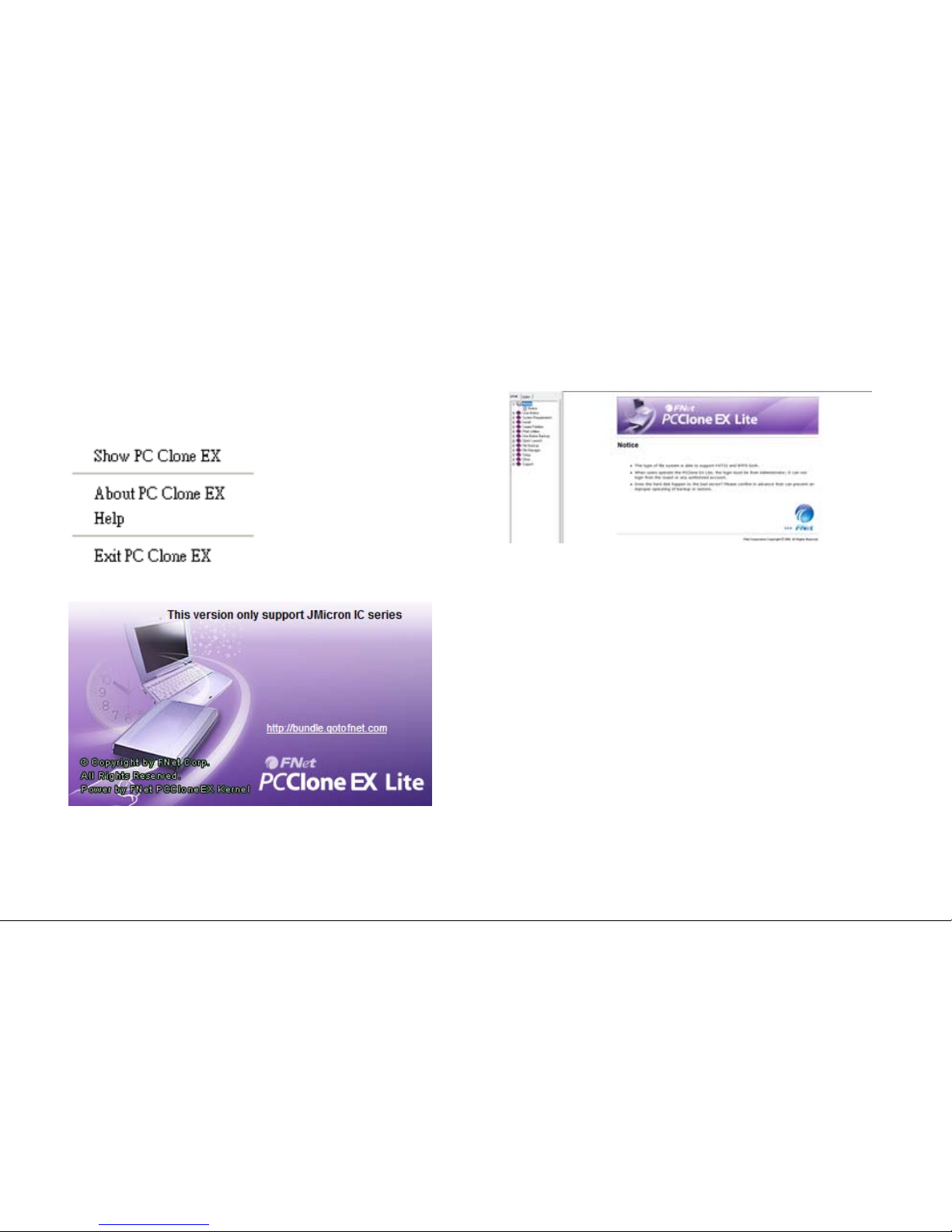

7.1 Start

1. Click the icon in your task bar with the right mouse button

 once.Thefollowingcontextmenuwillopenup:

2. “About…”displaysinformationaboutthesoftware(g.6).

ﬁg. 6

3. “Help”startsthehelpprogramofthebackupsoftware(g.7)

 whereallfunctionsofthebackupsoftwarewillbeexplainedin

detail.

ﬁg. 7

4. “ExitPCCloneEX“quitstheprogram(theiconwillberemoved

 fromyourtaskbar).

5. “ShowPCCloneEX”re-openstheprograminterfaceafteryou

 haveminimizedit(seebelow).

Alternatively you may re-open the program interface by double-

 clicking(leftmousebutton)theicon.

QUICKSTORE PORTABLE USB3.0

7.2Quick Launch

 A – QuickLaunch(7.2)

 B – FileBackup(7.3)

 C – FileManager(7.4)

 D – Setup(7.5)

 E – Showsyouinformationaboutthesoftware(see

   above7.1).

 F – Startsthehelpprogramofthebackupsoftware(see

   above7.1)

 G – Minimizetheprogramwindow.Tocompletelyquit

the program see above 7.1.

H – Start the data backup by clicking this button.

7.3 File Backup

A – All folders of your system are displayed here.

Choose the folders that shall be copied during a

   backup,bytickingtherespectivecheckbox(es).

 B – Selecttheexternaltargetdevicefromthedropdown

menu.

C – Start the backup by clicking the button.

 D – Restorealreadyexistingbackuplesfromthe

   external(backup)drive,byclickingthisbutton.

Note:

The backup ﬁles are copied to the (hidden) folder “Fnet” on the

target device.This folder must not be deleted!

D EA B C F G

QUICKSTORE PORTABLE USB3.0

7.4 File manager

 TheFileManagermakesiteasytogovernyourlocalfolders/les

 andsupportssimilarfunctionsasknownfromtheWindows

 Explorer.

7.5 Setup

7.5.1Files Backup

 A – Selectbetweenthewindows"FilesBackup"(7.5.1)and

   "Others"(7.5.2).

B – Decide what shall happen after the backup has been

   completed:“Showcompletemessage”willshowa

   summaryofthebackup;“Returnprogram”returnstothe

   program;“Poweroff”willshutdownyoursystem.

C – Choose whether all or only changed ﬁles shall be secured.

D – Determine a hot key to start the backup.

 E – Selectwhichsystemfoldersshallbeincludedintothe

backup.

F – Determine whether the Files Backup folder shall be hidden

and if the quick ﬁle backup shall be double conﬁrmed or

not.

QUICKSTORE PORTABLE USB3.0

7.5.2Others

A – Decide if the program shall be started during system

boot-up.

 B – Activatingthischeckboxwillalsoactivatethebackup

button on the enclosure enabling you to commence a

backup process by simply pressing the respective button

   (seeabove4.).Deactivatingwillpreventunintentional

backup procedures.

Warning:

Forpotentiallossofdata,especiallyduetoinappropriatehandling,SHARKOON

assumes no liability.

Allnamedproductsanddescriptionsaretrademarksand/orregistered

trademarks of the respective manufacturers and are accepted as protected.

AsacontinuingpolicyofproductimprovementatSHARKOON,thedesign

and speciﬁcations are subject to change without prior notice. National product

speciﬁcations may vary.

The legal rights of the enclosed software belong to the respective owner. Please

observe the license terms of the manufacturer before using the software.

Allrightsreservedespecially(alsoinextracts)fortranslation,reprinting,

reproduction by copying or other technical means. Infringements will lead to

compensation.

Meansofdeliveryandtechnicalmodicationsreserved.

Disposal of your old product

Your product is designed and manufactured with high quality materials and

components,whichcanberecycledandreused.

Whenthiscrossed-outwheeledbinsymbolisattachedtoaproduct,itmeans

theproductiscoveredbytheEuropeanDirective2002/96/EC.

Please be informed about the local separate collection system for electrical and

electronic products.

Please act according to your local rules and do not dispose of your old

products with your normal household waste.The correct disposal of your old

product will help prevent potential negative consequences to the environment

and human health.

www.sharkoon.com
