Why the AR-5316…

Designed for small offices and workgroups, the

new Sharp AR-5316 Digital IMAGER delivers the

performance you need in a multifunction

document system—all in a cost-efficient, compact

design. With 11” x 17” copying capability,

standard 600 dpi host-based printing, a 250-sheet

paper capacity, and 100-sheet bypass tray, this

efficient performer can easily keep up with the

pace of busy offices. With an optional network

print server, the Sharp AR-5316 Digital IMAGER

can be easily shared by additional users in your

office or workgroup. Combine all these features

with Sharp’s world-class reliability, and you’ve got

a small office document system that’s hard to

beat.

The AR-5316 Digital Multifunctional

IMAGER™

Features

916 PPM copy speed

9600 dpi true laser quality output

925% - 400% zoom range with 8 preset ratios

9X/Y Zoom

9350-sheet paper capacity, including 100-sheet

Bypass Tray

9Optional 40-sheet Single Pass Document

Feeder

9Cost-effective Toner-Save mode

9Scan-Once Print-Many Memory Management

9600 dpi host-based PC printing system

9Standard IEEE 1284 parallel and USB-1.1

ports for flexible PC connections

9Easy to change, customer-replaceable supply

system

9Network printing option

9Compact wingless design

Advanced Network Printing

Growing businesses or small workgroups can

easily add network printing with the optional

PRICOM™ 3100 print server. With a built-in RJ-

45 Ethernet port, this compact print server

connects directly into the parallel port of the AR-

5316. With simple, plug-and-play operation and

an easy-to-use interface, the PRICOM 3100

server delivers advanced features that include

web-based management, IP filtering, and

intelligent device monitoring.

Quick Reference Guide: AR-5316

Efficient, High-Quality Copying

The AR-5316 IMAGER provides many flexible

copy features designed to grow with your

business. With a speedy, 16 page-per-minute

copy speed and the capability to output

documents at 11” x 17”, the AR-5316 IMAGER

delivers advanced flexibility for any small office or

workgroup. With customer-replaceable supplies

that are easy to install, you can rest assured that

your workflow will always keep moving.

Description: Features & Options

The user-friendly control panel makes it

easy to use the AR-5316 Imager’s

advanced copy features.

Shown with optional 40-sheet document feeder.

Quick Reference Guide: AR-5316

Pre-Setup: Tools, Documentation, & Admonitions

Toolbox Basics

Mechanical

• Screwdriver, Phillips #2

• Screwdriver, Flat #1

• Wrench, 1.5mm Hex head

• Feeler gauges

Electrical

• Voltmeter

• ESD wrist or ankle strap

• Approved surge suppressor

• 30x lighted viewing device

Miscellaneous

• Clean, soft, lint-free cloths

• Alcohol

Special Tools & Service Documentation

Electrical/Electronic Component

Admonitions

WARNING: Electrical hazard.

Employ proper precautions when

working with high-voltage electrical

equipment.

CAUTION: Improper handling of

electronic components can damage

the equipment.

Properly ground and wear an

electro-static device (ESD) on your

wrist or ankle when working with

electronic modules. Similarly, use

anti-static bags to protect electronic

components during storage or

shipping.

Material Safety Data Sheets

(MSDSs)*

* Download MSDSs at http://www.sharp-service.com

Laser Admonition

For your protection, do

not remove protective

covers or bypass safety

interlocks.

* Optional equipment

Product

Code Description MSDS No.

AR-016TD Toner developer

cartridge (Black)

F-31381

AR-016DR Drum cartridge F-01381

Description Part No.

AR-5316, Service Manual SM_AR-5316

Code: 00ZAR5316/A1E

AR-5316, Parts Guide PG_AR-5316

Code: 00ZAR5316/P1E

*AR-RP6 / AR-SP6 Service

Manual

SM_AR-RP6 / AR-SP6

Code: 00ZARSP6//A1E

Quick Reference Guide: AR-5316

Basic System Configuration

External Views

1 Glass cleaner 2 Document feeder cover

(when the SPF is installed) /

document cover

3 Document glass

4 Handles 5 Power switch 6 Operation panel

7 Paper output tray 8 Front cover 9 Paper trays

Side cover 11 Side cover handle 12 Bypass tray guides

Bypass tray 14 Bypass tray extension 15 Charger cleaner

Quick Reference Guide: AR-5316

Basic System Configuration (cont’d)

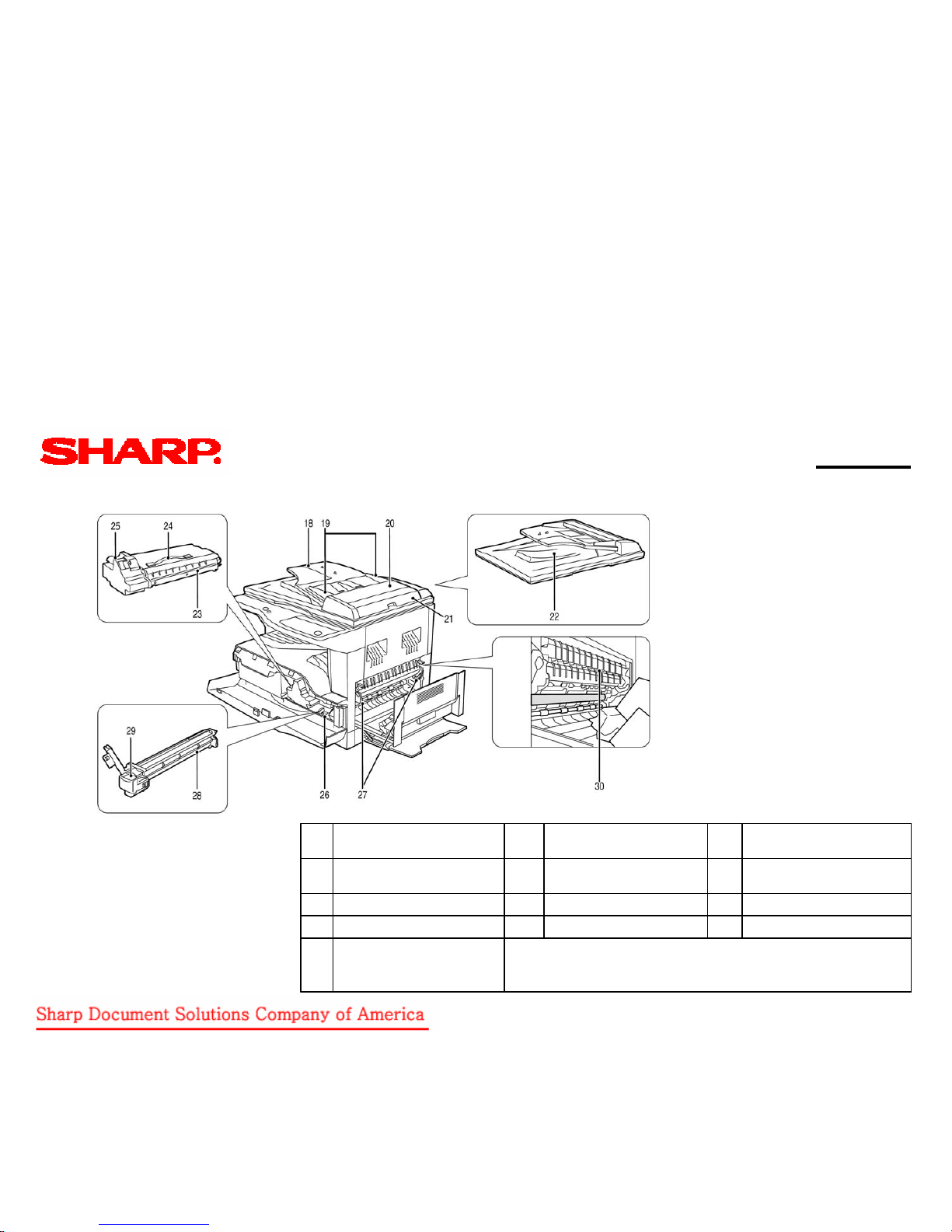

Internal Views

18 Document feeder tray (when

the SPF is installed)

19 Original guides (when the SPF

is installed)

20 Feeding roller cover (when the

SPF is installed)

21 Right side cover (when the SPF

is installed)

22 Exit area (when the SPF is

installed)

23 TD cartridge

24 TD cartridge strap 25 TD cartridge lock release lever 26 Roller rotating knob

27 Fusing unit release levers 28 Drum cartridge 29 Drum cartridge handle

30 Fusing unit paper guide

Quick Reference Guide: AR-5316

Optional Equipment

No. Option Name Model

1 40-Sheet Single Pass Feeder AR-SP6N

2 Network Print Server AR-PS3100

Quick Reference Guide: AR-5316

Adjustments

Section Adjustment Item Adjustment Procedure/SIM No.

AProcess section (1) Developing doctor gap adjustment Developing doctor gap adjustment

(2) MG roller main pole position adjustment MG roller main pole position adjustment

(3) Developing bias voltage check

(4) Main charger voltage check

BMechanism section (1) Image position adjustment SIM-50

No. 2/3 mirror base unit installing position adjustment(2) Main scanning direction (FR direction) distortion

balance adjustment Copy lamp unit installing position adjustment

(3) Main scanning direction (FR direction) distortion

adjustment

Rail height adjustment

(4) Sub scanning direction (scanning direction) distortion

adjustment

Winding pulley position adjustment

(5) Main scanning direction (FR direction) magnification

ratio adjustment

SIM 48-1

OC mode in copying (SIM 48-1)(6) Sub scanning direction (scanning direction)

magnification ratio adjustment SPF mode in copying (SIM 48-5)

OC mode (SIM 50-12)(7) Off center adjustment

SPF mode (SIM 50-12)

(8) SPF white correction pixel position adjustment

(required in an SPF model when replacing the lens

unit)

SIM 63-7

CImage density

adjustment

(1) Copy mode SIM 46-1

Adjustment Item List

Quick Reference Guide: AR-5316

Simulation

Entering the Simulation Mode

Perform the following procedure to enter the simulation mode.

“#” key →Interrupt key →“C” key →Interrupt key →

Main code →Start key →Sub code →Start key

SIM Codes

Please refer to the SIM Codes list (pages 1 through 4) that follows.

Canceling the Simulation Mode

When the clear all key is pressed, the simulation mode is cancelled.

When the interruption key is pressed, the process is interrupted and

the screen returns to the sub code entering display.

Note 1: After canceling the simulation mode, be sure to turn the

OFF/ON power switch to the ON position.

Note 2: If the machine is terminated by a jam error or paper empty

during copying in the adjustment by the simulation, recopying

is required.

Quick Reference Guide: AR-5316

Simulation (Pg. 1 of 4)

SIM Codes

Main

Code

Sub

Code

Contents

01 Mirror scanning operation

02 Mirror home position sensor (MHPS) status display

06 Mirror scanning operation aging

01 Single paper feeder (SPF) Aging

02 SPF sensor status display

03 SPF motor operation check

08 SPG paper feed solenoid operation check

11 SPF PS release solenoid operation check

01 Operation panel display check

02 Fusing lamp and cooling fan operation check

03 Copy lamp lighting check

01 Paper feed solenoid operation check

02 Resist roller solenoid operation check

10 Cassette semi-circular roller cleaning

01 Warm-up display and aging with jam

06 Intermittent aging

08 Shifting with warm-up display

01 Developing bias output

02 Main charger output (Grid = HIGH)

03 Main charger output (Grid = LOW)

06 Transfer charger output

Quick Reference Guide: AR-5316

Simulation (Pg. 2 of 4)

SIM Codes

(cont’d)

Main

Code

Sub

Code

Contents

10 - Toner motor operation

14 - Trouble cancel (except for U2)

16 - U2 trouble cancel

20 01 Maintenance counter clear

21 01 Maintenance cycle setting

01 Maintenance counter display

02 Maintenance preset display

03 Jam memory display

04 Jam total counter display

05 Total counter display

08 SPF counter display

09 Paper feed counter display

12 Drum counter display

13 CRUM type display

14 P-ROM version display

15 Trouble memory display

17 Copy counter display

18 Printer counter display

21 Scanner counter display

22 SPF jam counter display

Main

Code

Sub

Code

Contents

01 Jam total counter clear

02 Trouble memory clear

04 SPF counter clear

06 Paper feed counter clear

07 Drum counter clear

08 Copy counter clear

09 Printer counter clear

13 Scanner counter clear

14 SPF jam total counter clear

01 Main motor operation check25

10 Polygon motor operation check

02 Size setting

03 Auditor setting

05 Count mode setting

06 Destination setting

07 Machine condition check (CPM)

18 Toner save mode setting

30 CE mark conformity control ON/OFF

31 Auditor mode exclusive setup

36 Cancel of stop at maintenance life over

38 Cancel of stop at drum life over

39 Memory capacity check

42 Transfer ON/OFF timing control setting

43 Side void amount setting

51 Copy temporary stop function setting

Quick Reference Guide: AR-5316

Simulation (Pg. 3 of 4)

SIM Codes

(cont’d)
