Sharp PG-F200X - Notevision XGA DLP Projector Manuale

PARTS GUIDE

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

PG-F200X

PartsGuide

[1] PRINTED WIRING BOARD

ASSEMBLIES

[2] DUNTKE153FMF8 (MAIN Unit)

[3] CABINET AND MECHANICAL

PARTS

[4] OPTICAL MECHANISM PARTS

[5] SUPPLIED ACCESSORIES

[6] PACKING PARTS

(NOT REPLACEMENT ITEM)

[7] SERVICE JIGS AND EQUIPMENT

(USE FOR SERVICING)

CONTENTS

No. S77O5PG-F200X

PG-F200X

MODEL

DATA PROJECTOR

Note:

The reference numbers on the PWB are arranged

in alphabetical order.

PG-F200X

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

DELIVERY

DESCRIPTION

[1] PRINTED WIRING BOARD ASSEMBLIES

NDSETUE149FMG0 BZ N J BALLAST POWER Ass'y (with Ballast Control Unit)

NNot Available - N - BALLAST POWER Unit *Order the BALLAST POWER Ass'y (DSETUE149FMG0) when

replacing ballast power unit (DUNTKE149WEF0).

NDUNTKE150WEF0 BW N J BALLAST CONTROL Unit

NDUNTKE151WEF0 AY N J PHOTO SENSOR Unit

NDUNTKE152WEF0 AY N J R/C RECEIVER Unit

NDUNTKE153FMF8 CT N J MAIN Unit

NDUNTKE154WEF0 CN N J DMD Unit (without the DMD chip)

[2] DUNTKE153FMF8 (MAIN Unit)

C3586 VCKYCY1EB333KY AA J Capacitor 0.033 25V Ceramic

C3588 VCKYCY1EB333KY AA J Capacitor 0.033 25V Ceramic

C3591 VCKYCY1EB333KY AA J Capacitor 0.033 25V Ceramic

PG-F200X

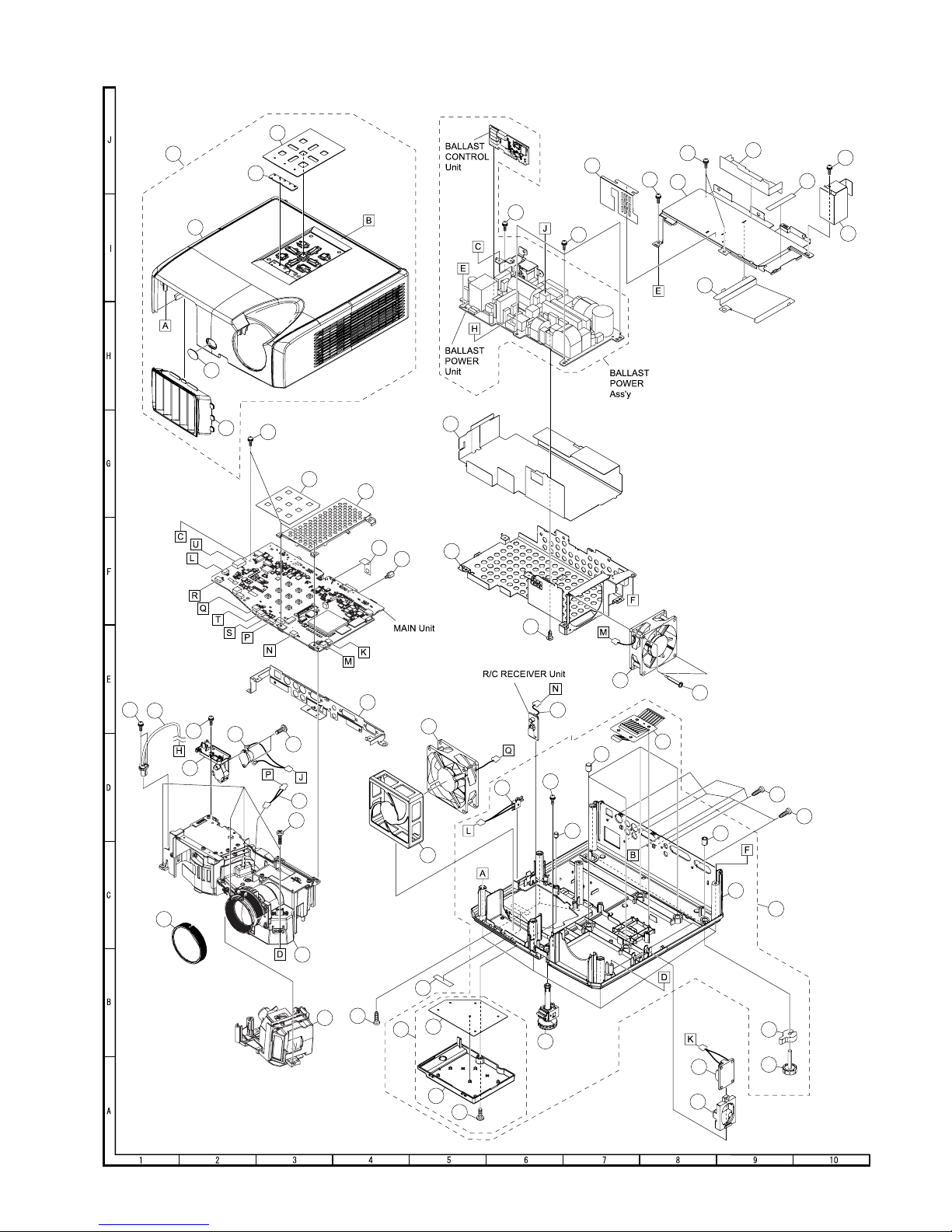

[3] CABINET AND MECHANICAL PARTS

1-2

1-5

1-1

1-3

1-4

40 25

2-1

2-1-3

2-1-1

2-1-2

2-8

2-4

2-6

2-9

2-7

2-3

2-5

2-2

2-10

2-11

PG-F200X

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

DELIVERY

DESCRIPTION

[3] CABINET AND MECHANICAL PARTS

1CBDYTA268WEF0 BL N J Top Body Ass'y

1-1 Not Available - N - Top Body

1-2 GCOVAC364WJSA AE N J Cover

1-3 HDECPA034WJSA AK N J Decoration Plate

1-4 HiNDPC319WJSC AM N J Indicator

1-5 GCOVAC242WJKC AS N J Cover

2CBDYUA309WEF0 BQ N J Bottom Body Ass'y

2-1 CDORUA075WEF0 AQ N J Lamp Door Ass'y

2-1-1 Not Available - N - Lamp Door

2-1-2 LX-BZA185WJFN AB N J Screw

2-1-3 PSLDHA047WJFW AK N J Shield

2-2 Not Available - N - Bottom Body

2-3 LX-NZ3120CEFW AB J Nut

2-4 LX-NZ3144CEFW AC J Nut, x4

2-5 LX-NZA014WJFW AC J Nut

2-6 QEARPA250WJFW AK N J Bottom Earth Shield

2-7 GLEGPA030WJSA AK J Foot (Rear Adjuster)

2-8 GLEGPA036WJSA AP N J Foot (Front Adjuster)

2-9 PSPAZB478WJZZ AC N J Spacer

2-10 QCNW-F721WJQZ AN N J Connecting Cord

2-11 XEBSN30P10000 AA J Screw

4----- - - Refer to Optical Mechanism Parts

5AN-XR30LP - N - Lamp Unit

6LHLDFA011WJKZ AC J Rivet (Power PWB)

8LHLDZA849WJKZ AQ N J Holder (Bimetal)

9LX-BZ3049GEFN AB J Screw, x4

10 LX-BZ3100CEF7 AA J Screw, x7

12 LX-BZA186WJF9 AD N J Screw, x2

14 NFANRA076WJ00 BM N J Fan

15 NFANRA078WJ00 BP N J Fan

16 PCOVPA037WJSB AM N J Cover

17 PCOVUA105WJ00 AF N J Cover

18 PCOVZA099WJZZ AE N J Cover

19 PCOVZA100WJZZ AF N J Cover

22 PSLDMB118WJFW AM N J Shield

23 PSLDMB119WJFW AK N J Shield

24 PSLDMB122WJFW AZ N J Shield

25 PSLDMB123WJFW AX N J Shield

26 PSPAGA370WJKZ AP N J Spacer

27 PSPAGA371WJKZ AW N J Spacer

29 PZETKA227WJKZ AX N J Insulator

30 PZETKA233WJKZ AD N J Insulator

31 PZETKA240WJKZ AG N J Insulator

32 QCNW-F717WJQZ AS N J Connecting Cord

33 QCNW-F718WJPZ AY N J Connecting Cord

34 QCNW-F720WJQZ AG N J Connecting Cord

37 RSP-ZA085WJQZ AP J Speaker

38 XBBSN30P06000 AA J Screw, x2

39 XBPSN30P08JS0 AB J Screw, x3

40 XEBSN30P10000 AA J Screw, x18

41 Not Available - N - Serial No Label

42 PCOVWA015WJKZ AC J Spacer

43 QEARPA256WJFW AB N J Ground Part

44 QCNW-G254WJQZ AH N J Connecting Cord

45 NSFTZ0134CEFW AD J Shaft for DVI Socket, x2

PG-F200X

[4] OPTICAL MECHANISM PARTS

4-33

4-17

4-33

4-35 4-19

4-35

4-10

4-33

4-33 4-33

4-32

4-33

4-16

4-11

4-33

4-27

4-29

4-33

4-30

4-24

4-36

4-12

4-18

4-33

4-31

4-33

4-26

4-31

4-23

4-14

4-31

4-28

4-15

4-20

4-33

4-21

4-22

4-33

4-34

4-33

4-13

4-25

4-1

4-4

4-9

4-8

4-7

4-5

4-6

4-2

4-3

PG-F200X

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

DELIVERY

DESCRIPTION

[4] OPTICAL MECHANISM PARTS

4-1 LANGKB121WJFW AE N J Fixing Metal

4-2 LCHSKA024WJFW BQ N J Chassis

4-3 LHLDZA845WJKZ AN N J Holder

4-4 LX-EZA027WJFN AC N J Screw (For Focus Ring), x3

4-5 MSPRPA095WJFW AF N J Spring

4-6 MSPRPA103WJFW AG N J Spring

4-7 MSPRPA097WJFW AK N J Spring

4-8 NFANRA077WJ00 BH N J Fan

4-9 PCOVPA036WJSB AN N J Cover

4-10 PCOVPA038WJSB AN N J Cover

4-11 PCOVZA089WJFW AP N J Cover

4-12 PCOVZA093WJKZ AM N J Cover

4-13 PCOVZA094WJKZ AN N J Cover

4-14 PCOVZA095WJFW AL N J Cover

4-15 PCOVZA096WJFW AG N J C/W Cover

4-16 PDUC-A088WJFW AF N J Exhaust Duct

4-17 PFiLWA120WJZZ CC N J Filter

4-18 PLNS-A059WJZZ BF J Lens

4-19 PLNS-A080WJZZ AT N J Lens

4-20 PLNS-A083WJZZ AT N J Lens

4-21 PLNS-A084WJZZ AT N J Lens

4-22 PLNS-A085WJZZ BD N J Lens

4-23 PMiR-A125WJZZ AU N J Mirror

4-24 PRDARA446WJFW AQ N J Heat Sink

4-25 PSLDHA048WJFW AK N J Shield

4-26 PSLDPA077WJFW AM N J Shield

4-27 PSLDPA072WJKZ AZ N J Shield

4-28 PSLDPA073WJFW AD N J Shield

4-29 RH-HXA040WJQZ AS N J Thermistor

4-30 TLABZB026WJZZ AE J No. Label

4-31 XBBS925P06000 AA J Screw, x9

4-32 LX-BZA205WJFN AA N J Screw, x3

4-33 XBBSN30P06000 AA J Screw, x22

4-34 XBPSN30P20JS0 AB J Screw, x2

4-35 XEPSN17P05000 AB J Screw, x2

4-36 PSLDPA078WJFW AF N J Flat Ray Shield

7LHLDZA612WJFW AL J Holder (Backer Plate)

11 LX-BZA110WJF7 AC J Screw, x4

13 MSPRCA062WJFJ AB J Spring, x4

20 PRDARA445WJFW AZ N J Heat Sink

21 PSHEGA040WJZZ AE J Sheet

28 PSPAZA768WJZZ AD J Spacer

35 QSOCZA114WJZZ BA J Socket

36 RDMDPA031WJZZ DE J DMD Chip, 0.55" XGA

PG-F200X

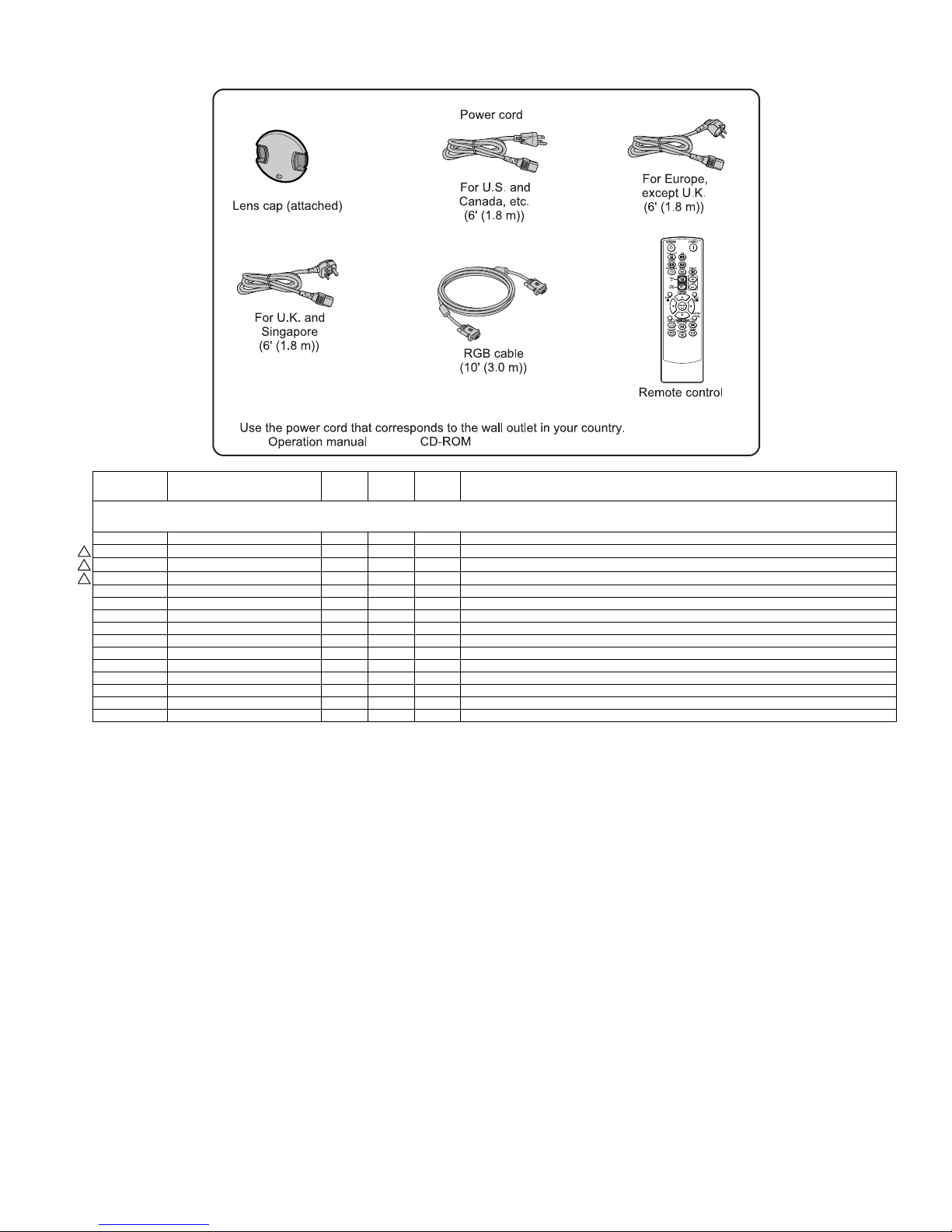

[5] SUPPLIED ACCESSORIES

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

DELIVERY

DESCRIPTION

[5] SUPPLIED ACCESSORIES

X1 CCAPHA027WJSA AH N J Lens Cap

X2 QACCBA036WJPZ AX J AC Cord (for U.K. and Singapore)

X2 QACCDA007WJPZ AR J AC Cord (for U.S.A. and Canada, etc.)

X2 QACCVA011WJPZ AT J AC Cord (for Europe, except U.K.)

X3 QCNWGA045WJPZ AU J RGB Cable

X4 RRMCGA581WJSA BD N J Remote Control

X5 TCAUZA187WJZZ AC J WEEE Caution Sheet (Except U.S.A. and Canada)

X6 TGAN-A232WJZZ AC J SEC ER Information (PG-F200XU)

X7 TGAN-A233WJZZ AC J SECL ER Information (PG-F200XU)

X8 TLABZA255WJZZ AE J ER Sticker (PG-F200XU)

X9 TGAN-A811WJZZ AB J SECL Warranty (for Canada)

X10 TGAN-A848WJZZ AK N J SEC Warranty (PG-F200XU)

X11 TiNS-D372WJZZ AQ N J Operation Manual

X12 TLABZA956WJZZ AB J WEEE Mark Label (Except U.S.A. and Canada)

X13 UDSKAA097WJZZ AL N J CD-ROM

X11 X13

PG-F200X

[6] PACKING PARTS (NOT REPLACEMENT ITEM)

PG-F200X

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

DELIVERY

DESCRIPTION

[6] PACKING PARTS (NOT REPLACEMENT ITEM)

S1 SPAKAA329WJZZ - N - Packing Add

S2 SPAKCD814WJZZ - N - Packing Case

S3 SPAKFB224WJZZ - N - Accessory Case

S4 SPAKPA869WJZZ - N - Wrapping Paper

S5 SPAKXB477WJZZ - N - Packing Add

S6 SSAKA0160CEZZ - - Polyethylene Bag

S7 TLABV0003SEZZ - - Model Name Label

S8 TLABVA333WJZZ - - Bar Code Label (for U.S.A., Canada, Australia, New Zealand and Oceania)

S9 TLABZA957WJZZ - - C.W. Mark Label, x2 (for Europe and Singapore)

[7] SERVICE JIGS AND EQUIPMENT (USE FOR SERVICING)

NQCNW-C516WJQZ AG J Extension Cable, 3pins L=200mm, Main to Fan, x2

NQCNWKA006WJZZ AX J Extension Cable, 4pins L=500mm, Main to Fan

NQCNWKA008WJZZ AP J Extension Cable, 14pins, Main to Power

NQCNWKA019WJZZ BU J Extension Cable, 120pins, Main to DMD

NRUNTZA018WJZZ DR J Adjustment Jig, for the Ballast Unit

NQCNWKA020WJZZ AX J Extension Cable, 3 to 2pins
