Universal Transaction Gateway

Using Legacy External Devices

External Use NDA Page 3 of 64

Understanding the Using Legacy External Devices Document

Purpose

Legacy devices are devices that are sun setting or already deprecated. In many cases, the devices

cannot be upgraded to the latest security features and none of the devices listed in this document are

EMV compliant. The Using Legacy External Devices document is intended for those merchants who have

already integrated with Shift4 and are using the UTG, but have not upgraded their devices.

The following devices are no longer supported on UTG versions 2288 and higher.

•Ingenico 3070

•Ingenico i6550

•Ingenico i6780

•Verifone®PINpad 1000

•Verifone®PINpad 1000SE

•Verifone®MX 850

•Verifone®MX 870

Using Legacy External Devices with UTG

This document is intended for vendors and developers using external devices in their POS/PMS systems.

The Universal Transaction Gateway®(UTG®) supports a variety of external devices for transactions

processed in the United States and Canada. Device settings and configurations are discussed in this

document. It may be necessary to adjust external devices, such as PIN pads, when configuring the UTG

or the UTG Stub. PIN pad devices offer a variety of features. For a complete list of supported devices and

features, go to www.shift4.com > Lighthouse Transaction Manager > INTEGRATIONS > Third-Party

Devices.

Universal Transaction Gateway

Using Legacy External Devices

External Use NDA Page 4 of 64

Configuring Ingenico Devices

Configuring Ingenico 3070

Requirement: Verify that UPOS Interface Application displays on

the Ingenico 3070 screen on boot-up. If the version information is

not displayed, contact the Shift4 Customer Support team at

702.597.2480, option 2.

Ingenico 3070 (U.S.)

Ingenico 3070 (Canada)

Universal Transaction Gateway

Using Legacy External Devices

External Use NDA Page 5 of 64

Changing the Baud Rate

To change the Ingenico 3070 baud rate, complete the following steps:

1. To restart the device, disconnect and reconnect the power cord.

2. Simultaneously press and hold the 1, Cancel, and Enter buttons.

3. Select the Supervisor menu. Contact the Shift4 Customer Support team at 702.597.2480, option 2

for the default password.

4. Select Sys Parameters.

5. Select Setup Port and select the correct port number.

6. Select the baud rate. Shift4 recommends a baud rate of 19200.

7. When finished, press the Cancel button until the device restarts.

Other Settings

Verify that the following settings have been applied on the UTG Stub IP to Serial window:

•Data Bits (Byte Size): 8

•Parity: None

•Stop Bits: 1

•Flow Control: None

Requirement: You must load the Shift4 template forms on the

Ingenico 3070 device. Refer to the sections regarding forms for

Ingenico Devices in this document.

Configuring Ingenico i6550

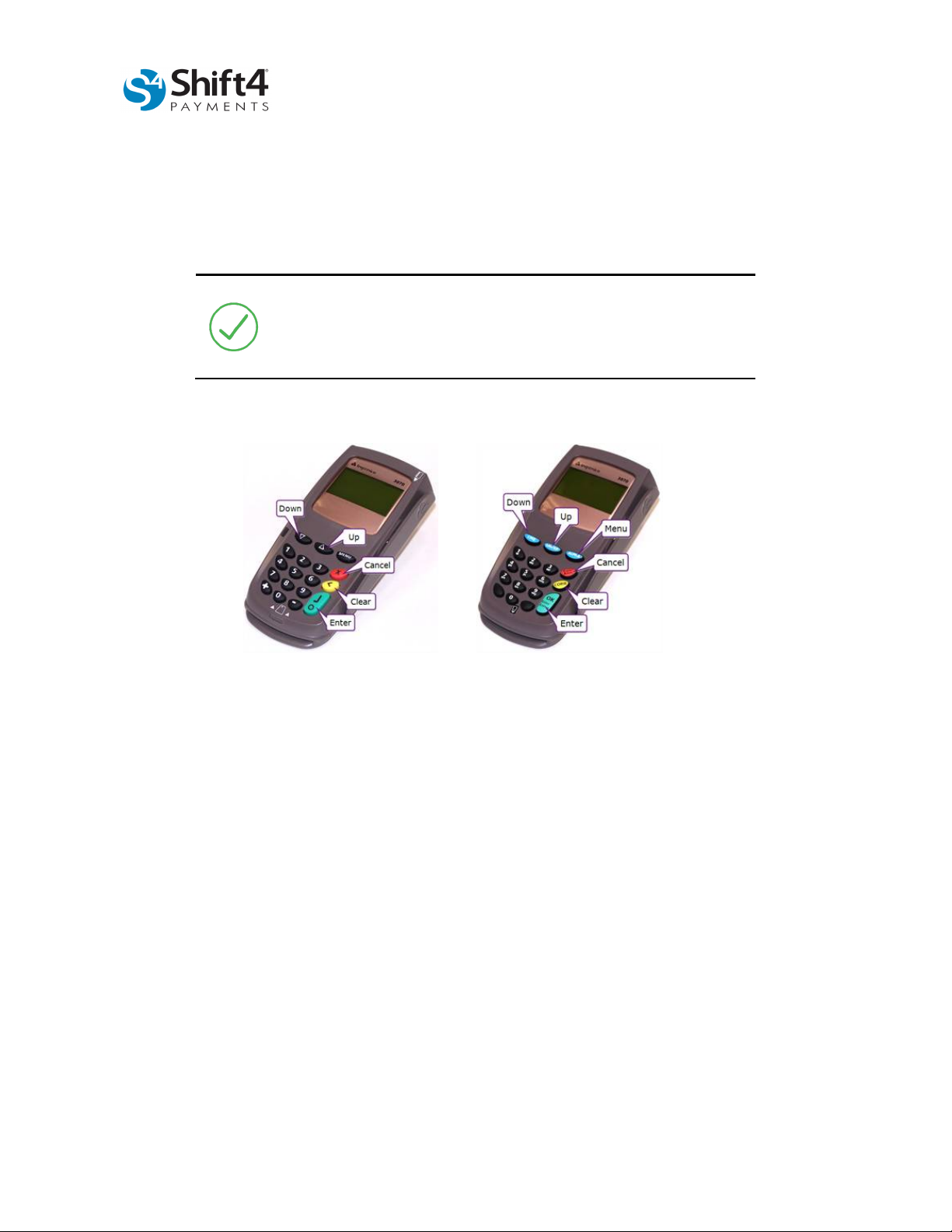

During installation and configuration, the keypad special keys function as follows:

•Plus (+): scroll up

•Minus (-): scroll down

•Enter: select highlighted item

•Cancel: previous screen

•Any button enables backlight

Universal Transaction Gateway

Using Legacy External Devices

External Use NDA Page 6 of 64

Requirement: Verify that UPOS Interface Application, Version

2.10, Kernel 2.77, SSA 02.12, MNT 01.26 displays on the Ingenico

i6550 screen on boot-up. If the version information is not displayed,

contact the Shift4 Customer Support team at 702.597.2480, option

Booting the Device

To boot the Ingenico i6550, complete the following steps:

8. Simultaneously press and hold the 1, 3, Cancel, and Enter buttons and then release.

9. To open the SSA System menu, press and hold the Clear button. During boot-up the device beeps

and startup routines flash briefly on the screen.

10. On the SSA System menu, select Configuration Ticket.

11. On the Configuration Ticket menu, select App Ticket.

12. On the Application Config screen, verify the following applications are loaded on the device in the

Application List section:

•CA0300_IBMEF (#3)

•US0901_UIA__ (#9)

13. To return to the SSA System menu, press the Cancel button twice.

Verifying Device Settings

Device settings are nested several levels beneath the SSA System menu. To verify and set device

parameters, complete the following steps:

14. From the SSA System menu, select the Extended menu.

15. From the Extended menu, select the Supervisor menu. This menu is password protected. Contact

the Shift4 Customer Support team at 702.597.2480, option 2 for the default password.

16. To open and set the Supervisor menu options, type the password and the following settings:

•Select Sys Parameters

Universal Transaction Gateway

Using Legacy External Devices

External Use NDA Page 7 of 64

•Select Setup Port

•Select Port 1

•Set or verify port settings as listed in the following table:

Ingenico 6550 Configuration Settings

Setting Action Required Value

Interface Type

Set

RS232

Baud Rate

Set

19200

Data Bits Set 8

Stop Bits

Set

Parity

Set

None

LAN Address

Verify

101

Retry Count

Verify

Response TMO

Verify

1000

Poll TMO

Verify

3000

Turnaround TMO

Verify

300

17. Press the Cancel button until the Configuration menu returns.

Other Settings

Verify that the following settings have been applied on the UTG Stub IP to Serial window:

•Data Bits (Byte Size): 8

•Parity: None

•Stop Bits: 1

•Flow Control: None

Requirement: You must load the Shift4 template forms on the

Ingenico i6550 device. Refer to the Loading Shift4 Template Forms

on Ingenico Devices section in this document.

Universal Transaction Gateway

Using Legacy External Devices

External Use NDA Page 8 of 64

Configuring Ingenico i6780

During installation and configuration, the keypad special keys function as follows:

•Plus (+): scroll up

•Minus (-): scroll down

•Enter: select highlighted item

•Cancel: previous screen

•Any button enables backlight

Requirement: Verify that UPOS Interface Application, Version

2.32, Kernel 2.86, SSA 02.51, MNT 01.30 displays on the Ingenico

i6780 screen on boot up. If the version information is not displayed,

contact the Shift4 Customer Support team at 702.597.2480, option

Booting the Device

To boot the Ingenico i6780, complete the following steps:

18. Simultaneously press and hold the 1, 3, Cancel, and Enter buttons and then release.

19. To open the SSA System menu, press and hold the Clear button. During boot-up the device beeps

and startup routines flash briefly on the screen.

20. On the SSA System menu, select Configuration Ticket.

21. On the Configuration Ticket menu, select App Ticket.

22. On the Application Config screen, verify the following applications are loaded on the device in the

Application List section:

•CA0300_IBMEF (#3)

•US0901_UIA__ (#9)

23. To return to the SSA System menu, press the Cancel button twice.

Universal Transaction Gateway

Using Legacy External Devices

External Use NDA Page 9 of 64

Verifying Device Settings

Device settings are nested several levels beneath the SSA System menu. To verify and set device

parameters, complete the following steps:

24. From the SSA System menu, select the Extendedmenu.

25. From the Extended menu, select the Supervisor menu. This menu is password protected. Contact

the Shift4 Customer Support team at 702.597.2480, option 2 for the default password.

26. To open and set the Supervisor menu options, enter the password and complete the following steps:

•Select Sys Parameters

•Select Setup Port

•Select Port 1

•Set or verify port settings as listed in the following table:

Ingenico 6780 Configuration Settings

Setting Action Required Value

Interface Type

Set

RS232

Baud Rate

Set

19200

Data Bits

Set

Stop Bits

Set

Parity

Set

None

LAN Address

Verify

101

Retry Count

Verify

Response TMO

Verify

1000

Poll TMO

Verify

3000

Turnaround TMO

Verify

300

27. Press the Cancel button until the Configuration menu returns.

Universal Transaction Gateway

Using Legacy External Devices

External Use NDA Page 10 of 64

Other Settings

Verify that the following settings have been applied on the UTG Stub IP to Serial window:

•Data Bits (Byte Size): 8

•Parity: None

•Stop Bits: 1

•Flow Control: None

Requirement: You must load the Shift4 template forms on the

Ingenico i6780 device. Refer to the sections regarding forms for

Ingenico devices in this document.
