Shimano ULTEGRA SL-BS78 - TECHNICAL Istruzioni operative

SI-6J60A

SL-BS78

Obtain and read the service instructions carefully

prior to installing the parts. Loose, worn, or damaged

parts may cause serious injury to the rider.

We strongly recommend only using genuine

Shimano replacement parts.

Read these Technical Service Instructions carefully,

and keep them in a safe place for later reference.

For smooth operation, use the specified outer casing

and bottom bracket cable guide.

Because the high cable resistance of a frame with

internal cable routing would impair the SIS function,

this type of frame should not be used.

The sliding surfaces of the inner cable and outer

casing should be greased before use.

The shifting lever can be installed to handlebars with

diameters of 19.0 – 22.0 mm.

Operation of the levers related to gear shifting

should be made only when the front chainwheel is

turning.

Parts are not guaranteed against natural wear or

deterioration resulting from normal use.

For any questions regarding methods of handling or

maintenance, please contact the place of purchase.

Do not turn the ring until the lever has been secured

to the body unit.

In order to realize the best performance, we recommend

that the following combination be used.

The illustration shows an explanation of the case

where the shifting lever is installed to drop handlebars.

Install the front lever in the same way.

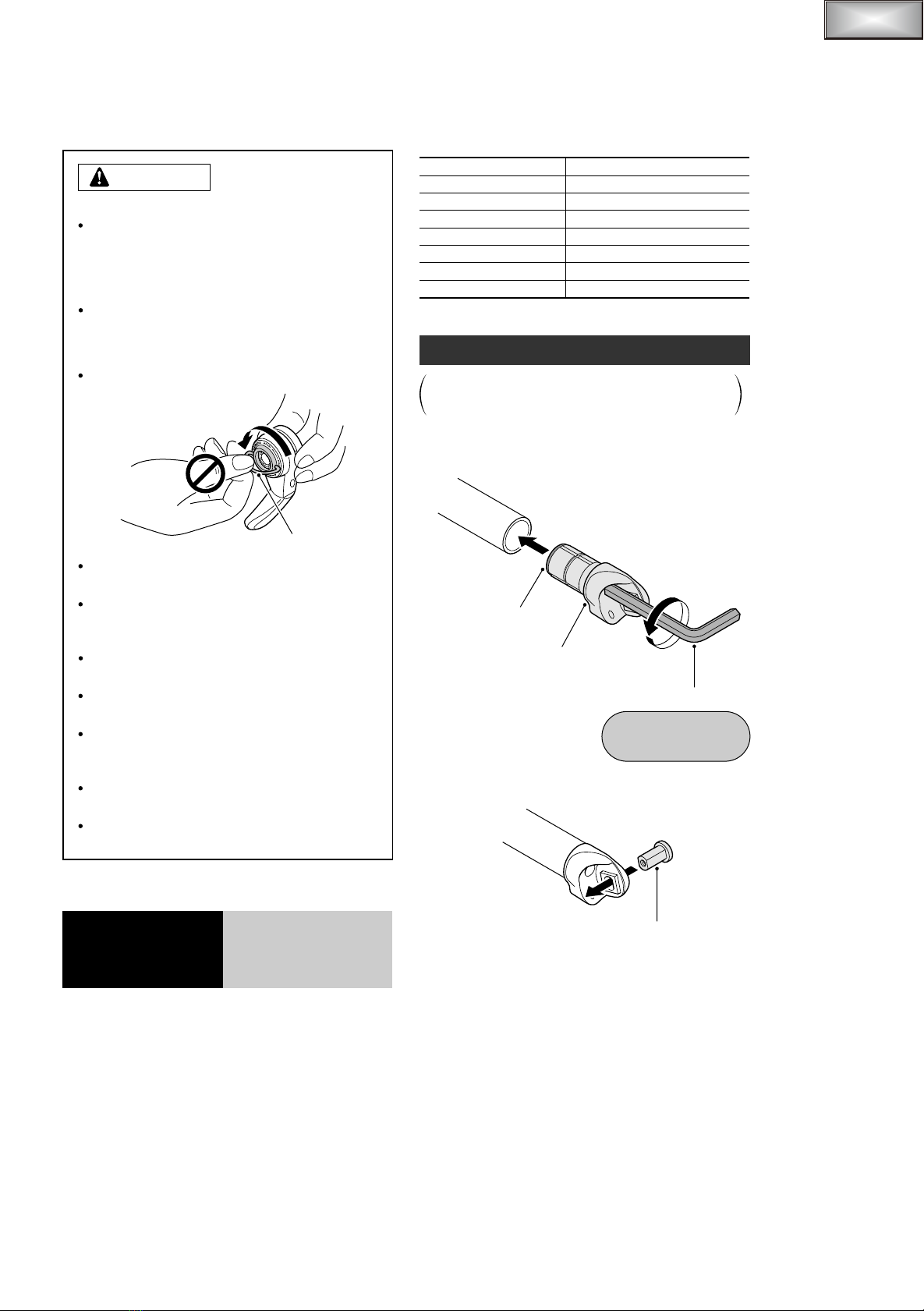

Installation of the lever

General Safety Information

– To avoid serious injuries:

WARNING

NOTE:

Technical Service Instructions

Bar End

Shifting Lever

Ring

6 mm Allen key

Body fixing bolt

Body unit

Lever boss

Series

Shifting lever

Rear derailleur

Front derailleur

Outer casing

Inner cable

Bottom bracket guide

Sprockets

DURA-ACE

SL-BS78

RD-7800

FD-7800

SP41 sealed outer casing

1.2 mm dia. (stainless steel)

SM-SP17

Tightening torque:

5 – 6 Nm

{43 – 52 in. lbs.}

Attach the body unit to the handlebar, and then use a

6 mm Allen key to turn the body fixing bolt

counterclockwise to tighten it.

Install the lever boss to the body unit.

Turn the ring to select either SIS or friction.

Turn the ring until the red mark is correctly aligned with

the SIS or FRIC mark.

Tightening torque:

2.5 – 3 Nm {21 – 26 in. lbs.}

Tightening torque:

1.5 – 2 Nm {13 – 17 in. lbs.}

3 mm Allen key

Stopper fixing bolt

Outer casing stopper (SM-CS50)

Brazed-on boss (M5)

Lever grip

Tape

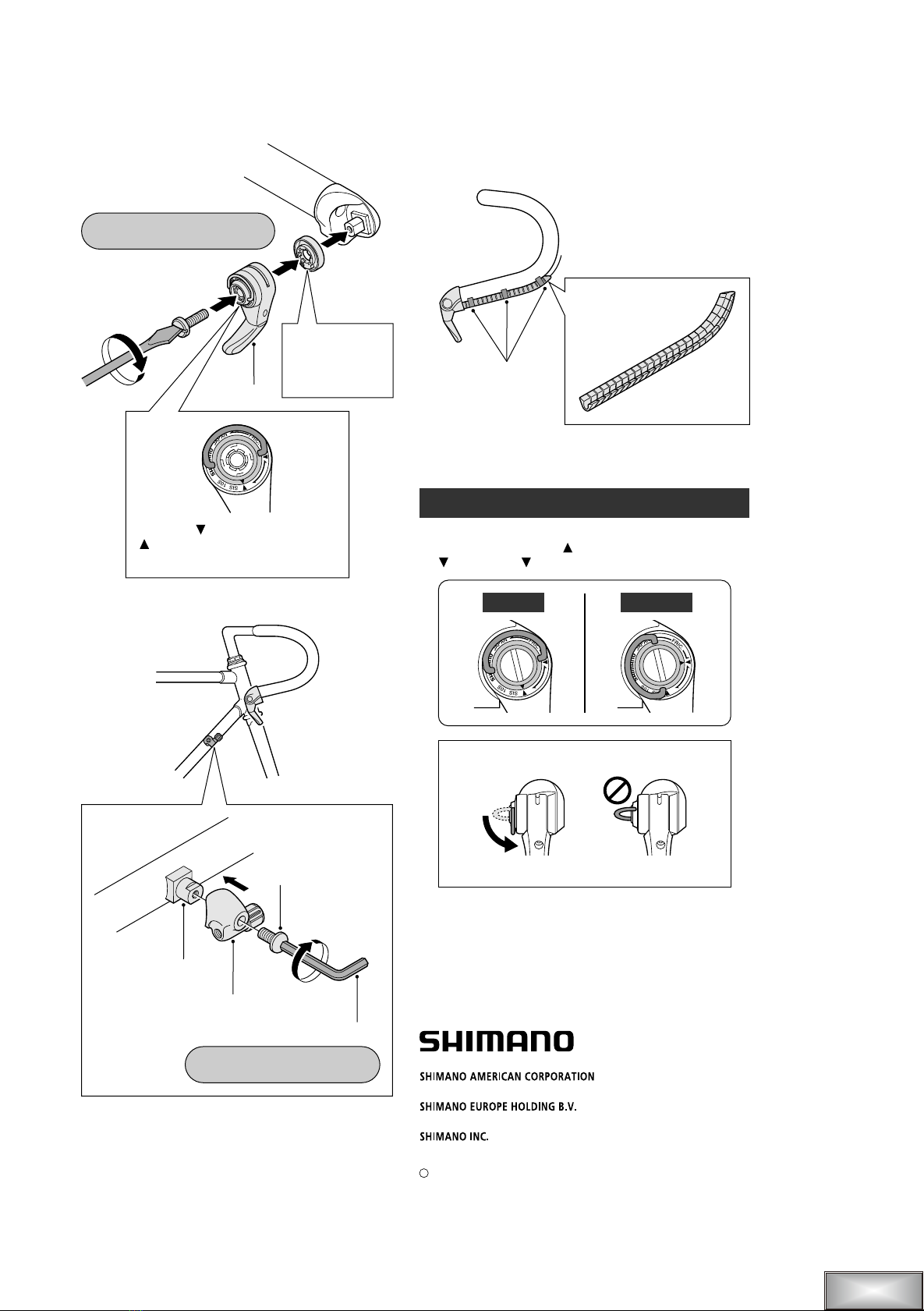

Install the outer casing stopper to the brazed-on boss.

Wrap the handlebar with bar tape.

With the outer casing placed along the handlebar, cover

the outer casing with the outer casing guide, and then

use tape or similar material to provisionally attach it to

the handlebar.

SIS operation

Set so that the

projection

faces

downward.

Align the SIS mark and the red

mark, and then set so that the

lever grip faces downward.

Outer casing guide

FrictionSIS

Not OK

Install the lever to the body unit.

After making a selection, be sure to fold the ring

downward.

Jul. 2003 by Shimano Inc. PIT. SZK. Printed in Japan

These service instructions are printed on recycled paper.

Please note: Specifications are subject to change for improvement without

notice. (English)

One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003

Industrieweg 24, 8071 CT Nunspeet, The Netherlands Phone: +31-341-272222

3-77 Oimatsu-cho, Sakai, Osaka 590-8577, Japan
