ShoreStation SSV40120EAS Manuale utente

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 1 of 43 9/16/2009

ACCESSORY

Your SHORESTATION Aluminum Boat Lift is designed to give years of dependable service. Following the

enclosed instructions will insure you that your lift is properly assembled.

SSV40120EAS, SSV40120EASDW, SSPV40120EAS, &

SSPV40120EASDW

ATTENTION: This Boat Lift uses

stainless steel fasteners. ALWAYS apply

anti-seize to fastener threads before

assembly to prevent galling or seizing.

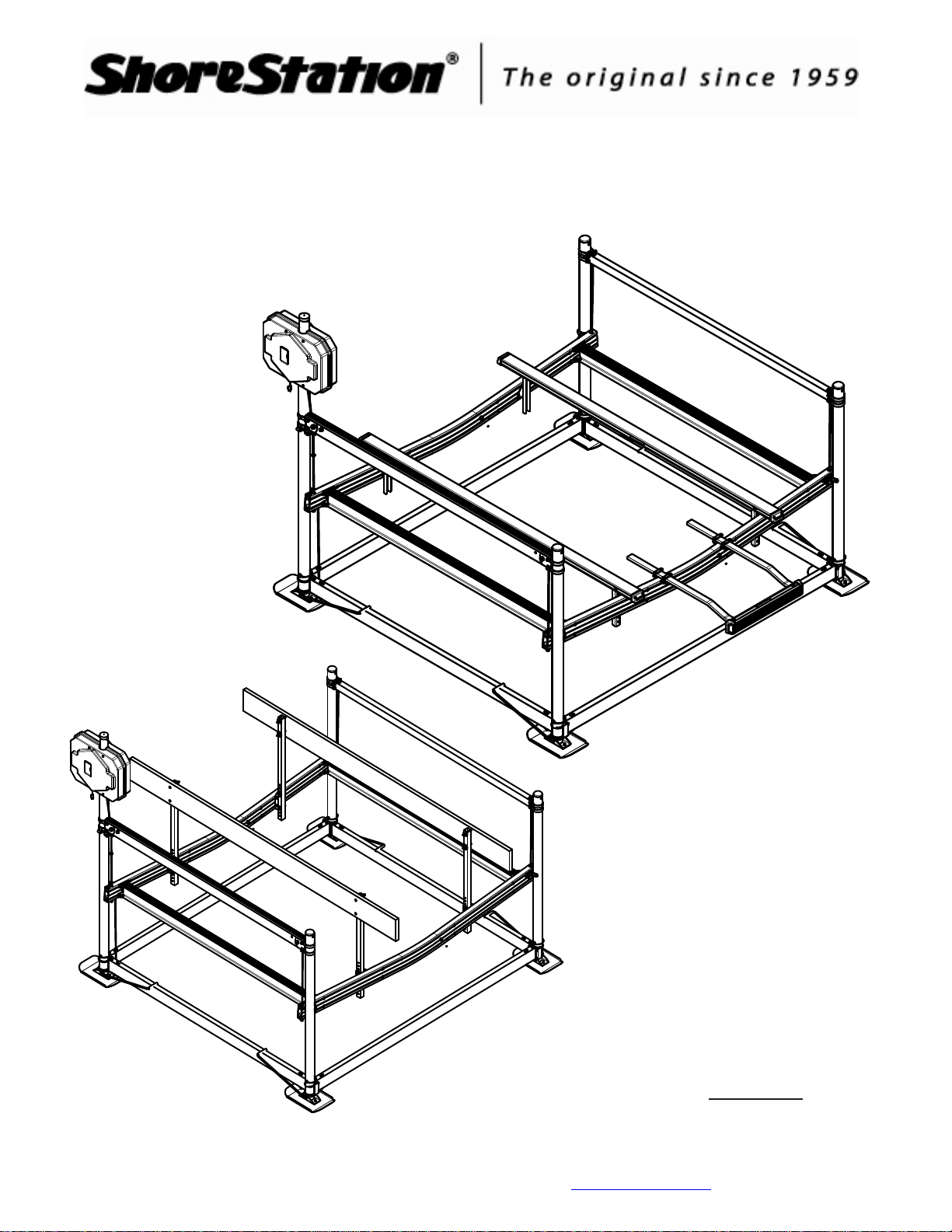

SSV40120EAS

SSPV40120EAS

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 2 of 43 9/16/2009

4000# 120” Aluminum Cradle with Stainless Steel Fasteners

Table of Contents

SSV40120EAS STANDARD LIFT

63401 Lower Frame Bundle V30/40120

62929 Leg Bundle V30/40/108/120 SS

65023 Winch Tube Bundle V30/40 SS

70223 Platform Bundle Alum V30/40120SS

7039803 Winch Assy EAS V20 & V40 SS

70355 Lit Packet SSV40120EAS/DW/PV

70395 Hdwe Box V30/40/108/120MS & E

HA0085 Bunk Poly V30/40 Lift Alum SS

HA0087 Motor Stop Bundle 5.75 Alum V

SSV40120EASDW STANDARD DEEP WATER LIFT

63401 Lower Frame Bundle V30/40120

65023 Winch Tube Bundle V30/40 SS

70223 Platform Bundle Alum V30/40120SS

7039803 Winch Assy EAS V20 & V40 SS

70355 Lit Packet SSV40120EAS/DW/PV

70391 Leg Bundle V30/40 DW SS

70395 Hdwe Box V30/40/108/120MS & E

HA0085 Bunk Poly V30/40 Lift Alum SS

HA0087 Motor Stop Bundle 5.75 Alum V

You and Your ShoreStation………………….3

Using Your Lift…………………………………3 & 4

Detail Drawings & BOM………………………4 thru 19

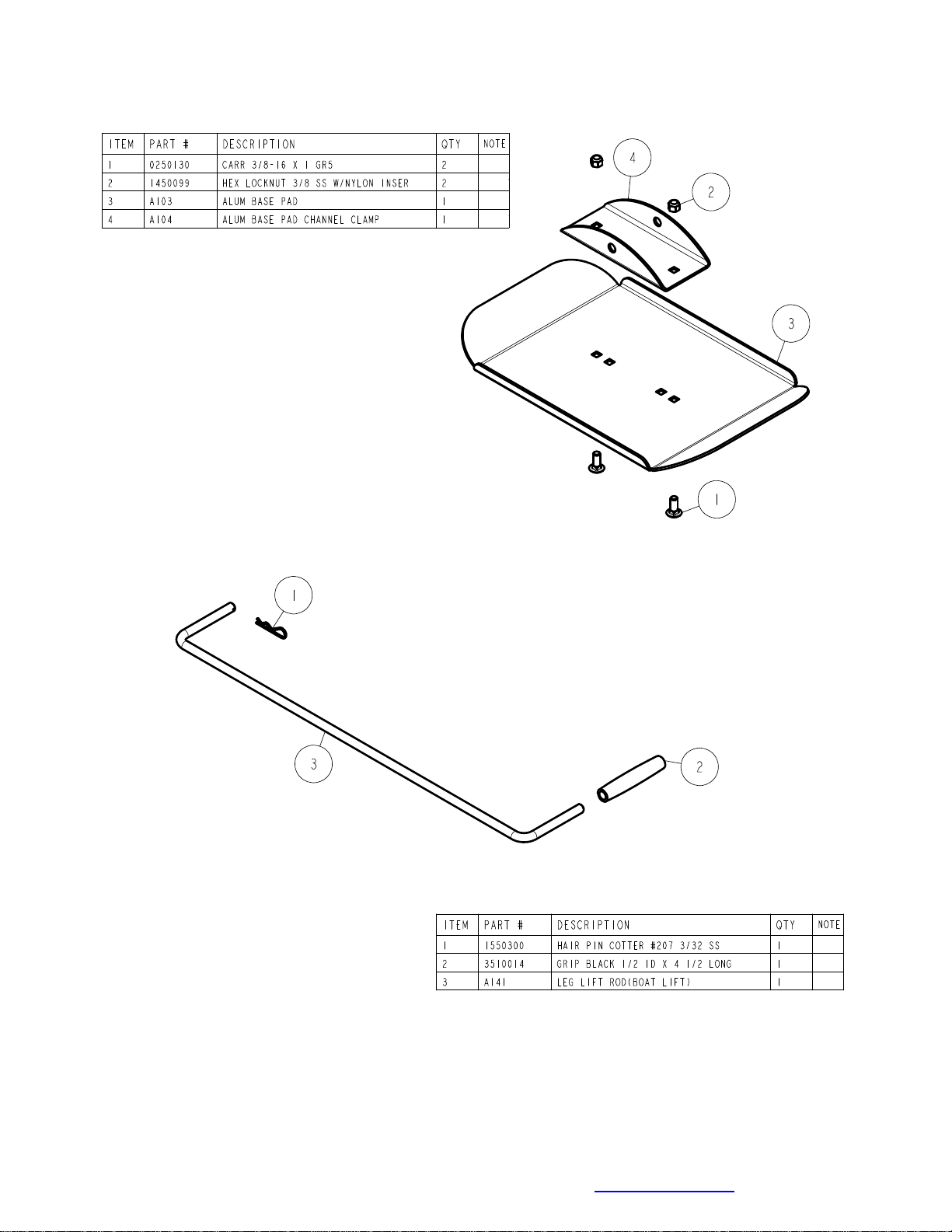

Base Pad…………………….5

Lift Arm……………………….6

Leg-Winch……………………7

Leg-1, 2, 3……………………8

Lower Frame…………………9

Platform………………………10

Spacer Tube…………………11

Cable Connections………….11

Winch Tube…………………..12 & 13

Winch Attachments………….14

Bunk Attachment & Assy…...15

Pontoon Assembly…..………16

Motor Stop……………………17

Lift Wheel……………………..18

Winch Assembly……………..19

For more detailed information regarding the

Installation, Transporting, Operation, Safety,

Maintenance, and additional accessories available

for your lift see your SHORESTATION Operators

Manual.

Assembly Instructions……………………20 Thru 35

Tools Required……………………………20

Pads………………………….20

Pad-Leg-Lift Arm……….......21

Lower Frame………………..22 Thru 24

Platform………………………25 Thru 27

Spacer Tube…………………28

Level Cable Connections…..29

Winch Tube…………………..29

Winch………………………….30

Wheel Stop Assy & Brkt…….31

Winch & Lift Cable Connect...32

Bunks……………………….....33

Motor Stop…………………….34

Leg Caps………………………35

Adjustments & Operators Info…………....36 Thru 41

SSPV40120EASDW PONTOON DEEP WATER LIFT

63401 Lower Frame Bundle V30/40120

65023 Winch Tube Bundle V30/40 SS

70223 Platform Bundle Alum V30/40120SS

7039803 Winch Assy EAS V20 & V40 SS

70355 Lit Packet SSV40120EAS/DW/PV

70391 Leg Bundle V30/40 DW SS

70395 Hdwe Box V30/40/108/120MS & E

HA0096 Pontoon Kit V Alum Cradle Lifts

SSPV40120EAS PONTOON LIFT

63401 Lower Frame Bundle V30/40120

62929 Leg Bundle V30/40/108/120 SS

65023 Winch Tube Bundle V30/40 SS

70223 Platform Bundle Alum V30/40120SS

7039803 Winch Assy EAS V20 & V40 SS

70355 Lit Packet SSV40120EAS/DW/PV

70395 Hdwe Box V30/40/108/120MS & E

HA0096 Pontoon Kit V Alum Cradle Lifts

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 5 of 43 9/16/2009

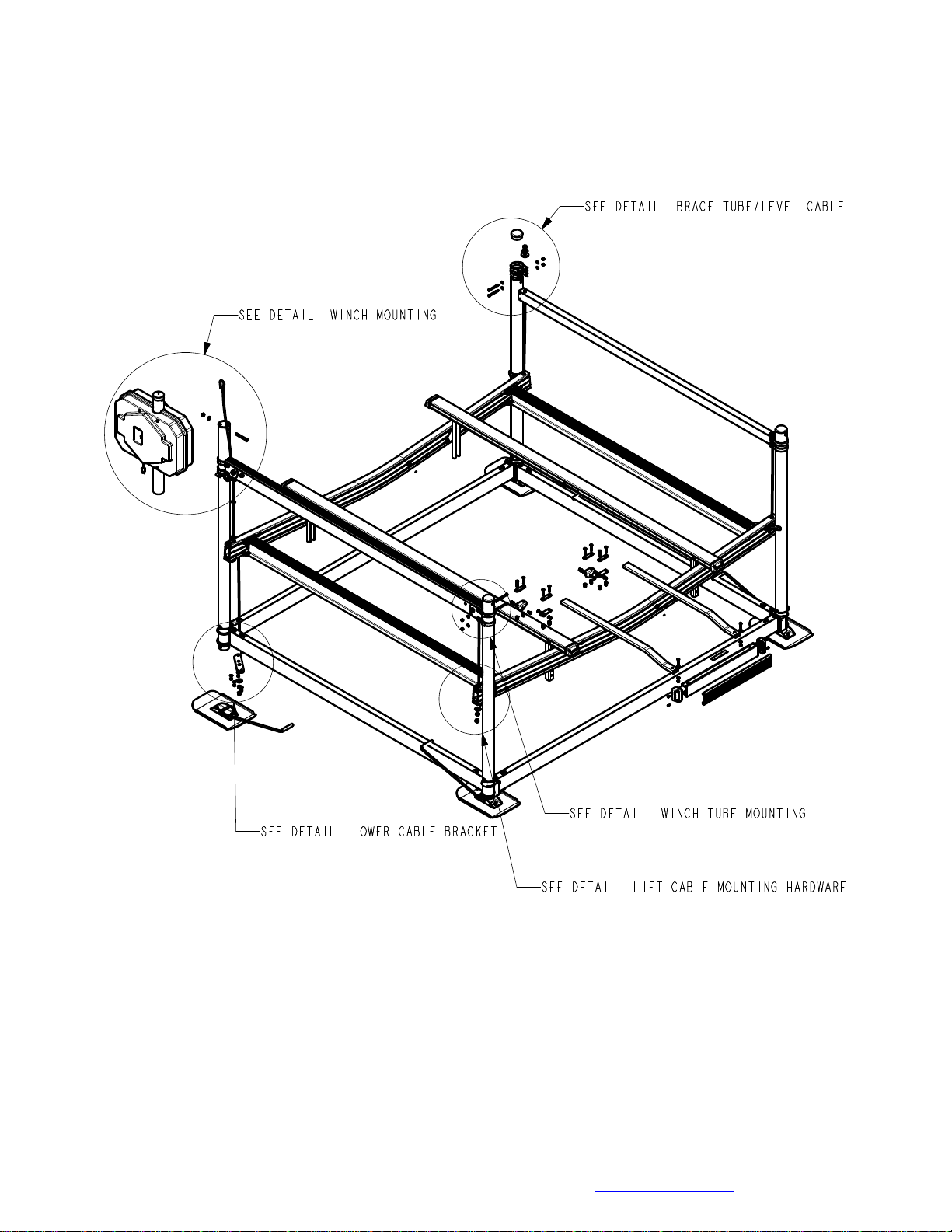

The diagram below and the line art drawings on the following pages are there to give you information on where

parts are used and if needed the part numbers you will need if replacement parts are needed.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 6 of 43 9/16/2009

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 7 of 43 9/16/2009

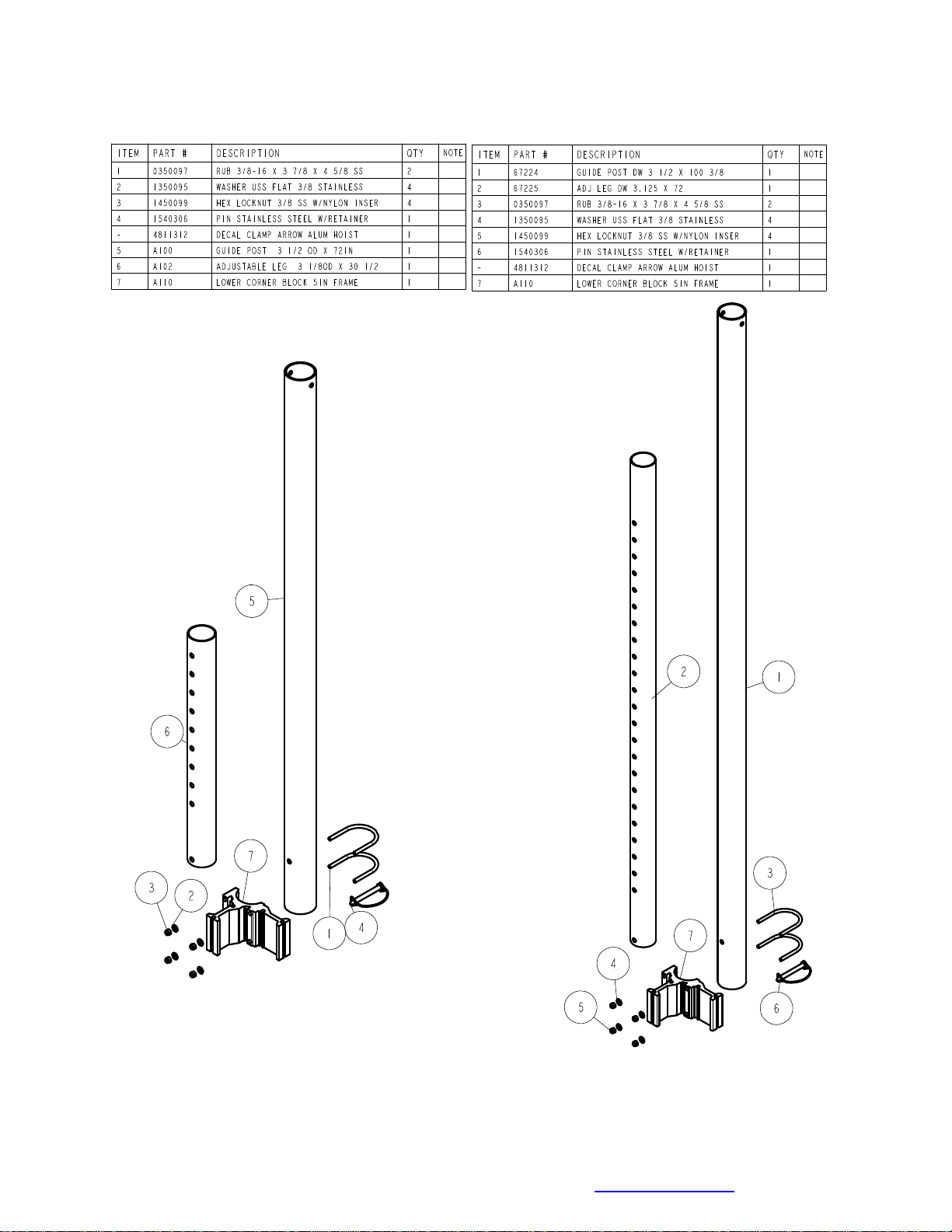

Standard and Deep Water Winch Tube Leg Assemblies

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 8 of 43 9/16/2009

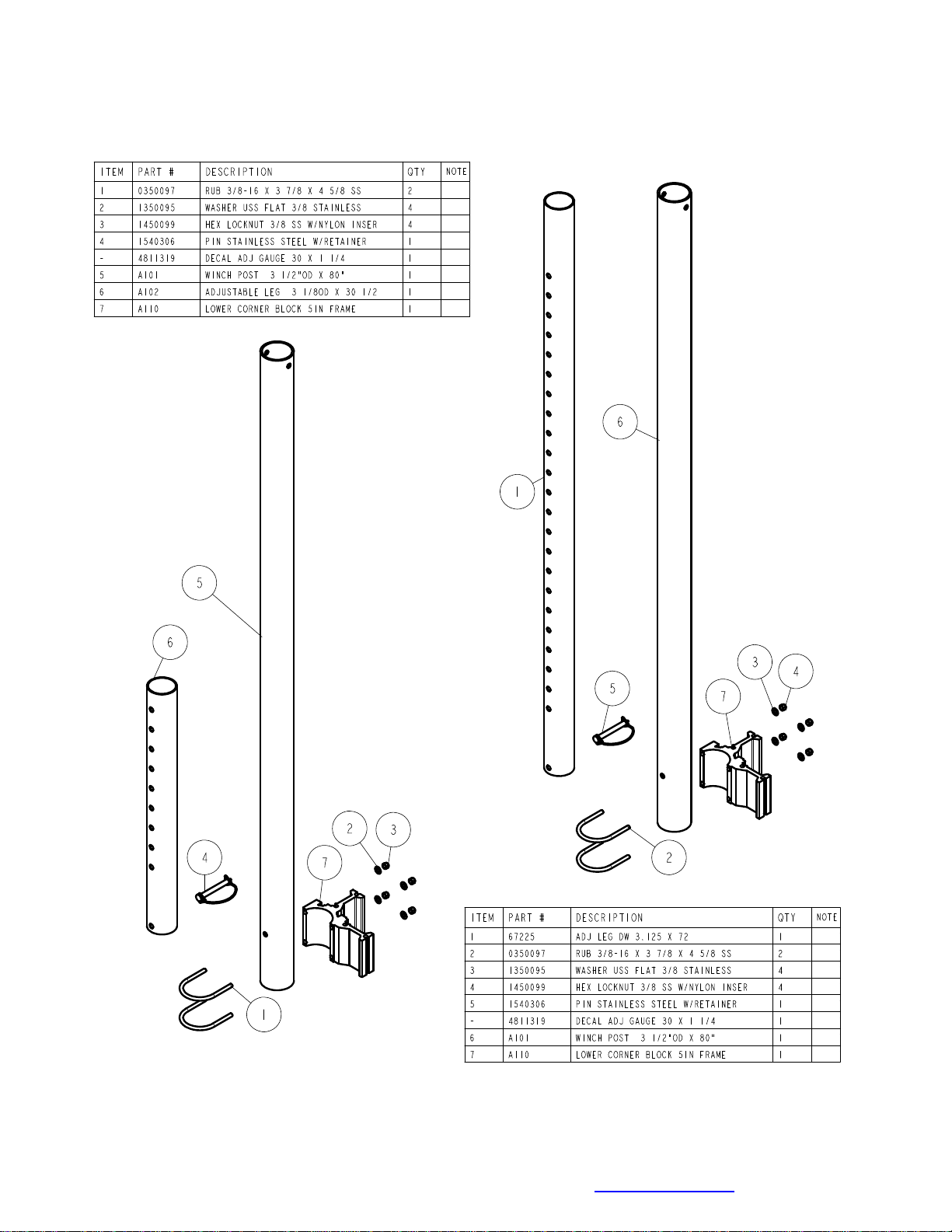

Standard and Deep Water Leg Assemblies

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 9 of 43 9/16/2009

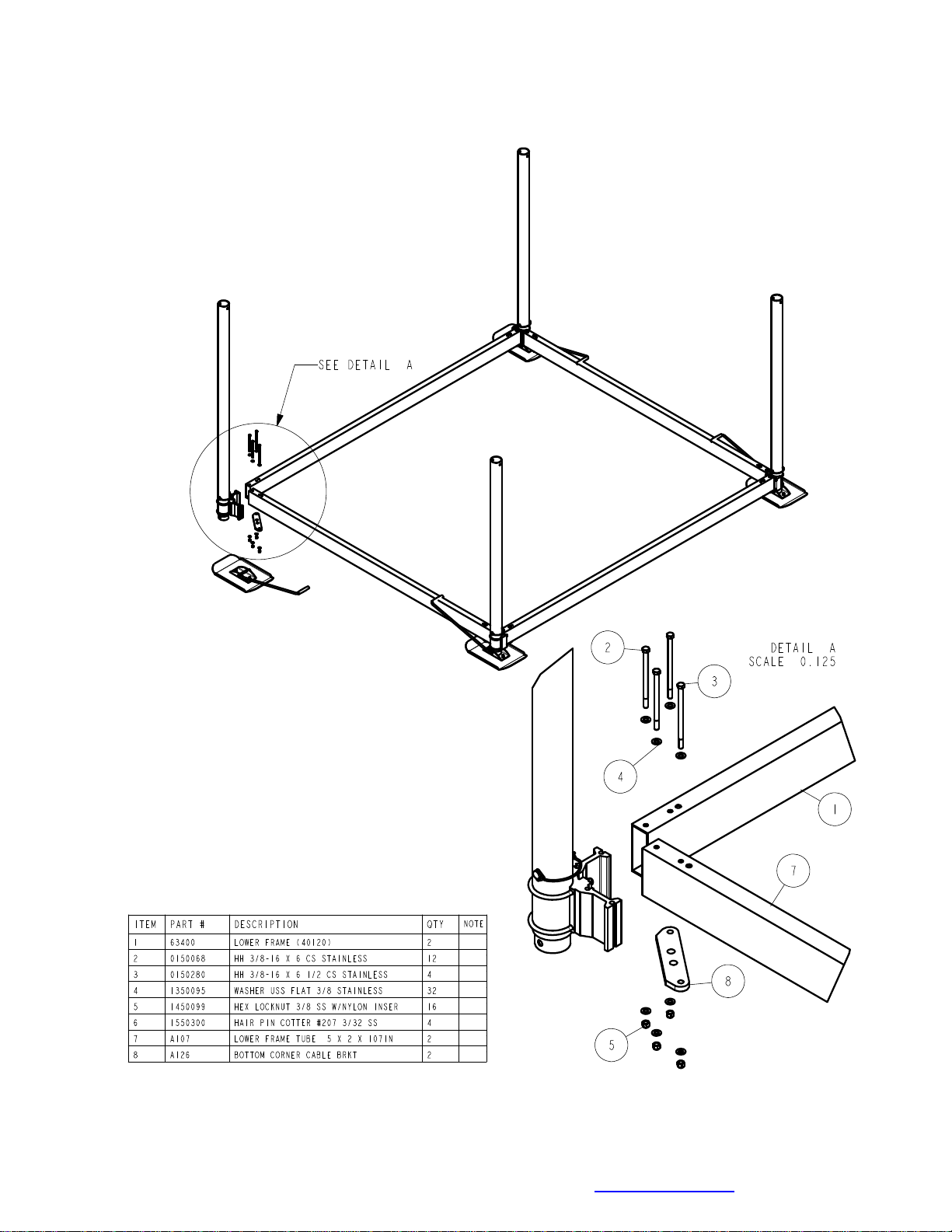

Lower Frame Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 10 of 43 9/16/2009

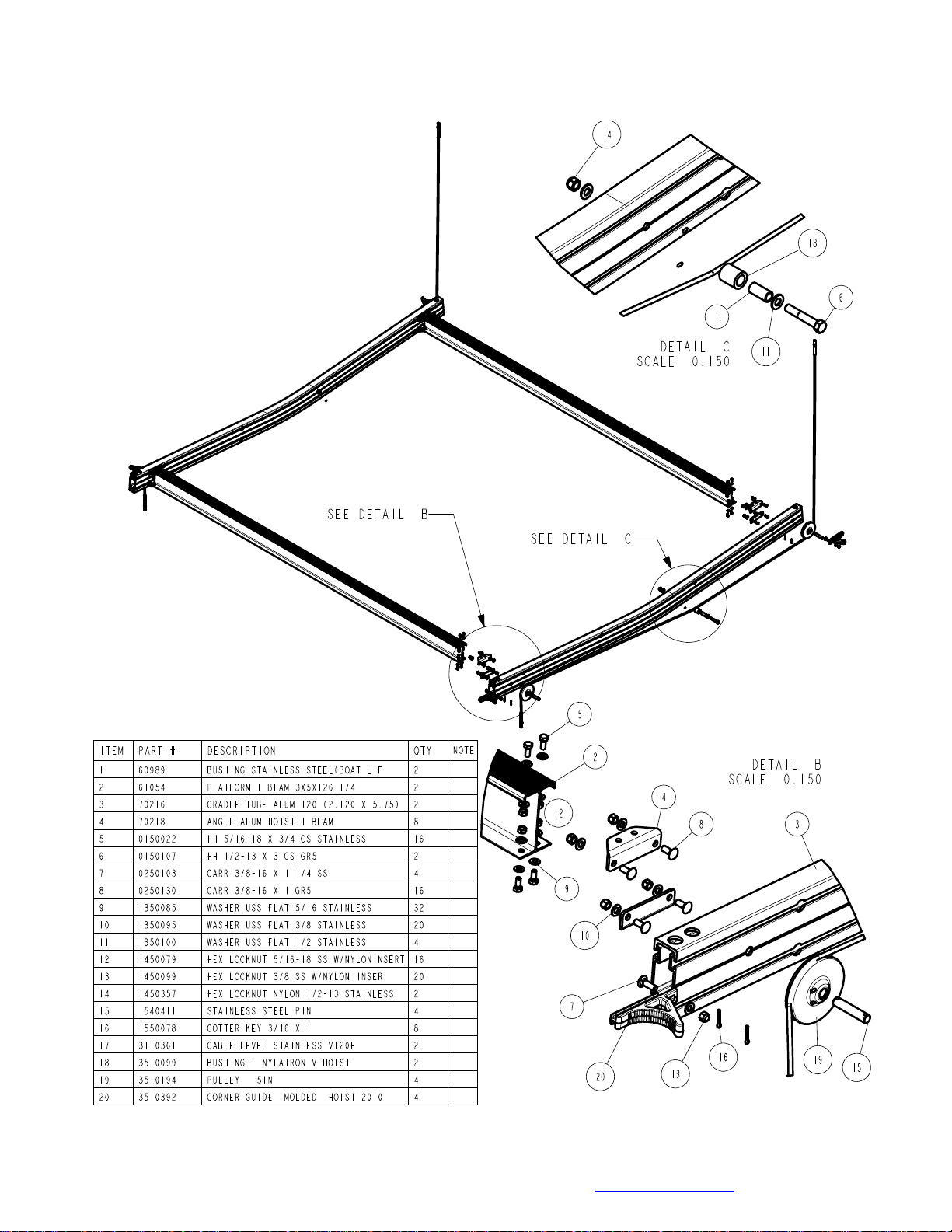

Aluminum Platform Assembly

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 11 of 43 9/16/2009

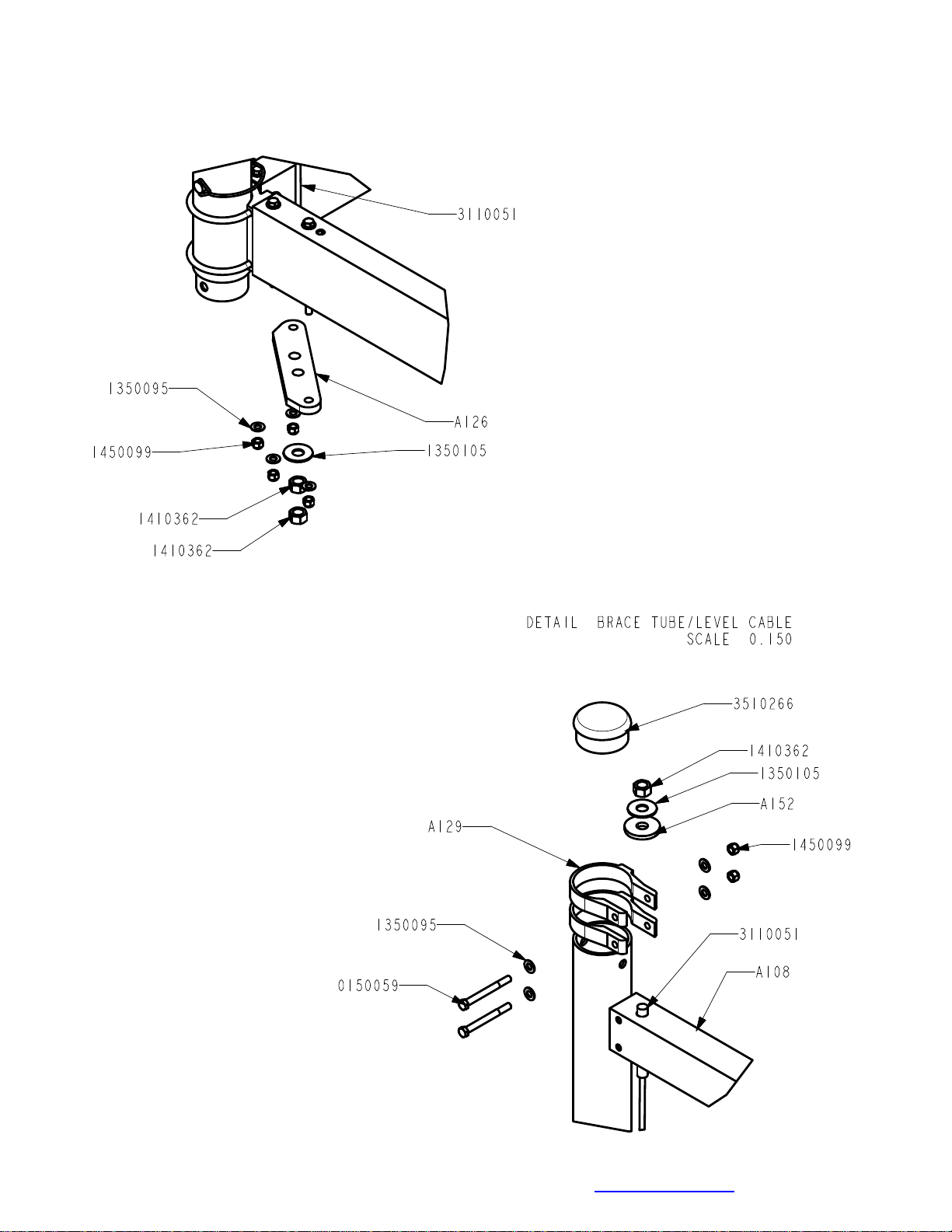

Brace Tube Mounting/Level Cable Mounting Hardware and Leg Tube Cap

Bottom Level Cable Mounting Hardware

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004126

Page 12 of 43 9/16/2009

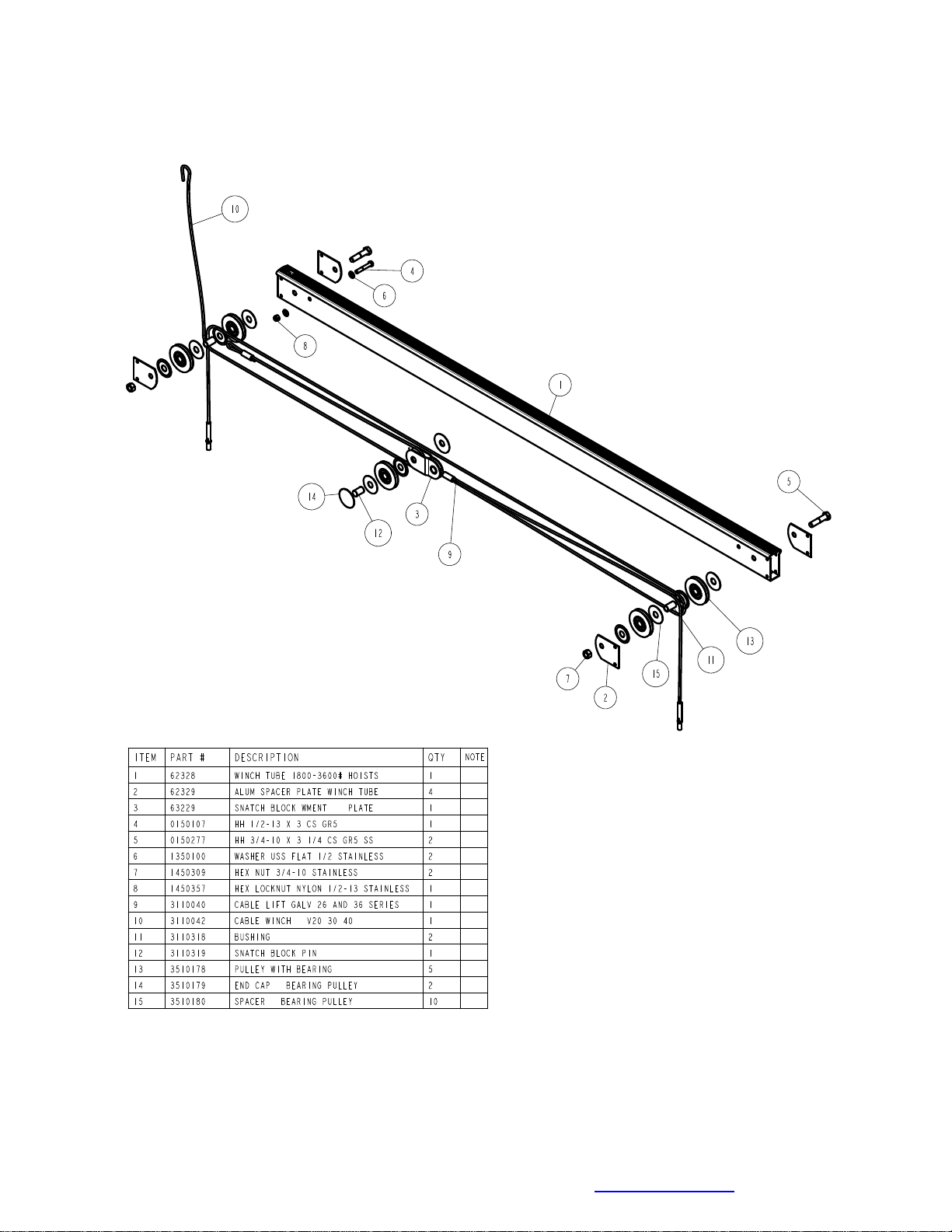

Winch Tube Assembly
