Showven SPARKULAR JET Manuale utente

USER MANUAL

SPARKULAR JET

V2.0

2021/04/07

Showven Technologies Co., Ltd

USER MANUAL

SPARKULAR JET

★Please read this manual carefully before operating this product.

★Warranty card attached in the manual, please keep it well.

▲SAFETY CONSIDERATIONS

\Unauthorized repair are prohibited, it may cause serious incident

\Keep the device dry, do NOT use in rain or snow

\Make sure lid of feeding hopper are well covered when use SPARKULAR JET. Accidentally bur

ning of Composite Ti can only use sands to extinguish. Composite Ti should keep away from mo

isture and stored in a dry sealed environment

\Keep audience, animals or flammable objects at a minimum distance of 3m from SPARKULAR

JET. Make sure sparks shoot out from SPARKULAR JET can NOT touch any objects in the air

\Please be noted that there may sparks or remains fall to the ground. Make sure there is no fla

mmable objects such as carpet on the ground (with a radius of 3m close to the machine)

\Never touch the nozzle of SPARKULAR JET, danger of getting burnt

\Never touch the sparks which shooting out from the nozzle

\Cover of nozzle of SPARKULAR JET is prohibited

\For better heat dissipation, block the air intake and air outlet is prohibited

▲Description

SPARKULAR JET is another brand new effect originally invented by SHOWVEN. It generates a

flashing SPARKULAR effect up to 10m. Built-in automatic air compressor, no external pressure

tank needed, makes it easier for setup and fewer usage restrictions. It is perfect effects solution

for stadium, concerts etc. medium to large events

▲Technical Specifications

\ Dimension: 320 280 300mm

\Weight: 16.5kg

\ Housing material: 304 Stainless steel

\ Input: AC 100V-120V,50/60Hz, Max.cascade:3PCS

AC 200V-240V,50/60Hz, Max.cascade:6PCS

\ Work power: 350W

\ Work Temp.: -10 ~50

\ Effect height: HC8200 LARGE(8-10m) / HC8200 MEDIUM(6-8m) / SMALL(4-5m)

\ Hopper capacity: 450g

\HC8200 consumption: HC8200 LARGE/MEDIUM 10-15g/shot; HC8200 SMALL 4-6g/shot

\ Interface: 3-pin and 5-pin DMX IN/OUT, NEUTRIK POWERCON TURE 1

\ Control: Standard DMX, 2 Channels

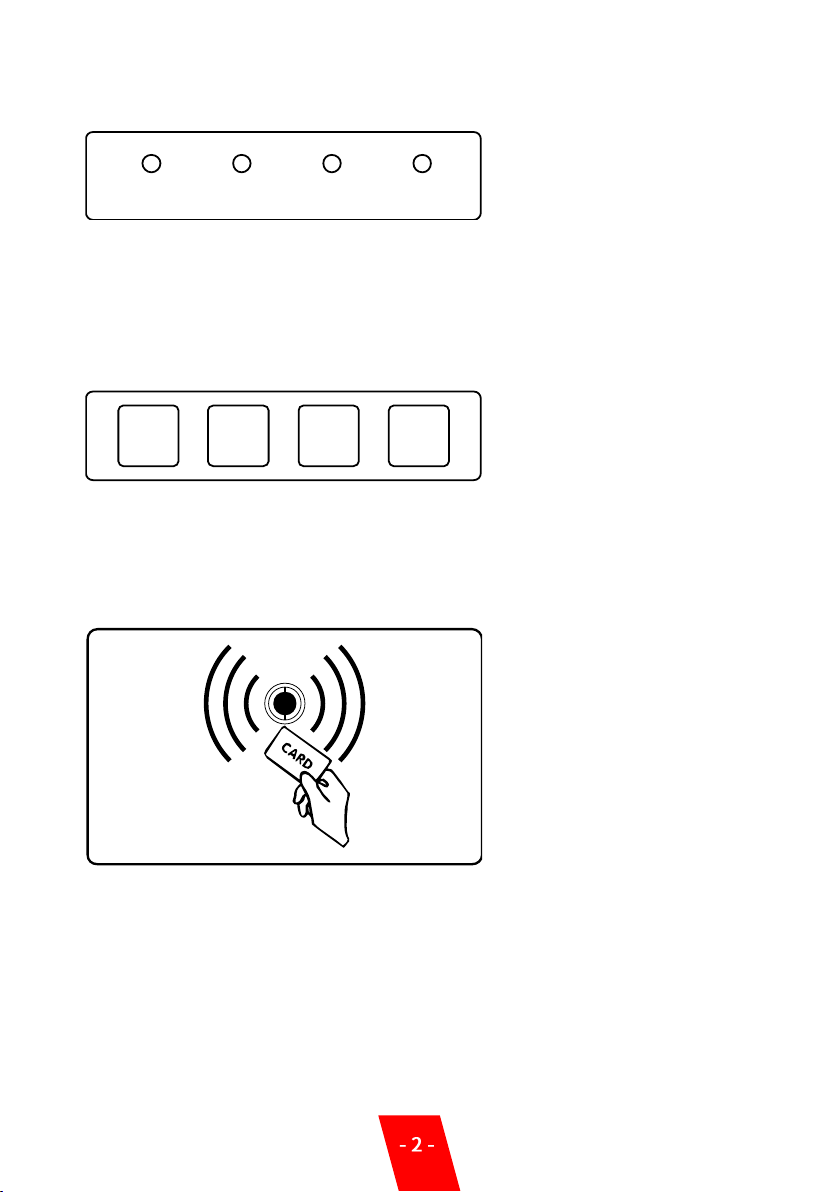

▲Operation Panel

1. LED display area:

READY DMX FAU LT HEAT

READY: Green light flashing means heating up. Turns from flashing into long on, indicates that

the machine is ready to work

DMX: Flashing shows that DMX signal is connected, light OFF means there is no DMX signal

FAULT: Light ON when error occurs

HEAT: Light ON when system is heating up

2. Control button area:

MENU DOWN UP ENTER

MENU: switch through setup menu. Press 3s switch to advanced interface

DOWN: parameter down

UP: parameter up

ENTER: confirm and save parameters

3. RFID area:

RFID card comes together with HC8200. It is a safety design, allows machine to identify the

parameter and types of consumable

Please note that granules RFID card can increase the single machine specific working time. The

card is disposable, can only use once

▲Interface

1. Main Interface:

DMX: 11 P: 0

T: 19 Delay: 1.0s

First Line: DMX address, current pressure value

Second Line: inner core temp. delayed firing time

The working principle of the machine is when the firing is triggered, it takes some time (jet

delay) for the system to transfer and stimulate the consumables. When it reached the delayed

firing time, the valve will open automatically and firing activated

2. Error information:

3. Setting Menu:

Press “MENU”switch through setup menu.

Error information

Explanation

E0 System IC

1. Emergency stop was executed when

firing was triggered, and firing stops. E0

disappear automatically 1min later

2. Too frequent firing in a short period of

time, E0 disappear 100s later

E1 Pump Protect

It happens when continuous pressurization

fail, probably the pump was malfunction

E2 Temp. Sensor

Temperature sensor is not connected or

damage

E3 P Temp. Over

Chassis over-temperature

E4 Time Remain

Activated time for machine is not enough,

need to swap RFID card

E5 K Temp. Over

Inner core over-temperature

E6 Heat Fail

Heating fail, if recover automatically, please

pay attention to the power supply

Options

Range

Explanation

Set DMX Address

1-512

Set DMX address.

If controlled by Host Controller, please set

DMX address as 1, 3, 5, 7,…2n-1, otherwise

it may leads to signal interference

Set Pressure

15-45

Adjust the pressure value, the higher the

pressure, the higher the effect; After

change the pressure please make a manual

clear to reset the pressure inside machine.

Manual Clear

On/Off

Manual clear material. Please be careful, do

NOT close to the nozzle

4. Advanced Menu:

Press “MENU”switch through setup menu.

*Please don't change default value without engineer's suggestion from SHOWVEN

5. DMX channel –2 channel mode:

First channel

Function

0-111

no function

112-255

Firing. To avoid false triggering, the trigger

time should maintain above 0.2s

Second channel

Function

60-80

Clear material, the valve will open when

clear matrial, and clear the consumable

remains in the pipeline. Please DO

remember to clear material after each show

20-40

Emergency stop, when firing was triggered,

operator can stop the firing during this jet

delay period. And machine will prompt E0

error

0-10

Pre-heat OFF (disabled when auto-heat ON)

240-255

Pre-heat ON (disabled when auto-heat ON)

Options

Range

Explanation

Set Temperature

580-620

Set inner core temp

Auto Heat

On/Off

Auto heat ON/OFF when switch on machine

Jet Delay

0.5-2.0s

Firing delay set, time delay between press

firing on DMX/controller (firing trigger) and

actual sparks out from the nozzle

Mode Selection

Factory Mode/ User

Mode

Factory mode is for engineer only. When in

Factory mode machine can’t controlled by

DMX console/host controller

Standby Switch

On/Off

Standby function. When ON, the machine

can firing only when heating up was

finished

Ext. Ignite

On/Off

When use fireworks firing system to firing

the machine. Customized design for

fireworks customer

Feeding Test

On/Off

Test the feeding structure and feeding

motor

Fan Test

On/Off

Test the blowing fan

Feeding1 Time

0.1-0.3s

Feeding time of the HC8200 from the

hopper

Feeding2 Time

0.5-3.0

Working time of shaft motor, Feeding2 time

should shorter than Jet Delay time

6. When use SHOWVEN original host controller. Please follow bellowing rules to set DMX

address, otherwise it may leads to signal interference. The firing duration set on host

controller should be larger than 0.2s, and effect height set 5-10

Sparkular Jet

No.

DMX Address

Warranty Instructions

▲Sincere thanks for your choosing our products, you will receive quality service from us

▲The product warranty period is one year. If there are any quality problems within 7

days after shipping out from our factory, we can exchange a brand new same model

machine for you

▲We will offer free of charge maintenance service for machines which with hardware

malfunction (except for the instrument damage caused by human factors)in warranty

period. Please don't repair machine without factory permission

Below situations NOT included in warranty service:

1. Damage caused by improper transportation, usage, management, and maintenance, or

damage caused by human factors;

2. Disassemble, modify or repair products without Showven’s permission;

3. Damage caused by external reasons (lightning strike, power supply etc)

4. Damage caused by improper installation or use;

For product damage not included in warranty range, we can provide paid service.

Invoice and warranty card are necessary when applying for maintenance service from

SHOWVEN.

Warranty Card

Product Name:

Serial No.

Purchase Date:

Tel:

Address:

Info. feedback

about the

problem:

Actual problem:

Maintenance

detail:

Service Engineer:

Service Date:

Showven Technologies Co., Ltd.

Tel: +86-731-83833068

Web: www.showven.cn E-mail: info@showven.cn

Add: Liuyang Economic Development Zone, Changsha, 410300, Hunan Province,

P.R.China
