Shure ULX Wireless System Manuale utente

ULX

Shure ULX Wireless

The Shure wireless system, ULX, user guide.

Version: 3.1 (2020-L)

Shure Incorporated
2/31
Table of Contents
ULX   Shure ULX Wireless 4
ULX System Components 4
Antennas 6
Active Antennas 6
Antenna Combiners and Accessories 6
Rack Installation 8
Rackmount Options 8
Power 9
Power switch 10
Power Connector 10
Batteries 10
Installation 10
Battery Life 10
Power/Mute Switch 11
Power Indicator (BAT) 11
Battery Indicator 11
Single System 11
Multiple Systems 12
Automatic Frequency Scan 12
Channel Scan 12
Group Scan (ULXP4 only) 13
Changing Group and Channel 13
Change Channel 14
Change Group 14
Wireless Indicators 14
RF Indicator 14
Antenna Indicator 15
Frequency Display 15
TV 15
Frequency Master List Mode 15
Squelch (ULXP4 Only) 16
Audio Output 16
Audio Output Connectors 16
Receiver Output Level 17
PEAK Icon 17
Transmitter Gain 18
ULX1 18
ULX2 19
Locking the Receiver (ULXP4 Only) 19
Unlocking 19
Locking the Transmitter 20
Lock/Unlock Power (On) 20
Lock/Unlock Frequency 20
Troubleshooting 20
Tips for Improving System Performance 21
Parts and Accessories 21
Included Accessories 21
Optional Accessories 21
Replacement Parts 22
Certifications 23
Important Product Information 23
LICENSING INFORMATION 24
Information to the user 24

Shure Incorporated

3/31

Australia Warning for Wireless 24

Wiring Diagram 24

Specifications 25

Frequencies for European Countries 27

Shure Incorporated

4/31

ULX 

Shure ULX Wireless

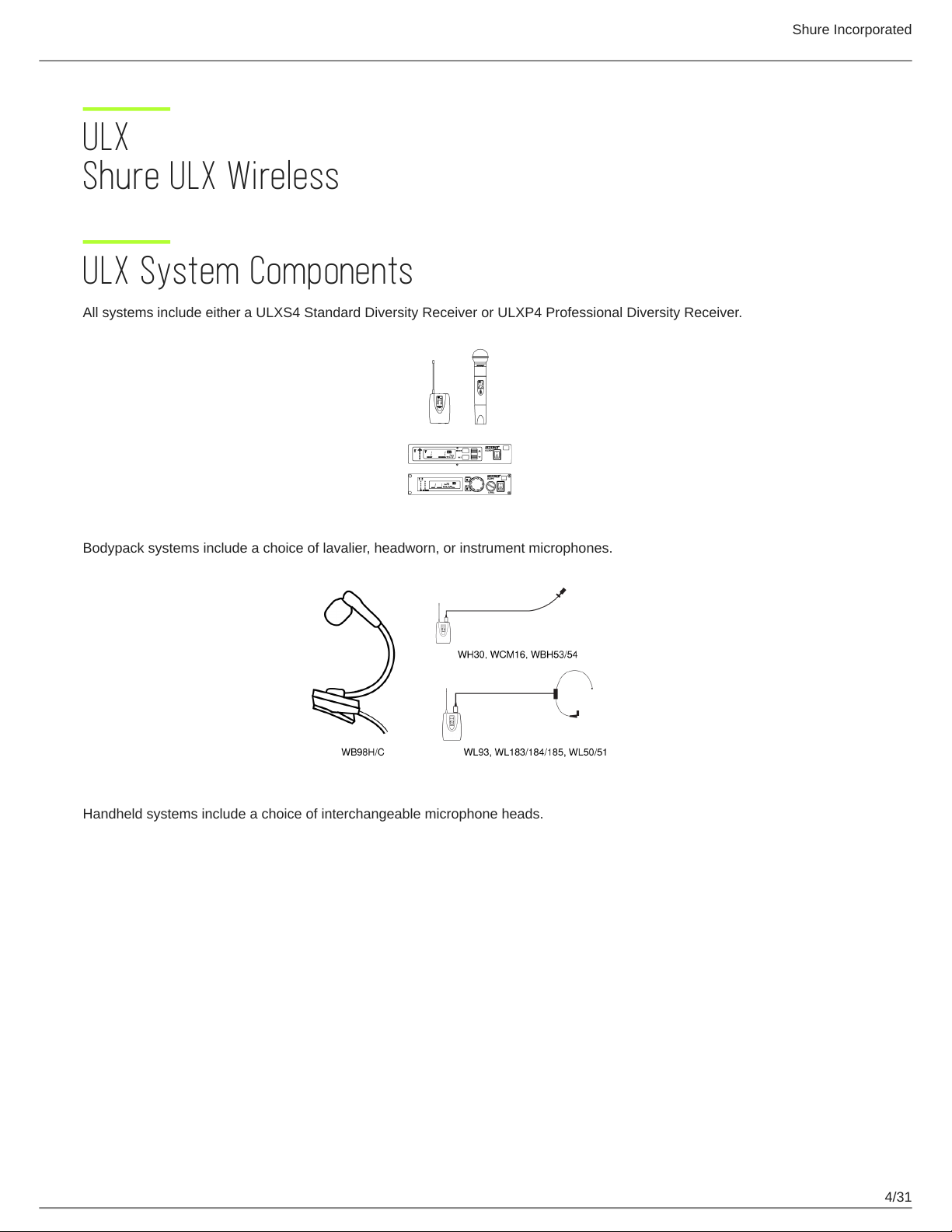

ULX System Components

All systems include either a ULXS4 Standard Diversity Receiver or ULXP4 Professional Diversity Receiver.

Bodypack systems include a choice of lavalier, headworn, or instrument microphones.

Handheld systems include a choice of interchangeable microphone heads.

Shure Incorporated

5/31

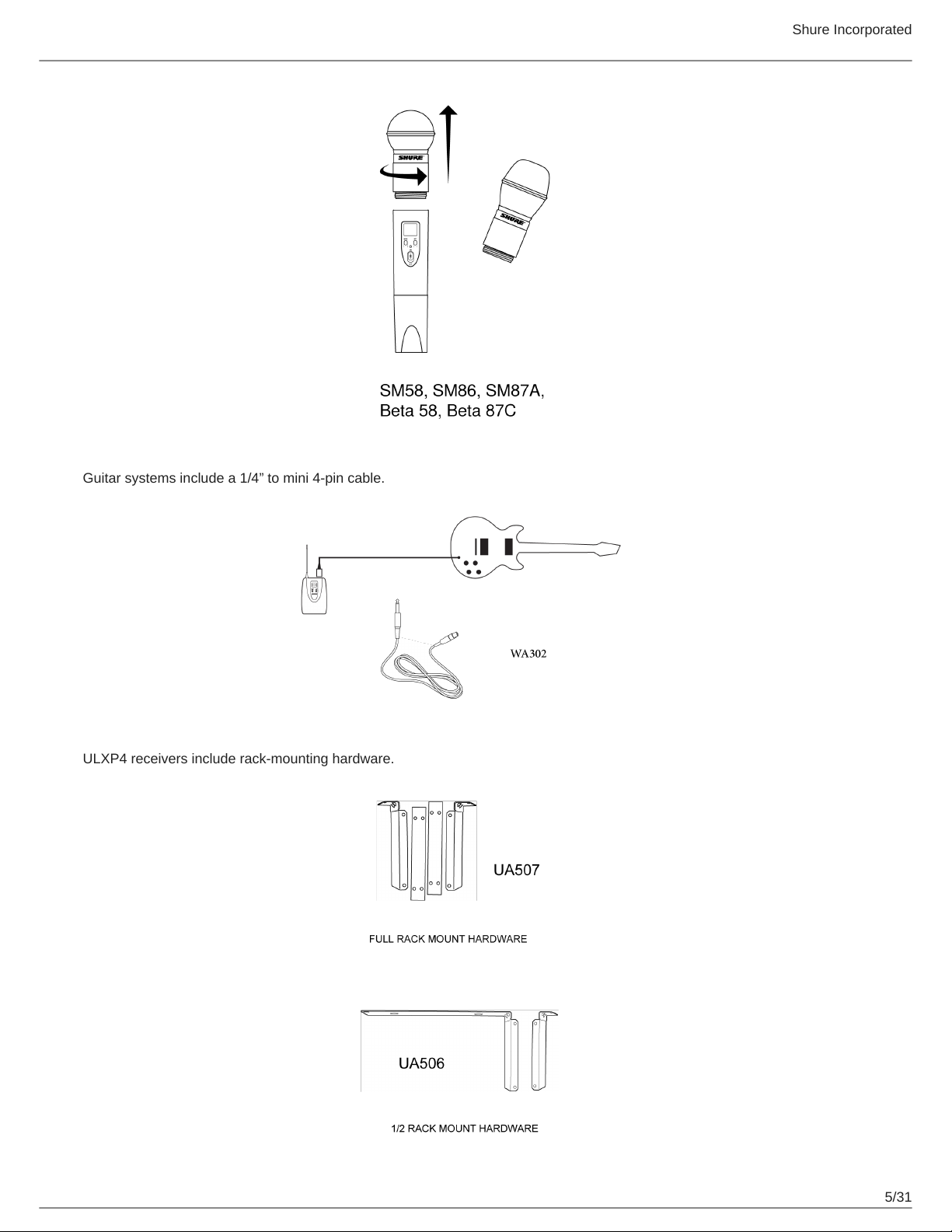

Guitarsystemsincludea1/4”tomini4-pincable.

ULXP4 receivers include rack-mounting hardware.

Shure Incorporated

6/31

•

Antennas

Active Antennas

TheantennaconnectorsontheULXreceiverprovide12VDCforactivecircuitantennas.

Caution: Use only Shure antenna accessories to ensure the best operation. Do not use splitters, combiners, or antennas that provide a DC ground, as this can

cause the receiver to function improperly.

Antenna Combiners and Accessories

The supplied antennas can be connected directly to the BNC-type ANTENNA connectors. However, optional antenna mounting

accessories from Shure can improve reception and reduce rack clutter. Use the following guidelines:

Antennas and receivers must be from the same band.

Mount antennas more than 40 cm (16 inches) apart.

Use Shure UA825 or UA850 low-loss coaxial antenna cable (or any 50 ohm, low-loss cable such as RG-8U).

Visit www.shure.com for more information on wireless antenna accessories.

Coaxial Cables

Shure Incorporated

7/31

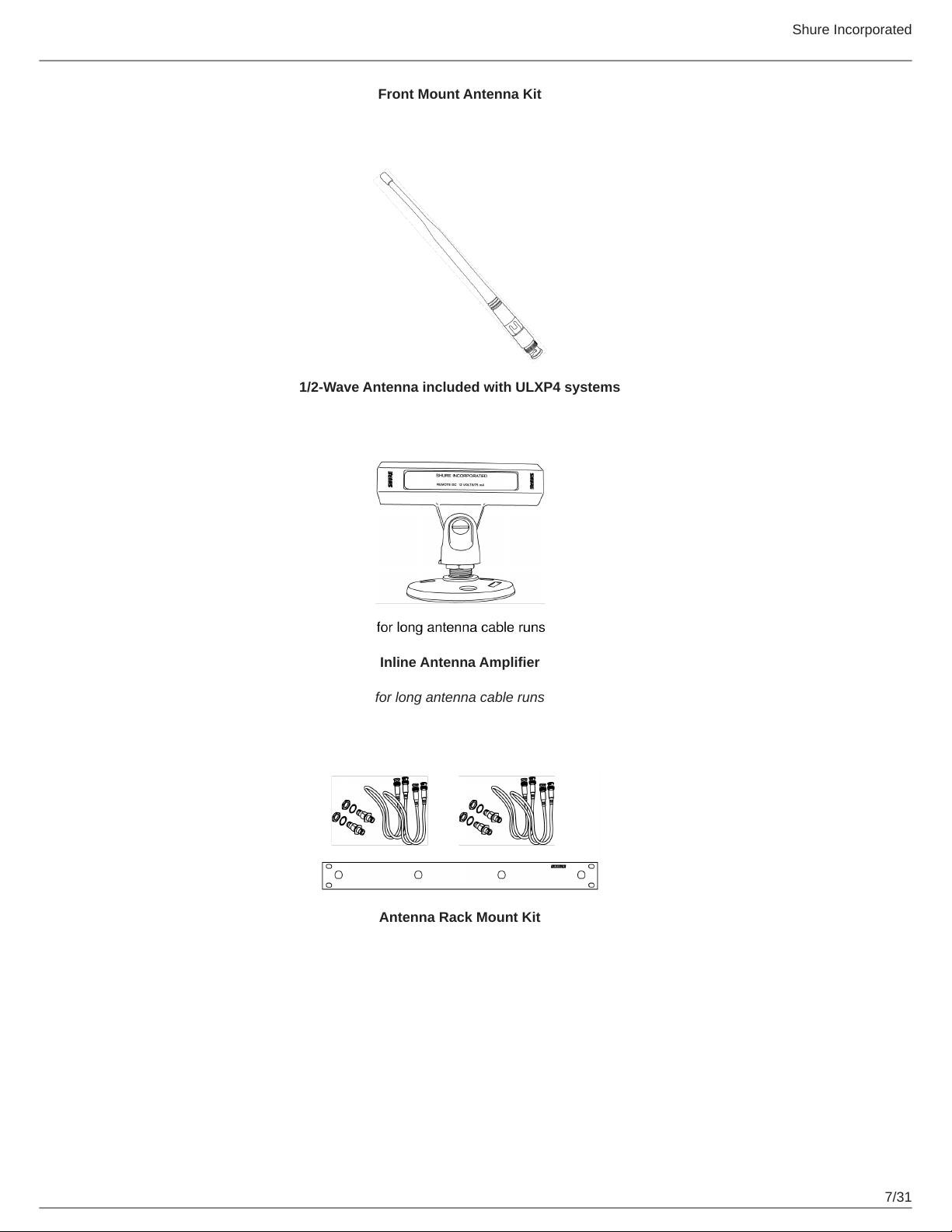

Front Mount Antenna Kit

1/2-Wave Antenna included with ULXP4 systems

Inline Antenna Amplifier

for long antenna cable runs

Antenna Rack Mount Kit

Shure Incorporated

8/31

Active Directional Antenna

for more focused reception

Distribution Amplifier

combines antennas and power supplies for multiple receivers

Rack Installation

Shure Incorporated

9/31

Rackmount Options

The following shows rackmounting options for one to four receivers and lists the required accessories.

Power

Shure Incorporated

10/31

•

Power switch

Power Connector

ConnectusingthesuppliedACadapterorcertified14–18Vdc(550mA)replacementsupply.

Batteries

Installation

Battery Life

Use only 9V alkaline or lithium batteries. Typical life for common types of 9V batteries are listed below. For detailed information

on battery performance, contact Shure Applications Engineering.

Recommended:

Lithium (16 hours)

Alkaline (8 hours)

Not recommended:

Carbon-Zinc (½ hour)
