Shure Centraverse Series Manuale utente

27A20376 (Rev. 1)

5 mm

(3/16 in.)

14 mm

(9/16 in.)

Centraverse Desktop Base

Installation

For additional information on product use, see

the user guide for the Shure Centraverse CVG

Gooseneck microphone.

Centraverse™ Series

Installed Sound Microphones

CVD

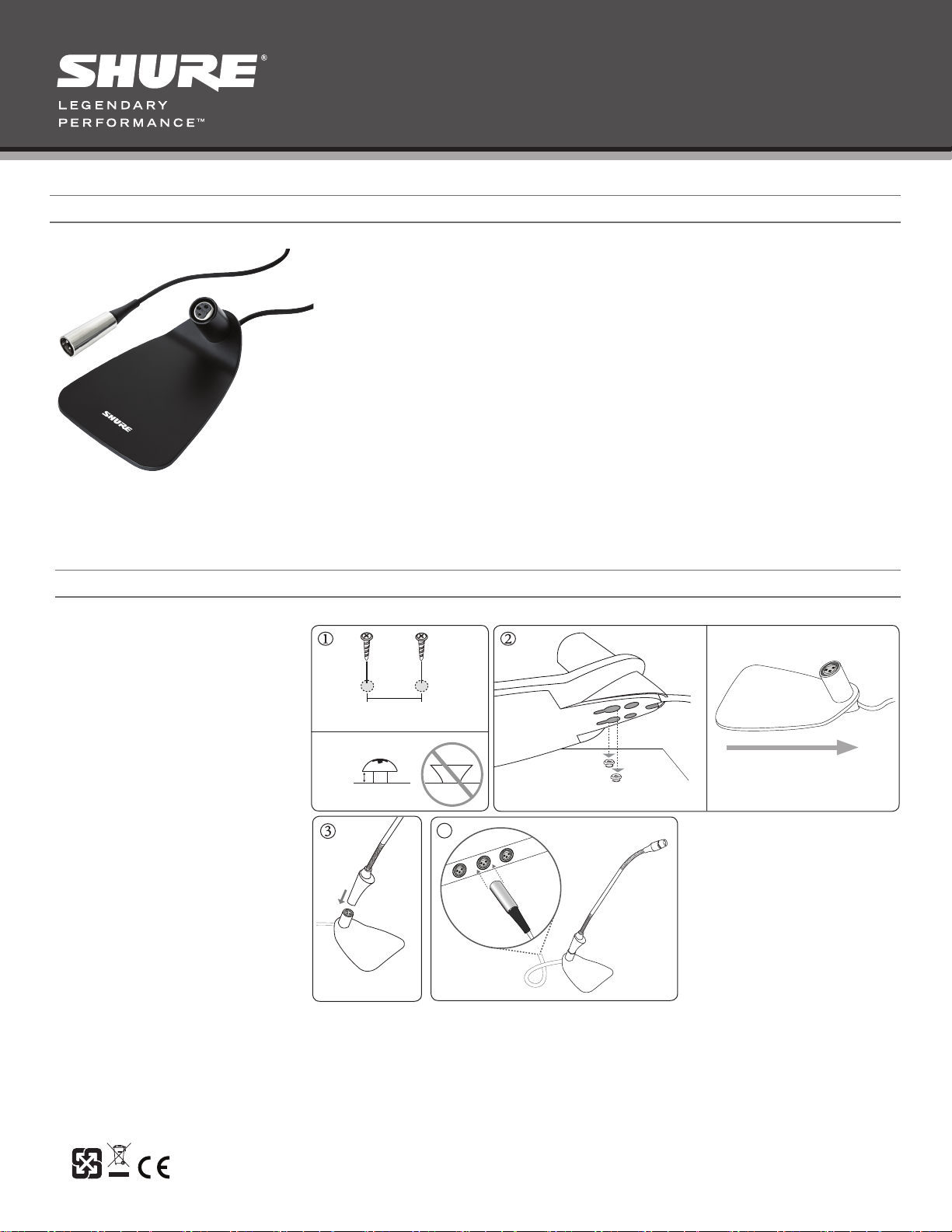

1. Install two screws into the mounting surface, exactly

14 mm (9/16 in.) apart. Leave a 5 mm (3/16 in.) gap

between the screw head and the mounting surface.

Only use screws with a flat-bottom head.

2. Place the microphone onto the screws and slide

backwards to lock into place. The cable can be rout-

ed through either the back or the bottom of the base.

3. Connect the gooseneck microphone to the base (mi-

crophone sold separately).

4. Connect the integrated XLR cable to a mixer or P.A.

system.

Note: This microphone requires +48V phantom

power to operate.

The Shure Centraverse CVD is a sleek desktop base that is compatible with all Centraverse 12” and 18” gooseneck

microphones. Featuring CommShield® technology, it provides RF intereference immunity and transparently passes

audio from the gooseneck microphone to a sound reinforcement system.

Features

• Black finish that blends unobtrusively with most surroundings

• Attached 12 ft XLR cable can run through the back or bottom of the base

• Mounting holes for secure installation

• Compatible with all Centraverse gooseneck microphones

Certifications

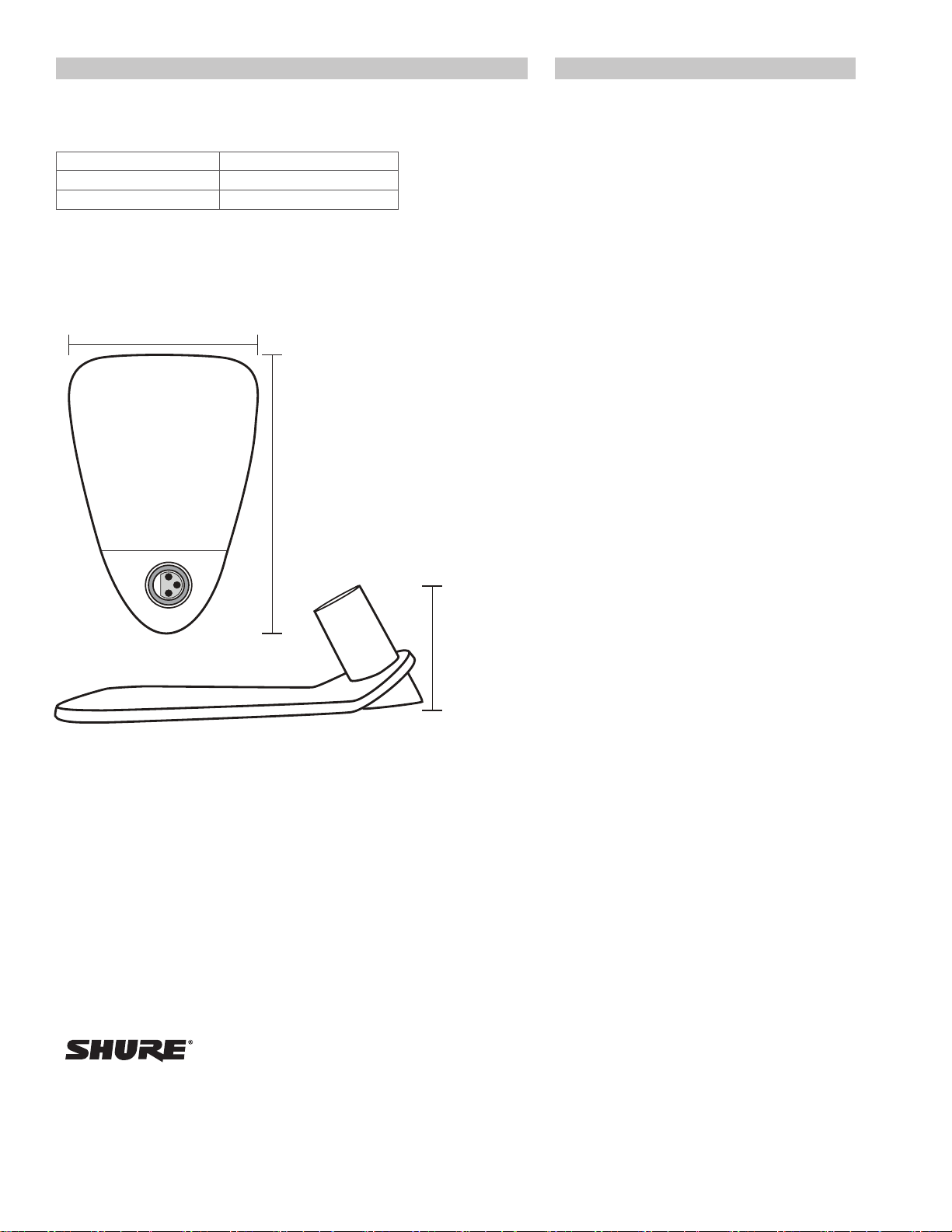

4.328”

(110 mm)

2.25 in.

(55 mm)

6.25”

(158 mm)

Specifications

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Environmental Conditions

Operating Temperature –18 to 57°C (0 to 135°F)

Storage Temperature –29 to 74°C (–20 to 165°F)

Relative Humidity 0 to 95%

Weight

19.2 oz. (544 g)
