Shure GLXD6+ Manuale utente

GLXD6+

Guitar Pedal Receiver

Online user guide for GLXD6+ wireless system. Includes setup instructions, specifications, and more.

Version: 1.1 (2023-A)

Shure Incorporated
2/38
Table of Contents
GLXD6+   Guitar Pedal Receiver 3
System Overview 3
Features 3
Guitar Pedal Receiver 3
Display Screen, Indicators, and Controls 4
Receiver Mode 4
Tuner Mode 5
Set Up the Receiver 6
Bodypack Transmitter 6
Transmitter Status LED 8
Wearing the Bodypack 8
Install Transmitter Batteries 8
Batteries and Charging 9
Charging from an AC Power Source 9
Charging Status LEDs 9
Charging Times and Transmitter Runtimes 10
Transmitter Battery Meter 10
Important Tips for Care and Storage of Shure Recharge
able Batteries 11
Tips to Improve Wireless System Performance 11
Additional Tips 11
Receiver Operation 11
Audio Gain Adjustment 11
Locking and Unlocking the Controls 12
Identifying Linked Transmitters and Receivers with Re
mote ID 12
Receiver Band Modes 12
Tuner Menu 13
Tuner Options 13
Indicator: Needle or Strobe 13
Choosing Live or Mute Audio Output 14
Display Brightness 15
Detune 15
Sharps and Flats 15
Reference Pitch 16
Using the Tuner 16
Needle Mode 16
Strobe Mode 17
Using a Third-Party Power Supply 17
Firmware 18
Resetting Components 18
Resetting the Receiver 18
Resetting the Transmitter 19
Troubleshooting 19
Accessories 20
Specifications 21
Diagrams 25
Frequency Tables 26
IMPORTANT SAFETY INSTRUCTIONS 32
WARNING 34
Note: 34
Information to the user 34
Certifications 35

Shure Incorporated

3/38

•

GLXD6+

Guitar Pedal Receiver

System Overview

GLX-D+ Dual Band Digital Wireless offers confidence without complexity. Dual-band operation in 2.4 and 5.8 GHz more than

doubles the available bandwidth to avoid interference without audio interruption. The receiver is compatible with a selection of

lavalier, headset, and vocal microphones. The included lithium-ion battery offers up to 12 hours of runtime, and can be charged

directly on the receiver or via USB-C.

Features

Exceptional digital audio clarity

Compatible with multiple legendary microphone options

Automatically moves away from interference without audio interruption

Operates in 2.4 and 5.8 GHz spectrum

Rechargeable battery delivers up to 12 hours of runtime

Rock-solid RF performance for multiple system installations

License-free frequency range

Guitar Pedal Receiver

Shure Incorporated

4/38

①DC power connector

Connect DC power supply (9 to 15 V DC, 400 mA minimum).

Note: Compatible with positive tip or negative tip power supplies.

②INSTR IN Use receiver as a wired guitar pedal tuner.

③INSTR OUT

Connect to amplifier or mixer.

Note: If using multiple effects pedals, place the receiver pedal first in the signal chain.

④USB-C port Connect to computer to download firmware updates.

⑤Display Shows receiver and tuner settings. See below for more information on display controls.

⑥Antenna Two antennas per receiver. Antennas pick up the signal from the transmitter.

⑦Footswitch Press to select receiver or tuner mode.

Display Screen, Indicators, and Controls

The controls and display offer specific functionality depending on which mode is selected:

Receiver Mode

① Transmitter battery me

ter Illuminated segments indicate remaining battery life.

②Display

Group

Channel

LK (controls locked)

Shure Incorporated

5/38

•

UN (controls unlocked)

-- (frequency not available)

③Link button Press to manually link receiver to a transmitter or to activate the remote ID function.

④Mode button Press to enable audio gain adjustment. Use ▲ ▼ buttons to adjust gain.

⑤Audio LED Illumination corresponds to audio level. Rapid flashing indicates audio clipping.

⑥Mute LED Illuminates when audio output is muted.

⑦RF LED

ON = Linked transmitter is on

Flashing = Searching for transmitter

OFF = Linked transmitter off or transmitter unlinked

⑧Channel button Press to select and edit channel.

⑨Group button Press to select and edit group.

Tuner Mode

①Flat indicator Illuminates when note is flat.

②Tuning bar display LEDs illuminate to indicate tuning deviation.

③Sharp indicator Illuminates when note is sharp.

④Note display Displays the name of the note or (--) if the tuner is idle.

⑤Mode button Press to enter tuner menu settings.

⑥Arrow buttons Use ▲ ▼ buttons to select and edit menu settings.

Shure Incorporated

6/38

⑦ Frequency detuned/Ref

erence pitch offset indica

tor

A dot is displayed when the tuning or pitch has been set to a non-standard value.

Note: Non-standard tuning or pitch settings scroll across the receiver display during power-up.

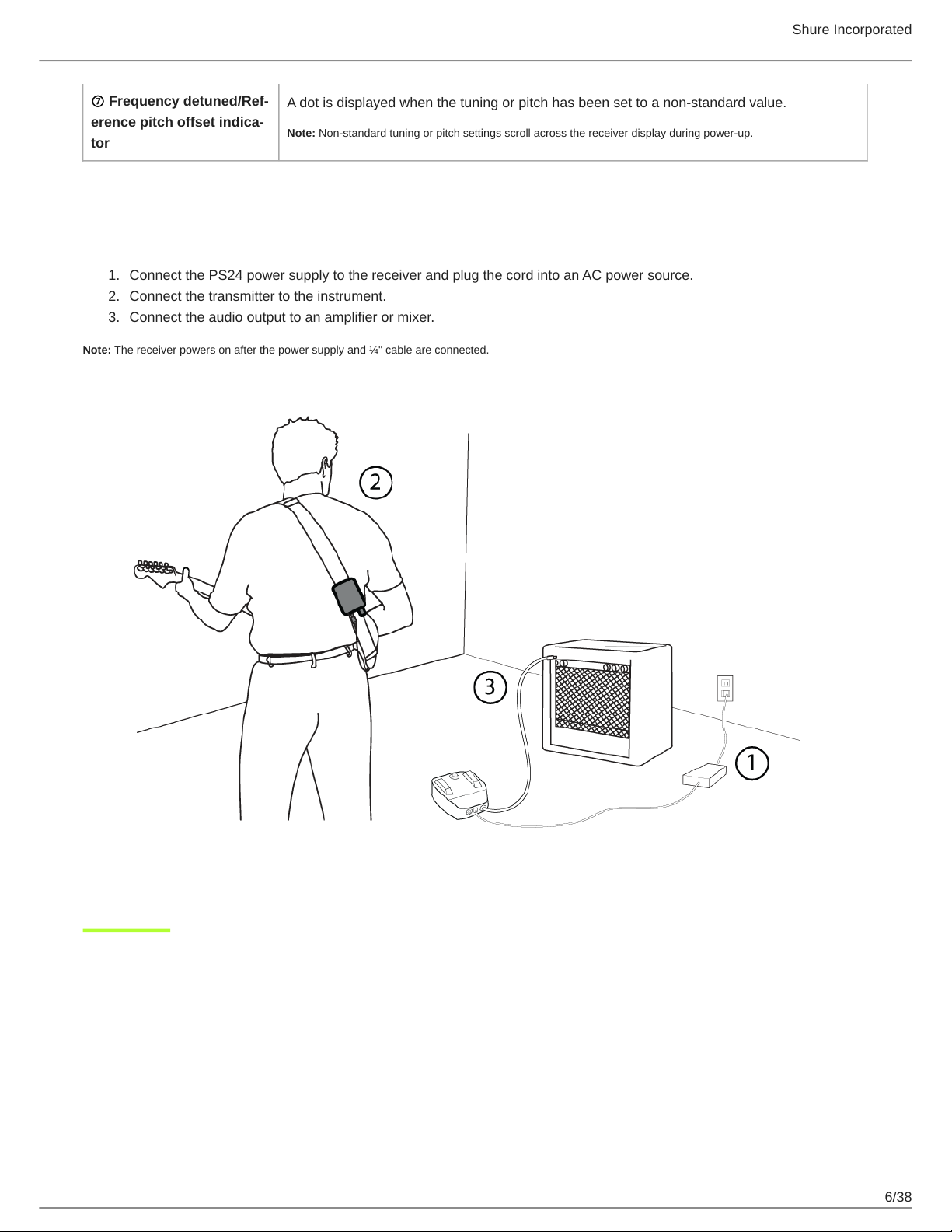

Set Up the Receiver

Connect the PS24 power supply to the receiver and plug the cord into an AC power source.

Connect the transmitter to the instrument.

Connect the audio output to an amplifier or mixer.

Note: The receiver powers on after the power supply and ¼" cable are connected.

Shure Incorporated

7/38

Bodypack Transmitter

①Antenna

Carries wireless signal.

②Status LED

LED color and state indicate transmitter status.

③Power switch

Turns the transmitter on/off.

④TA4M input port

Connects to a 4-Pin mini connector (TA4F) microphone or instrument cable.

⑤USB-C charging port

Connect to USB battery charger.

Shure Incorporated

8/38

◦

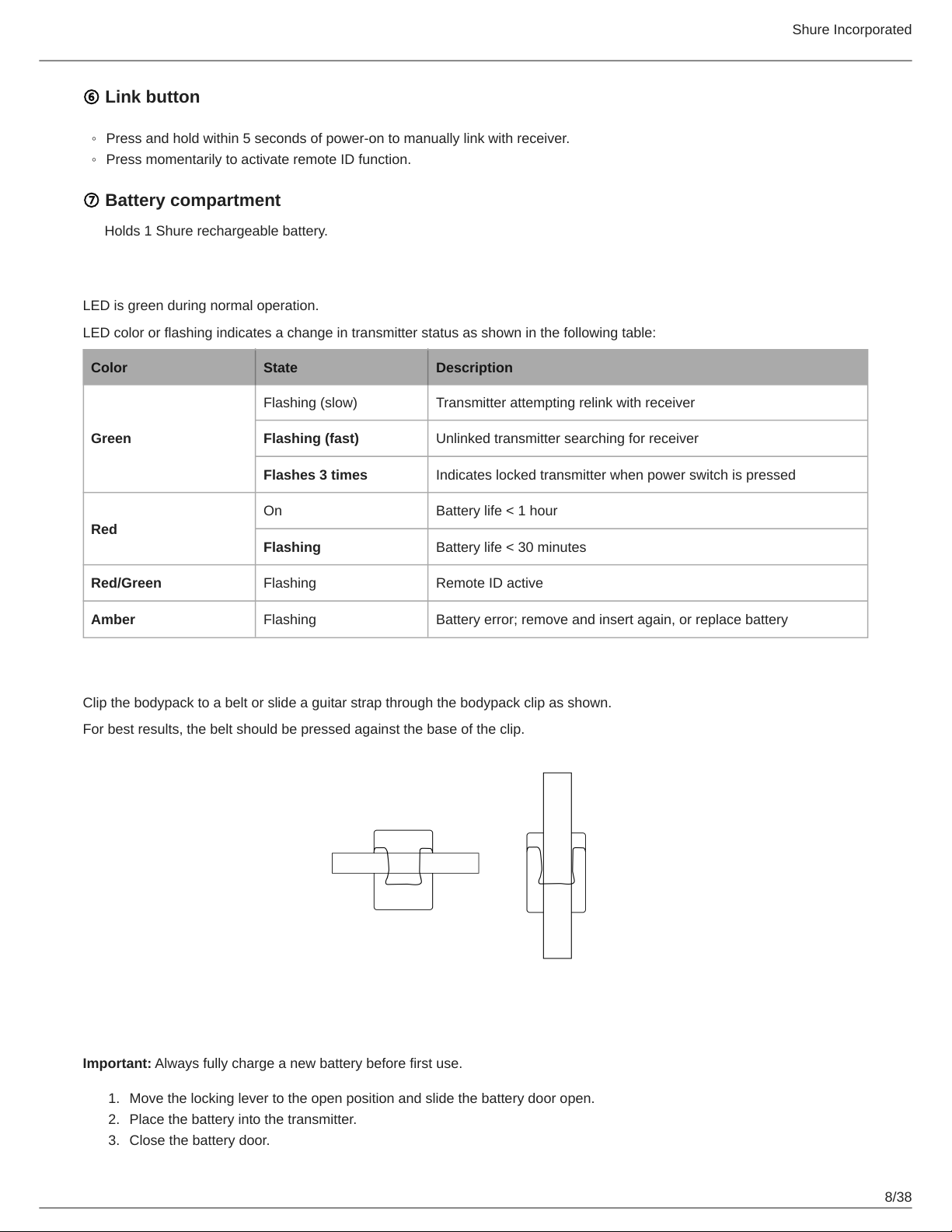

⑥Link button

Press and hold within 5 seconds of power-on to manually link with receiver.

Press momentarily to activate remote ID function.

⑦Battery compartment

Holds 1 Shure rechargeable battery.

Transmitter Status LED

LED is green during normal operation.

LED color or flashing indicates a change in transmitter status as shown in the following table:

Color State Description

Green

Flashing (slow) Transmitter attempting relink with receiver

Flashing (fast) Unlinked transmitter searching for receiver

Flashes 3 times Indicates locked transmitter when power switch is pressed

Red

On Battery life < 1 hour

Flashing Battery life < 30 minutes

Red/Green Flashing Remote ID active

Amber Flashing Battery error; remove and insert again, or replace battery

Wearing the Bodypack

Clip the bodypack to a belt or slide a guitar strap through the bodypack clip as shown.

For best results, the belt should be pressed against the base of the clip.

Install Transmitter Batteries

Important: Always fully charge a new battery before first use.

Move the locking lever to the open position and slide the battery door open.

Place the battery into the transmitter.

Close the battery door.

Shure Incorporated

9/38

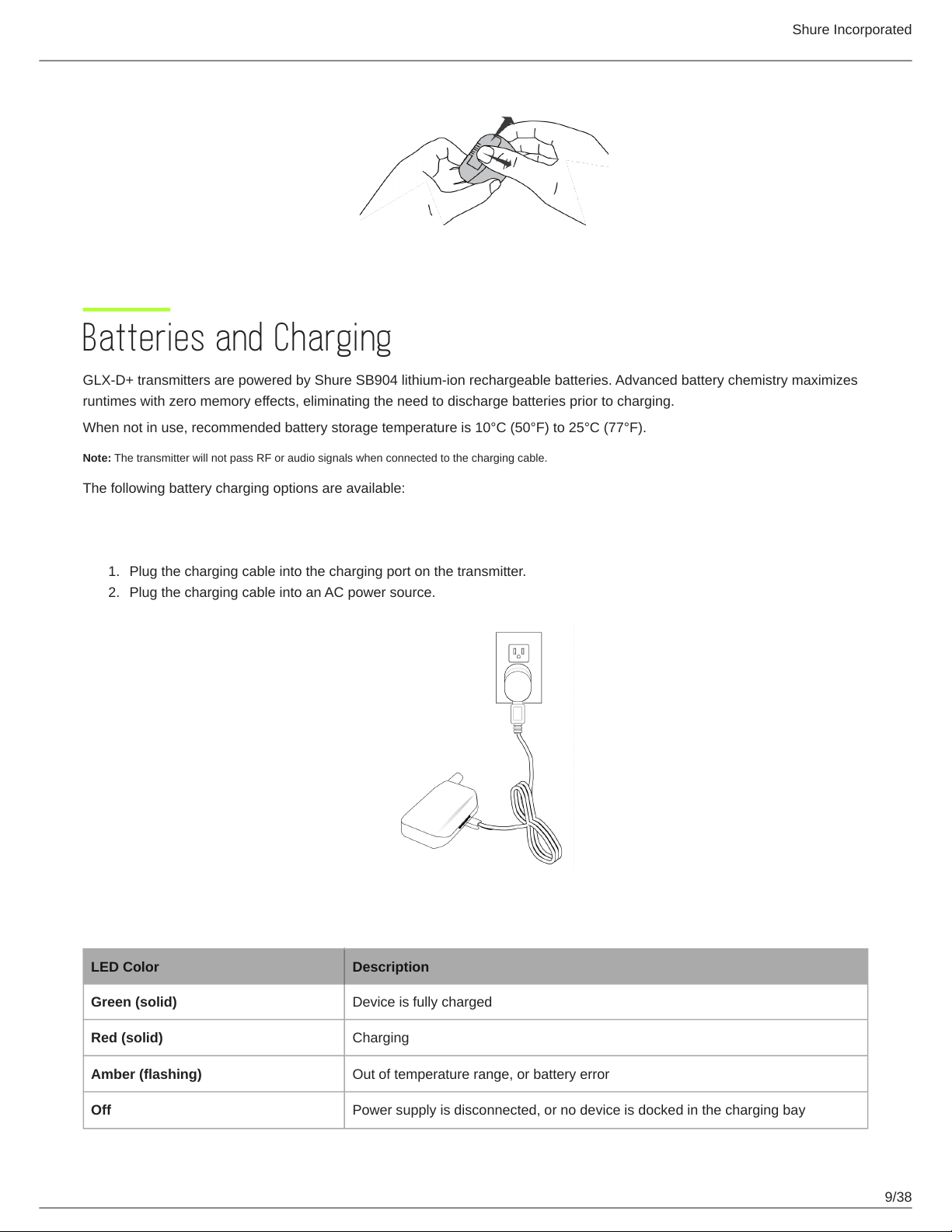

Batteries and Charging

GLX-D+ transmitters are powered by Shure SB904 lithium-ion rechargeable batteries. Advanced battery chemistry maximizes

runtimes with zero memory effects, eliminating the need to discharge batteries prior to charging.

When not in use, recommended battery storage temperature is 10°C (50°F) to 25°C (77°F).

Note: The transmitter will not pass RF or audio signals when connected to the charging cable.

The following battery charging options are available:

Charging from an AC Power Source

Plug the charging cable into the charging port on the transmitter.

Plug the charging cable into an AC power source.

Charging Status LEDs

LED Color Description

Green (solid) Device is fully charged

Red (solid) Charging

Amber (flashing) Out of temperature range, or battery error

Off Power supply is disconnected, or no device is docked in the charging bay

Shure Incorporated

10/38

Charging Times and Transmitter Runtimes

Use the following table to determine approximate battery runtime based on the duration of charging time when in 5.8 GHz

mode. Times shown are in hours and minutes. Transmitters automatically poweroff after approximately 1 hour to conserve bat

tery life if the signal from a linked receiver is not detected.

Receiver Bay or AC Power Source Charging Transmitter Runtime

0:15 up to 1:30

0:30 up to 3:00

1:00 up to 6:00

3:00 up to 11:30*

*Storage time or excessive heat will reduce maximum runtime.

Note: If receiver is powered off and remains plugged in, battery will continue charging.

Transmitter Battery Meter

The number of segments illuminated on the meter indicates the remaining battery life for a linked transmitter:

①= > 30 min

②= > 2 hours

③= > 4 hours

④= > 6 hours

⑤= > 8 hours

⑥= > 10 hours

⑦= > 11.5 hours

Note: The LEDs will cycle on/off while battery life is being calculated.
