Siemens S6 GSM Manuale utente

Private Communication Systems

Mobile Phones

Service Manual

S6 GSM / PCN

V 1.3

Total number of pages: 31

V1.3 1 PN MP ST

. Schnoor

10/97

Private Communication Systems

Mobile Phones

Table of Contents

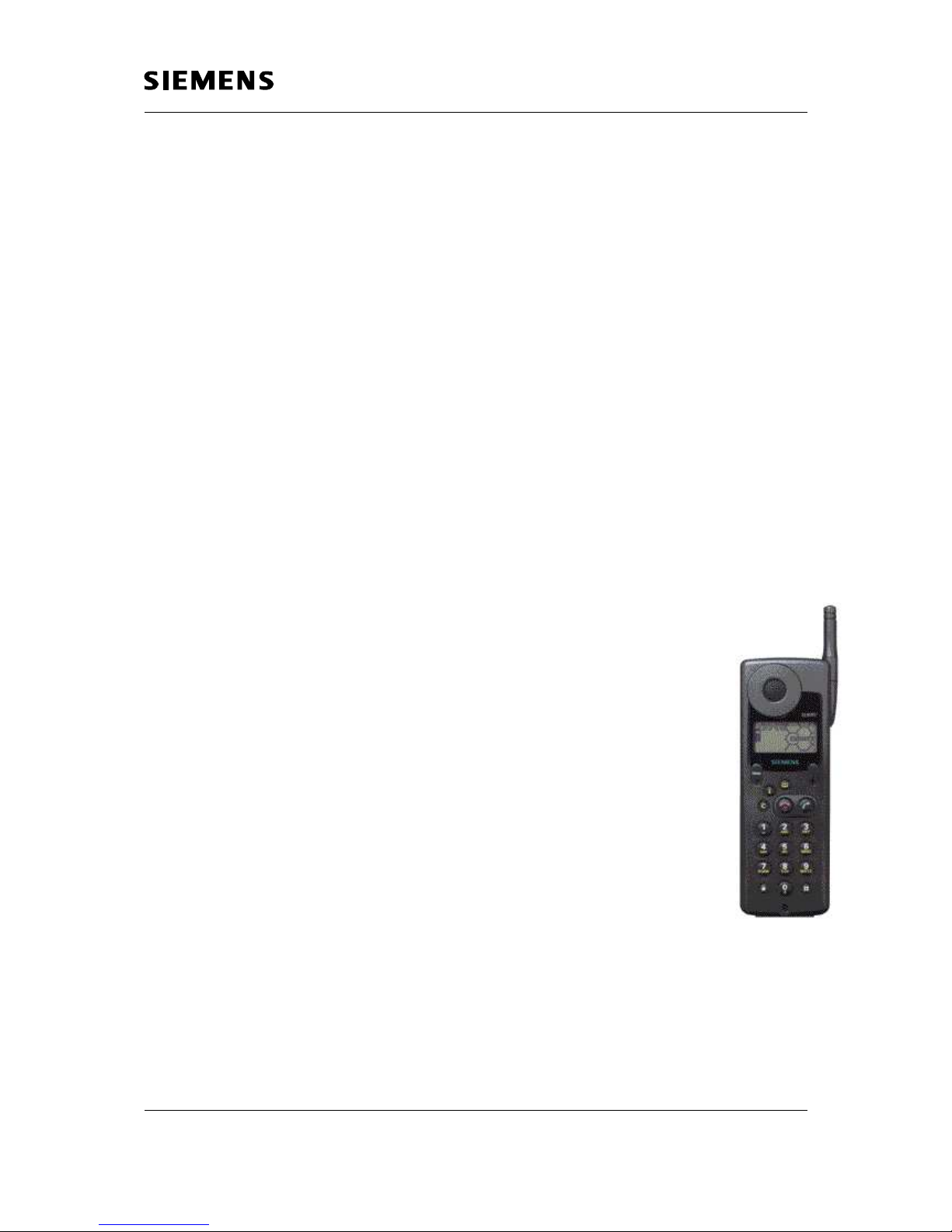

General Information

The S6 is the first model of a whole new handset generation in 3 Volt technology.

It comes either as a GSM or a PCN version.

V1.3 2 PN MP ST

. Schnoor

10/97

Technical Data

Length 159 mm

Width 55 mm

Thickness 16/22 mm

Volume 155 cm³

Weight 165 g

Performance: GSM class 4 (2 Watt)

PCN class 1 (1 Watt)

Powersupply: Lithium Ion battery (3,6V/1000mAh)

Standby time: up to 30 hours

Talk time: Up to 4 hours.

Carging Time: Full charge in 2.5 hours

isplay LC high-resolution graphic display, 97 x 33 pixels, 4 rows

of 16 characters

SIM Card Type: Small (plug in) 3V or 5V

Private Communication Systems

Mobile Phones

Mechanical Concept

Note: All part numbers refer to mechanical drawing in section 4.1!

The S6 consists of two boards, the RF & Control module (1010) and the user

interface (1020).

The connection between those two boards is not made by a normal connector with

plug-in contacts, but by a special interconnector (1090) embedded into a shielding

frame (1060). This interconnector is upholding the connection through the pressure

implied on it by the housing.

Be careful when assembling the interconnector. Avoid any kind of dust or dirt

because it will affect the contacts of the interconnector.

The only removable part on the user interface is the ringer gasket (1080) which is

needed to increase the ringer volume.

Furthermore there is a RF-plug on the user interface which has to be plugged into

the appropriate connector on the RF & control module. This conection is very

essential because it is the RF signal from / to the internal antenna.

The shielding is done by the lower case shell (1050) which is covered with a

conductive material, so no additional shielding screen is necessary.

The antenna (1130) is directly screwed into the lower case shell.

The keypad (1030), the loudspeaker (1120), the microphone (1110) and the dust

protection frame (1210) are mounted into the upper case shell (1040). Make sure

that the microphone contacts are properly bent up when mounting.

When turning in the screws (1140, 1145 and 1150) make sure that the right torque is

used (25 Ncm), because this will have an effect on the contacts of the

interconnector.

Note: Make sure that you mount the right antenna, the GSM antenna has two

stripes, the PCN antenna only has one!

V1.3 3 PN MP ST

. Schnoor

10/97

Private Communication Systems

Mobile Phones

S6 GSM / PCN mechanical drawings

V1.3 4 PN MP ST

. Schnoor

10/97

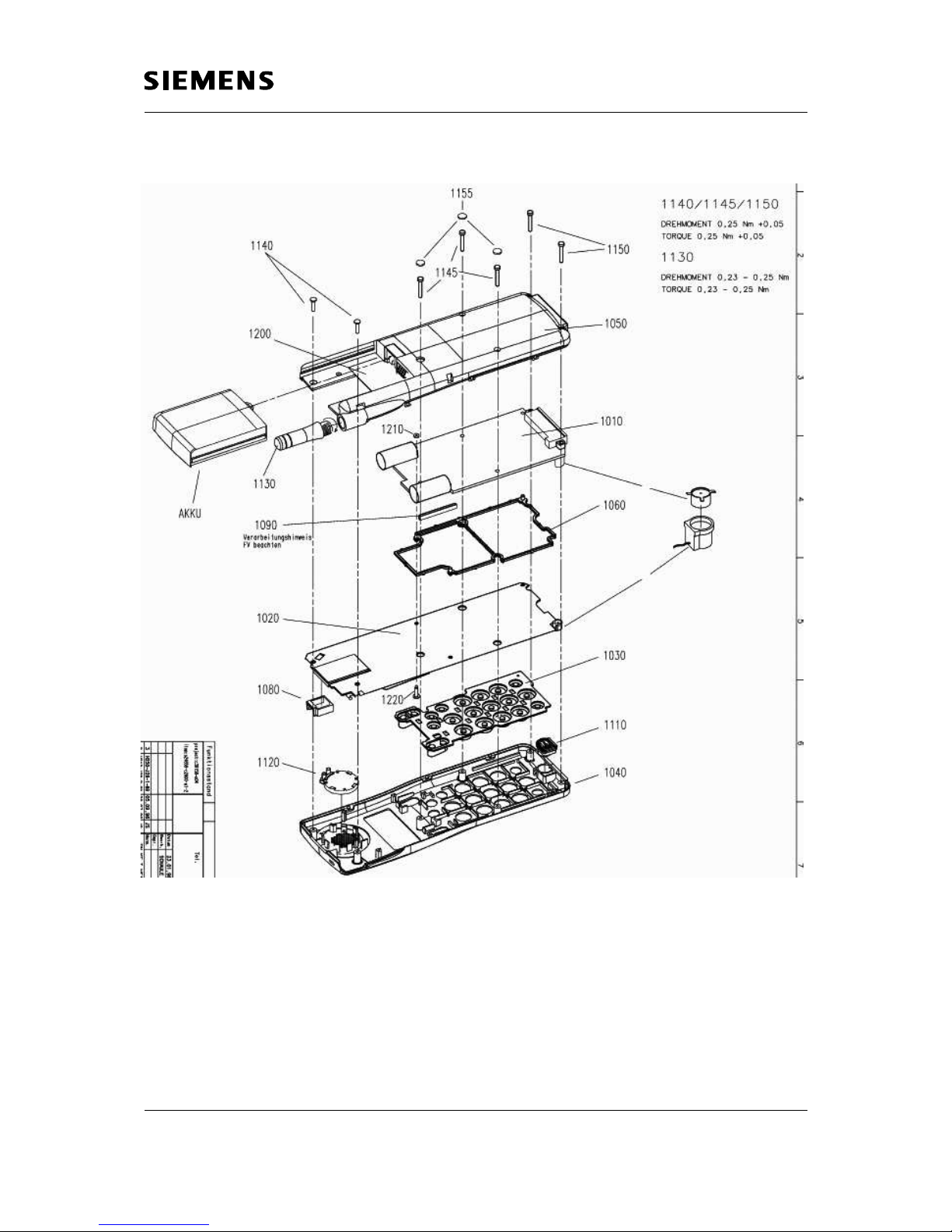

Fi ure 1: Mechanical Drawin S6

Private Communication Systems

Mobile Phones

Note: The numbers displayed in the above drawin s are NO ORDERING Nos,

use the numbers in chapter 11 for orderin !

Ordering number for dust protection frame:

L36859-A4-C141

V1.3 5 PN MP ST

. Schnoor

10/97

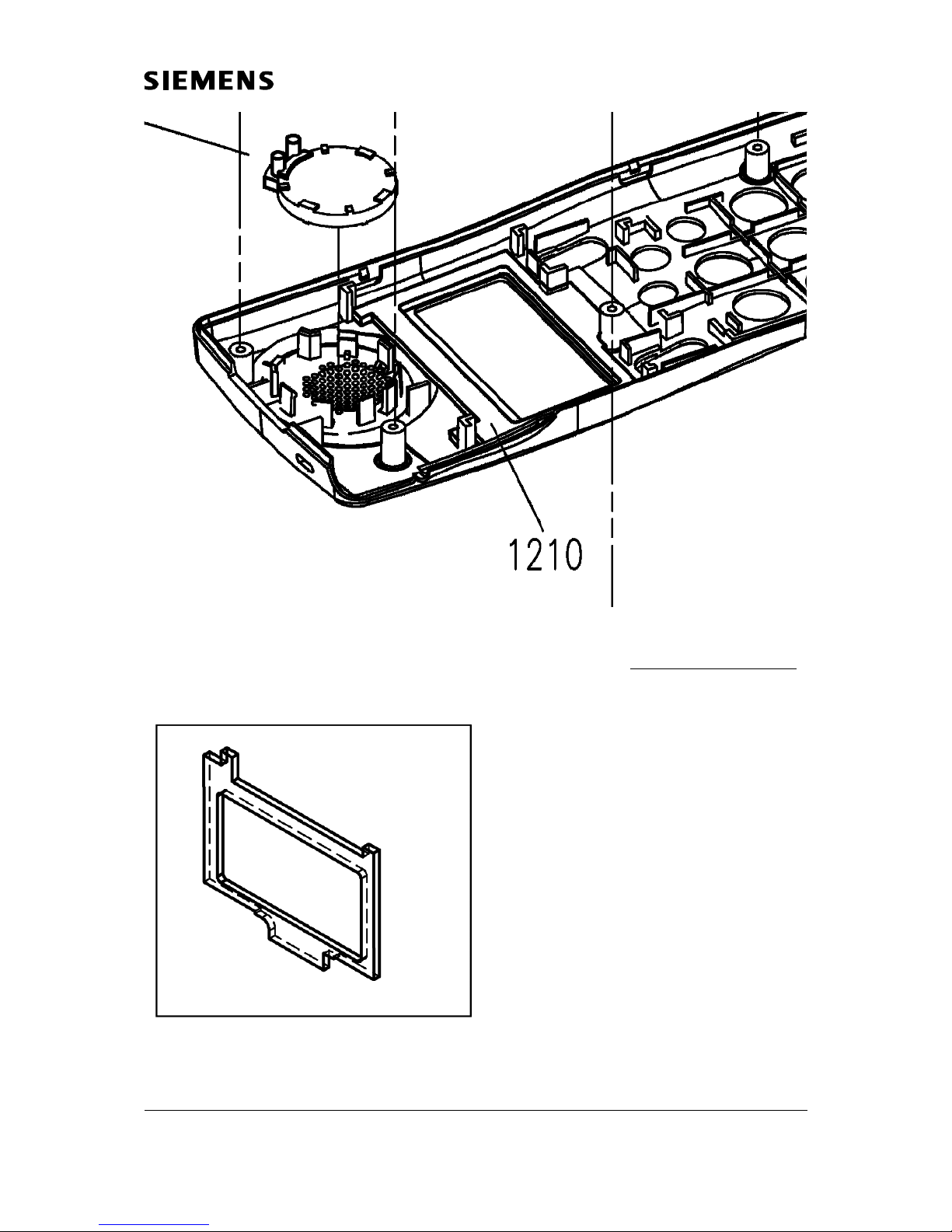

Fi ure 2: Display with Dust Protection Frame

Fi ure 3: Dust Protection Frame

Private Communication Systems

Mobile Phones

Disassembling the S6

ESD re ulations have to be followed!

1. Remove battery and SIM-Card.

2. Unscrew antenna (1130).

3. Unscrew 2 oval head screws (1150) (Torx 1,8x12).

4. Turn out 2 short flat head screws (1140) (Torx 1,8x8).

5. Remove plastic disks (1155) and turn out the 3 long flat head screws (1145)

(Torx 1,8x12).

6. Lift off the lower case shell (1050).

7. Lift composite of MMI-board (1020) and RF-and controle module (1010) out of

the upper case shell (1040).

Only for level-2 repairs:

a) Remove ringer gasket (1080) from the MMI board (1020).

b) Remove RF plug from RF- and control module (1010).

c) Take off the MMI board (1020).

d) Take frame (1060) off the RF- and control module (1010).

e) Remove interconnector (1090) from the frame (1060).

8. If necessary: Take battery connector out of lower case shell (1050).

9. Remove the dust protection frame (1210) from the upper case shell (1040).

10. Take keypad (1030) out of upper case shell (1040).

11. Remove earphone capsule (1120) and microphone (1110) from upper case

shell.

Assembling the S6

V1.3 6 PN MP ST

. Schnoor

10/97

Private Communication Systems

Mobile Phones

ESD re ulations have to be followed!

1. Put earphone capsule (1120) and microphone (1110) into upper case shell.

2. Insert keypad (1030) into upper case shell (1040).

3. Put dust protection frame (1210) on display window inside upper case shell.

4. If necessary: Insert battery connector into lower case shell (1050).

5. Insert composite of MMI-board (1020) and RF-and controle module (1010) into

upper case shell (1040).

BEFORE (only for level 2 repairs):

a) Put interconnector (1090) to the frame (1060).

b) Positioning of frame (1060) on the RF- and control module (1010).

c) Place MMI board (1020) on top of frame (1060).

d) Connect RF plug of MMI board (1020) to RF- and control module

(1010).

e) Mount ringer gasket (1080) on the MMI board (1020).

6. Close device with upper case shell (1040). Make sure that the 6 hooks of the

upper case shell fit firmly into the respective slots of the lower case shell

(1050).

7. Screw 3 long flat head screws (1145) (Torx 1,8x12 /Torqe 25 Ncm) into lower

case shell (1050). Close holes with plastic disks (1155) afterwards.

8. Screw 2 short flat head screws (1140) (Torx 1,8x8 /Torqe 25 Ncm) into lower

case shell.

9. Screw 2 oval head screws (1150) (Torx 1,8x12 /Torqe 25 Ncm) into lower case

shell.

10. Screw in Antenna (1130) (Torqe 25 Ncm).

11. Insert SIM-Card and battery.

Board Versions

V1.3 7 PN MP ST

. Schnoor

10/97

Private Communication Systems

Mobile Phones

In the S6 mechanical drawing you see a bolt (position 1220) which is holding the

RF&control module and the user interface together. This bolt was mounted only in

the first 100k S6 handsets produced.

The handsets produced later are using different board versions with different part

numbers (see table below!)

If a bolted handset comes back for service and one of the boards is defective, do not

try to separate them. Just send the whole sandwich back to Germany.

Attention!

These numbers are not the spare part ordering numbers, they are manufacturing

numbers printed on the boards itself.

Do not use them for ordering spare parts!

V1.3 8 PN MP ST

. Schnoor

10/97

S6 GSM/PCN Board Versions

GSM:

Old version (with bolt):

Main Board: S24859-A2600-A1-x

MMI-Board: V24851-Z1508-A9-x

New version:

Main Board: S24859-A2600-A -x

MMI-Board: V24851-Z1508-A17-x

PCN:

Old version (with bolt):

Main Board: S24859-A3600-A1-x

MMI-Board: V24851-Z1508-A10-x

New version:

Main Board: S24859-A3600-A -x

MMI-Board: V24851-Z1508-A18-x

Furthermore, the new versions are usin a different shieldin frame and a

different interconnector !

Private Communication Systems

Mobile Phones

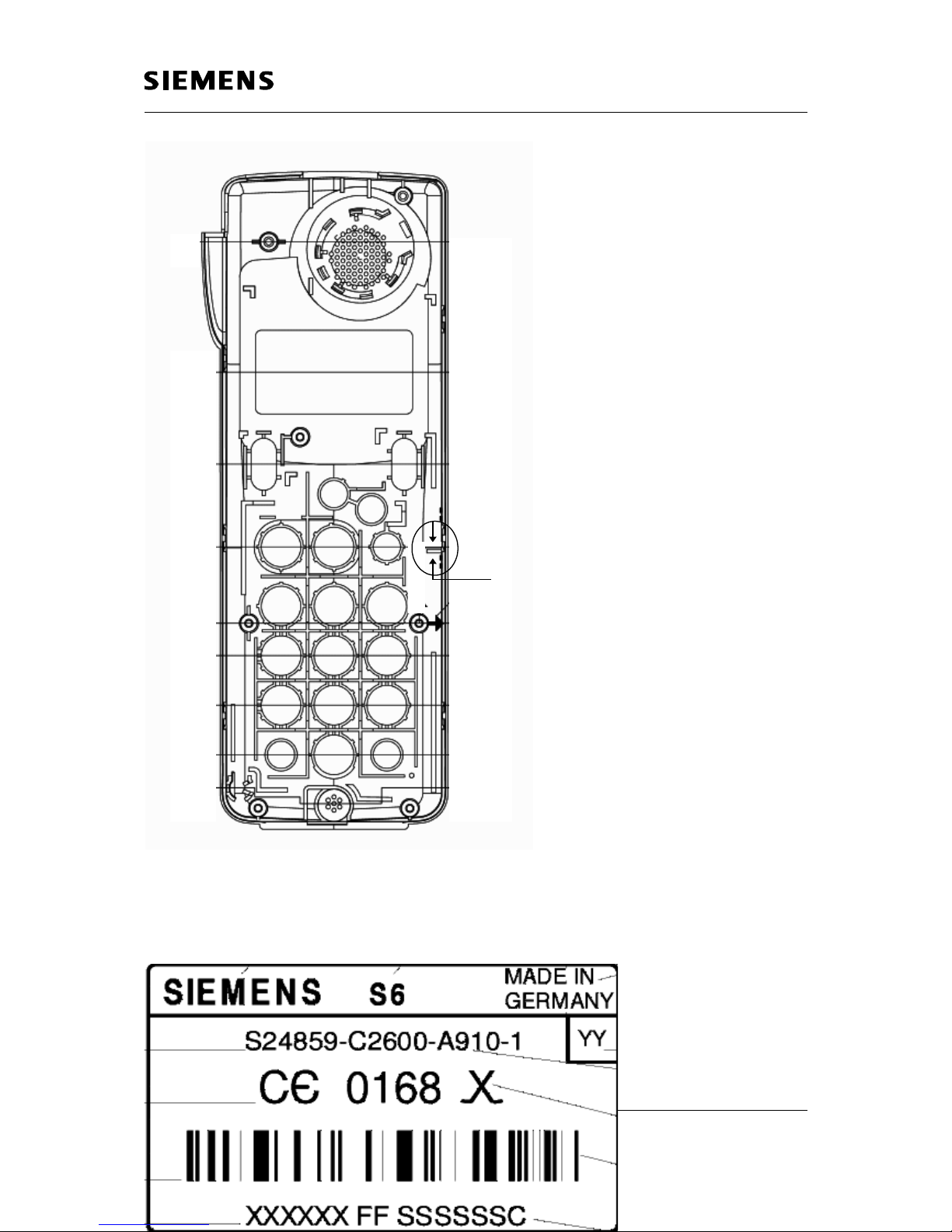

Upper Case Protection

If the bolted boards are used, it

has to be made sure that one

guiding pin in the upper case

shell is removed (see drawing!).

If the pin is not removed, the

case may break!

Attention!

o not remove the pin if the

unbolted boards are used!

The removal of the pin is simply

done by cutting it off with a sharp

knife or cutter.

Handset Datecodes

Siemens is using the industrial standard IN EN 60062 to indicate the production /

service dates. The code is printed on the IMEI sticker located under the simcard

reader.

V1.3 9 PN MP ST

. Schnoor

10/97

uidin

-> YY = atecode

Private Communication Systems

Mobile Phones

The first character of the datecode indicates the year of production:

F = 1995

H = 1996

J = 1997

The second character indicates the month of production:

1-9 = january to september

O = october

N = november

= december

Example: H means that the set was produced in december of 1996.

Hardware Concept

Block Diagram

V1.3 10 PN MP ST

. Schnoor

10/97
