Operating instructions

ER326AB91X

to be used with Town Gas

Table of contents

Safety precautions.................................................... 4

Your new appliance .................................................. 7

Burner....................................................................................8

Switching on manually...........................................................8

Switching on automatically ....................................................8

Safety system ........................................................................8

Switching off the burner.........................................................9

Power levels ..........................................................................9

Warnings ...............................................................................9

Suitable pans.......................................................................10

Wok pan ..............................................................................10

Accessories .........................................................................11

Additional wok pan support .................................................11

Additional coffee maker support..........................................11

Cooking recommendations..................................................11

Precautions for use................................................. 12

Cleaning and maintenance..................................... 13

Cleaning ..............................................................................13

Unsuitable products.............................................................13

Maintenance ........................................................................14

Faults...................................................................... 15

Technical Assistance Service ................................. 16

Warranty conditions.............................................................16

Used appliances and packaging............................. 16

Environmentally-friendly waste management .....................16

Dear customer,

Congratulations on your choice. Thank you for purchasing one of our

appliances. This practical, modern and functional appliance is

manufactured using materials of the highest quality which are subject to

strict Quality Control checks throughout the entire manufacturing process.

The appliance is meticulously tested to ensure that it meets your demands

and produces perfect cooking results.

Do not remove the appliance from its protective packaging until it is

installed in the unit.

Please read these instructions carefully before proceeding to install and

use the appliance. The information contained in these instructions is

essential for the correct operation of the appliance and, more importantly,

for your safety.

The packaging of your appliance has been manufactured using only the

materials which are strictly necessary to guarantee efficient protection

during transport. These materials are 100% recyclable, thus reducing the

environmental impact. You can also contribute to caring for the

environment, by following the advice below:

- dispose of the packaging in the appropriate recycling bin,

- before you get rid of an old appliance, make sure you disable it. Contact

your local authority to find out the address of your nearest recycling centre

to dispose of your appliance.

- do not pour used oil down the sink. Collect it in a sealed container and

take it to an appropriate collection point or, failing that, place it in the

rubbish bin (it will end up in a controlled dump; this is probably not the best

option, but it will avoid contaminating ground water).

IMPORTANT:

In the unlikely event that the appliance should arrive damaged or not meet

your expectations in terms of quality, please inform us as soon as possible.

For the warranty to be valid, the appliance must not have been tampered

with, or used inappropriately.

Safety precautions

Read these instructions carefully. Reading these

instructions will enable you to use your appliance

safely and effectively.

Connection of Town Gas rubber tube

-It must be used approved rubber tube bearing EMSD

Approval marking (such as “EMSD Approval

GTXXXX”) and fuse cock for piped gas supply or

regulator for connection.

Connection of stainless steel flexible hose BSP

MALE

-It must be used approved stainless steel flexible hose

BSP MALE bearing EMSD Approval marking (such as

“EMSD Approval GTXXXX”) and approved fuse cock

or gas cock for connection.

HK Town Gas connection

-Governor Beckley 2300 should be installed.

“Under the Gas Safety (Registration of Gas

installers and Gas Contractors) regulations, only

registered gas installers (registered to the

appropriate class) employed by registered gas

contractors can personally carry out gas

installation, regulation and conversion, in

additional, only use the GTXXXX approved flexible

gas tubing for installation. This appliance must not

be converted to another type of gas.”

Please do not use additional fitting, such as aluminium

cover.

The installation engineer has to respect the standards

and the specifications of the gas and electricity

providers.

Before installing your new hob, ensure that it is being

installed according to the assembly instructions.

This appliance can only be installed in a well ventilated

place in accordance with existing regulations and

ventilation specifications. The appliance must not be

connected to a combustion product removal device.

This appliance has been designed for home use only.

This appliance cannot be installed on yachts or in

caravans.

The place in which the appliance is installed must

have fully-functioning ventilation, in accordance with

the regulations.

Do not subject the appliance to draughts. These might

blow out the burners.

This appliance leaves the factory set to the type of gas

that is indicated on the specification plate. It must not

be changed to another type of gas.

Do not tamper with the appliance’s interior. If

necessary, call our Technical Assistance Service.

These operating and installation instructions should be

retained, and passed onto the buyer if the appliance is

sold.

Do not switch on the appliance if it is damaged in any

way. Contact our Technical Assistance Service.

The surface of cooking appliances heat up during use.

Care must be taken when using these appliances.

Keep children well away from the appliance.

This appliance is only intended for cooking purposes,

not as a heating system.

Fat or oil which is overheated can catch fire easily. Do

not leave oil or fats to heat up unattended. If oil or fats

do catch fire, never use water to put the fire out. Risk

of burns! Put the fire out by covering the pan with a lid

and switch off the hotplate.

In the event of a malfunction, turn of the appliance’s

gas and electricity supply. For repairs, call our

Technical Assistance Service.

If one of the controls will not turn, do not force it. Call

the Technical Assistance Service immediately, so that

they can repair it.

Never place unstable pans on the hob or the burners,

as they may accidentally tip over.

Do not clean the appliance using a steam cleaner.

Risk of electrocution!

This appliance is class 3 type, according to EN 30-1-1

regulation for gas appliances: built-in appliance.

Do not store or use corrosive chemicals, products

which produce fumes, flammable materials or non-

food products below or near this domestic appliance.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

Never let children play with the appliance.

The graphics in this instruction manual are given as a

guide only.

The manufacturer is exempt from all responsibility if

the requirements of this manual are not complied with.

Your new appliance

Product description: Double-flame burner town gas hob with flame sensor

safety device.

Heat input: 0.2 ÷ 4.4 kW (with town gas G110 at 10 mbar)

0.2 ÷ 5.0 kW (with Hong Kong town gas at 12.5 mbar)

Product dimension: 520 x 302 x 45 mm (D x W x H)

Net weight: 7,0 kg

Operating gas pressure/

outlet pressure of

governor:

10 mbar (town gas G110)

12,5 mbar (Hong Kong town gas)

These individual appliance can be combined and/or with conventional hobs of the

same make, using the joint accessory. See the catalogue for details.

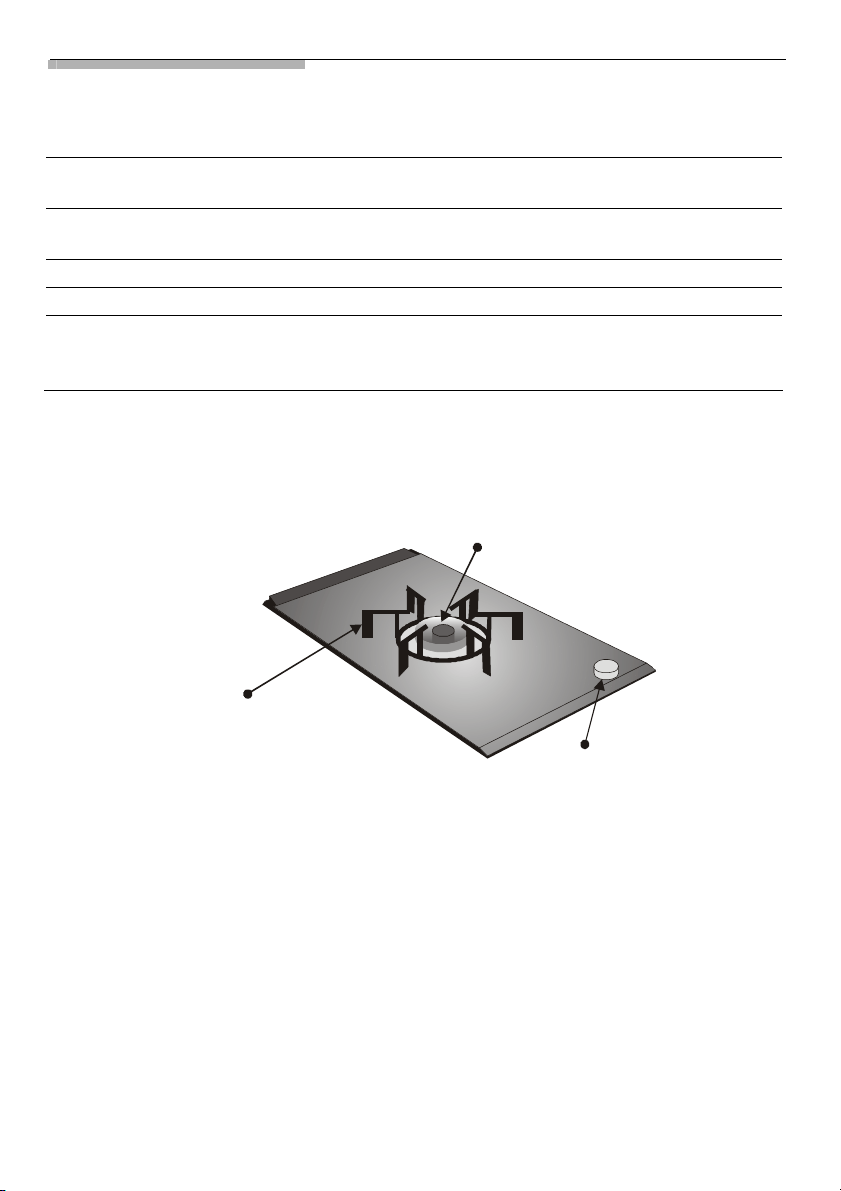

Pan support

Double-flame burner

Control knob

The gas burner

Operation

It is essential to ensure that all the burner parts and the

pan supports are correctly installed for the appliance to

work correctly.

Switching on

manually

1. Press the burner control and turn it anticlockwise to

the “large flame”.

2. Use any type of lighter or flame (cigarette lighter,

matches, etc.) and bring it close to the burner.

Switching on

automatically

1. Press the burner control and turn it anticlockwise to

the “large flame”.

While the control is still pressed down, sparks are

produced on the burner. The flame ignites (it is no

longer necessary to press down the control).

2. Turn the control to the required setting.

If it does not come on, turn the control to the off setting

and repeat the steps above. This time, press and hold

the control for longer (up to 10 seconds).

Warning! If after 15 seconds have elapsed, the flame

does not ignite, switch off the burner and open a nearby

window or door. Wait at least one minute before trying

to switch the burner back on.

Safety system

Your hob has a safety system (thermocouple) that

prevents the flow of gas if the burner accidentally

switches off. To ensure that this device is active, switch

on the burner as usual and, without releasing the

control, press and hold it down firmly for 4 seconds after

lighting the flame.

Switching off the

burner

Turn the control clockwise to the 0 setting.

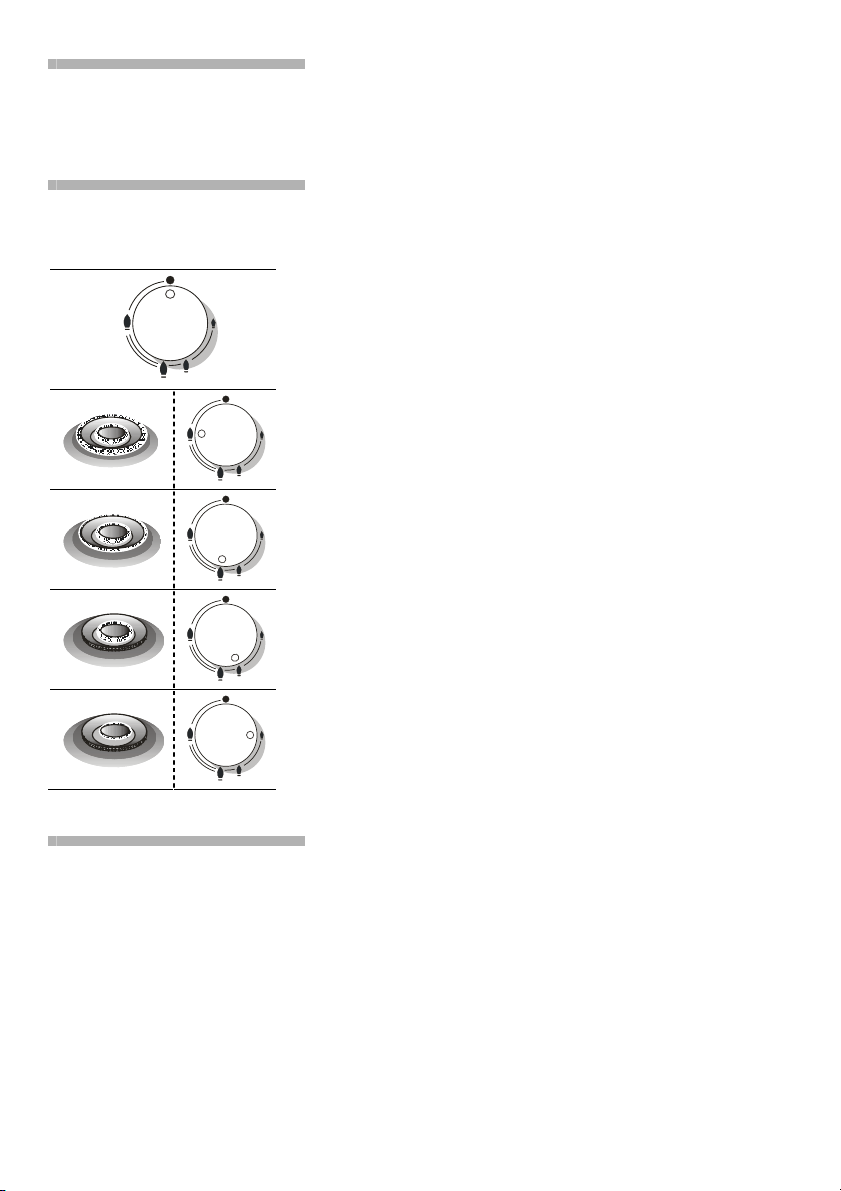

Power levels

The progressive controls can be used to control the

power needed, from minimum to maximum power.

For dual double flame burners, the inner and outer

flames can be controlled separately.

The available power levels are as follows:

Inner and outer flame on full power.

Outer flame on minimum, inner flame on full power.

Inner flame on full power.

Inner flame on minimum.

Warnings

It is normal to hear a whistling noise while the burner is

operating.

When it is first used, it is normal for the burner to give

off fumes; this does not pose any risk and does not

indicate a malfunction; they will disappear in time.

A few seconds after switching off the burner, it will

make a sound (thud); this is not a fault – This means

that the safety device is no longer operating.

Altri manuali per ER326AB91X

Indice

Altri manuali Siemens Piano cottura

Siemens

Siemens EH.85DB11E Manuale utente

Siemens

Siemens iQ700 ER3A6AD70 Series Scheda tecnica

Siemens

Siemens EF 73A Series Manuale utente

Siemens

Siemens EH8P5262HK Manuale utente

Siemens

Siemens Gas hob Manuale utente

Siemens

Siemens ER326AB70W Manuale utente

Siemens

Siemens EH Series Manuale utente

Siemens

Siemens EF6 Series Manuale utente

Siemens

Siemens ET6..TE.. Manuale utente

Siemens

Siemens ET5 Series Manuale utente

Siemens

Siemens Viva HSE6RAG400 Manuale operativo

Siemens

Siemens ER17254NL Manuale utente

Siemens

Siemens EF 73A Series Manuale utente

Siemens

Siemens EX9 LX Series Manuale utente

Siemens

Siemens EH Series Manuale utente

Siemens

Siemens Gas hob Manuale utente

Siemens

Siemens EX8 LY Series Manuale utente

Siemens

Siemens ET 745 series Manuale utente

Siemens

Siemens ET..75M..11E Manuale utente

Siemens

Siemens ET6..MG series Manuale utente

Siemens

Siemens NRN 67 Series Manuale utente

Siemens

Siemens EH975ML21E Manuale utente

Siemens

Siemens EC945RB90A Manuale utente

Siemens

Siemens EF6 Series Manuale utente

Manuali Piano cottura popolari di altre marche

AEG

AEG CERAMIC HOB 6010 K Manuale utente

VALERA

VALERA CT 70A Manuale utente

Zanussi

Zanussi ZGF 6420 Manuale utente

Gaggenau

Gaggenau CI 273 Manuale utente

G3 Ferrari

G3 Ferrari Energy Manuale utente

Pkm

Pkm IN4B Manuale utente

Award

Award H903BG Manuale utente

Zanussi

Zanussi VCH 5005 RZ Manuale utente

Miele

Miele KM 523 Manuale utente

Hotpoint

Hotpoint IS67V8CCXT/E Manuale utente

AEG

AEG HK854870XB Manuale utente

Cookology

Cookology SEP600BK Manuale utente

Bauknecht

Bauknecht Hob Manuale utente

Zanussi

Zanussi ZGM 782 Manuale utente

dipo INDUCTION

dipo INDUCTION DIBK218S Manuale utente

Miele

Miele KM 5987 Manuale utente

Miele

Miele KM 360 G Manuale utente

Blomberg

Blomberg MKN 24201 W Manuale utente
