System Manual

Installation of TFT displays

Installation Instructions

SIREMOBIL SPR2-230.812.02 Page 2 of 4 Siemens AG

System Manual Rev. 02 02.06 CS PS SP Medical Solutions

0 - 2 Revision

Document revision level

The document corresponds to the version/revision level effective at the time of system delivery. Revi-

sions to hardcopy documentation are not automatically distributed.

Please contact your local Siemens office to order current revision levels.

Disclaimer

The installation and service of equipment described herein is to be performed by qualified personnel

who are employed by Siemens or one of its affiliates or who are otherwise authorized by Siemens or

one of its affiliates to provide such services.

Assemblers and other persons who are not employed by or otherwise directly affiliated with or autho-

rized by Siemens or one of its affiliates are directed to contact one of the local offices of Siemens or

one of its affiliates before attempting installation or service procedures.

Chapter Page Revision

all all 02

Contents 0 - 3

Siemens AG SPR2-230.812.02 Page 3 of 4 SIREMOBIL

Medical Solutions Rev. 02 02.06 CS PS SP System Manual

1 _______General _______________________________________________________ 1 - 1

Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

Notes and symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

Validity of these instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2

Parts required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2

Auxiliary devices required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2

2 _______Installation of TFT displays ______________________________________ 2 - 1

Dismantling the existing monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1

Installation of the video and power line cables in the monitor trolley . . . . . . . . . . 2 - 3

Installation of the support arm on the monitor trolley . . . . . . . . . . . . . . . . . . 2 - 3

BARCO display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3

Adjusting the support arm to the size of the TFT display . . . . . . . . . . . . . . 2 - 4

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 5

Protective ground wiring of the support arm . . . . . . . . . . . . . . . . . . . . . . 2 - 6

Wiring the radiation indicators of the support arm. . . . . . . . . . . . . . . . . . . . 2 - 6

Wiring of the displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7

BARCO displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7

Running the cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7

3 _______Settings ______________________________________________________ 3 - 1

TFT display BARCO MVG 1318, part number 80 79 530 . . . . . . . . . . . . . . . . 3 - 1

Concluding work. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1

4 _______Changes to previous version _____________________________________ 4 - 1

Page

0 - 4 Contents

SIREMOBIL SPR2-230.812.02 Page 4 of 4 Siemens AG

System Manual Rev. 02 02.06 CS PS SP Medical Solutions

Page

1 - 1

Siemens AG SPR2-230.812.02 Page 1 of 2 SIREMOBIL

Medical Solutions Rev. 02 02.06 CS PS SP System Manual

General 1

Safety instructions 1

Notes and symbols 1

Emphasized texts in technical documentation have the following meaning:

When performing the work steps and tests described herein,

observe the product-specific safety information contained in the

documents, as well as the general safety information

TD00-000.860.01....

DANGER indicates an immediate danger that if disregarded will

cause death or serious physical injury.

WARNING indicates a possible danger that if disregarded can

cause death or serious physical injury.

CAUTION used with the safety alert icon indicates a possible dan-

ger that if disregarded will or can lead to minor or moderate phys-

ical injury and/or damage to property.

NOTICE used without the safety alert icon indicates a possible

danger that if disregarded may or will lead to an undesirable

result or state other than death, physical injury or property dam-

age.

CAUTION

DANGER

WARNING

CAUTION

NOTICE

SIREMOBIL SPR2-230.812.02 Page 2 of 2 Siemens AG

System Manual Rev. 02 02.06 CS PS SP Medical Solutions

1 - 2 General

Validity of these instructions 1

These instructions are valid for upgrading a TFT support arm and 2 TFT displays on

existing SIREMOBIL Compact, SIREMOBIL Compact L,

SIREMOBIL Iso-C, ARCOSKOP and POWERMOBIL systems with available tube moni-

tors, installed on the monitor trolley 37 77 880.

Parts required 1

Auxiliary devices required 1

To o l c a s e

Required Documents

•Replacement instructions of the delivered TFT displays.

See CS Intranet, CB-Doc of the corresponding system, "Service"

•System manual for the system

•Logbook for the system

•IQ quick test of the system

Upgrade Kit for TFT Displays 07141125

The corresponding replacement instructions are necessary for

checking and if necessary adjusting the delivered TFT displays.

NOTE

2 - 1

Siemens AG SPR2-230.812.02 Page 1 of 8 SIREMOBIL

Medical Solutions Rev. 02 02.06 CS PS SP System Manual

Installation of TFT displays 2

Dismantling the existing monitors 2

•Remove both monitors as follows.

•Remove transport monitor covers (Fig. 1).

•Remove the shielding plates (Fig. 2).

•Remove the connection housing (only for SIMOMED N monitor 11 02 628, Fig. 3).

•Unplug all cables from the monitor to be replaced.

•In each case loosen the 2 screws at the monitor mounting (Fig. 4).

•Lift down both monitors.

•Reattach all previously removed parts to the monitor.

Fig. 1 Monitor cover Fig. 2 Shielding plate

Fig. 3 Connection housing Fig. 4 Monitor attachment

Mark for the keyboard tray

SIREMOBIL SPR2-230.812.02 Page 2 of 8 Siemens AG

System Manual Rev. 02 02.06 CS PS SP Medical Solutions

2 - 2 Installation of TFT displays

•Unscrew the two bases of the monitors from the monitor trolley and remove them com-

pletely (Fig. 5).

•Remove the two video cables.

•Completely remove and disconnect the two power cables.

•4 prepunched holes are visible around the central cable bush (Ê/ Fig. 5).

4 metal bolts are inserted in these holes and they are thus closed.

Drive out the 4 metal bolts downwards with a drift (or another round object). Remove the

4 metal bolts from the monitor trolley.

•Lift off the central blind cover and close one of the cable bushes on the side with it

(Fig. 6).

•Close off the 2nd cable bush on the side and the 8 fastening holes around the cable

bushes on the sides with the enclosed blind covers.

Fig. 5 Monitor attachments Fig. 6 Monitor trolley cable bushes

Mark for the keyboard tray

Installation of TFT displays 2 - 3

Siemens AG SPR2-230.812.02 Page 3 of 8 SIREMOBIL

Medical Solutions Rev. 02 02.06 CS PS SP System Manual

Installation of the video and power line cables in the monitor trolley 2

•TFT display BARCO MVG 1318: Run the video cables (BNC plug - BNC plug) contained

in the scope of supply of the set attachment through the middle cable bush of the moni-

tor trolley, and laterally through the lateral rail to the MEMOSKOP. Plug in and lock the

cables at the OUT1 socket (left display) and OUT2 socket (right display).

Installation of the support arm on the monitor trolley 2

•Open the rear cover of the support arm base on the TFT display.

BARCO display 2

•Run the free cable ends of the new power cables (included in the attachment kit of the

TFT monitor) downwards through the holder of the support arm (2/Fig. 8), through the

center cable bush of the monitor trolley and through the lateral rail to the ON/OFF

assembly (Fig. 7) and connect them to the terminal blocks:

- Connect the brown cable ends to terminal block X2.1.

- Connect the blue cable ends to terminal block X2.2.

- Connect the protective ground (Ge/Gn) to the protective conductor bars (1/Fig. 7).

•Thread the video cables upwards, through the rectangular cable bush (1/Fig. 8) of the

support arm base and further through the holders of the support arm (2/Fig. 8).

•Place the support arm base above the center cable bush (Fig. 8).

•Starting with the logbook compartment, tighten the screws of the support arm base on

the monitor trolley. Use 4 Allen screws M6 x 20, 4 lock washers and 4 plate washers for

this (Fig. 8).

Fig. 7 ON/OFF assembly Fig. 8 Installation of the support arm

The new power line cables have a length of approx. 2.6 m and are

equipped with a straight female connector on one cable end.

NOTE

SIREMOBIL SPR2-230.812.02 Page 4 of 8 Siemens AG

System Manual Rev. 02 02.06 CS PS SP Medical Solutions

2 - 4 Installation of TFT displays

Installation of the TFT display on the support arm

•Dismount temporarily the collision protection (see Fig. 9). To do so, loosen the screws (1/

Fig. 9) on both top tubes and pull out the collision protection.

Adjusting the support arm to the size of the TFT display 2

•After loosening the 2 x 8 countersunk screws on the support arm (‰/Fig. 10), you can

adjust the distance between both tubes as well as the vertical position of the holding

plate (A/Fig. 10).

•To permit easier adjustment, it is recommended to calculate and pre-set the

distances (1/Fig. 10) before the TFT displays are attached.

Calculation of the distances (1/Fig. 10):

•Setting the distances results in a distance of approx. 1 cm between the top and bottom

edge of the TFT displays, on the one hand, and the tubes of the support arm, on the oth-

er hand.

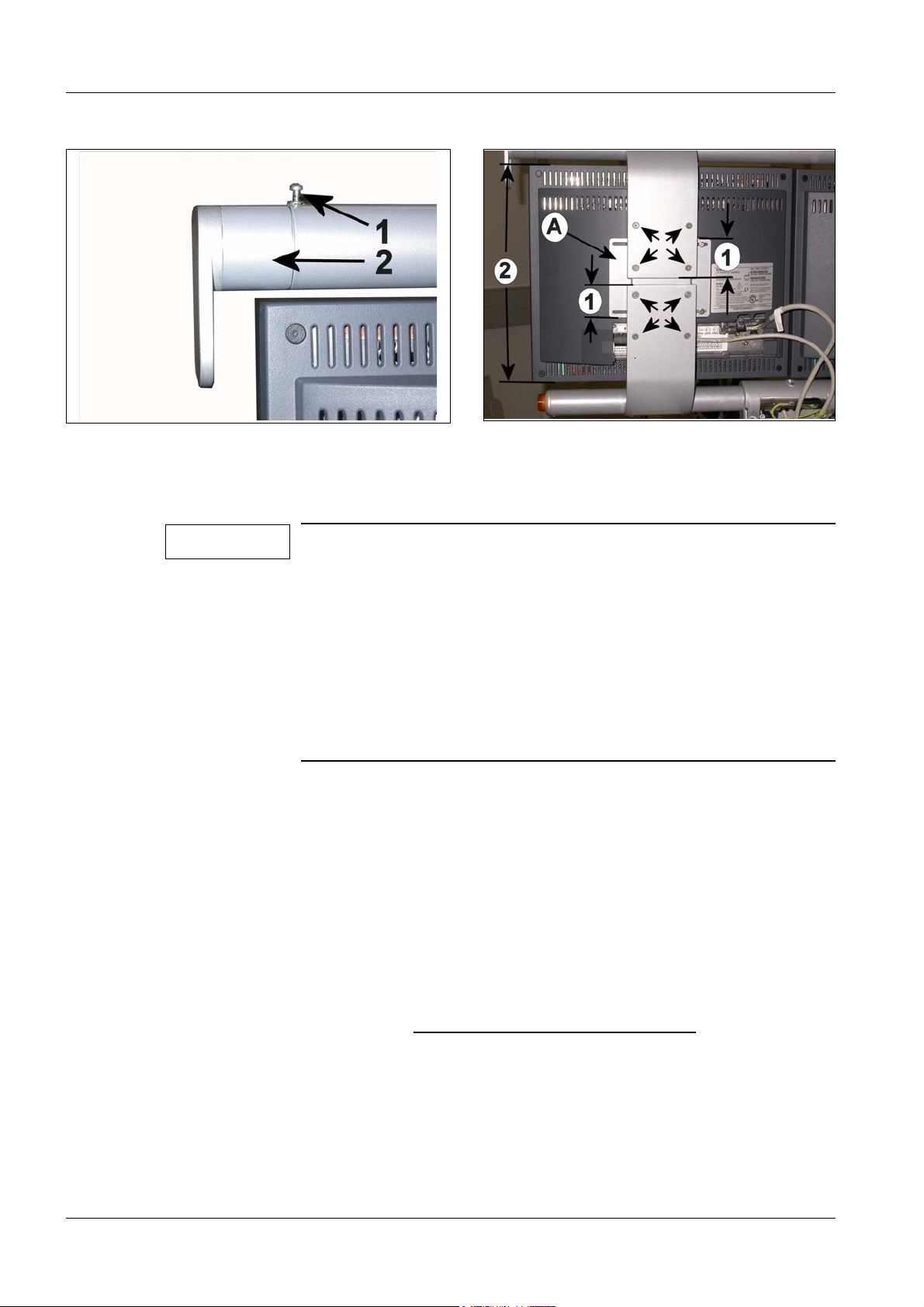

Fig. 9 Collision protection Fig. 10 Adjustment of the support arm

You can adjust the width of the support arm and the distance

between the top and bottom tube to adapt the support arm to the

display in use. In addition, you can modify the vertical centering

of the holding plate (A/Fig. 10).

You can modify the width of the support arm using spacer rings

(2/Fig. 9).

The distance between the tubes and the vertical centering of the

holding plate can be modified after loosening the countersunk

screws on both vertical display supports (8 on each support).

Loosen the 16 countersunk screws only slightly; do not

remove them completely!

Distance (1/Fig. 10) = 17 cm __ Height TFT display (cm) (2/Fig. 10) + 4.8 cm

NOTE
