SIMATIC Ident

RFID systems

Transponder corner bracket for MDS D160, D460 and D560

Compact Operating Instructions

Legal information

Warning notice system

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent damage to property. The

notices referring to your personal safety are highlighted in the manual by a safety alert symbol, notices referring only to property damage

have no safety alert symbol. These notices shown below are graded according to the degree of danger.

DANGER

indicates that death or severe personal injury will result if proper precautions are not taken.

WARNING

indicates that death or severe personal injury may result if proper precautions are not taken.

CAUTION

indicates that minor personal injury can result if proper precautions are not taken.

NOTICE

indicates that property damage can result if proper precautions are not taken.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will be used. A notice warning of

injury to persons with a safety alert symbol may also include a warning relating to property damage.

Qualified Personnel

The product/system described in this documentation may be operated only by

personnel qualified

for the specific task in accordance with

the relevant documentation, in particular its warning notices and safety instructions. Qualified personnel are those who, based on their

training and experience, are capable of identifying risks and avoiding potential hazards when working with these products/systems.

Proper use of Siemens products

Note the following:

WARNING

Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products

and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage,

installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any

problems. The permissible ambient conditions must be complied with. The information in the relevant documentation must be observed.

Transponder corner bracket for MDS D160, D460 and D560

2C79000-G8976-C492-01, 12/2017

Characteristics

Transponder corner bracket

for MDS D160, D460 and D560

Characteristics

Area of application The transponder corner bracket can be mounted at an angle

of 45° to the corner of a workpiece holder, so that the MDS

Dx60 transponder attached to it can be equally processed

regardless of the conveying direction (longitudinal or trans-

verse conveyance).

Operating temperature

-25°C ... +85°C

Material

PA6-GF

Color

Black

Dimensions (W x H x D) 19 x 27.5 x 18 mm

(without alignment pin)

Ordering data

Table 2-1 Ordering data for transponder corner bracket for MDS D160, D460 and D560

Article number

Transponder corner bracket for MDS D160, D460 and D560

(packaging unit 50 units)

6GT2690-0AN00

Installation

Note

Temperature during installation work

The transponders must be mounted and disassembled at room temperature.

Mounting the transponder and the transponder corner bracket

To mount the transponder, follow these steps:

1. Insert the transponder into the transponder corner bracket diagonally from above.

2. Press the transponder down slightly until the transponder is latches in the transponder corner bracket.

3. Fasten the transponder corner bracket with a M4 cylinder head screw.

Note

Additionally securing the fixing screw

If the transponder corner bracket is exposed to frequent temperature fluctuations and mechanical shock, additionally secure

the fixing screw, e. g. with screw retainer finish or lock nuts.

Disassembling the transponder

To disassemble the transponder, follow these steps:

1. Use a suitable tool, e.g. a flat screwdriver, to pry the transponder out of the transponder corner bracket.

Transponder corner bracket for MDS D160, D460 and D560

C79000-G8976-C492-01, 12/2017 3

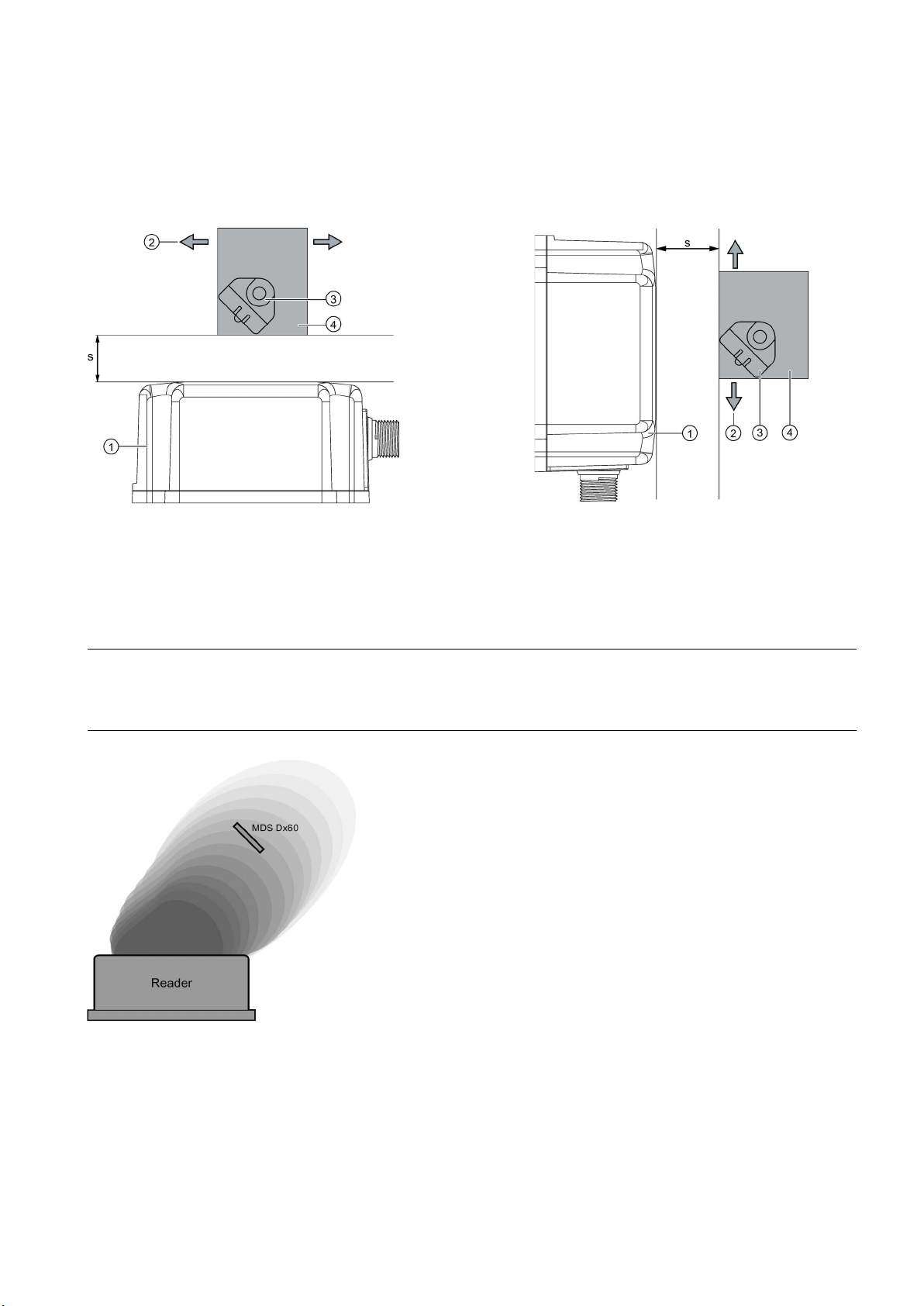

Field data

The sensing ranges are based on the distance between the reader or antenna and the edge of the transponder corner

bracket.

①

Reader

②

Conveyor direction

③

Transponder corner bracket for MDS D160, D460 and D560

④

Workpiece holder

Note

Effect of inclined position

The field geometry becomes distorted if you mount the transponder in an inclined position. It is recommended to test the

respective configurati

on before use, as the field geometry differs from the standard configuration in form.

Figure 4-1 Distorted field geometry

When the transponder corner bracket is aligned at 45°, the working distances and boundary distances are around 75% of

the values of a parallel alignment. Due to the distorted field geometry, it is advisable to perform a test with the final mounting

position of the transponder corner bracket and the reader. The minimum distances and transmission windows can be found

in the system manuals for "SIMATIC RF200" and "SIMATIC RF300".

Transponder corner bracket for MDS D160, D460 and D560

4C79000-G8976-C492-01, 12/2017

Technical specifications

Table 5-1 Technical specifications of the transponder corner bracket for MDS D160, D460 and D560

6GT2690-0AN00

Product type designation

Transponder corner bracket for MDS D160, D460 and D560

Mechanical specifications

Material

PA6-GF

Color

Black

Remounting cycles (min.)

Permitted ambient conditions

Ambient temperature

•

During operation

-25 ℃... +85 ℃

•

During storage

-40 °C ... +100 °C

Design, dimensions and weight

Dimensions (W x H x D)

19 x 27.5 x 18 mm

Weight

Approx. 2 g

Type of mounting Cylinder head screw M4

Tightening torque at room temperature ≤0.5 Nm

Transponder corner bracket for MDS D160, D460 and D560

C79000-G8976-C492-01, 12/2017 5

Dimensional drawings

Dimension drawing of transponder corner bracket for MDS D160, D460 and D560

All dimensions in mm

Transponder corner bracket for MDS D160, D460 and D560

C79000

-G8976-C492, 12/2017

Trademarks

ll names identified by ® are registered trademarks of Siemens AG

. The remaining trademarks in this publication may be trademarks whose

use by third parties for their own purposes could violate the rights of the owner.

Disclaimer of Liability

We have reviewed the contents of this publication to ensure consistency with the hardware and software described. Since varia

nce cannot

be precluded entirely, we cannot guarantee full consistency. However, the information in this publication is revi

ewed regularly and any

necessary corrections are included in subsequent editions.

Siemens AG

Division Process Industries and Drives

Postfach 48 48

90026 NÜRNBERG

GERMANY
