Siemens 5SV60 MC Series Manuale utente

3355484127-04 1

Technical Support (https://www.siemens.com/support-request)

23355484127-04

3355484127-04 3

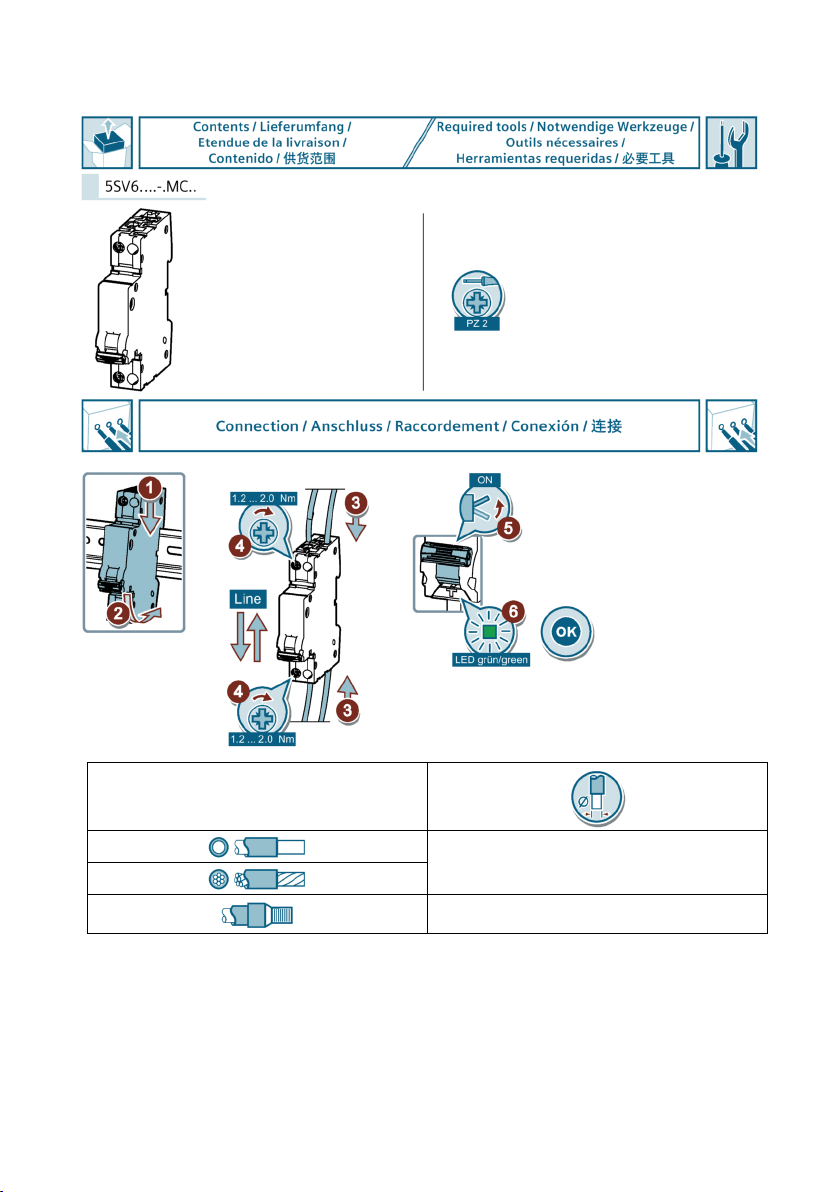

0.75 ... 16 mm2

0.75 ... 10 mm2

43355484127-04

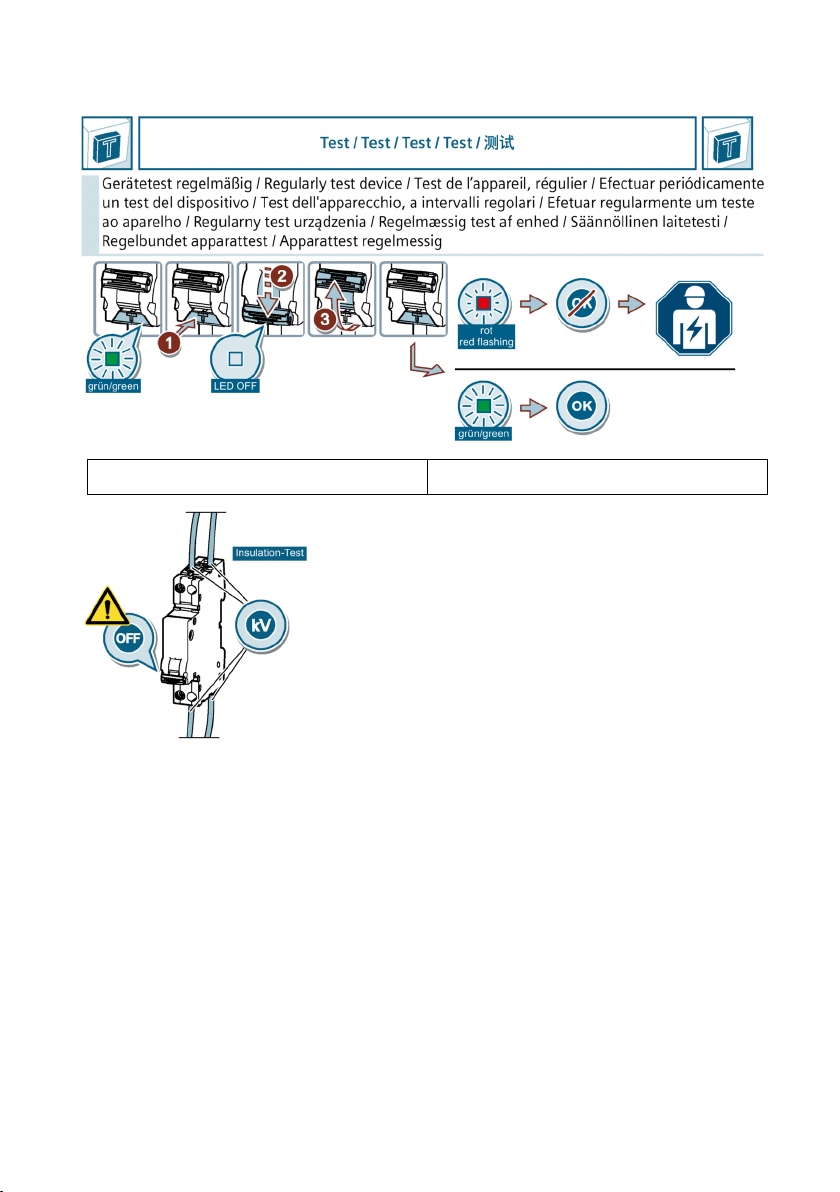

AFDD self test

Press button ≤ 3 s --> AFDD trips after button release.

Test result shown by LED after power on

3355484127-04 5

left LED

right LED

LED off

Device without power

LED off

Device without power

LED static green

AFDD alright

LED static green

MCB alright

LED static green

AFDD alright

LED flashes 0.75 Hz green

Not configured with master device

LED static green

AFDD alright

LED flashes 2 Hz green, min. for 3 s

Internal process running e.g. pairing, internal

test, firmware update, reset

LED flashes 5 Hz green

Device Identification after ext. command

LED flashes 5 Hz green

Device Identification after external command

LED static green

AFDD alright

LED flashes alternately 2 Hz yellow/green

Warning metering value threshold exceeded

(e.g. current, temperature) with auto reset.

LED static green

AFDD alright

LED flashes alternately 2 Hz yellow/red

Warning life cycle parameter threshold

exceeded (e.g. switching cycles, number of

trips) - reset only by changing threshold /

deactivate warning

LED static green

AFDD alright

LED flashes 2 Hz red

MCB tripped (Indication after power-on,

acknowledge necessary)

LED flashes 2 Hz red

AFDD tripped (Indication after power-on,

acknowledge necessary)

LED static green

MCB alright

LED off

Communication error

LED flashes 2 Hz yellow

Communication error

LED flashes 2 Hz red (different frequency left

and right)

Self-test failed, device error

LED flashes 4 Hz red (different frequency left

and right)

Self-test failed, device error

Reset device keys to factory default (unpair from

7KN Powercenter 1000)

Press button ≥ 10 s

After 3 s LED flashes 2 Hz green for 7 s.

Then the LED flashes 10 Hz green

Acknowledge after trip

1. Take care, that the cause of trip is removed

2. Switch ON the device and press button < 3 s

63355484127-04

Wireless Protocol

Operating

frequency

range:

2400-2483.5 MHz

Maximum

output power:

10 dBm EIRP

SIOS

https://sie.ag/3kWUa3j

→ Product / Article No.

Installation guide

https://sie.ag/3kPTjBf

3355484127-04 7

83355484127-04

https://support.industry.siemens.com/cs/de/en

→ Product / Article No. → Certificate → Declaration of Conformity

Security information

In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement

– and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and

solutions constitute one element of such a concept. For more information about industrial security, please visit

https://www.siemens.com/industrialsecurity

3355484127-04 9

3355484127-04

Last Update: 24 May 2022 © Siemens AG 2021 Subject to change without prior notice.

Store for

use at a later date. Technische Änderungen vorbehalten. Zum späteren Gebrauch aufbewahren.
