CoverTitle

AirLink MP597

Quick Start Guide

for Verizon

Rev 1.0 Mar.10 23

Activating your MP 597 on the Verizon

Network

•Product Overview

•OMA-DM

•Hands Free

Activation (HFA)

•Installing MP 597

•Verifying connection

•Configuring through

ACEmanager

•Activating Using AT

Commands

•Specifications

This Quick Start guide provides step-by-step directions for activating

your MP 597 on Verizon’s network.

Product Overview

Note: Do not connect the

MP modem to a USB port

on a computer before

installing the software.

The Sierra Wireless AirLink MP modem provides a wireless network

connection for portable computers in vehicles or offices.

If the MP modem is installed in a vehicle, it typically is mounted in the

trunk and connected to a notebook computer in the passenger

compartment. A radio frequency (RF) antenna mounted on the roof

of the vehicle enables the MP modem to communicate through a

wireless network to a host computer.

A built-in Global Positioning System (GPS) module provides location

and heading data that can also be remotely monitored.

The MP modem has a rugged design that allows it to withstand the

vibration, shock, humidity, and extremes of temperature experienced

in the normal operation of police, emergency, utility, and field service

vehicles.

AirLink MP 597 Quick Start Guide

24 2130795

You can use the network connection provided by the MP modem to access

shared data, browse the Internet, and send and receive e-mail and text

messages. The MP modem also allows for sensors, gauges, and alarms (such as

panic buttons) to be installed in vehicles and remotely monitored from a central

location.

OMA-DM

MP 597 is an embedded router solution that supports Network Initiated (NI) OMA-

DM Device Configuration (DC) and PRL Updates (PRL) on the Sprint network.

The MP 597 firmware registers notifications with the MC5727 radio module for

OMA-DM NI alerts and session state and processes them appropriately. The alert

response instructs the radio module to immediately process the NI OMA-DM

command. When the OMA-DM session state is IDLE, MP 597 records the

session type and session result code and then re-establishes the data

connection.

Hands Free Activation (HFA)

MP 597 automatically detects the radio module installed during system startup. If

the radio module is CDMA technology, MP 597 will check the current provisioning

state and if necessary execute HFA. For devices that have previously been

provisioned the HFA routine is bypassed.

Automatic Activation

One of the special features of your MP 597 for Verizon is the

ability to activate itself automatically. When you first power on

the MP 597, it will check to see if it has been activated with

account data. If it finds that it has not yet been activated, the

MP 597 will attempt to retrieve the account data from the

Verizon network using Over-the-Air Service Provisioning

(OTASP).

Caution:

You need to have an account with Verizon before you

attempt automatic activation. If you have not ordered an account

from Verizon for your MP 597, it will not succeed at activating.

a. Attach the antenna to your MP 597.

b. Plug the MP 597 into power.

c. While the LED lights, Network and GPS, blink together,

the MP 597 is attempting to download its account infor-

mation. The download process may take about a

minute or two.

Caution:

Do not move your MP 597 while it is being programmed.

Rev 1.0 Mar.10 25

Installing MP 597

For installing the latest software version (.exe file), you can go to the Sierra

Wireless website: http://www.sierrawireless.com/support.

For the updater tool to execute, please install the USB drivers available on the

website before executing the .exe file.

Tip:

Copy the USB Serial Driver.inf file to your desktop. Then power up the MP597W and

connect USB. Install from specific location and point to this .inf file. For detailed instruc-

tions on installing the USB drivers, please refer to Universal Serial Bus Application Note.

1. Connect the MP 597 to your computer using an Ethernet cable or a serial

cable USB cable.

2. Connect the power adapter and antennas to your MP 597.

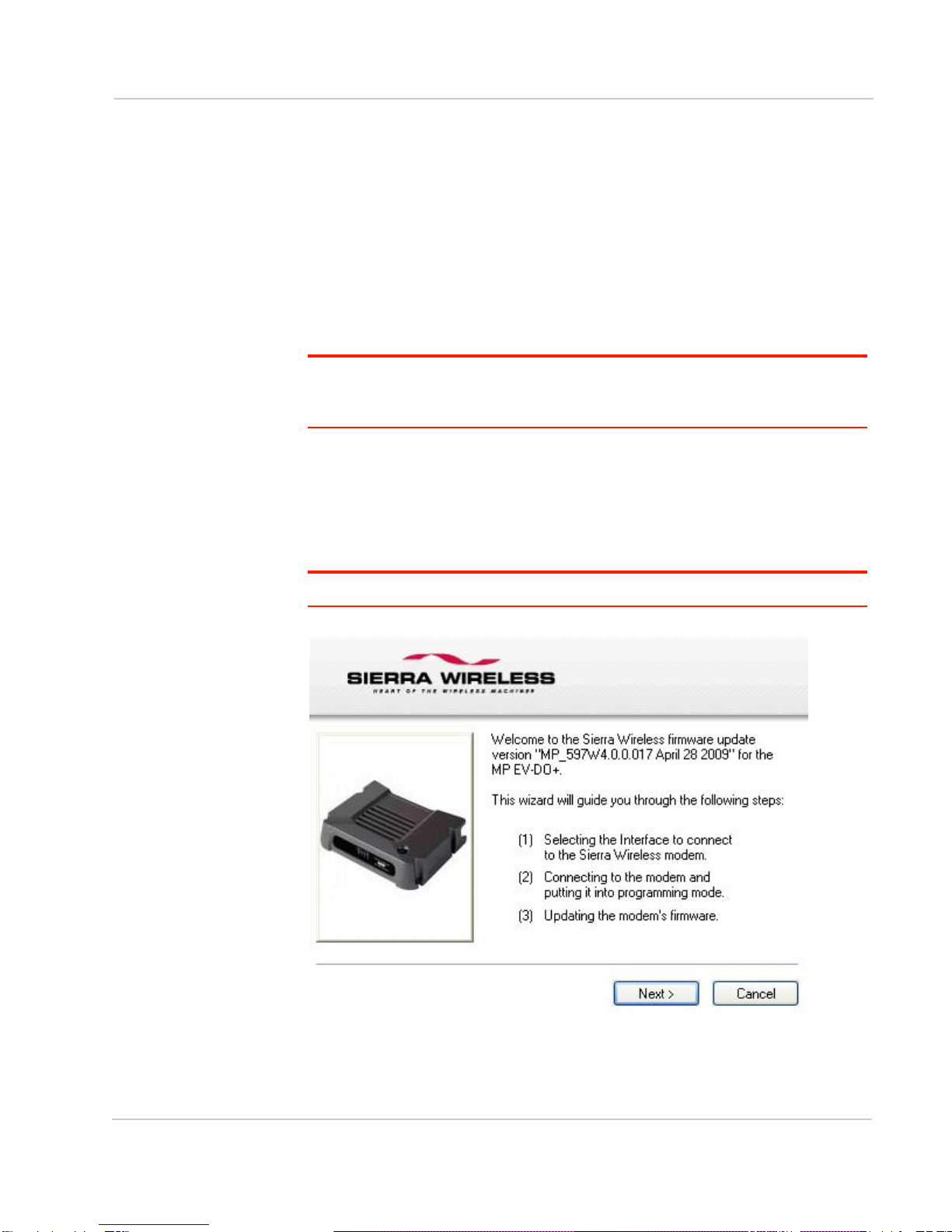

a. A Sierra Wireless firmware update welcome screen appears. Click on

Next.

Note: Figure 0-1 is for illustration purposes. Your firmware version may vary.

Figure 0-1: Launch Screen

b. Choose the interface you want to program the modem through and click

on Next.

d. When the lights illuminate, your MP 597 has success-

fully completed OTASP and is registered on the

Verizon network.

AirLink MP 597 Quick Start Guide

26 2130795

Note: You can use Boot interface only when a serial cable connection is established.

The default private for Ethernet is also in a different subnet from the other

connection types.

*can be changed via AceManager

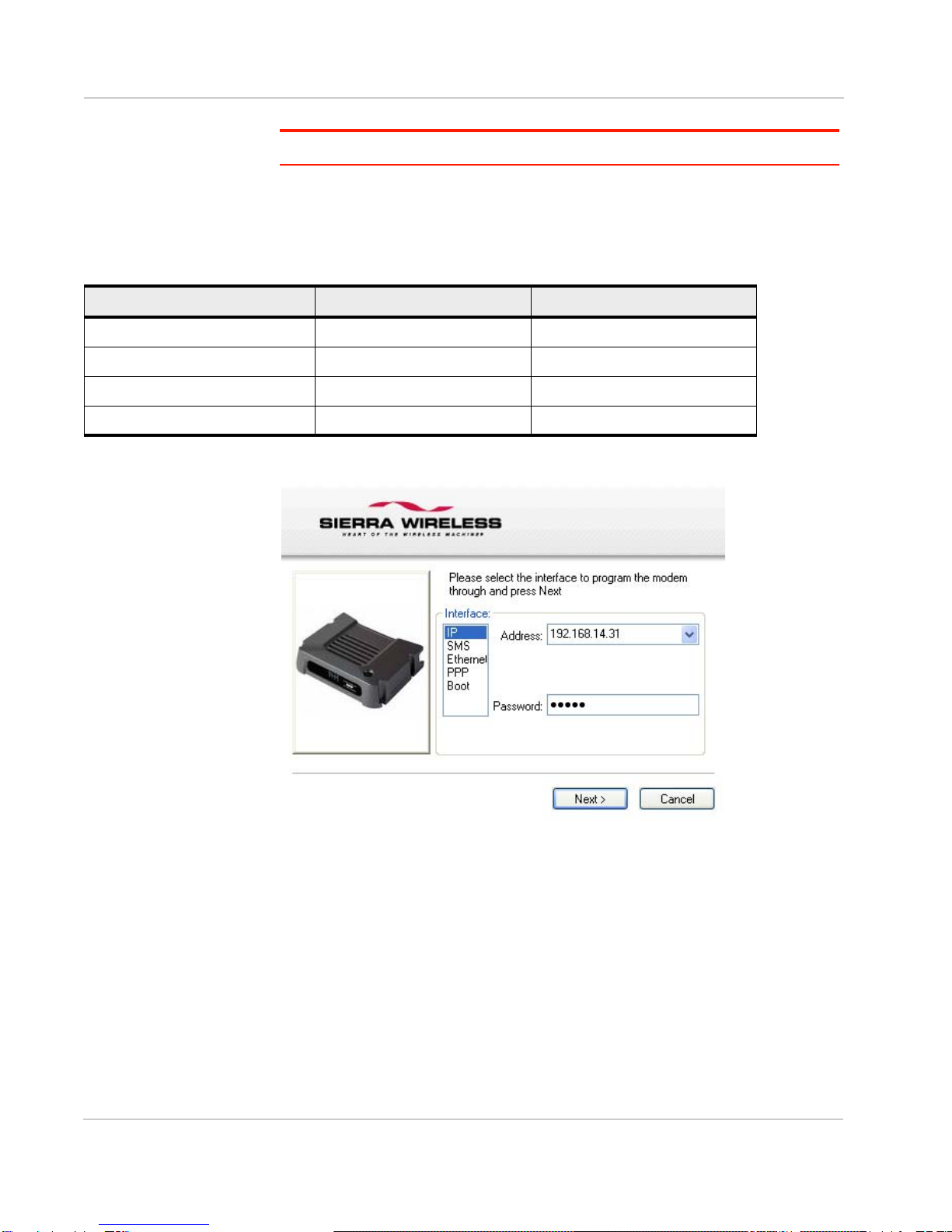

Figure 0-2: Configuration: Interface selection

c. The next screen will prompt you to reset the modem manually. Click on

Next after resetting the modem manually.

Table 0-1: Factory Defaults

Interface MP Connected Device

Ethernet Private default 192.168.13.31* 192.168.13.100

USB/NET 192.168.14.31 192.168.14.100

DUN 192.168.15.31 192.168.15.100

Wi-Fi* 192.168.17.31 192.168.17.100

Rev 1.0 Mar.10 27

Figure 0-3: Reset Modem

Installation begins and can take up to a few minutes.

Figure 0-4: Installing

Once the installation is complete, you will get a confirmation screen.

AirLink MP 597 Quick Start Guide

28 2130795

Figure 0-5: Installation Complete

Verifying connection

Verify that your modem is connected by checking the Network Connections

window in your computer.

Figure 0-6: Verify USB Connection

Confirming IP Address

Check the IP Address in your Local Area Connection window.

Figure 0-7 shows USB connection.

Rev 1.0 Mar.10 29

Figure 0-7: Confirm IP Address

Configuring through ACEmanager

AceManager is a free utility. Follow the steps below to connect to AceManager for

configuring the modem.

•Ensure MP connectivity to access AceManager.

•Go to: http://192.168.13.31:9191 (ethernet connection) the first time you

connect to AceManager.

Activating Using AT Commands

An alternate method to configure and activate your MP 597 is by using AT

commands sent directly to the modem with a terminal application. (Refer to the

troubleshooting section).

Caution:

It is not possible to activate the MP 597 using either ACEmanager or ACEnet.

Using Direct Commands to the Internal

Hardware

Use only if the ALEOS method is unsuccessful.

AirLink MP 597 Quick Start Guide

30 2130795

Activating the Modem

1. Put modem into passthru mode to by-pass ALEOS. This will allow direct

communication with the wireless module for programming. Entering passthru

will take 10-15 seconds and will return an ‘OK’ when it is complete.

AT\APASSTHRU

2. Verify you are in Passthru mode.

AT!STATUS

3. Unlock the module.

AT~NAMLCK=MSL

Tip:

The MSL is a six digit number that is unique to each modem.

4. Set the MDN and MSID.

AT~NAMVAL=0,MDN,MSID,0,65535

5. Verify the settings are what you intended to enter.

AT~NAMVAL?0

Note: If your carrier supports IOTA, start the IOTA session. Not all carriers support IOTA.

Please check with your carrier before you use this command.

6. Start the IOTA session.

AT!IOTASTART

Status will be output until IOTA completes with ‘IOTA Successful’ or ‘ 1012

ERROR’.

7. Reset the module.

AT!RESET

8. Press the reset button on the front of the modem. When the modem restarts,

it should register on the network.

PassThru mode through AT Command

Issuing the “AT\APASSTHRU” from a terminal emulation enters the PassThru

mode. The modem responds with OK, at which point a direct connection to the

internal hardware is established. You can also configure the modem to enter

PassThru mode on start up using MD.
