SIIG JU-DV0211-S1 Manuale utente
1
USB to Video Multi Monitor
Video Adapter
Quick Installation Guide
04-0746B
Introduction
The USB to Video Multi Monitor Video Adapter
allows you to connect a monitor, LCD or projector
to your desktop or notebook PC and use it as an
extended desktop or as an additional larger/
different display for your main screen.
Features and Benefits
• Compliant with Universal Serial Bus 2.0
Specification
• Display modes: primary, extended and
mirror
• Supports 60Hz and 75Hz monitor refresh
rates
• Display rotation: 0, 90, 180 270 degrees
• Userfriendlydisplayconfigurationsoftware
2
System Requirements
• Desktop of notebook PC with an available
USB 2.0 port
• Windows®
8 (32-/64-bit) / 7 (32-/64-bit) /
XP (32-/64-bit) / Server 2003 & 2008 (32-/
64-bit) / Server 2008 R2
Package Contents
•USB to Video Multi Monitor Adapter
• DVI to VGA adapter (JU-DV0211-S1 only)
• Driver CD
• Quick installation guide
Layout

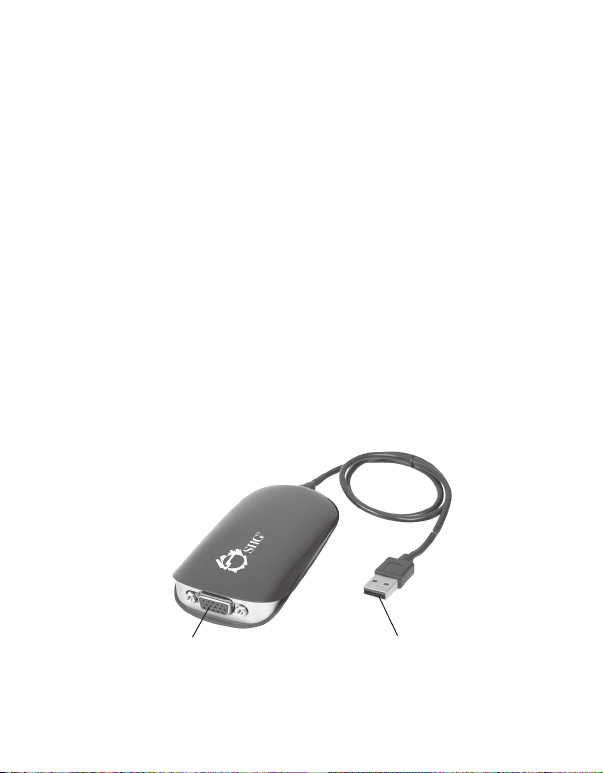

Figure 1: USB to VGA Multi Monitor Video Adapter
VGA port USB port
3
Figure 2: USB to DVI/VGA Multi Monitor Video Adapter
Figure 3: USB to DVI/VGA with DVI to VGA Adapter
USB port
DVI to VGA adapter
DVI port
VGA port
4
Driver Installation
Make sure the proper version driver for your
graphics card is installed, the USB to Video is not
designed to work with Windows' Standard VGA
Graphics Adapter driver.
Warning: DO NOT plug your USB to Video
adapter into your computer's USB port
until instructed to do so. The driver
installation will fail if the USB to Video
adapter is plugged in prematurely.
Windows 8 (32-/64-bit)
1. Insert the driver CD. Close the CD autoplay
box if prompted.
2. Click Windows key and R, type
D:\setup.exe, click OK.(Change D: to
match your CD/DVD-ROM drive letter)
3. At User Account Controls, click Yes.
4. Click Next, select I accept the terms of the
license agreement, click Next.
5. The install wizard will copy the drivers and
configure your system. Do not interrupt
this process.
5
6. Select Yes, I want to restart my computer
now, then click Finish.
7. Connect your second monitor to the USB to
Video and turn it on.
8. When Windows resumes, plug the USB to
Video into the computer, the driver will
install automatically.
Windows 7 (32-/64-bit) / Server 2008 R2
1. Insert the driver CD.
2. At the AutoPlay box: Click Open folder to
view files, then double click Setup.
If AutoPlay doesn't start: Click Start, in the
Search programs and files box, type
D:\setup.exe, press Enter.(Change D: to
match your CD/DVD-ROM drive letter)
3. At User Account Controls, click Yes. For
2008 R2, skip this step.
4. Click Next, select I accept the terms of the
license agreement, click Next.
5. The install wizard will copy the drivers and
configure your system. Do not interrupt
this process.
6
6. Select Yes, I want to restart my computer
now, then click Finish. This step could take
several minutes to appear.
7. Connect your second monitor to the USB to
Video and turn it on.
8. When Windows resumes, plug the USB to
Video into the computer, the driver will
install automatically.
Windows Vista (32-/64-bit) / Server 2008
(32-/64-bit)
1. Insert the driver CD.
2. At the AutoPlay box: Double click Setup.
If AutoPlay doesn't start: Click Start, in the
Start Search box, type D:\setup.exe, press
Enter.(Change D: to match your CD/DVD-
ROM drive letter)
3. At User Account Controls, click Continue.
For Server 2008, skip this step.
4. Click Next, select I accept the terms of the
license agreement, click Next.
5. Click Install at the Windows Security up to
three times. Skip this step if not prompted.
6. Click Finish.
7
7. Connect your second monitor to the USB to
Video and turn it on, then plug the USB to
Video into the computer.
8. Click Install at the Windows Security. Skip
this step if not prompted.
9. Restart Windows to complete the
installation.
Windows XP (32-/64-bit) / Server 2003 (32-/
64-bit)
1. Insert the driver CD. Click Start, then Run.
Type D:\setup.exe, click OK. (Change D:
to match your CD/DVD-ROM drive letter)
2. Click Next, select I accept the terms of the
license agreement, then click Next.
3. Click Continue Anyway at Hardware
Installation up to three times.
4. At InstallShield Wizard Complete, click
Finish.
5. Connect your second monitor to the USB to
Video and turn it on, then plug the USB to
Video into the computer.
8
6. At the Found New Hardware, select No,
not this time, then click Next. Skip this step
if not prompted.
7. Select Install the Software Automatically,
then click Next.
8. Click Continue Anyway at Hardware
Installation. Skip this step if not prompted.
9. At the Found New Hardware window,
click Finish, then restart the computer to
complete the installation.
To Verify Windows Installation
1. From the desktop, right click Computer or
My Computer, then click Manage.
For Windows 8 / 7 / XP / Server 2003: Click
Device Manager.
For Windows Vista: Click Continue, then
click Device Manager.
For Windows Server 2008 / 2008 R2: Double
click Diagnostics, then click Device
Manager.
2. Double click Universal Serial Bus
controllers, Trigger II External Graphics
should be displayed.
9
Display Utility
After successful driver installation either Super
Utility or USB Display Device icon will
appear in the taskbar by the system clock. This
utility allows you to change the viewing modes
and resolutions for the USB to Video. Access the
menu by right clicking the icon.
Super Utility Icon (Windows 8 / 7 / Server
2008 R2)
Display Settings
•Duplicate these displays: In this setting,
the USB to Video will mirror your desktop.
Youwillseethesameimageon both displays.
• Extend these displays: This setting extends
your desktop for easy viewing of multiple
windows. Windows will move off the
primary display and enter the extended
display.
Note: To match the physical arrangement
of your displays drag the monitor icons
into the appropriate position. See Figure
4: Monitor Orientation.
10

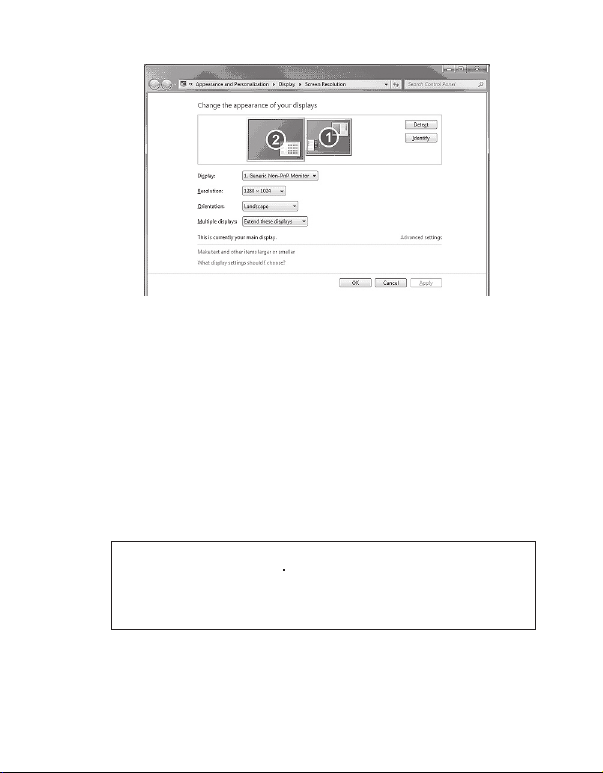

Figure 4: Monitor Orientation
•Make this my main display: This setting is
active when using your monitors in
extended mode only. Before selecting this
option, enable Auto Arrange* (right click
anywhere on the desktop, click View, click
Auto Arrange) to allow your desktop icons
to move to the new main display.
*Note: Without this setting, you will need
to drag-n-drop your desktop icons to the
new main display.
•Show desktop only on 1: This setting turns
on display 1 and turns off all other displays.
