SIIG CE-H26411-S1 Manuale utente

Full HD HDMI Extender over

IP with POE, RS-232 & IR

ser M

CE-H26411-S1 for Transmitter

CE-H26511-S1 for Receiver

04-1284A

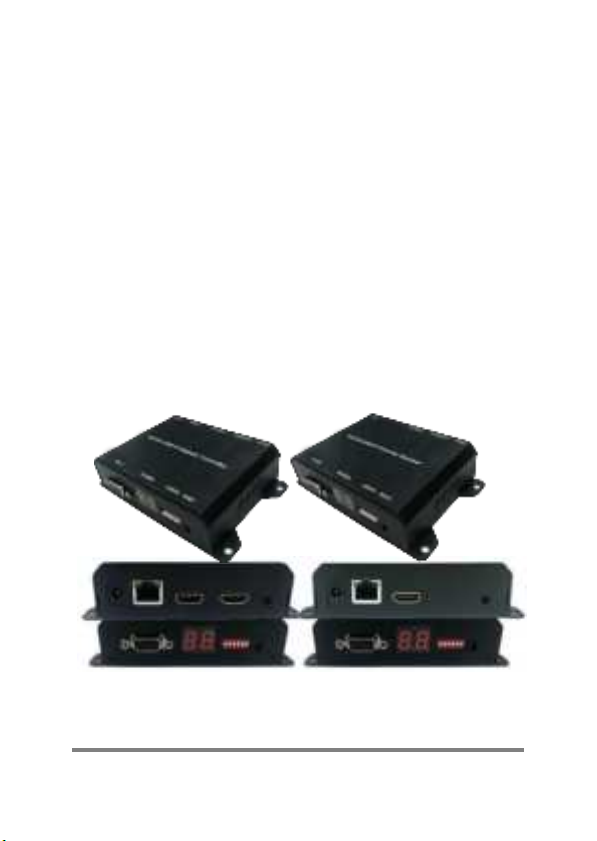

Introduction

Full HD HDMI Extender over IP with POE, RS-

232 & IR for point to point, point to multi-point,

multi- point to multi-point and screen wall

broadcast including RS-232 and IR control

extension. Easy installation with networking

10/100 BASE-T switch hub and CAT-5 cable

for building up the extension or broadcast

system.

*** Full HD HDMI Extender over IP with POE, RS-232 & IR

Features & Application

⚫

RS-232 bi-directional extension

⚫

6 bits switch for 64 stream channel selection

⚫

HDCP compliant and Blu-Ray ready

⚫

Support IR extension

⚫

Automatic or manual EDID configuration

⚫

Networking environment under 10/100 BASE-T

switch hub and CAT-5 cable

⚫

Point to point extension, unicast, multicast and

screen wall system

⚫

Point to point extension via CATx without

Ethernet switch up to 100M

⚫

Support PC tool Ethernet control

Specifications

Transmitter

Receiver

VIDEO INPUT

HDMI Type-A female connector

None

VIDEO OUTPUT

HDMI Type-A female connector for

loop through

HDMI Type-A female connector

3.5mm phone jack for IR emitter to

control video source device

3.5mm phone jack for IR receiver

cable to receive remote signal

COMPRESSION

H.264 compression video format Full HD encoder/ decoder

MP3 compression audio format stereo 192Kbps encoder/ decoder

Media stream up to 18Mbps

HDMI

INPUT RESOLUTION

1080p 60/50, 1080p 30/25, 1080i 60/50,720p 60/50,

480i 60/50, 480p 60/50

HDMI

OUTPUT RESOLUTION

1080p 30/25, 1080i 60/50, 720p 60/50, 480i 60/50,

480p 60/50

AUDIO FORMAT

Stereo 192Kbps

IP PROTOCOL

TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4

LAN PORT

RJ-45 connector for 10/100 BASE-T CAT-5 extension

SERIAL

DB-9 female connector for RS-232

POWER INPUT

2.0mm power jack for DC5V/2A

RJ-45, Power over Ethernet 36V~57V / 7W in (PoE model only)

OPERATING

TEMPERATURE

0~55℃

OPERATING HUMIDITY

5%~90% RH

POWER ADAPTER

AC in 100~240V (50~60Hz), DC5V/2A out

ESD

ESD protection air gap discharge ±8KV, contact discharged ±4KV

DIMENSION (W x D x L)

130 x 82 x 30.25 mm ( L x W x H )

WEIGHT

290g per transmitter or receiver unit

** Product specifications are subject to change without notice.

Hardware Description

■

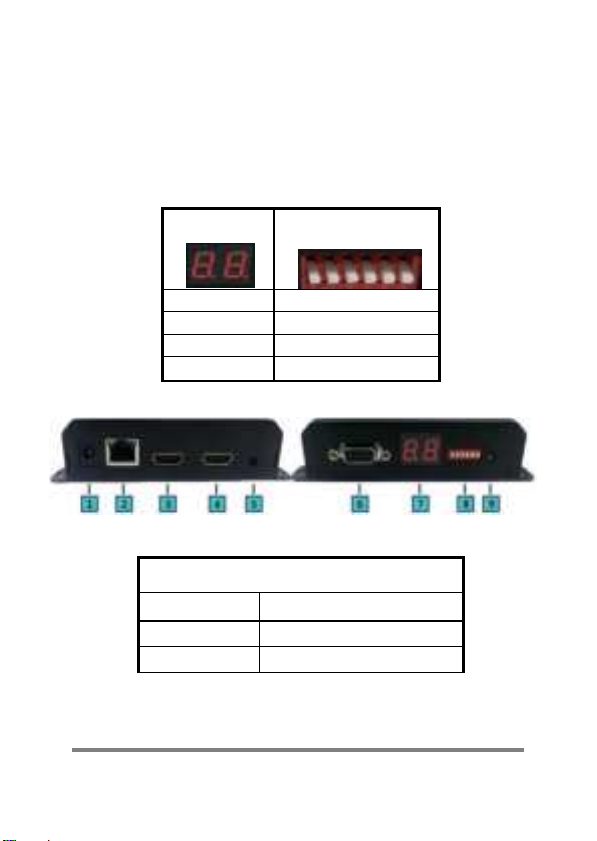

Transmitter (TX)

2.0 mm power jack for DC5V2A power input.

LAN port, RJ-45 connector for 10/100 BASE-

T CAT5 extension.

HDMI Type-A female connector for loop

through video output.

HDMI Type-A female input connector.

3.5mm phone jack for IR emitter to control

video source device.

DB-9 female connector for RS-232 cable bi-

directional remote extension

Display group indication.

Group configuration, 6 bits switch for 64

stream channel selection.

Reset button.

Channel

DIP SWITCH

000000

100000

111111

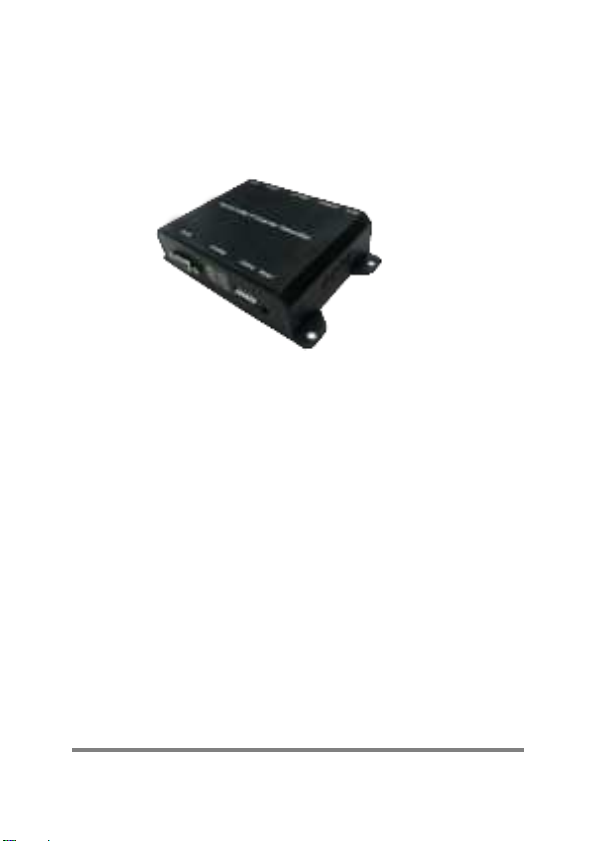

Dimension

Transmitter

CE-H26411-S1

Shell

Metal

Width

110mm/130mm

Height

30mm

Depth

86mm

Weight

290g

■

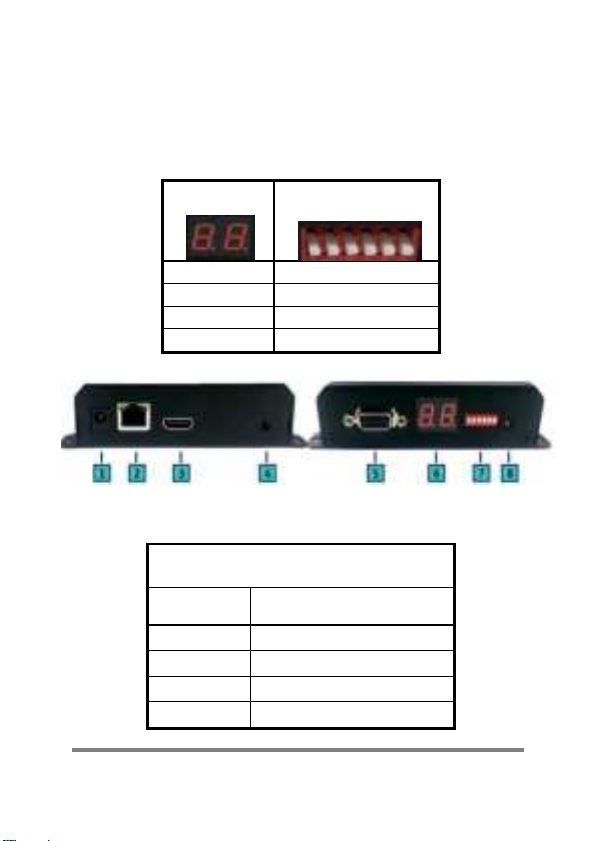

Receiver (RX)

2.0 mm power jack for DC5V2A power input.

LAN port, RJ-45 connector for 10/100 BASE-

T CAT5 extension.

HDMI Type-A female connector for video

output.

3.5mm phone jack for IR receiver cable to

receive signal from remote controller.

DB-9 female connector for RS-232 bi-

directional remote extension.

Display group indication.

Group configuration, 6 bits switch for 64

stream channel selection.

Reset button.

Channel

DIP SWITCH

000000

100000

111111

Dimension

Receiver

CE-H26511-S1

Shell

Metal

Width

110mm/130mm

Height

30mm

Depth

86mm

Weight

290g

Installation

5.1

Device Connection

Set up the group of the transmitter with the

correspondent receiver for signal extension

and display.

Connect the HDMI cables between the source

and transmitter for input, and the display and

receiver for output.

Connect CAT5 cable among the

transmitter, Ethernet switch and receiver.

Connect the DC5V power adapter with the

transmitter and receiver for power supply.

Turn on and play source.

Connect the IR emitter cable with the

transmitter and the IR receiver cable with the

receiver to control the source remotely.

5.2

Configuration

5.3

Application Pattern

■

Unicast
