SIIG NN-E20112-S2 Manuale utente

04-0390B

FireWire 2-Port PCIe DV

Quick Installation Guide

Introducing the FireWire 2-Port PCIe DV

The FireWire2-PortPCIe DV isdesignedtoaddFireWire

interface to your PCI Express-enabled system. Ulead

VideoStudio video editing software is included for

producing greeting cards, video e-mails, or home videos

complete with attractive titles, effects, and background

music.

FeaturesandBenefits

• CompliantwithPCIExpressBaseSpecification 1.0a

• Compliant with IEEE 1394-1995, 1394a-2000 and

OHCI 1.1 Standards

• PCI Express 1-lane (x1) FireWire adapter works

with PCI Express slots with different lane width

• Installs in any available PCI Express slot and

supports data transfer rates up to 400Mbps

• Spare enhanced low profile bracket is included to

work in low profile chassis

• Twoexternal6-pinFireWire(1394a)portstosupport

DV camcorders, hard disk, removable drives,

scanners, digital cameras and other FireWire

audio/video devices

• Onboardpowerconnectortoprovidereliablepower

source

• Ulead VideoStudio software provides exciting

digital video capturing, editing and exporting

capabilities.

SystemRequirements

• PCI Express-enabled system with an available PCI

Express slot

• Windows®2000/XP (32-/64-bit)/Server 2003

(32-/64-bit)/Vista (32-/64-bit)

PackageContents

•FireWire 2-Port PCIe adapter and spare enhanced

low profile bracket

• FireWire 6-pin to 4-pin DV cable and "Y" split

power cable

• Ulead VideoStudio DV editing software CD

Layout

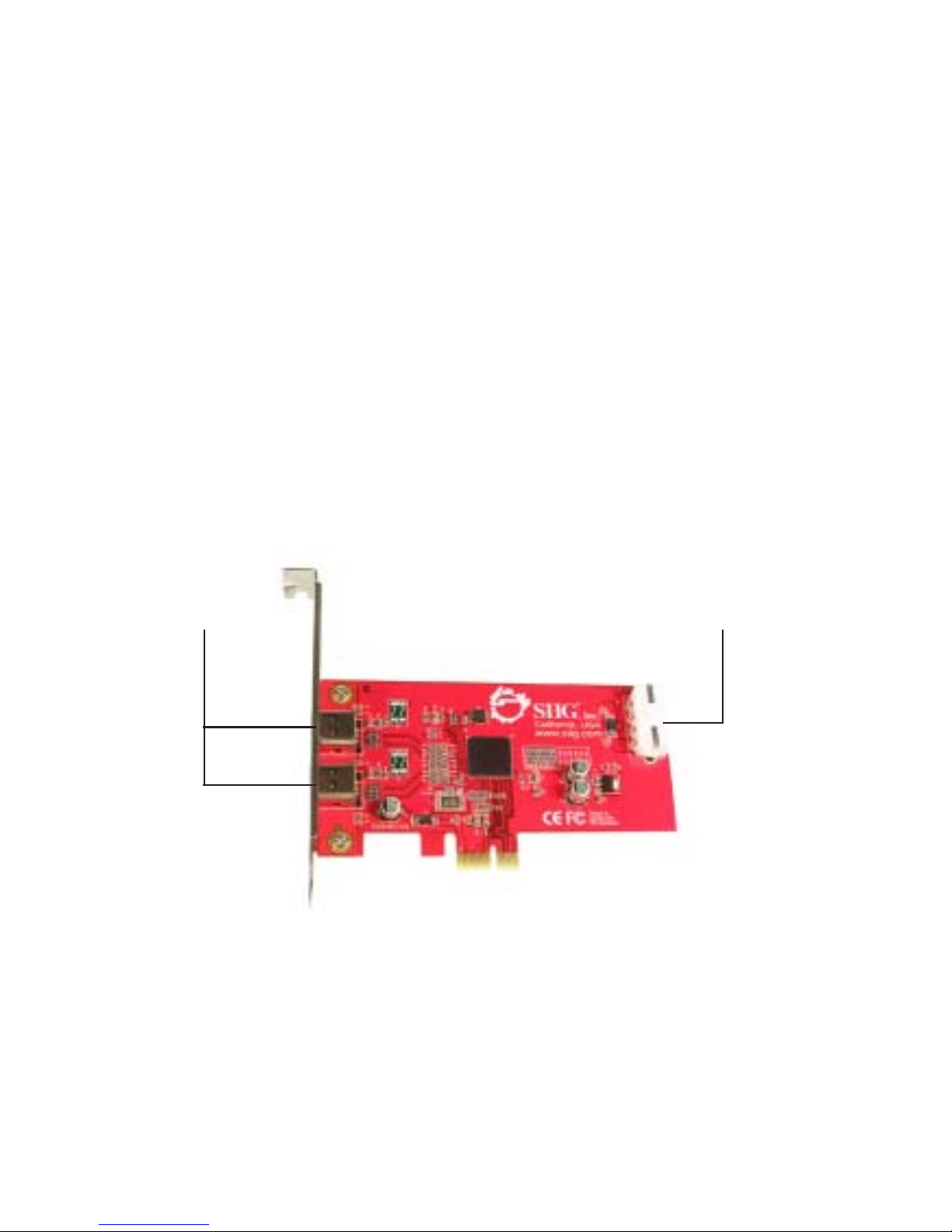

Figure 1: FireWire 2-Port PCIe DV Board Layout

Power connector

(Required)

FireWire ports

Hardware Installation

General instructions for installing the card are provided

below. Since the design of computer cases and

motherboards vary, refer to your computer’s reference

manual for further information, if needed.

Static Electricity Discharge may permanently damage

your system. Discharge any static electricity build up in

your body by touching your computer’s case for a few

seconds. Avoid any contact with internal parts and

handle cards only by their external edges.

1. Turn OFF the power to your computer.

2. Unplugthepowercordandremoveyourcomputer's

cover.

3. RemovetheslotbracketfromanavailablePCIeslot.

4. Carefully align the card to the selected PCIe slot

push the board down firmly, but gently, until it is

well seated.

5. Connect the system power source to the board's

power connector.

6. Replacetheslotbracket holdingscrewtosecurethe

card.

7. Replacethecomputercoverandreconnectthepower

cord.

Driver Installation

Windowswillautomaticallydetectandinstallthecorrect

drivers for your FireWire 2-Port PCIe DV.

ToVerifyDriverInstallation

1. Check Device Manager to verify successful driver

installation.

Windows 2000/XP/Server 2003: Right click My

Computer, then click Manage. Click Device

Manager.

WindowsVista™:RightclickComputer,clickManage,

click Continue, then click Device Manager.

2. Double click 1394 Bus Controller or IEEE 1394 Bus

host controllers option.

- AnIEEE1394HostControllershouldbedisplayed.

UleadVideoStudiosoftwareinstallation

TheFireWire2-PortPCIe DV includes Ulead VideoStudio

digitalvideoeditingsoftwareforproducinghomevideos

complete with attractive titles, transitions and sounds.

1. InserttheUleadVideoStudioDVsoftwareCD. Auto-

run should start automatically. If not, click Start,

Run,typeineitherX:\Autorun.exeorX:\setup.exe,

then click OK. (Replace X: with the drive letter of

your CD-ROM)

2. Choose Install Ulead VideoStudio and follow the

on-screen instructions to complete.

Note: For instructions on how to use Ulead

VideoStudio, please refer to VStudio.pdf file

located in the Document\Manual directory on the

Ulead VideoStudio DV editing software CD.

Connecting a DV Camcorder

Before setting up the digital video camcorder, verify the

FireWire 2-Port PCIe DV driver has been successfully

installed in your system, then follow the procedures

below.

1. Boot up your system.

2. Connect the 4-pin connector of the provided

FireWire 400 (1394a) DV cable to your camcorder.

3. Connect the 6-pin connector to the FireWire 400

(1394a) port.

4. Power on the camcorder. The camcorder should

now appear in Device Manager.

VerifyDVCamcorder

1. Windows 2000/XP/Server 2003: Right click My

Computer, then click Manage. Click Device

Manager.

WindowsVista™:RightclickComputer,clickManage,

click Continue, then click Device Manager.1.

RightclickMyComputer,thenclickManage. Click

Device Manager.

2. Double click Imaging Device(s).

- AMicrosoft DV Camera and VCR or DV

Camcorder should be displayed.

Connecting Other 1394 Devices

Many 1394 devices have built-in driver support with

Windows 2000/XP/Server 2003/Vista. Please refer to

the device’s user manual for detail installation

information. Depending on the device you purchased, a

different 1394 cable may be used. Refer to your 1394

device's manual for more details.

Technical Support and Warranty

QUESTIONS? SIIG’sOnlineSupporthasanswers! Simplyvisitour

web site at www.siig.com and click Support. Our online support

databaseisupdateddailywithnewdriversandsolutions. Answers

toyourquestionscouldbejustafewclicksaway. Youcanalsosubmit

questions online and a technical support analysts will promptly

respond.

SIIGoffersalifetimemanufacturerwarrantywiththisproduct. Please

see our web site for more warranty details. If you encounter any

problemswiththisproduct,pleasefollowtheprocedures below.

A) If it is within the store's return policy period, please return the

producttothestorewhereyoupurchasedfrom.

B) Ifyourpurchasehaspassedthestore'sreturnpolicyperiod,please

followthese steps tohave theproduct repaired orreplaced.

Step1: SubmityourRMArequest.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective,anRMAnumberwillbeissued. SIIGRMAdepartment

can also be reached at (510) 413-5333.

Step2: After obtainingan RMA number, ship the product.

•Properlypacktheproductforshipping. Allsoftware,cable(s)

andanyotheraccessoriesthatcamewiththeoriginalpackage

mustbeincluded.

•Clearly write your RMA number on the top of the returned

package. SIIGwillrefusetoacceptanyshippingpackage,and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•Youareresponsible for thecostof shipping. Ship theproduct

to the following address:

SIIG,Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA#:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

nocosttothecustomer.

FireWire2-PortPCIeDVisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarks

ofSIIG,Inc. Microsoft,WindowsandWindowsVistaareregisteredtrademarksofMicrosoftCorporation

Other names used in this publication are for identification only and may be trademarks of their

respectivecompanies.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

ofI/Oconnectivityproducts,includingPCI&ISAserialandparallel

ports,USB,SerialATA&UltraATAcontrollers,FireWire(1394a/b),

networking,soundcards,andotheraccessories. SIIG is the premier

one-stopsourceofupgrades.

SIIGproductsoffercomprehensiveusermanuals,manyuser-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

found in computer retail stores, mail order catalogs, through major

distributors, system integrators, and VARs in the Americas and the

UK,andthroughe-commercesites.

PRODUCT NAME

FireWire 2-Port PCIe DV

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA
