SIIG SC-SA4M12 Manuale utente

Serial ATA 4-Channel PCI-M

Quick Installation Guide

04-0356B

Introducing the Serial ATA 4-Channel PCI-M

The Serial ATA 4-Channel PCI-M is an ultra high-speed

four channel Serial ATA controller. It achieves burst data

transfer rates up to 150MB/s (1.5Gbps) and supports

hard disk drives with capacities greater than 137GB.

Features and Benefits

• Compliant with Serial ATA Specification, rev. 1.0

• Compliant with PCI Specification, revision 2.3

• Provides four independent channels to support up

to four Serial ATA hard disk drives

• Co-exists with on-board controller

• Can be used as the boot controller when a bootable

hard disk drive is attached

• Supports 32-/64-bit wide PCI slot at 33MHz

System Requirements

• G3 (blue & white) or later with one available PCI slot

• Mac OS X v10.1.x or later

PackageContents

•Serial ATA 4-Channel PCI-M board

• 2 Serial ATA cables

• Serial ATA power cable (dual connector)

• "Y" split power cable

• Software CD

• This quick installation guide

Layout

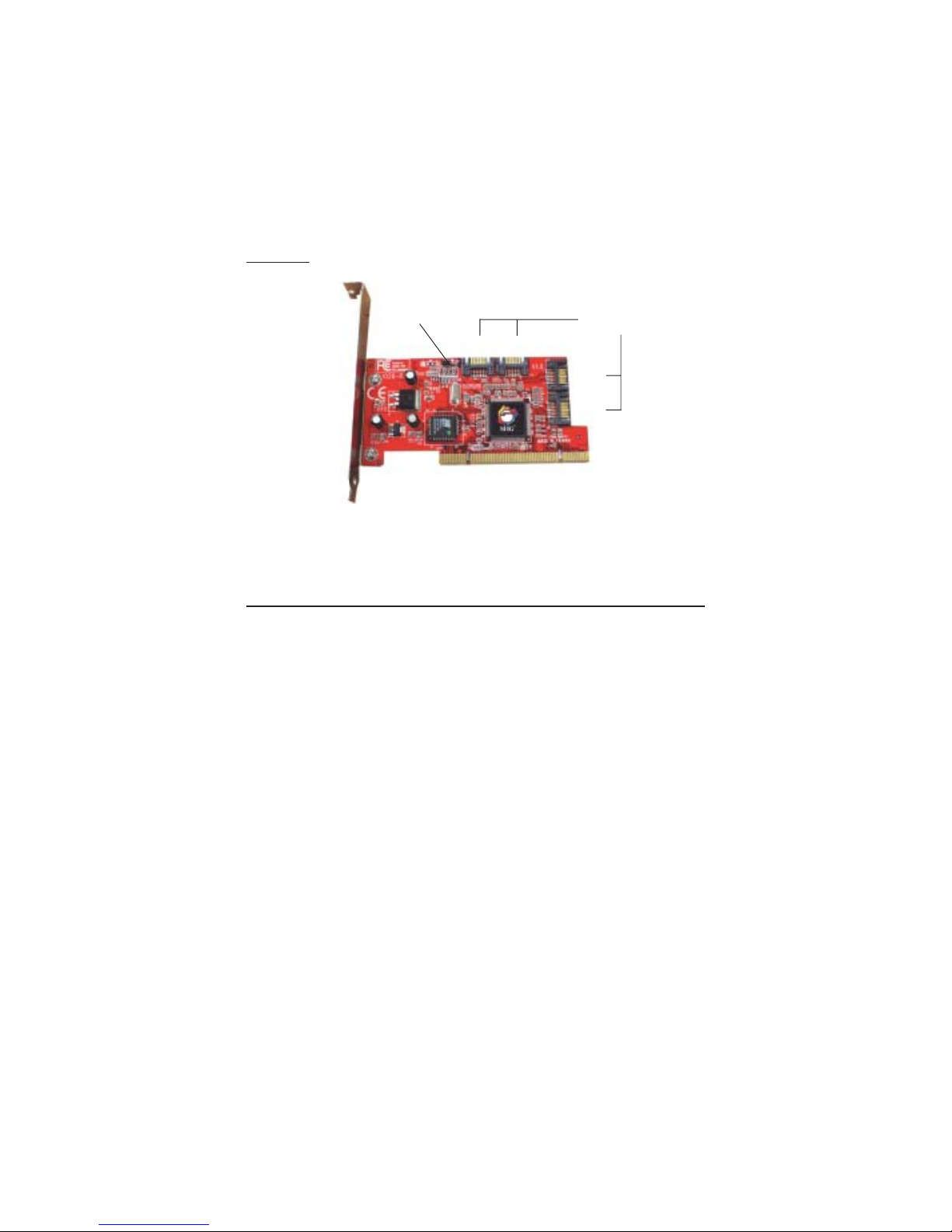

Figure 1. Serial ATA 4-Channel PCI-M

Hardware Installation

Static Electricity Discharge may permanently damage

your system. Discharge any static electricity build up in

your body by touching your computer’s case for a few

seconds. Avoid any contact with internal parts and

handle cards only by their external edges.

1. Turn OFF the power to your computer and any

other connected peripheral devices. Unplug the

computer's power cord.

2. Open your computer’s case and install the card in an

available PCI slot.

3. Push the board down firmly, but gently, until it is

well seated.

4. Secure the card with a slot bracket holding screw.

Now go to Device Connection to connect your Serial

ATA hard disk drives.

CN1

CN2

Serial ATA

connectors

Hard Disk

LED Pins

CN3

CN4

DeviceConnection

The Serial ATA 4-Channel PCI-M is a four channel Serial

ATA controller that supports up to four Serial ATA hard

disk drives. If you plan to use more than two Serial ATA

channels, you will need to purchase additional Serial

ATA power and data cables.

1. Install hard disk drive(s) in chassis.

Note: Users with Mac OS X (v10.1.x) installed go to

Mac OS X (v10.1.x) Firmware Update on page 4

before proceeding.

2. Connect the hard disk drive to the system power

supply using the Serial ATA power cable.

3. Connect one end of the Serial ATA cable to the hard

disk drive.

Serial ATA cable

Serial ATA power cable

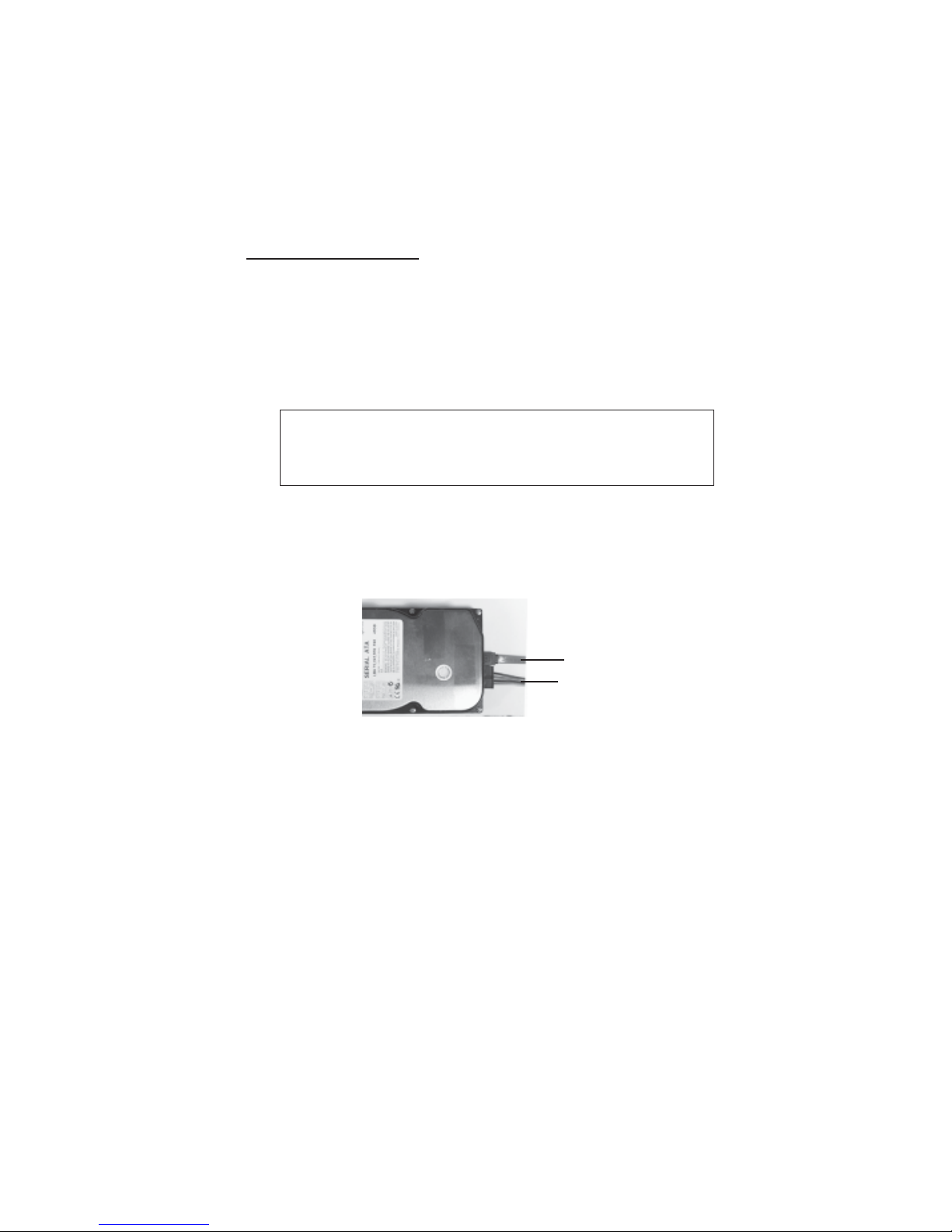

Figure 2. Hard disk drive connections

4. AttachtheotherendoftheSerialATAcabletoa Serial

ATA connector on the Serial ATA 4-Channel PCI-M.

5. Follow the same instructions when connecting each

hard drive. Device connection is now complete.

6. Close the computer's case then go to Software

Installation to complete the installation.

Software Installation

Mac OS X (v10.2.x or later) drivers are built into the

controllers's firmware, no additional driver installation

or firmware update are needed. Go to Mac OS X

Installation on page 5 to complete the installation.

In order for the Serial ATA 4-Channel PCI-M to work in

Mac OS X v10.1.x the firmware must be updated using

the utility on the driver CD. Go to Mac OS X (10.1.x

Firmware Update below.

Mac OS X (v10.1.x) Firmware Update

Before installing the update please follow these

guidelines:

•Make sure no drives are connected to the Serial ATA

4-Channel PCI-M

•This utility can only be used in Mac OS X v10.1.x

•Close all applications before updating the firmware

•You must have administrator privilages to install

this update

1. Insert the included software CD. Double click the

Drivers icon that appears on the desktop.

2. CopySIIG3114101UpDriveR1.sit onto the desktop,

then double click it.

3. Double click SIIG3114101UpDriveR1 Folder that

appears on the desktop.

4. Launch the utility by double clicking the file

Update.command.

5. Press Cand the Return key to continue. Otherwise

press Qand the Return key to quit.

6. Wait about 30 seconds, when finished press Quit

then shutdown your system.

7. Connect your hard drive(s), then restart the

computer to activate the new firmware.

The firmware update is complete, continue to Mac OS X

Installation, on page 5 to complete the installation.

Mac OS X Installation

For a fresh OS X installation:

Use this sectionwhen the SerialATA 4-Channel PCI-Mwill

be the boot controller and Mac OS X will be installed on

a blank or new hard disk drive.

1. Install the Serial ATA 4-Channel PCI-M and attached

drives.

2. Boot up your computer with the Mac OS X

CD-ROM. Press and hold letter C on the keyboard

while your system is booting from the CD-ROM.

3. When Mac OS X finishes booting, click Installer in

the menu bar.

4. Click Open Disk Utility.

5. Highlight the drive connected to the

Serial ATA 4-Channel PCI-M and click Partition.

Important: Partitioning the drive will erase all

information on this hard disk drive.

6. Click Partition, click Partition again to initialize the

drive.

7. Close Disk Utility when finished and continue

with Mac OS X installation.

For systems that have OS X installed:

Use this section when Mac OS X is already installed and

the Serial ATA 4-Channel PCI-M will be used as an add-on

controller.

1. Install the Serial ATA 4-Channel PCI-M and attached

drives. Boot up your system.

2. At the desktop double click Mac OS X drive icon.

Note: Ifthedrive shows up on the desktop properly,

you can choose not to follow steps 3-8.

3. Double click Applications folder.

4. Double click Utilities folder.

5. Double click Disk Utility icon.

6. Highlight the drive connected to the

Serial ATA 4-Channel PCI-M and click Partition.

Important: Partitioning the drive will erase all

information on this hard disk drive.

7. Click Partition, click Partition again to initialize the

drive.

8. Close Disk Utility when finished. The new drive

should appear as Untitled on the desktop.

Troubleshooting

Q. I am installing OS X on a new hard drive connected

to the PCI-M using it as the boot controller. I have

booted the computer using the Mac Installation

CD-ROM. When the 1st CD is finished installing,

the computer automatically restarts but will not

boot from the hard drive connected to the Serial ATA

4-Channel PCI-M. What can I do to complete the

installation?

A. When this occurs, power down the system by

holding down the power button until it turns off.

Wait a few seconds then power the system back on.

The computer will recognize the PCI-M as the boot

controller and continue with the installation.

Technical Support and Warranty

QUESTIONS? SIIG’s Online Support has answers!

Simply visit our website at www.siig.com and click on Support.

Our online support database is updated daily with new drivers

and solutions. Answers to your questions could be just a few clicks

away. You can also submit questions online and one of our technical

support analysts will promptly respond.

A lifetime manufacturer warranty supplied with this product is

offered by SIIG, Inc. Please see SIIG website for more warranty

details. If you should happen to encounter any problems with this

product, please follow the procedures below.

If it is within the store's return policy period, please return the

product to the store where you purchased from.

If your purchase has passed the store's return policy period, please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued. SIIG RMA department

can also be reached at (510)413-5333.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIG will refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping the product to SIIG

at the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538

RMA #:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

no cost to the customer.

Serial ATA 4-Channel PCI-M is a trademark of SIIG, Inc.

SIIGandSIIGlogoareregisteredtrademarksofSIIG,Inc. MacandMacOSareregisteredtrademarks

of Apple Computer, Inc. Other names used in this publication are for identification only and may be

trademarksoftheirrespectivecompanies.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

ofI/Oconnectivity products, including PCI & ISA serial and parallel

ports, USB, Serial ATA & UltraATA controllers, FireWire (1394a/b),

Networking,SoundCards,andotheraccessories. SIIGisthepremier

one-stop source of upgrades.

SIIGproductsoffercomprehensive usermanuals,manyuser-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

foundincomputerretailstores,mailordercatalogs,ande-commerce

sitesinthe AmericasandtheUK,as wellasthroughmajor distributors,

system integrators, and VARs.

PRODUCT NAME

Serial ATA 4-Channel PCI-M

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Ave.

Fremont, CA 94538-3152

Indice

Altri manuali SIIG Scheda PCI

SIIG

SIIG LB-US0314-S1 Manuale utente

SIIG

SIIG CyberSerial Dual PCI Manuale utente

SIIG

SIIG VV-CV0012-S1 Manuale utente

SIIG

SIIG Low Profile PCI I/O Manuale utente

SIIG

SIIG CyberPro PCI 2S Manuale utente

SIIG

SIIG CyberPro 1S1P Manuale utente

SIIG

SIIG CyberSerial Dual PCIe Manuale utente

SIIG

SIIG NN-400M12-S6 Manuale utente

SIIG

SIIG 8000 Plus Manuale utente

SIIG

SIIG CyberPro PCI 2S Manuale utente

SIIG

SIIG SC-SA1012-S1 Manuale utente

SIIG

SIIG NN2630 Manuale utente

SIIG

SIIG SC-SA2012-S1 Manuale utente

SIIG

SIIG PCI Express Serial Cards Manuale utente

SIIG

SIIG SIIG 2S1P Combo-Value Manuale utente

SIIG

SIIG DP CyberSerial 4S PCIe Manuale utente

SIIG

SIIG Duet Parallel PCI Manuale utente

SIIG

SIIG 1394 PCI Adapter Manuale utente

SIIG

SIIG PCI-to-PC Card Pro Manuale utente

SIIG

SIIG CyberPro PCI 4S Manuale utente

SIIG

SIIG Cyber 1S1P PCI Manuale utente

SIIG

SIIG SIIG 2S1P Combo-Value Manuale utente

SIIG

SIIG JU-P40112-S1 Manuale utente

SIIG

SIIG Low Profile PCI-1S1P Manuale utente

Manuali Scheda PCI popolari di altre marche

ERMA

ERMA SSI 1417 Manuale utente

Moxa Technologies

Moxa Technologies CP-102E Manuale utente

I-Bus

I-Bus IBC2602 Manuale utente

Exsys

Exsys EX-60102 Manuale utente

Chelsio Communications

Chelsio Communications T5 Series Manuale utente

Conrad Electronic

Conrad Electronic 97 46 71 Manuale utente

Micro Innovations

Micro Innovations USB650A Manuale utente

KTI Networks

KTI Networks KF-310 Manuale utente

Asus

Asus SpaceLink WL230 Manuale utente

TRENDnet

TRENDnet TEW-703PI Manuale utente

Belkin

Belkin F5D7000F Manuale utente

Pericom

Pericom PI7C7100 Manuale utente

ADLINK Technology

ADLINK Technology cPCI-3548 Manuale utente

Digium

Digium TE200 Series Manuale utente

Allo.com

Allo.com 2nd Gen E1/T1/J1 Manuale utente

Western Digital

Western Digital FireWire PCI Adapter Manuale utente

Pyle

Pyle Gamelink PLINK1 Manuale utente

Alpha Networks

Alpha Networks WMP-A13V Manuale utente
