SIIG SC-SA2012-S1 Manuale utente

eSATA II-150 PCI

Quick Installation Guide

Introducing the eSATA II-150 PCI

The eSATA II-150 PCI is an ultra high-speed dual channel

SerialATA Generation2controllerforuseinPCI enabled

systems.

Features and Benefits

• Adds two external (eSATA) ports to your desktop

computer for external drive connections

• New Serial ATA cable –easier to install & provides

better air circulation

• Supports two SATA channels and data transfer rate

up to 1.5Gb/s (150MB/s)

• Supports Native Command Queuing (NCQ) and

SATA TCQ commands

• Onboard bus master engine relieves the system

processor from book keeping and enhances

performance

• Features independent 256-byte FIFOs per channel

for host reads and writes

•· Breaks the 137GB barrier! Works with various

brands of large capacity Serial ATA hard disks

• Supports SATA hard disk hot-plugging

• CompliantwithPCI2.3andeSATA(externalSATA)

connector specifications

• Compliant with Serial ATA 1.0 specifications and

complement of SATA II optional features

04-0411A

System Requirements

• Pentium or equivalent PC with an available PCI slot

• Windows 2000/XP/Server 2003

PackageContents

•eSATA II-150 PCI

• Driver CD

• This quick installation guide

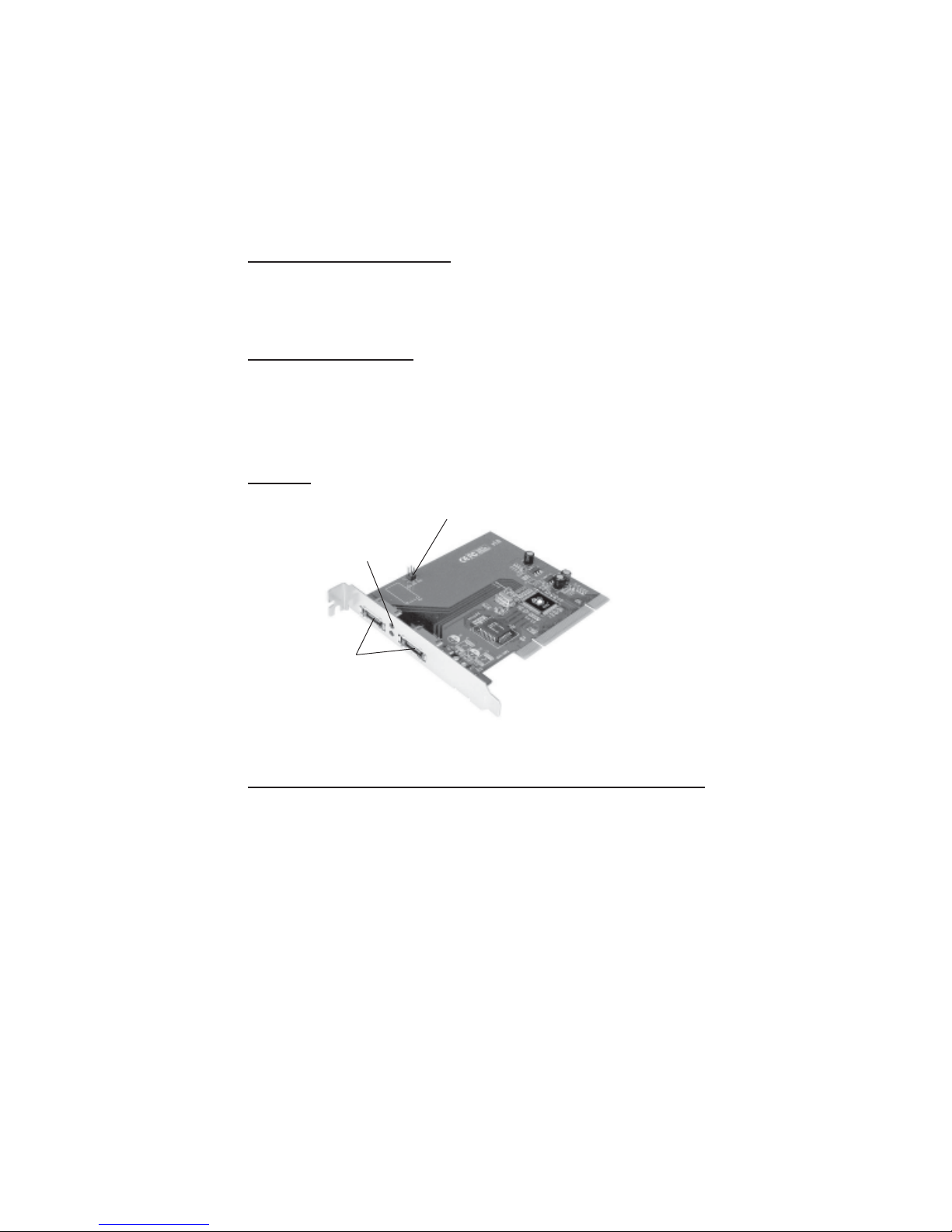

Layout

Figure 1. eSATA II-150 PCI Board Layout

Hardware Installation

General instructions for installing the card are provided

below. Since the design of computer cases and

motherboards vary, refer to your computer’s reference

manual for further information, if needed.

Static Electricity Discharge may permanently damage

your system. Discharge any static electricity build up in

your body by touching your computer’s case for a few

seconds. Avoid any contact with internal parts and

handle cards only by their external edges.

HDD

Activity LED

External

connectors

HDD LED pins (Front chassis

LED; connects horizontally)

1. Turn OFF the power to your computer and any

other connected peripheral devices.

2. Unplug the power cord from the back of the

computer.

3. Remove your computer’s cover.

4. Remove the slot bracket from an available PCI slot.

5. To install the card, carefully align the card's bus

connector with the selected PCI slot on the

motherboard. Push the board down firmly, but

gently, until it is well seated.

6. Replace the slot bracket's holding screw to secure

the card.

7. If needed, connect the HDD LED pins to monitor

HDD activity from the front panel of your chassis.

8. Replacethecomputercoverandreconnectthe power

cord.

Driver Installation

This section provides information on how to install the

eSATA II-150 PCI drivers for the following operating

systems.

Windows 2000

New Windows 2000 Installation

A new installation of Windows 2000 requires a floppy

disk for the driver installation. To make this floppy disk,

copy the contents of the Floppy folder, found on the

driver CD, onto a blank floppy disk then follow the

directions below.

1. Install the board and follow the Microsoft

procedures to install Windows 2000 accordingly.

2. Restart your system when prompted during

Windows' installation.

3. At the Windows 2000 Setup screen, press F6 to

install the driver.

4. Insert the driver diskette. Press S, then press Enter.

5. Select INITIO INIC1620 S-ATA Adapter For

Windows 2000 and press Enter.

6. Press Enter to continue and follow on-screen

instructions to complete the installation.

Existing Windows 2000 Installation

1. Install the board and boot up Windows.

2. At the Found New Hardware Wizard, click Next.

3. Select Search for a suitable driver for my device

(recommended) and click Next.

4. InsertthedriverCD,checkCD-ROMdrives,uncheck

the other boxes, and click Next. Click Next again to

continue.

5. Click Yes, then click Finish.

Note: Our driver has been thoroughly tested in

Windows for stability.

6. RestartWindowstocompletethe driver installation.

Windows XP/Server 2003

New Windows XP/Server 2003 Installation

A new installation of Windows XP/Server 2003 requires

a floppy disk for the driver installation. To make this

floppy disk, copy the contents of the Floppy folder,

found on the driver CD, onto a blank floppy disk then

follow the directions below.

1. Install the board and follow the Microsoft

procedures to install Windows accordingly.

2. Restart your system when prompted by Windows'

installation.

3. At the Windows Setup screen, press F6 to install the

driver.

4. Insert the driver diskette. Press Sthen press Enter.

5. Select INITIO INIC1620 S-ATA Adapter For

Windows XP/2003 and press Enter.

6. Press Enter to continue and follow on-screen

instructions to complete the installation.

Existing Windows XP/Server 2003 Installation

1. Install the board and boot up Windows.

2. At the Found New Hardware Wizard:

XP (w/SP1 or earlier)/Server 2003: Continue to step #3.

XP(w/SP2or later)/Server 2003 (w/ SP1 or later): Select

No, not at this time, then click Next.

3. Insert the driver CD, select Install the software

automatically (Recommended), then click Next.

Click Next again to continue.

4. Click Continue Anyway, then click Finish.

Note: Our driver has been thoroughly tested in

Windows for stability.

5. RestartWindowstocompletethe driver installation.

To Verify Windows 2000/XP/2003 Installation

1. Right click My Computer,click Manage and select

Device Manager.

2. Double click SCSI and RAID Controllers, then

double click Initio inic1620 S-ATA Adapter. A

message This device is working properly is displayed

in the dialog box, the driver has been correctly

installed.

External Device Connection

External Serial ATA devices should come with their own

accessories. In most cases, you just need to power up the

external device and connect it to the external port. For

more information, please refer to the external device's

manual.

Hot-Plugging Hard Disk Drives

To remove a drive from a powered up system, do the

following:

1. Right click My Computer and click Manage.

2. Select Device Manager.

3. Click Disk Drives, right click the target disk and

select Disable/Enable.

4. You can now remove the target disk.

BIOS Configuration

The eSATA II-150 PCI BIOS will appear everytime your

system starts up. If the bios doesn't show, please try your

controller in another PCI slot. During this (Post) process,

the BIOS will show up and indicate the devices attached

to it.

Technical Support and Warranty

QUESTIONS? SIIG’s Online Support has answers!

Simply visit our website at www.siig.com and click on Support.

Our online support database is updated daily with new drivers

and solutions. Answers to your questions could be just a few clicks

away. You can also submit questions online and one of our technical

support analysts will promptly respond.

A lifetime manufacturer warranty supplied with this product is

offered by SIIG, Inc. Please see SIIG website for more warranty

details. If you should happen to encounter any problems with this

product, please follow the procedures below.

If it is within the store's return policy period, please return the

product to the store where you purchased from.

If your purchase has passed the store's return policy period, please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued. SIIG RMA department

can also be reached at (510)413-5333.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIG will refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping the product to

SIIG at the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538

RMA #: _________________

•SIIG will ship the repaired or replaced product via Ground

in the U.S and International Economy outside of the U.S at

no cost to the customer.

eSATA II-150 PCI is a trademark of SIIG, Inc.

SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are

registeredtrademarksofMicrosoftCorporation. Othernamesusedinpublicationareforidentification

only and may be trademarks of their respective companies.

PRODUCT NAME

eSATA II-150 PCI

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Ave.

Fremont, CA 94538-3152

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

of I/O connectivity products, including PCI & ISA serial and parallel

ports, USB, Serial ATA & UltraATA controllers, FireWire (1394a/b),

Networking,Sound Cards, andother accessories. SIIG is the premier

one-stop source of upgrades.

SIIGproductsoffercomprehensiveusermanuals, many user-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

foundin computer retailstores, mail order catalogs, and e-commerce

sites in the Americas and the UK, as well as through major

distributors, system integrators, and VARs.
