PEDESTAL FAN

Operation and safety notes

IAN 393751_2107

PEDESTAL FAN SSVF38A1

GB/IE/NI Operation and safety notes Page 5

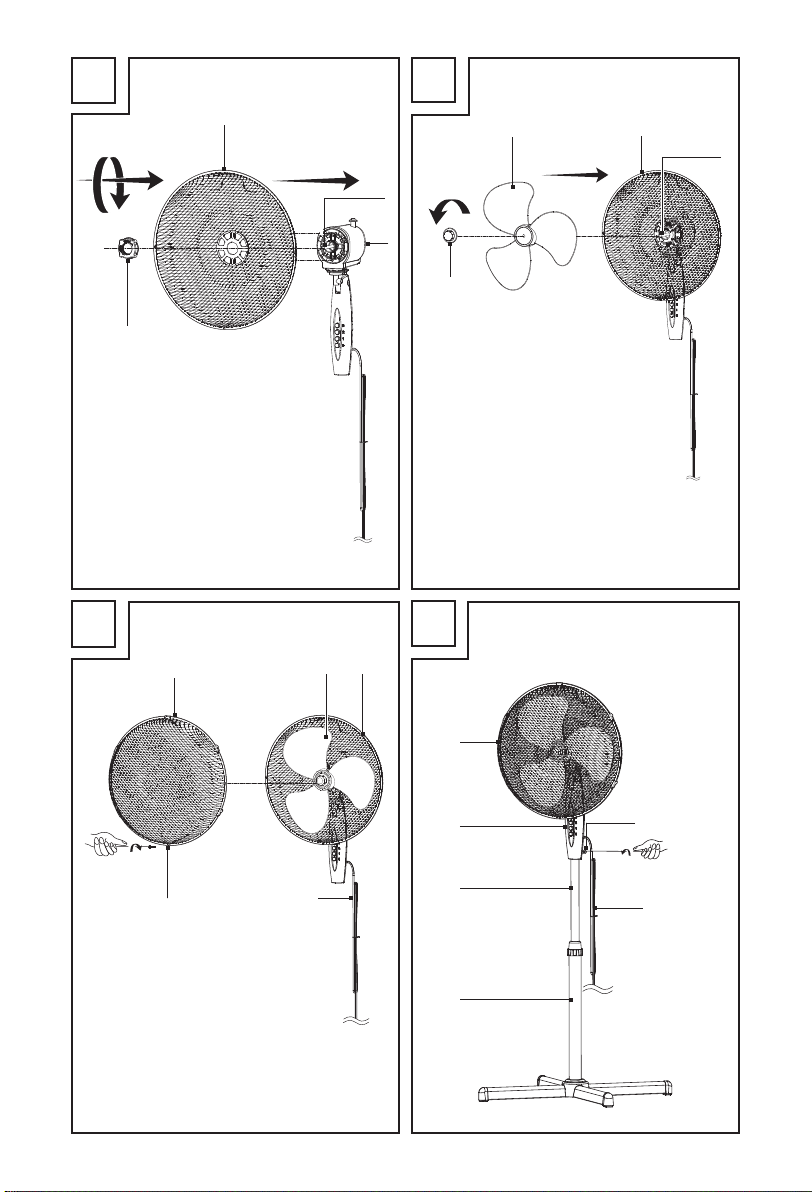

[1]

[]

[2] [4][3]

[]

[]

[]

[5]

[8]

[]

[6]

[7]

[]

[9]

[]

[]

[]

[]

[]

[]

[]

[]

[]

[]

[]

[]

[]

[]

[]

[] []

[]

[6]

[]

[5]

[4]

[5]

[]

[3]

[2]

[]

[]

[1]

[]

[1] [3] [5]

[]

[]

[8]

[9]

5GB/IE/NI

Warnings and symbols used ............................................ Page 6

Introduction ............................................................... Page 6

Intended use................................................................. Page 6

Scope of delivery ............................................................. Page 7

Description of parts ........................................................... Page 7

Technical data ............................................................... Page 7

Safety instructions........................................................ Page 8

Before use ................................................................. Page 10

Unpacking .................................................................. Page 10

Assembly ................................................................... Page 10

Height adjustment ............................................................ Page 10

Tilt adjustment................................................................ Page 10

Operation.................................................................. Page 11

Fan speed .................................................................. Page 11

Oscillation .................................................................. Page 11

Cleaning and care ........................................................ Page 11

Storage .................................................................... Page 11

Disposal.................................................................... Page 11

Warranty .................................................................. Page 12

Warranty claim procedure...................................................... Page 12

Service ..................................................................... Page 12

6 GB/IE/NI

Warnings and symbols used

The following warnings are used in this user manual and on the packaging:

DANGER! This symbol in combination

with the signal word “Danger” marks

a high-risk hazard that if not prevented

could result in death or serious injury.

NOTE: This symbol in combination

with “Note” provides additional useful

information.

WARNING! This symbol in combination

with the signal word “Warning” marks a

medium-risk hazard that if not prevented

could result in death or serious injury.

Danger – Risk of electric shock!

CAUTION! This symbol in combination

with the signal word “Caution” marks a

low-risk hazard that if not prevented could

result in minor or moderate injury.

Only use the product in dry indoor rooms.

Do not put ﬁngers through the grille.

CE mark indicates conformity with

relevant EU directives applicable for this

product.

UKCA mark indicates conformity with

relevant Great Britain regulations

applicable for this product (The UKCA

mark logo is valid in Great Britain only).

PEDESTAL FAN

Introduction

We congratulate you on the purchase of your new

product. You have chosen a high quality product.

The instructions for use are part of the product. They

contain important information concerning safety,

use and disposal. Before using the product, please

familiarise yourself with all of the safety information

and instructions for use. Only use the product as

described and for the speciﬁed applications. If you

pass the product on to anyone else, please ensure

that you also pass on all the documentation with it.

Intended use

This product is intended to produce a cooling airﬂow.

Any other use not mentioned in these instructions may

cause a damage to the product or create a serious

risk of injury.

This product is only intended for private household

use, not for commercial purposes.

The manufacturer accepts no liability for damages

caused by improper use.

7GB/IE/NI

Scope of delivery

Unpack the product. Remove the transport locks,

if any.

After unpacking the product, check if all parts

are complete and in good condition. Remove

all packing materials (including protective foils)

before use.

1 Motor unit (with speed buttons, grille lock nut

and lock screw)

2 Cross base (with screws)

1 Blade lock nut

1 Extension pole and lower pole (with height

adjustment lock and pole cover)

1 Front grille (with lock nut and lock screw)

1 Rear grille

1Blade

NOTE: Various removable components are

delivered pre-assembled (see “Description of

parts”).

Description of parts

Before reading, unfold the page containing the

illustrations and familiarise yourself with all the

functions of the product.

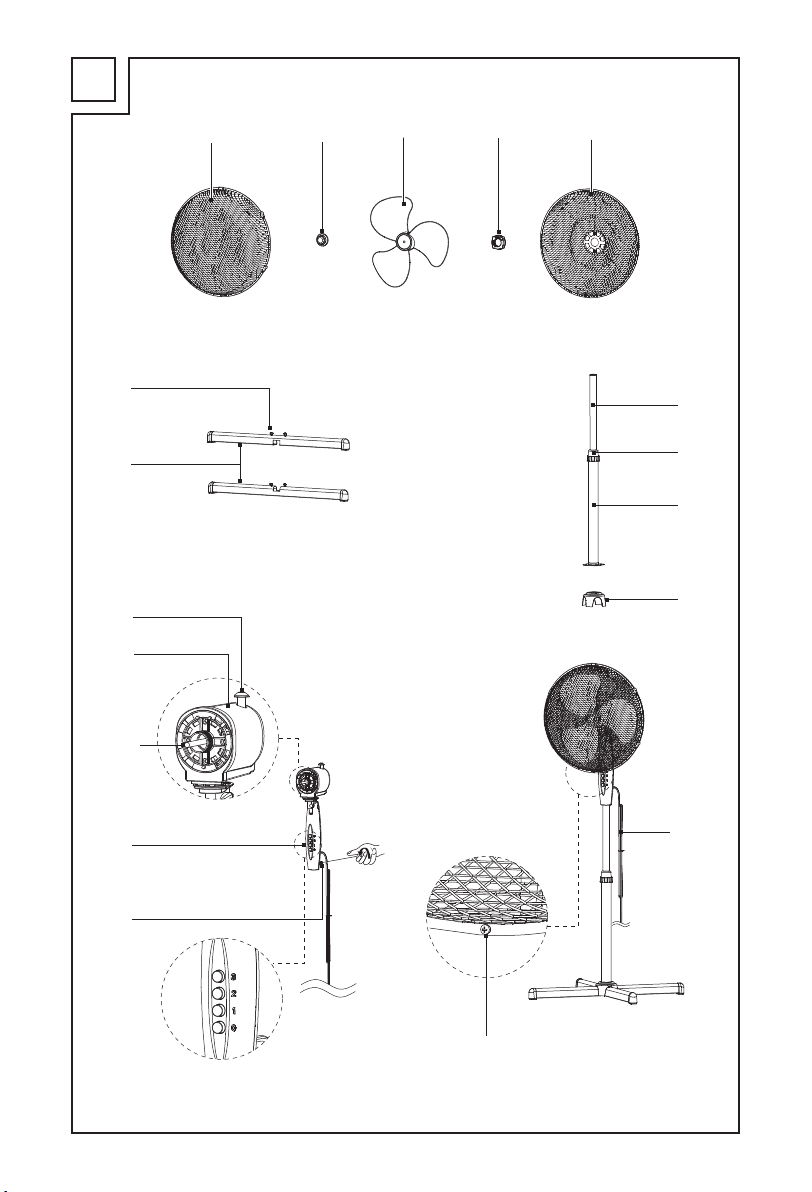

Fig. A

[1] Front grille

[2] Blade lock nut

[3] Blade

[4] Grille lock nut

[5] Rear grille

[6] Motor unit

[] Motor shaft

[7] Oscillation control knob

[8] Speed button panel (0, 1, 2, 3)

[9] Lock screw

[] Extension pole

[] Height adjustment lock

[] Lower pole

[] Pole cover

[] Cross base

[] *Screw for cross base (M6x14mm) (x4)

[] *Lock screw and lock nut

[] Power cord with power plug

*pre-assembled

Technical data

Input voltage: 220–240 V~~, 50–60 Hz

Power consumption: 45 W

Description Symbol Value Unit

Maximum fan

ﬂow rate F 62.03 m3/min

Fan power input P 38.9 W

Service value SV 1.59 (m3/min)/W

Standby power

consumption PSB 0.0 W

Fan sound power

level LWA 53.75 dB(A)

Maximum air

velocity C2.7 meters/sec

Measurement

standard for

service value

IEC 60879:1986 (corr. 1992)

Contact details

for obtaining

more information

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

www.owim.com

8 GB/IE/NI

Safety instructions

BEFORE USING THE PRODUCT,

PLEASE FAMILIARISE

YOURSELF WITH ALL OF THE

SAFETY INFORMATION AND

INSTRUCTIONS FOR USE! WHEN

PASSING THIS PRODUCT ON TO

OTHERS, PLEASE ALSO INCLUDE

ALL THE DOCUMENTS!

In the case of damage resulting

from non-compliance with these

operating instructions the warranty

claim becomes invalid! No liability is

accepted for consequential damage!

In the case of material damage or

personal injury caused by incorrect

handling or non-compliance with

the safety instructions, no liability is

accepted!

Children and persons with

disabilities

mDANGER! Risk of

suﬀocation! Never leave

children unsupervised with the

packaging material.

The packaging material

represents a danger of

suﬀocation. Children frequently

underestimate the dangers.

Always keep children away from

the packaging material.

This product can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities, or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the product in

a safe way and understand the

hazards involved.

Cleaning and user maintenance

shall not be made by children

without supervision.

Children shall not play with the

product.

Electrical safety

mWARNING! Risk of injury!

Switch the product oﬀ and

disconnect it from the power

supply before cleaning work and

when not in use.

9GB/IE/NI

mWARNING! Risk of electric

shock! Ensure the rated voltage

shown on the rating label

corresponds with the voltage of

the power supply.

mWARNING! Risk of electric

shock! If the supply cord is

damaged, it must be replaced by

the manufacturer, its service agent

or similarly qualiﬁed persons in

order to avoid a hazard.

Operation

Only use the product in dry

indoor rooms.

Protect the product, its power

cord and power plug against

dust, direct sunlight, dripping and

splashing water.

mCAUTION! Risk of injury!

Ensure that the fan is switched

oﬀ from the supply mains before

removing the guard.

mCAUTION! Risk of injury!

Never use the product without the

safety grille or with a damaged

safety grille.

mCAUTION! Risk of injury!

During use, keep hands, hair,

clothing and utensils away from

the safety grille to avoid injuries

and damage of the product.
