Silvercrest SWEP 500 A1 Manuale utente

MULTI-BAND RADIO SWEP 500 A1

MULTI-BAND RADIO

Operating instructions

IAN 79840

ΔΕΚΤΗΣ ΠΑΓΚΟΣΜΙΟΥ ΛΗΨΕΩΣ

Οδηүίες χρήσης

WELTEMPFÄNGER

Bedienungsanleitung

GB / CY Operating instructions Page 1

GR / CY Οδηүίες χρήσης Σελίδα 33

DE / AT / CH Bedienungsanleitung Seite 65

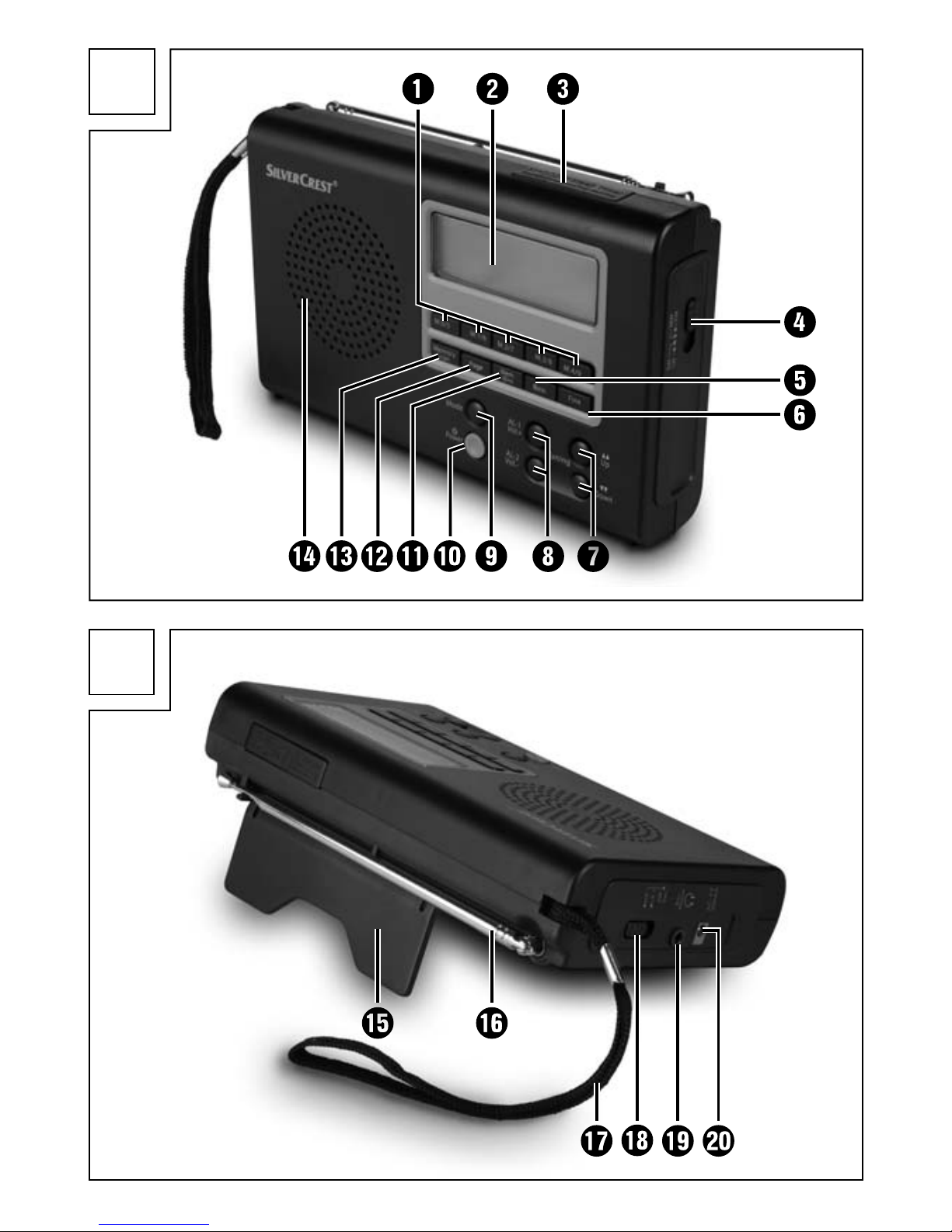

Before reading, unfold the page containing the illustrations and familiarise

yourself with all functions of the device.

Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τις δυο σελίδες με τις εικόνες και

εξοικειωθείτε με όλες τις λειτουργίες της συσκευής.

Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen

Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

GB/CY

- 1 -

CONTENTS PAGE

Introduction 2

Intended use 2

Technical Data 2

Symbols used 4

Safety information 5

Operating elements 9

Starting up 10

General functions 12

Time functions 12

Time, date, time zone and world time . . . . . . . . . . . . . . . . . . . . .13

Select display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Alarm function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Stop watch function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Countdown function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Radio operation 24

Setting the station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Fine tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Memory functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Cleaning 29

Disposal 29

Importer 30

Warranty & Service 30

IB_79840_SWEP500A1_GB_CY 04.01.2013 11:55 Uhr Seite 1

Introduction

Congratulations on the purchase of your new appliance. You have clearly

decided in favour of a quality product. These operating instructions are a

part of this product. They contain important information in regard to safety,

use and disposal. Before using the product, familiarise yourself with all of

these operating and safety instructions. Use the product only as described

and only for the specified areas of application. Retain these instructions for

future reference. In addition, pass these documents on, together with the

product, to any future owner.

Intended use

This appliance is intended for receiving generally approved radio transmis-

sions in all countries (world receiver) and only for domestic use.

Utilisation other than as described here is not permitted and it could lead

to damages and injuries. No liability will be accepted for damages resulting

from misuse or improper handling, the application of force or unauthorised

modifications.

Technical Data

This appliance fulfills, in regard to conformity with, the fundamental require-

ments and other relevant provisions of the EMC Directive 2004/108/EC,

the Low Voltage Directive 2006/95/EC, the Ecodesign Directive

2009/125/EC (Commission Regulation 1275/2008 Annex II, No .1) and

the RoHS Directive 2011/65/EU.

- 2 -

GB/CY

IB_79840_SWEP500A1_GB_CY 04.01.2013 11:55 Uhr Seite 2

Power consumption: 5 watts

Power consumption Standby: approx. 1 W

Operating temperature: +5 ~+40°C

Humidity: 5 ~80% (no condensation)

Dimensions (W x H x D): 17.7 x 11 x 3.9 cm

Appliance weight: approx. 425 g

Power transformer weight: approx. 197 g

Batteries

4x 1.5 V, Type AA/LR6/Mignon (not supplied)

Frequency range radio:

VHF (FM): 87 – 109 MHz

SW: 5.85 – 17.90 MHz

MW (AM) Europe 522 – 1656 kHz

MW (AM) USA 520 – 1710 kHz

LW 144 – 299 kHz

The technical features of the device enable the frequency ranges stated

above to be set. Various countries may have different national rules on the

radio frequency ranges assigned. Please note that you may not sell, transfer

to third parties or abuse information received outside the assigned radio

frequency ranges.

Tuning ranges (NORMAL/FINE):

FM (VHF) 100 kHz /50 kHz

SW 5 kHz /1 kHz

MW (AM) Europe 9 kHz /1 kHz

MW (AM) USA 10 kHz /1 kHz

LW 1 kHz

Sensitivity: SW can be set to 2 intervals

- 3 -

GB/CY

IB_79840_SWEP500A1_GB_CY 04.01.2013 11:55 Uhr Seite 3

General

Memory positions: 400

Headphones

Model: E105

Impedance: 32 Ω

Wideband characteristic

Voltage (WBCV): approx. 110 mV

Headphone socket

max. Output voltage: approx. 65 mV

Power transformer

Manufacturer: Everway Industries Ltd.

Model: EW35B600-060A

Primary: 230 V ~50 Hz / 25 mA

Secondary: 6 V ~600 mA / 3,6 VA

Symbols used

These symbols bring to your attention that here a warning notice

follows in regard to one of the following matters:

- Risk of injury,

- Risk of electric shocks,

- Risk of fire,

- Risk of explosion,

plus bringing your attention to important matters such as:

- Information regarding the handling of batteries,

- Information about voltage surges,

- Information about mains-power disconnection.

- 4 -

GB/CY

IB_79840_SWEP500A1_GB_CY 04.01.2013 11:55 Uhr Seite 4

This symbol warns about submersing the appliance in water or

other liquids.

This symbol warns you about hearing damage.

Note:

With this symbol you are given tips about interaction with the appliance.

Safety information

• This device has not been designed for use by people (including children)

with restricted physical, sensory or intellectual abilities or lack of expe-

rience and/or knowledge, unless they are supervised by a responsible

person (for their own safety) or have received instructions on how to

use the device.

• Children should be supervised to ensure that they do not play with

the device.

• In order to avoid the device being switched on unintentionally, remove

the adapter from the mains socket after each use and before cleaning.

• Check the device and all parts for visible damage. The device’s safety

concept can only work if the device is in perfect condition.

• A mains adapter connected to the device must always be easily

accessible so that the device can be quickly disconnected from the

mains power in an emergency.

- 5 -

GB/CY

IB_79840_SWEP500A1_GB_CY 04.01.2013 11:55 Uhr Seite 5

Risk of electric shock!

• Connect the mains-power adapter only to correctly installed and

earthed mains sockets. Ensure that the rating of the local power

supply tallies completely with the details given on the rating plate of

the appliance.

• Damaged adapters or mains cables should be exchanged immediately

by an authorised technician or the Customer Service in order to

avoid risks.

• Connection cables or devices that do not work perfectly or have been

damaged should be repaired or exchanged immediately by Customer

Services.

Never immerse the device in water! Simply wipe it with a slightly

damp cloth.

• Do not expose the wall wart to rain or use it in a damp or wet

environment.

• Ensure that the connection cable is never wet or damp when in use.

• You must not open or repair the device’s housing. This can be dangerous

and renders the warranty null and void.

• Protect the device from moisture and sprayed water. Therefore do not

place any objects filled with water (e.g. vases) on or near the device.

Risk of fire!

• Do not use the device near hot surfaces.

• Do not set the device up where it is exposed to direct sunlight.

This could cause it to overheat and damage it beyond repair.

• Never leave the device unattended during operation.

- 6 -

GB/CY

IB_79840_SWEP500A1_GB_CY 04.01.2013 11:55 Uhr Seite 6

• Never cover the device’s ventilation slots when it is switched on.

• Do not place open flames, such as candles, on or near the device.

Risk of injury

• Keep children away from the connection cable and device.

Children frequently underestimate the danger of electrical devices.

• If the device has fallen down or is damaged it must no longer be used.

Have the device checked by a qualified specialist and, if necessary,

repaired.

• Batteries must not be handled by children. Children can put batteries

in their mouths and swallow them.

If a battery has been swallowed, obtain medical assistance immediately.

Thunder storms!

Devices connected to mains power can be damaged during a thunder

storm. If there is a thunder storm, always remove the mains plug from

the socket.

Information on voltage surges

(EFT/electrical fast transient)

and electrostatic discharges:

If the product does not work properly due to electrical fast transient

processes (voltage surges) or electrostatic discharge, it must be

reset to restore normal operation. If necessary, remove the plug from

the power socket and insert it again. The batteries (if used) must be

removed and reinserted.

- 7 -

GB/CY

IB_79840_SWEP500A1_GB_CY 04.01.2013 11:55 Uhr Seite 7
