Silverline 196595 Manuale utente

Users Manual

32cc Backpack Brush Cutter

Product Code 196595

• This guarantee becomes effective at the date of retail purchase.

PLEASE KEEP YOUR RECEIPT.

• If this product develops a fault within 30 days of purchase, return it to the

stockist where it was purchased, with your receipt, stating details of the fault.

You will receive a replacement or refund.

• If this product develops a fault within 1 year of purchase return it to;

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU

Include your original receipt, details of the fault, your name and address, place and

date of purchase. We do not refund carriage. All product should be in a suitably

clean and safe state for repair, and should be packaged carefully to prevent damage

or injury during transportation. We may reject unsuitable or unsafe deliveries.

• You must provide proof of purchase before any work can be carried out.

• All work will be carried out by Silverline Tools or its authorised repair agents.

• Any parts which are replaced will become the property of Silverline Tools.

• The repair or replacement of the product will not extend the period of guarantee.

• The repair or replacement of your product under guarantee provides beneﬁts which

are additional to and do not affect your statutory rights as a consumer.

What is covered:

• The repair of the product, if found to be defective due to faulty materials or workmanship

within 1 year of purchase. If any part is no longer available or out of manufacture,

Silverline Tools will replace it with a functional replacement part.

• Use of the product in the UK.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

• Normal wear and tear e.g. blades, brushes, belts, bulbs, batteries etc.

• Accidental damage, faults caused by negligent use or care,

misuse, neglect, careless operation or handling of the product.

• Use of the product for anything other than normal domestic purposes.

• Change or modiﬁcation of the product in any way.

• Use of parts and accessories which are not Silverline Tools genuine components.

• Faulty installation (except installed by Silverline Tools).

• Repairs or alterations carried out by parties other than

Silverline Tools or its authorised repair agents.

Silverline Tools 1 Year Guarantee

Thank you for choosing this product

INTRODUCTION

This manual is an integral part of the tool and should be kept

with it at all times. If the product is resold this manual should be

included in the sale.

Safety Messages:

A safety message is to alert you to potential dangers that could

hurt you or others. Each safety message is preceded by one of

three words DANGER, WARNING or CAUTION.

These Words Mean:

DANGER: YOU WILL BE KILLED OR SERIOUSLY INJURED IF

YOU FAIL TO FOLLOW THE INSTRUCTIONS.

WARNING: YOU CAN BE KILLED OR SERIOUSLY INJURED IF

YOU FAIL TO FOLLOW THE INSTRUCTIONS.

CAUTION: YOU CAN BE SERIOUSLY INJURED IF YOU FAIL

TO FOLLOW INSTRUCTIONS.

Each safety message tells you what the hazard is, what can

happen and what you can do to avoid and reduce injury.

There are other important messages preceded with the word

NOTICE.

NOTICE: MEANS YOUR TOOL OR OTHER PROPERTY

COULD BE DAMAGED IF YOU FAIL TO FOLLOW

INSTRUCTIONS.

The purpose of these messages is to help prevent damage to

you, your tool, other property and the environment.

GENERAL SAFETY INSTRUCTIONS

Even when used as prescribed it is not possible to eliminate all

residual risk factors. Use with caution.

Keep guards in position

• Always keep guards in position, in good working order, correctly

adjusted and aligned. Never attempt to use a tool without

any guards supplied with it.

Remove adjusting keys

• Always check to see that keys, adjusting wrenches and

screwdrivers have been removed from the tool prior to

use.

Clean work area

• Accidents occur where work areas are cluttered or dirty. Keep

work areas clear of any un-necessary obstructions at all times.

Avoid working in areas where the floor may be slippery.

Dangerous environment

• Do not use tools in damp or wet conditions, or expose

them to rain. Provide adequate surrounding work space for tools

where there is a risk of explosion or fire from combustible

material, flammable liquids, flammable gasses or dust of an

explosive nature.

Children & pets

• Children and pets should be kept at a safe distance from the

work area AT ALL TIMES. Make sure the workshop is child

proof; lock all tools away where children can’t get access to

them. Remove batteries from all cordless tools.

Use the correct tool

• Do not force or attempt to use a tool for any other

purpose than its intended use.

Wear correct clothing and footwear

• Do not wear loose, highly flammable clothing, neckties, jewellery

or other items which may get caught in moving parts. Wear non-

slip footwear, cover or tie back long hair. Use safety footwear if

necessary.

Protect your head

• Wear safety goggles at all times, every day glasses are not

designed to offer any protection when using this product.

Normal lenses are not impact resistant and could shatter. Use

an approved face or dust mask when operation creates dust.

Hearing protection must be used at all times as the tool noise

level exceeds 80dB (A). Use a hard hat where there is a risk

of falling objects or a possibility of striking you head on level

obstructions.

Protect your self from vibration

• Many hand held power tools create vibration. Vibration can

cause disease. Wearing gloves will help maintain good blood

circulation in the fingers.

Safe working practice

• Always keep both hands on the power tool when using it. Never

over reach. Keep a proper footing at all times to ensure correct

balance.

Accessories

• The use of any accessories other than those mentioned in this

instruction manual is strictly prohibited. The attempt to use other

accessories other than those already supplied with this tool

could be dangerous and will invalidate your warranty.

Never stand on your power tool

• Standing on your tool could cause serious injury if the

tool is accidentally tipped or if the cutting tool is accidentally

contacted. Do not store materials above or near to the tool so

that it is necessary to stand on the tool to reach them.

Switch off before connecting

• Ensure the engine is stopped before connecting any of

the accessories to the main body. If the power tool stops

unexpectedly make sure the engine is not running before

attempting to check the tool.

Check for damaged or missing parts

• Before each use check if any part of the power tool is damaged

or missing, check carefully that it will operate properly and

perform its intended function. Check the alignment of moving

parts for binding. Any guard or other part that is damaged

should be immediately repaired or replaced. Check any other

condition that may affect the safety of the tool. DO NOT USE IF

THE TOOL IS FOUND TO BE DEFECTIVE.

Direction of feed

• Feed work into the blade or cutter against the direction of

rotation of the blade or cutter only.

Running the engine:

• When the tool is new, run the engine at a moderate RPM

• Do not maintain high engine speed until the engine is run in.

• The engine will not be capable of developing maximum power

until the end of the running in period.

• When first using the tool, stop and make sure that all

nuts and screws are securely fastened and tighten them

as necessary.

Servicing:

• It is recommended that you get your tool serviced shortly after

its first use.

• From thereafter, service the product regularly.

• Do not attempt to alter any of the components of this tool. To do

so would not only INVALIDATE YOUR GUARANTEE BUT MAY

ALSO RESULT IN INJURY TO YOURSELF, OTHERS

AROUND YOU OR THE UNIT.

STORAGE

• When you finish working, clean the tool completely,

making sure there is no grass or dirt wrapped in the

cutting tools.

• Be aware not to hit or cut the fuel tank while you put it onto

the ground.

• Do not let the tool fall or it may be damaged.

• Store the tool away from direct sunlight.

• Do not store in a nylon bag as this can encourage the formation

of mould.

Whenever the machine is not in use for an extended period

of time, proceed as follows:

• Empty the fuel tank completely.

• Protect all metal engine parts from corrosion by coating them

with oil.

• Remove the spark plug, put a few drops of oil into the cylinder

and then pull the recoil starter 2 to 3 times in order to distribute

the oil evenly. Replace the spark plug.

Never leave the tool running unattended

• Always wait until the power tool has come to a complete stop

before leaving it.

WARNING: THIS MACHINE CAN CAUSE DEATH OR SERIOUS

INJURY. FOLLOW THE INSTRUCTIONS IN THIS BOOKLET AT

ALL TIMES.

CAUTION: ALWAYS WEAR THE CORRECT PERSONAL

PROTECTIVE EQUIPMENT FOR THIS PRODUCT. MAKE SURE

BEFORE USE THAT ALL PROTECTIVE EQUIPMENT IS IN A

GOOD WORKING ORDER AND FREE OF ANY DEFECTS.

PRIOR TO USE

THIS PRODUCT PRODUCES POISONOUS

EXHAUST FUMES AS SOON AS

THE ENGINE IS RUNNING. THESE

GASES MAY BE COLOURLESS AND

ODOURLESS. TO REDUCE THE RISK

OF SERIOUS OR FATAL INJURY,

NEVER RUN THE MACHINE INDOORS,

OR IN POORLY VENTILATED AREAS.

ENSURE PROPER VENTILATION WHEN

WORKING IN TRENCHES OR OTHER

CONFINED AREAS.

ADDITIONAL SAFETY INSTRUCTIONS FOR BRUSH CUTTER

• Before using this brush cutter, make sure that you are familiar

with all aspects of the tool. Failure to understand all aspects of

this tool, its controls and limitations could result in serious injury

and or death.

• The brush cutter trimmer must NEVER be left

unattended.

• Never use this tool if it is not fully equipped or has been subject

to any modifications.

• Do not use this product when other people or animals are in the

close vicinity of the work area.

• Check all attachments prior to use for excessive wear or

damage. If on inspection the head of the attachment is showing

signs of wear or damage; do not use.

• Check that the machine is free from grass/brush build

up before use.

• When transporting the tool it is vital that the engine is switched

off and all attachments are separated from the main body of the

tool.

• Make sure that when using, the tool is held properly in both

hands at all times.

• Be aware of the cutter head and the direction you are cutting in.

• Never attempt to use this product with the cutting blade working

towards you.

• Be aware of rebounds, kickback and any foreign objects that

may be thrown up when using this product.

• Do not attempt to repair this machine.

• This tool should be stored in a safe dry location. Before putting

the tool into storage ensure that the built up pressure in the fuel

tank is released by slowly opening the fuel cap. To prevent

potential fire hazards this tool should be stored at least 3m away

from any flammable materials.

WARNING: THIS MACHINE CAN CAUSE DEATH OR SERIOUS

INJURY. FOLLOW THE INSTRUCTIONS IN THIS BOOKLET AT

ALL TIMES.

CAUTION: ALWAYS WEAR THE CORRECT PERSONAL

PROTECTIVE EQUIPMENT FOR THIS PRODUCT. MAKE SURE

BEFORE USE THAT ALL PROTECTIVE EQUIPMENT IS IN A

GOOD WORKING ORDER AND FREE OF ANY DEFECTS.

PRIOR TO USE

CAUTION: Before using this machine a check should be performed

on all of the points listed below. It is important to check before

use that the product is in good working order. If any defects are

detected, the brush cutter should not be used.

• Check all screws and fixings.

• Check the main body of the tool. A full inspection of the main

body of the tool is required before every use. Check the fuel

tank and cap are in a good working condition, and that the seal

around the fuel cap is air tight. Check the triggers are intact and

the shaft is free from defects.

• Check the head for wear and tear. If the head is showing signs of

wear and tear the head should not be used.

ASSEMBLY

Assembling drive shaft

• Insert the flexible shaft into the pipe of the drive shaft

and tighten the joint pipe bolt using the hex key provided.

NOTE: Make sure to align the square end of flexible inner shaft with

square hole of drive shaft by slightly rotating drive shaft, so they are

connected firmly.

• Lift the sprung holding pin (Fig.A).

• Insert flexible shaft, ensuring square shaft is inserted into square

hole in clutch case.

• Ensure that holding pin engages with hole in flexible

shaft coupling.

Attaching throttle cable and stop cord

• Put throttle cable and stop cord through cable passage of

shaft grip, then connect each terminal of stop cord with

corresponding engine terminals (Fig.B).

• Pass throttle cable through cable guide.

• Remove air filter cover

• Place throttle cable in carburettor attachment. Ensure that the

end of the throttle cable seats within recess in carburettor

attachment (Fig.C).

• Adjust tension assembly until slack is removed from

throttle cable. Screw lock nut out until tight against cable guide.

• Finally clamp the connected throttle cable and stop cord

together to flexible shaft with two wire clamp bands provided.

• Replace air filter cover (Fig.D).

Fitting the handle

• Remove the handle bracket (Fig.E).

• Position the handle on the shaft and loosely fasten in place

with the handle bracket.

• Adjust the position of the handle to a comfortable working

position and tighten.

Holding pin

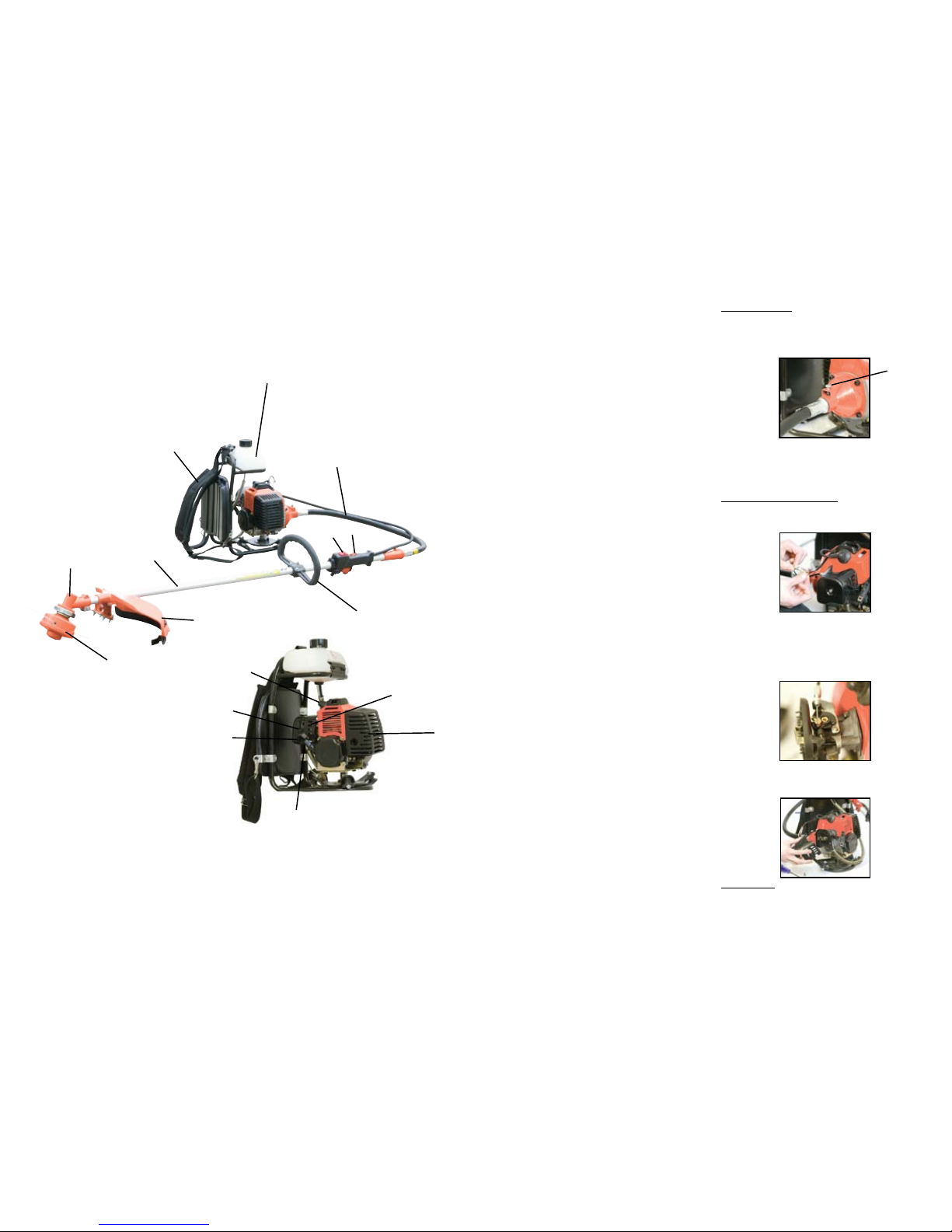

Product Familiarisation

32cc Backpack Brush Cutter

1. Harness

2. Fuel tank

3. Flexible shaft

4. On/Off switch

5. Lock off switch

6. Auxiliary handle

7. Drive shaft

8. Cutter cover

9. Cutter assembly

10. Blade/trimmer spool

11. Spark plug

12. Starter re-coil

13. Fuel primer bulb

14. Air filter

15. Choke lever

16. Exhaust cover

10.

8. 6.

11.

15.

12.

14.

16.

13.

SPECIFICATION:

Fuel ratio: 25:1

Motor: Air cooled 2 stroke

Fuel type: Unleaded 2 stroke

Fuel capacity: 1Ltr

Power: 850W

Cutting width: 255mm

Spark plug: BM6A

Max speed: 8500RPM

Max torque: 1.4N/m

No load speed: 1000RPM

Sound pressure: 100dB

Sound power: 110dB

Weighted vibration: 7.5m/s2

Fig.A

Fig.B

Fig.C

Fig.D

OPERATING INSTRUCTIONS

NOTE: Adjust shoulder belt length before starting engine to ensure

a comfortable working position.

Filling with fuel

NOTE: This engine uses a fuel mix of 25 parts of regular gasoline

to 1 part of two stroke oil.

• The fuel should be premixed prior to pouring into the fuel tank.

• It is recommended a quality two cycle oil be used in the fuel mix.

WARNING:Failure to mix oil with gasoline will result in seizure and

severe damage to the engine.

• Be sure to check bolts and other fasteners to see if any of them

have become loose or missing.

Starting the brush cutter

• Move the throttle lever to start position (Fig.M).

WARNING: To ensure the blade does not turn when starting the

machine, check the throttle lever is at a low setting.

• Do not wrap starting rope around your hand.

• Always guide starting rope back into holder to prevent

damage to the starting mechanism.

• Set the choke lever to CLOSE (Fig.N).

• Pull the recoil starter briskly, taking care to keep firm hold

of the machine.

• When you hear the engine fire, move the

choke lever back to the open position.

• Then pull the recoil starter briskly, the engine should start

after 5 or 6 pulls.

• After starting the engine, allow it 2 to 3 minutes to warm up

before subjecting it to any load.

• Lock off switch must be depressed to release throttle trigger.

WARNING: The blade may turn and the flexible shaft may swing

as the engine starts. Do not let the blade touch any object when

engine starts.

Adjustments

• Idle speed can be adjusted by the adjustment screw.

• If the blade keeps turning at idling speed, turn the idle speed

screw counter-clockwise (Fig.O).

Cutting

• The blade turns counter-clockwise, therefore operate the

cutter from right to left for efficient cutting.

• When working on a slope. The blade should follow the contour

of the slope from top to bottom

WARNING: If the cutter should strike against stones or the like, stop

engine and cutter and make sure that the cutter and related parts

have not been damaged.

NOTE: When grass or vine twines round the cutter, stop the engine

and blade and remove grass or vine.

Stopping

• Decrease the engine speed, and depress the stop button

until engine had stopped (Fig.P).

CAUTION: Silencer and engine cover will remain hot for some time

after operating. Allow all parts to cool before handling.

MAINTENANCE

CAUTION: Before performing any maintenance or cleaning

procedures, ensure that engine has stopped, and that all engine

parts have fully cooled.

Cleaning

• Remove spark plug, and clean carbon deposits from spark

plug gap.

(Proper spark plug gap is 0.6mm or 0.023")

• Clean the cylinder exhaust port and silencer.

• Remove any grass or dust that has entered into the cylinder

cover or the fan case cover.

NOTE: If not removed it may cause over heating or fire.

• Inspect carefully for any fuel or oil leaks.

• Check all nuts, bolts, screws etc, making sure they are

tightened and secured as they should be.

• When lubricating flexible shaft, apply grease in the flexible

pipe of the clutch side.

NOTE: It is recommended to apply grease regularly.

Cleaning the filter

• Remove the set screw from air filter cover.

• Remove filter cover.

• Remove filter element.

• Filter can be cleaned with a water/detergent mixture.

• Add a few drops of light oil to the filter element,

and re-assemble.

Storage

• Completely drain the fuel out of the tank and the carburetor.

• The engine should be stored higher then the gear box.

• Clean the unit carefully and keep it from moisture.

CAUTION: Before performing any maintenance or cleaning

procedures, ensure that engine is stopped, and that all engine parts

have fully cooled.

Stop button

Safety cover

• Install the safety cover on the shaft with the safety cover bracket

and the screws provided.

• Tighten the screws after setting the safety cover bracket at the

appropriate position.

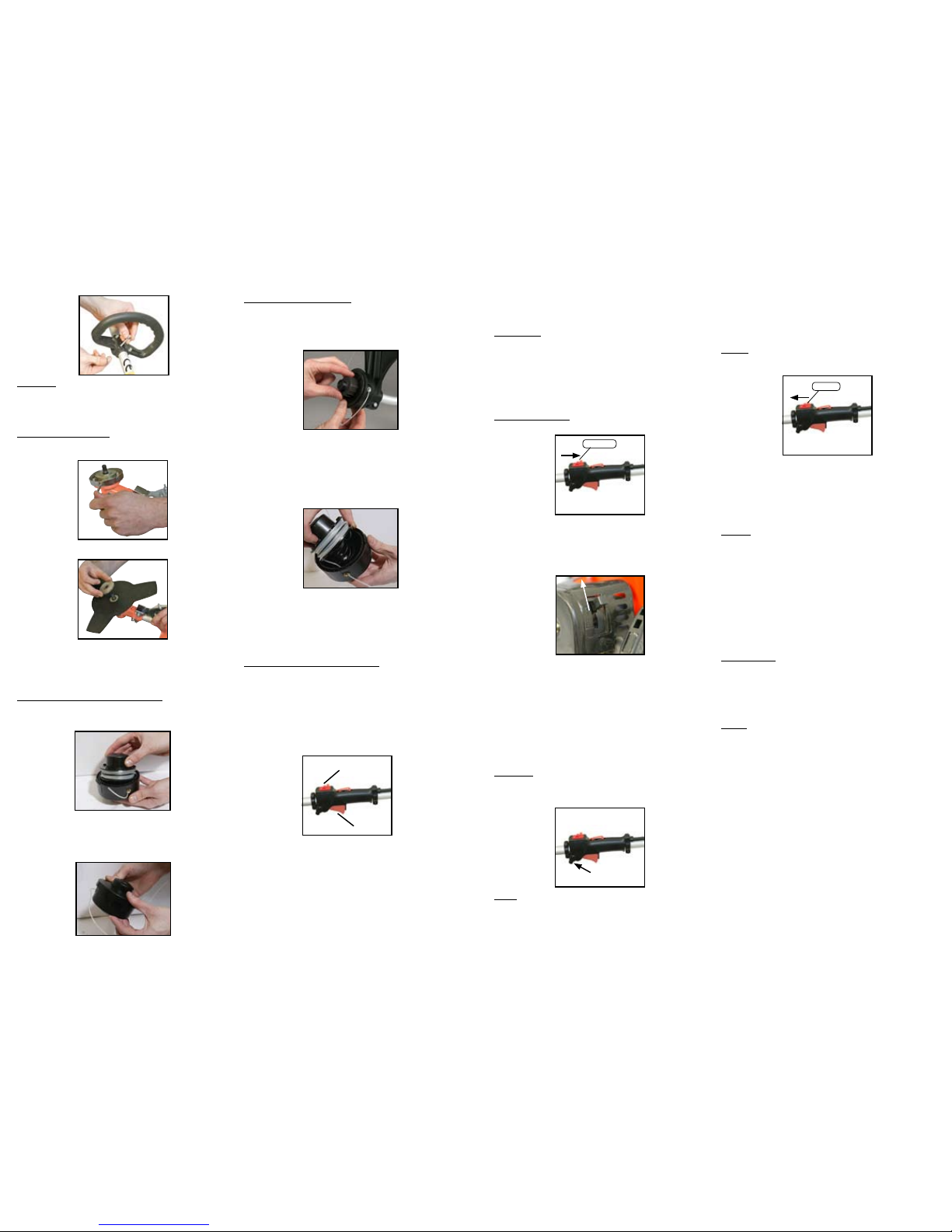

Installing/Removing the blade

• When installing or removing a blade, lock cutter holder with lock

handle to tighten or to untighten (Fig.F).

• When installing a steel blade, fit the blade as show below (Fig.G).

NOTE: As the blade fixing bolt is left threaded, turn it

counter-clockwise.

WARNING: Always wear protection when performing this task.

Always ensure that engine is stopped completely before removing

the blade.

Fitting the cutting line and spool assembly:

• Ensure that the cutting lines are correctly threaded through the

holes in the spool cover.

• Push the spool and line assembly onto the spindle (Fig.H).

• Make sure that the hexagonal recess on the spool is fully

located on the hexagonal section on the spindle.

• Secure the spool and line assembly by screwing the bump knob

onto the end of the spindle (Fig.I).

• Tighten the bump knob using the spanner provided.

Replacement of the cutting line:

• Stop the engine

• Put the tool on the floor in a way that the cutting line and spool

assembly are facing up.

• Open the cutting line and spool assembly by using the spool

removal spanner, twisting the bump knob anti-clockwise.

• Pull the bump knob out of the spool head and remove the

remaining cutting line (Fig.J).

• Cut the new line, Ø2mm and 6 meters long on two equal

lengths. Make a loop folded at each end of the two nylon

threads (already cut) and insert into one of the slots provided in

the center of the spool and wrap the line firmly clockwise.

• Introduce each end of the line to the eyelets in the spool holder (Fig.K).

The line should stick out 150mm each side.

• Screw the bump knob back on the shaft firmly.

CAUTION: After changing the line spool, run the tool under no load

for at least a minute to make sure that the line and the tool are both

operating correctly.

WARNING! NEVER use steel threads and/or three teeth other

than that provided by the manufacturer. Always use tools in perfect

condition, free of damage.

Installation of throttle lever and stop switch

• The throttle lever and stop switch are temporarily assembled

together, so they should be dissembled first.

• As you dis-assemble the throttle lever assembly, familiarise

yourself with the arrangement of its components.

• Put the round head of the throttle cable and throttle cable

together into the handle channel.

• Locate round head of throttle cable in corresponding hole in

throttle trigger.

• Re-assemble throttle handle and stop switch, ensuring all screws

and parts are secure (Fig.L).

Start position

Idle

adjustment

Fig.F

Fig.G

Fig.H

Fig.I

Fig.J

Stop switch

Throttle

trigger Fig.L

Fig.M

Fig.N

Fig.O

Fig.P

Fig.K

Fig.E

TROUBLE SHOOTING GUIDE

PROBLEM POSSIBLE

CAUSE

REMEDY

Power loss or

sudden stopping

of the engine.

Is there fuel in the

tank?

Refill the fuel tank

Two-stroke mixture not

reaching the engine?

Clean fuel filter.

Is there water in the

fuel?

Drain and rinse the fuel

system.

Is the air filter dirty? Clean air filter.

Carbon deposits in the

cylinder exhaust pipe

or muffler

Clean the pipe and/or

change the muffler.

There is no spark from

the spark plug

Check and or replace

the spark plug

The spark plug gap

is wrong

Adjust the spark

plug gap

Bad quality cut. Overloaded cutting,

grass too high or too

thick for engine to cut.

Work on small areas.

Organic material

wrapped around the

cutting tool.

Clear the organic

material from the

cutting tool.
