Sim-Lab QUAD ADD-ON Manuale utente
QUAD ADD-ON
VERSION 1.0
Last updated: 21-12-2021
INSTRUCTION MANUAL
2|2 11
BEFORE YOU START:
Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions
on assembly. This requires only a set of simple tools and some of your time. Please check the bill of
materials before starting (page 10) and make sure all the parts are delivered.

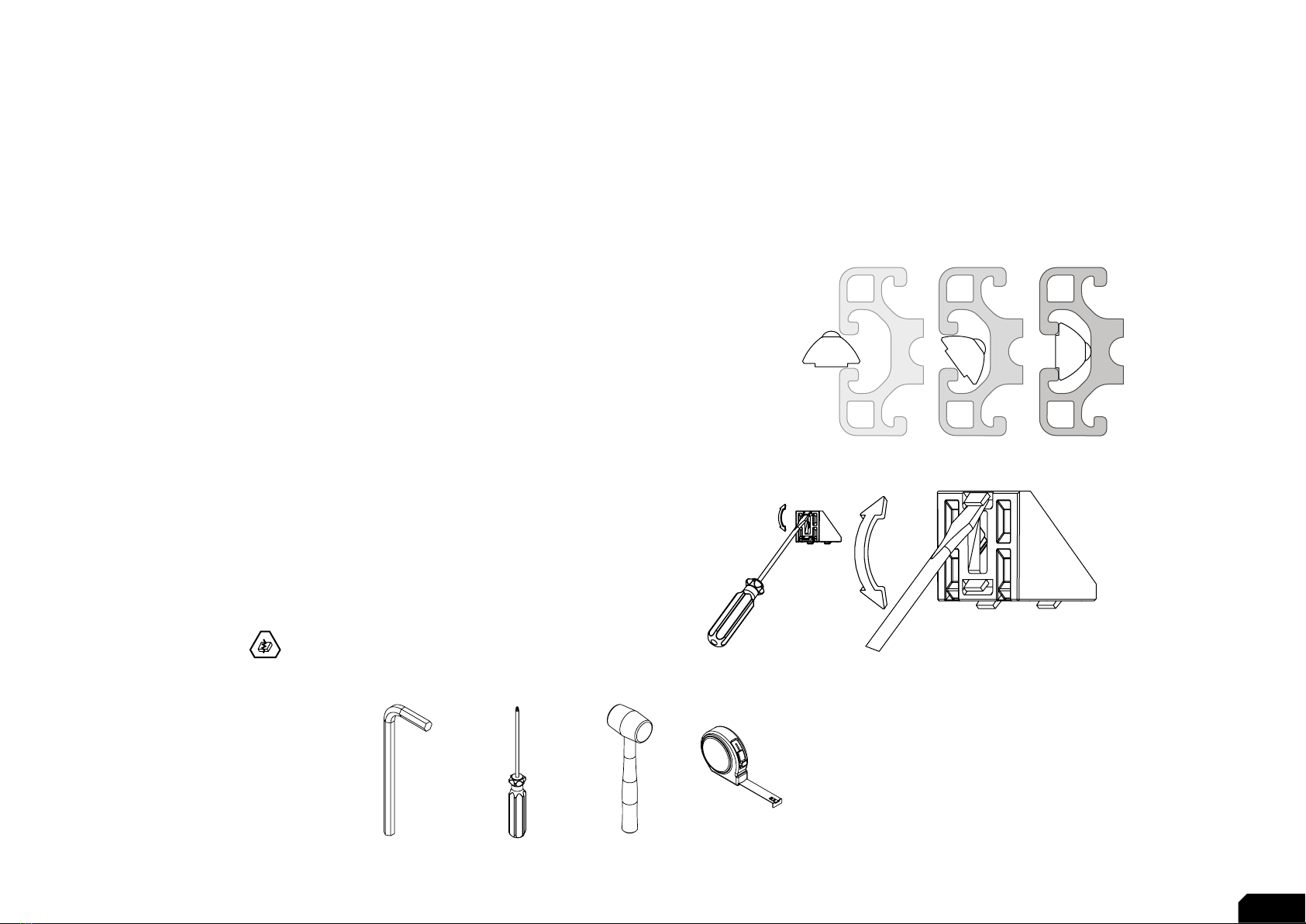

Breaking tabs:
Sometimes tabs from corner brackets need to be broken off in
order to fit as instructed. Place a flathead screwdriver behind
the tab and tilt upwards.
Always make sure to point away from you while doing so.
To know when to do this, we will show the following
symbol next to the brackets.

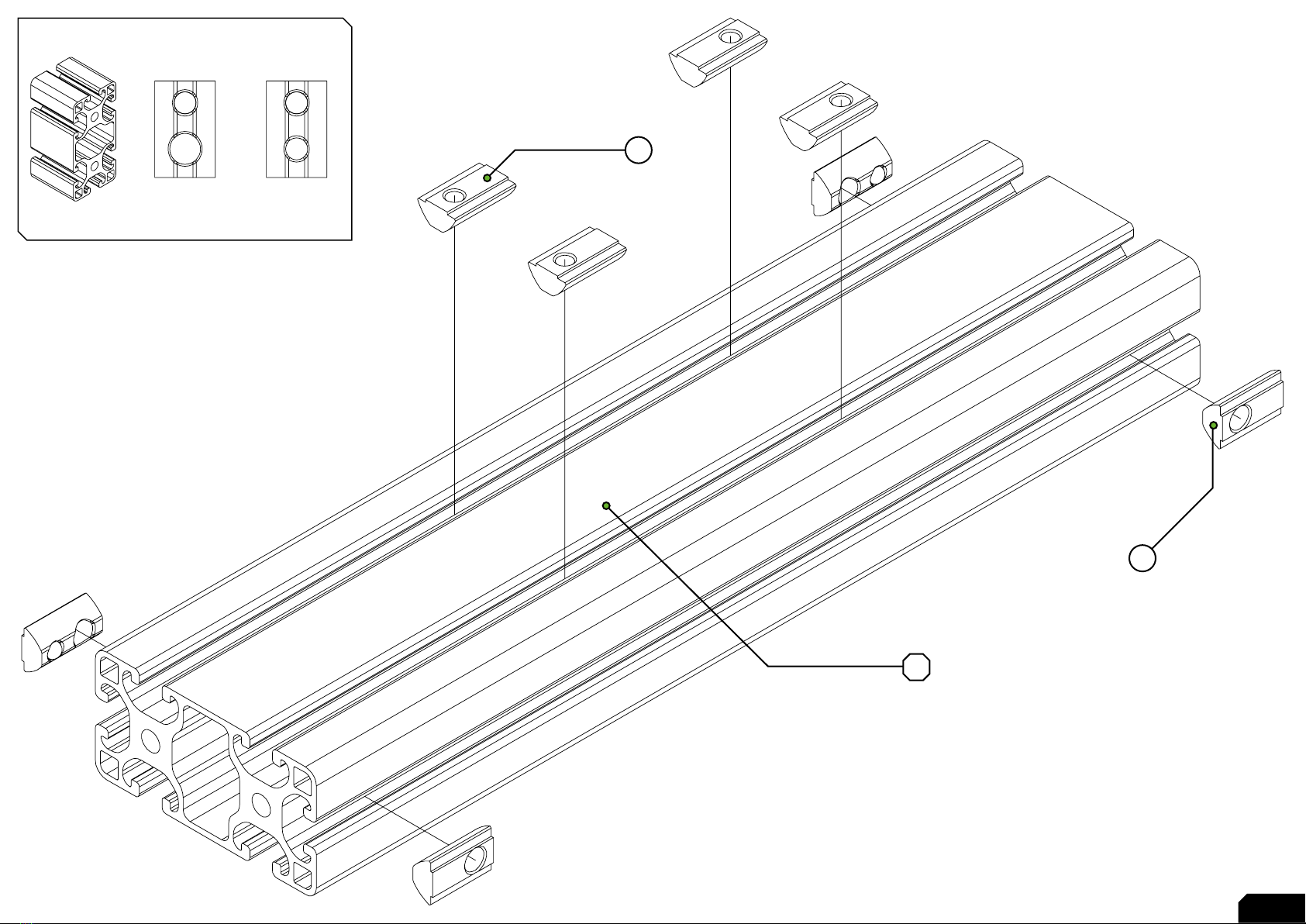

Inserting Slot-Nuts:
You got excited, finished the build, put the caps on, but forgot to install
one element. Do not worry. It happens to everyone. In this diagram, you
can see how to insert a Slot-Nut directly into the slot from the side.
You can also use one of your smaller Hex wrenches to help wiggle
the Slot-Nut in place.
Tools needed:
+
4/6MM
3|3 11
320MM
1X
Slot-Nut M8
4X 4X
Slot-Nut M6
(A15)
A15
P1
A14
4|4 11
Corner
Bracket
4X
M8 X 16
4X
A5
A8
5|5 11
BUILD 2X
320MM
1X
Slot-Nut M8
4X
Profile
End-Cap
2X
A7
A14
P2
6|6 11
M8 X 16
4X
A8
7|7 11
Corner Bracket
Cap
4X
VESA
1X
M6 X 16
4X
A3
A9
A6
8|8 11
320MM
1X
Slot-Nut M8
4X
Profile
End-Cap
1X
M8 X 16
2X
Corner
Bracket
2X
BUILD 2X
A5
A14
A7
A8
P2
9|9 11
Pivot Plate
2X
M8 X 16
8X
Washer M8
8X
A8
A10
A4
10 |10 11
PROFILE KIT
#Part QTY Note
P1 80X40 Length=320mm 1
P2 40X40 Length=320mm 4
HARDWARE KIT
A3 VESA 200 adapter 1
A4 Pivot plate 1
A5 Corner bracket 40x40 8
A6 Corner bracket 40x40 cap 8
A7 Profile 40x40 end-cap 6
A8 Bolt M8 X 16 DIN 912 24
A9 Bolt M6 X 16 DIN 7991 4
A10 Washer M8 DIN 125-A 26
A11 Screw Philips M4 X 16 DIN 7985 4 Extra
A12 Screw Philips M4 X 10 DIN 7985 4 Extra
A13 Spacer male/female M4 X 10 4 Extra
A14 Slot-Nut M8 24
A15 Slot-Nut M6 4
Disclaimer: for some entries on this list, we supply more than required as spare
materials. Don’t worry if you have some leftovers, this is intentional.
