Sim2 GRAND CINEMA HT5000 Manuale utente

HT5000

DLP™VIDEO

PROJECTOR

RS-232C

CONTROL

SPECIFICATIONS

Document Revision 1.0 (15 February 2007)

HT5000

RS-232C CONTROL SPECIFICATIONS

Table of Contents

1. INTRODUCTION 3

2. CONNECTION 3

3. COMMANDS 4

4. EXAMPLE 5

5. WARNING 5

Revision History:

Revision Date Software Version Description of Change

1.0 15 February 2007 3.10.68 or higher Initial version.

HT5000

RS-232C CONTROL SPECIFICATIONS

1. Introduction

This document describes the communication and data formats used to control SIM2 HT5000 projector via

RS-232C port.

2. Connection

Switch off the Personal Computer and the Projector before connecting RS 232C cable.

Use a standard serial cable with 9 pin female to the Personal Computer and 9 pin male to the Projector: pin

2 connects to pin2, pin 3 to pin 3 and pin 5 to pin 5.

SIM2 HT5000 RS-232C Port is described as follows.

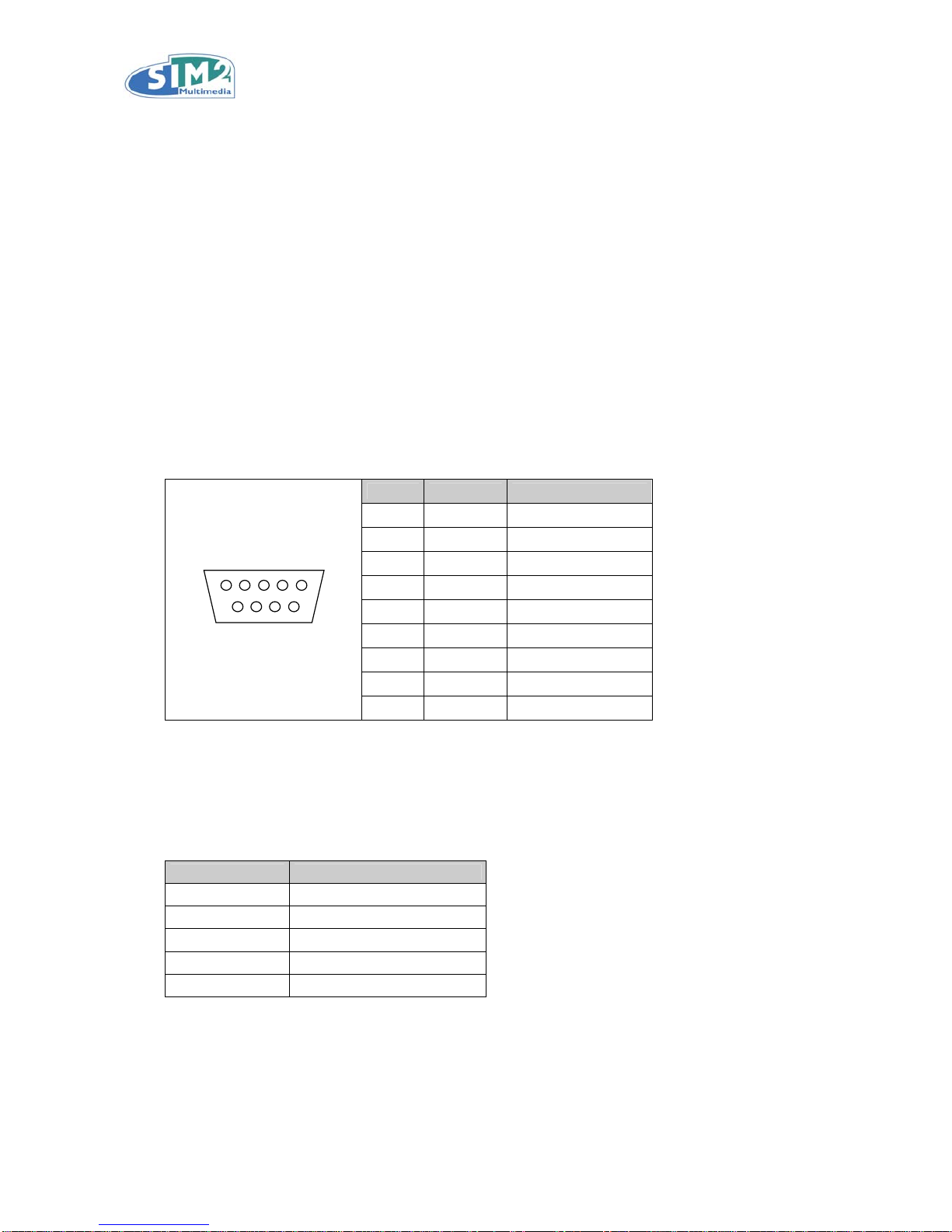

SIM 2 HT5000 RS-232C Control Port:

Pin No Signal Definition

1 N/A Not used

2 TD Transmit data

3 RD Receive data

4 N/A Not used

5 GND Ground

6 N/A Not used

7 N/A Not used

8 N/A Not used

D-SUB 9-pin

(female)

9 N/A Not used

Switch on the Personal Computer and, after start up, switch on the Projector.

Load a suitable communication software onto your Personal Computer, and set the Serial Port Parameters as

shown below.

Communication Parameters:

Parameter Value

Transfer Rate 19200 bps

Data Bits 8

Parity Bit None

Stop Bit 1

Flow Control None

Set Send Mode and Read Mode to HEX.

HT5000

RS-232C CONTROL SPECIFICATIONS

3. Commands

The following commands send simulated Remote Control input to SIM2 HT5000 projector.

Remote Control Keycodes:

Key Command

STANDBY BE EF 02 06 00 51 E4 48 01 00 00 00 00

0 / ON (1) BE EF 02 06 00 6B E6 52 01 00 00 00 00

1 (2) BE EF 02 06 00 80 E5 49 01 00 00 00 00

2 (2) BE EF 02 06 00 B3 E5 4A 01 00 00 00 00

3 (2) BE EF 02 06 00 62 E4 4B 01 00 00 00 00

4 (2) BE EF 02 06 00 D5 E5 4C 01 00 00 00 00

5 (2) BE EF 02 06 00 04 E4 4D 01 00 00 00 00

6 (2) BE EF 02 06 00 37 E4 4E 01 00 00 00 00

7 (2) BE EF 02 06 00 E6 E5 4F 01 00 00 00 00

8 (2) BE EF 02 06 00 89 E7 50 01 00 00 00 00

9 (2) BE EF 02 06 00 58 E6 51 01 00 00 00 00

10 (3) BE EF 19 0A 00 E2 7E 00 00 09 00 00 00 00 00 00 00

11 (3) BE EF 19 0A 00 F7 3E 00 00 0A 00 00 00 00 00 00 00

12 (3) BE EF 19 0A 00 3B FF 00 00 0B 00 00 00 00 00 00 00

13 (3) BE EF 19 0A 00 DD BE 00 00 0C 00 00 00 00 00 00 00

14 (3) BE EF 19 0A 00 11 7F 00 00 0D 00 00 00 00 00 00 00

ESC BE EF 02 06 00 0D E6 54 01 00 00 00 00

CURSOR UP BE EF 02 06 00 DC E7 55 01 00 00 00 00

CURSOR LEFT BE EF 02 06 00 EF E7 56 01 00 00 00 00

CURSOR RIGHT BE EF 02 06 00 3E E6 57 01 00 00 00 00

CURSOR DOWN BE EF 02 06 00 C1 E6 58 01 00 00 00 00

MENU LEFT (-) BE EF 02 06 00 10 E7 59 01 00 00 00 00

MENU RIGHT (+) BE EF 02 06 00 23 E7 5A 01 00 00 00 00

FREEZE BE EF 02 06 00 F2 E6 5B 01 00 00 00 00

MEMORY BE EF 02 06 00 45 E7 5C 01 00 00 00 00

F1 BE EF 02 06 00 94 E6 5D 01 00 00 00 00

F2 BE EF 02 06 00 76 E7 5F 01 00 00 00 00

INFO BE EF 02 06 00 A7 E6 5E 01 00 00 00 00

AUTO BE EF 02 06 00 79 E2 60 01 00 00 00 00

ASPECT BE EF 02 06 00 A8 E3 61 01 00 00 00 00

HT5000

RS-232C CONTROL SPECIFICATIONS

(1)

- When the unit is in Standby state, this command switches the unit on and the last source memorised

prior to switch off is automatically selected.

- When the unit is On, this command displays the Source Selection windows of the OSD.

(2)

When the unit is in Standby state, this command switches the unit on and the corresponding source is

selected.

(3)

When the unit is in On, this command selects the corresponding source.

The response of the unit to a correct Remote Control Key Code consists of a single byte: 06.

4. Example

1. Send the simulated "SWITCH ON FROM STANDBY" Remote Control keycode.

Remote Control allows Switching on from Standby via the key "0".

Send the code relative to key "0":

BEEF0206006BE6520100000000.

The projector switches on and the last source memorised prior to switch off is automatically selected.

The projector returns the response code: 06 (Acknowledged with no error).

2. Send the simulated "MENU RIGHT" Remote Control keycode.

Send the packet:

BEEF02060023E75A0100000000.

The OnScreen Display appers on the screen.

The projector returns the response code: 06 (Acknowledged with no error).

5. Warning

Command execution time may vary from few milliseconds to 500 milliseconds, depending on the operation

that have been requested.

If the unit is busy when a command is sent, the unit may not accept the command. If several commands are

to be sent one after the other, sufficient time between them should be allowed.
